6457482-1 Overview

INTERCONNECTION DEVICE

6457482-1 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Connector type	INTERCONNECTION DEVICE

Preview

Download Datasheet

View All

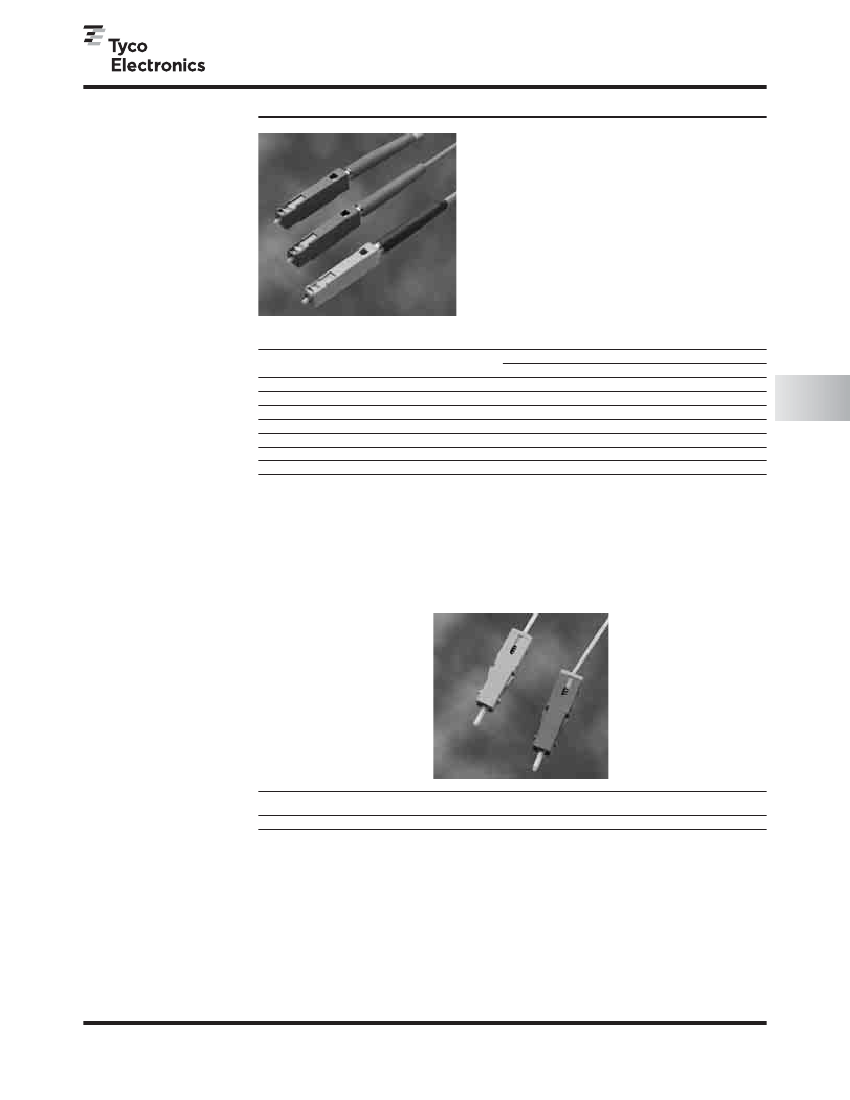

Fiber Optic Products Catalog

MU High Density Cable Assemblies

Product Facts

■

Can be used with MU

backplane connectors

(Z-PACK 2 mm HM type L

connector housings) for

complete backplane or

board to board solution

1.25 mm ferrule design

Polarized to ensure precise

insertion

High density (up to 8 lines

per module)

“Push Pull” (SC style)

latching mechanism

Fully compliant with:

■

1.25 mm ferrule design

IEC60917 and

IEC 61076-4-101

■

IEC 60874-1

■

CECC 86 305 801

(MU-APC)

■

JIS C-5970

■

I-ETS 300 671

■

IEC 61300

Cable Assemblies &

Backplane Interconnects

■

MU Cable Assemblies

Description

LC to MU Board Plug

Singlemode

900 µm

LC to MU 62.5/125 900 µm

MU to

SC Singlemode

900 µm

MU to

62.5/125 900 µm

MU to MU

Singlemode

Buffered

MU to MU

Singlemode

2 mm

MU to

SC Singlemode

2.0 mm

Other lengths

available

upon request.

1 Meter

6457327-1

6457328-1

6457329-1

6457330-1

6457482-1

6457523-1

6588145-1

Part Numbers

2 Meters

6457327-2

—

6457329-2

6457330-2

6457482-2

6457523-2

6588145-2

Meters

6457327-3

—

6457329-3

6457330-3

6457482-3

6457523-3

—

Performance Characteristics

Insertion Loss

—

Singlemode: 0.3 dB Max

<0.1 dB Typical

Multimode: 0.1 dB Typical

Return Loss

—

Singlemode: 55 dB - PC endface

Typical

>65 dB - APC endface

Multimode: 20 dB

MU Boardplug Pigtails

with Riser Cable

MU boardplug pigtails

are designed for use with

female Z-PACK 2 mm HM

housings on the daughter-

card. Available with 900 µm

buffered fiber and in

lengths of 1 meter as

standard, custom lengths

are available upon request.

Fiber Size

(µm)

9/125

Endface

Cable Type

900 µm pigtail

Length

(meter)

Part Number

5106751-1

Note:

All part numbers

are

RoHS compliant.

109

Catalog 1307895

Revised 11-07

www.tycoelectronics.com

Dimensions are in millimeters

and inches unless otherwise

specified. Values in brackets

are standard equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

Canada: 1-905-470-4425

Mexico: 01-800-733-8926

C. America: 52-55-1106-0803

South America: 55-11-2103-6000

Hong Kong: 852-2735-1628

Japan: 81-44-844-8013

UK: 31-73-624-6639
