Power entry modules without line filter
www.schurter.com/pg05
IEC Appliance Inlet C14 with Line Switch 1- or 2-pole
600-K
C14
70° C

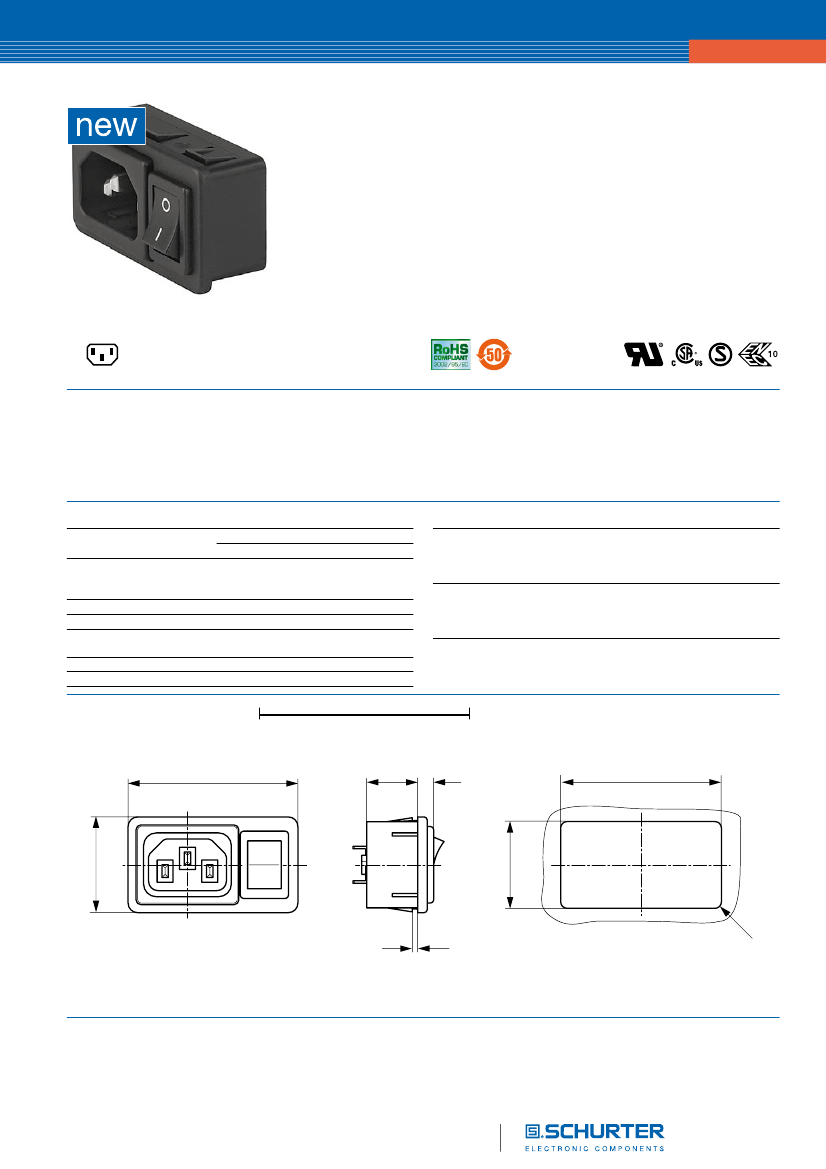

Description
- Panel Mount:
Snap-in version, from front side Appliance Inlet, Protection class I, Line
Switch 1- or 2-pole
Characteristics
References
Weblinks
- Line switch non-illuminated or illuminated
General Product Information
Approvals, RoHS, CHINA-RoHS, Mating Connectors, e-Store,
Distributor-Stock-Check, Accessories
Approvals
- UL License Number: E45115
- CSA License Number: 1406497
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
10 A / 250 VAC; 50 Hz
15 A / 250 VAC; 60 Hz
> 3 kVAC between L-N
> 1.5 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
from front side IP 20 acc. to IEC 60529
Suitable for appliances with protection
class 1 acc. to IEC 61140
Snap-in: 1/1.5/2/2.5/3 mm
UL 94V-0
Appliance Inlet
C14 acc. to IEC/EN 60320-1
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 10 A,
Protection Class 1
Rocker switch 1 or 2 pole, non-illumi-
nated or illuminated black, acc. to IEC
61058-1
Technical details
Line Switch
Allowable Operation Temp.
Degree of Protection
Protection Class
Panel Thickness s
Material: Housing
Dimensions
53.2 mm
53.2
16
5
50.4
- 0
+0.2
27.2
- 0
30
+0.2
R
<2
"X"
lenght of the terminal please find at the order code configuration table
Dimension "X" please ref. to table order code
Connectors
600-K
www.schurter.com/pg05
Config. Code
Power entry modules without line filter
Product Configurator
6010-K
|
-
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
P
|
The characters are placeholders for the correspondingly keys of selections from the key tables.
6010-K
|
-
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
P
|
= Terminals
Terminal L
short solder terminal (L=4,8mm)
long solder terminal (L=8,5mm)
blade terminal (2,8x0,8mm)
blade terminal (4,8x0,8mm)
blade terminal (6,3x0,8mm)
screw terminal
6010-K
|
-
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
P
|
= Color
Configuration
key
2
3
7
Color
jet black; RAL9005
silver grey; RAL7001
pure white; RAL9010
standard color: black
Configuration
key
A
B
D
8
9
A
6010-K
|
-
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
P
|
= Style
Style
snap-in (x=panel thickness)
Configuration
key
4
6010-K
|
-
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
P
|
= Terminals
Terminal N
short solder terminal (L=4,8mm)
long solder terminal (L=8,5mm)
blade terminal (2,8x0,8mm)
blade terminal (4,8x0,8mm)
blade terminal (6,3x0,8mm)
screw terminal
Symbols similar as in table A
Configuration
key
2
3
7
8
9
A
6010-K
|
-
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
P
|
= Dimension X
Dimension "X"
15
20
25
30
The dimension "X" is dispalyed in (
1
/
10
mm). This information is also valid for the
order code
Configuration
key
6010-K
|
-
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
P
|
= Terminals
Terminal Ground
short solder terminal (L=4,8mm)
long solder terminal (L=8,5mm)
blade terminal (2,8x0,8mm)
blade terminal (4,8x0,8mm)
blade terminal (6,3x0,8mm)
screw terminal
Symbols similar as in table A
Configuration
key
2
3
7
8
9
A
6010-K
|
-
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
P
|
= Features
Features
not used
Configuration
key
0
6010-K
|
-
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
P
|
= Latching Action Switch
Latching Action Switch
unipolar switch, 4,8mm blade terminal, black rocker
Configuration
key
2
3
4
5
6
7
8
9
6010-K
|
-
|
-
|
A
|
B
|
C
|
N
|
-
|
D
|
-
|
E
|
G
|
O
|
P
|
= Terminal Fuseholder
Terminal Fuseholder
without terminal
unipolar switch, solder terminal, black rocker
bipolar switch, 4,8mm blade terminal, black rocker
bipolar switch, solder terminals, black rocker
bipolar switch, 4,8mm blade terminal, rocker red illuminated
bipolar switch, solder terminal, rocker red illuminated
bipolar switch, 4,8mm blade terminals, rocker green illuminated
bipolar switch, solder terminals, rocker green illuminated
Configuration
key
0
Connectors
Power entry modules without line filter
www.schurter.com/pg05
Variants
Config. Code
6010-K--7770-A-4256
Description
6010-K, IEC Power Entry Module C14, 70°C, version: 1, L: blade terminal (2,8x0,8mm), N: blade terminal (2,8x0,8mm), ground:
blade terminal (2,8x0,8mm), fuseholder: without terminal, color: jet black; RAL9005, design: snap-in (x=panel thickness), dimen-
sion X: 25, features: not used, bipolar switch, 4,8mm blade terminal, rocker red illuminated
6010-K, IEC Power Entry Module C14, 70°C, version: 1, L: blade terminal (6,3x0,8mm), N: blade terminal (6,3x0,8mm), ground:
blade terminal (6,3x0,8mm), fuseholder: without terminal, color: jet black; RAL9005, design: snap-in (x=panel thickness), dimen-
sion X: 15, features: not used, bipolar switch, 4,8mm blade terminal, black rocker
6010-K, IEC Power Entry Module C14, 70°C, version: 1, L: blade terminal (6,3x0,8mm), N: blade terminal (6,3x0,8mm), ground:
blade terminal (6,3x0,8mm), fuseholder: without terminal, color: jet black; RAL9005, design: snap-in (x=panel thickness), dimen-
sion X: 25, features: not used, bipolar switch, 4,8mm blade terminal, black rocker
600-K
Order Number
4304.6045
6010-K--9990-A-4154
4304.6046
6010-K--9990-A-4254
4304.6047
The listet variants should be available from stock Other versions on request www.schurter.com/contact
Packaging unit
50 Pcs

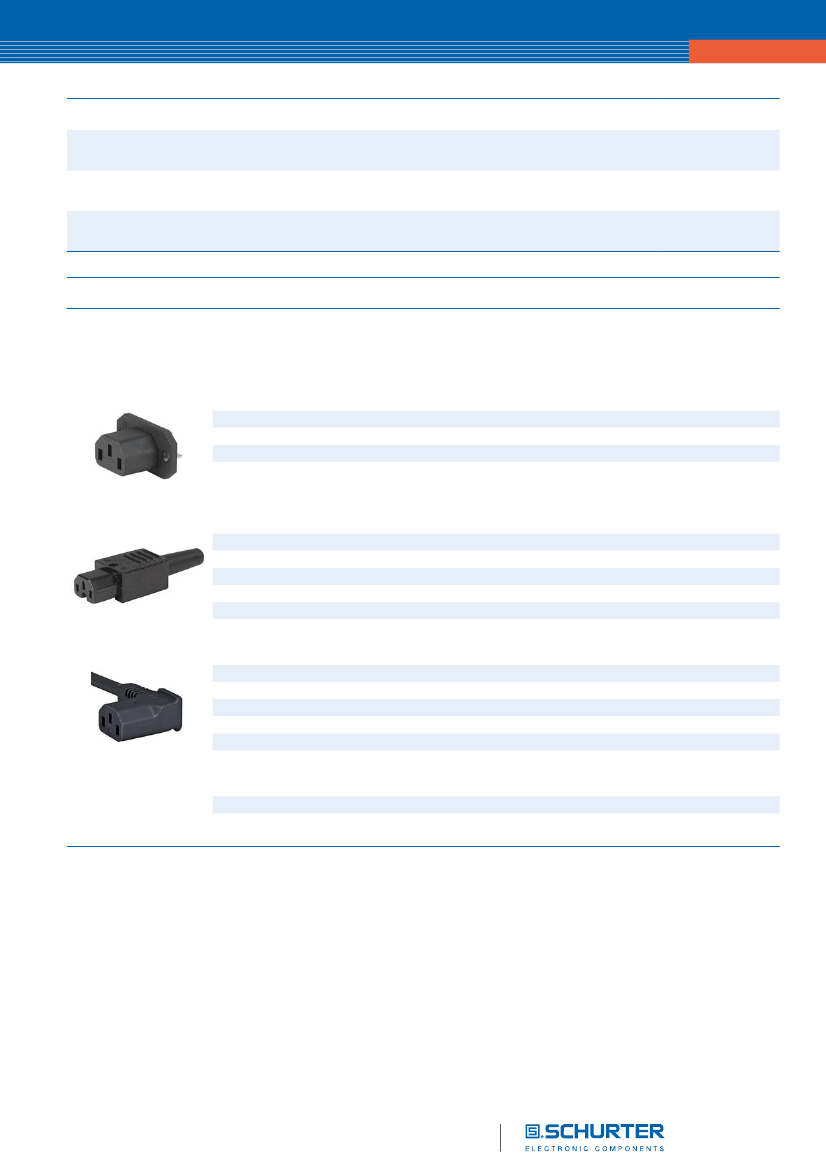

Mating Outlets/Connectors
Category / Description
Appliance Outlet Overview complete
IEC Appliance Outlet F, Screw-on Mounting, Front Side, Solder or Quick-connect Terminal
IEC Appliance Outlet F, Snap-in Mounting, Front Side, Solder or Quick-connect Terminal
IEC Appliance Outlet F or H, Screw-on Mounting, Front Side, Solder, PCB or Quick-connect Terminal
IEC Appliance Outlet F or H, Screw-on Mounting, Front Side, Solder or Quick-connect Terminal
Appliance Outlet further types to 6010-K
Connector Overview complete
IEC Connector C15, Rewireable, Straight
IEC Connector C15A, Rewireable, Straight
IEC Connector C15A, Rewireable, Straight
IEC Connector C15A, Rewireable, Angled
IEC Connector C13, Rewireable, Angled
Connector further types to 6010-K
Power Cord Overview complete
Power Cord with IEC Connector C13, Angled
Power Cord with IEC Connector C13, Angled
Power Cord with IEC Connector C13, Angled
Power Cord with IEC Connector C13, Angled
Power Cord with IEC Connector C13
Power Cord further types to 6010-K
Power Supply or Interconnection Cord Overview complete
Divers Power Supply and Interconnection Cords 10 A
Power Supply or Interconnection Cord further types to 6010-K
Kabelverbindung/10 A
0311
3011
3012
3013
3020
...
0101
0102
0102-G
0112
4012
...
4787
4788
5091
5092
