DHPL-44URL2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DHPL-44URL2

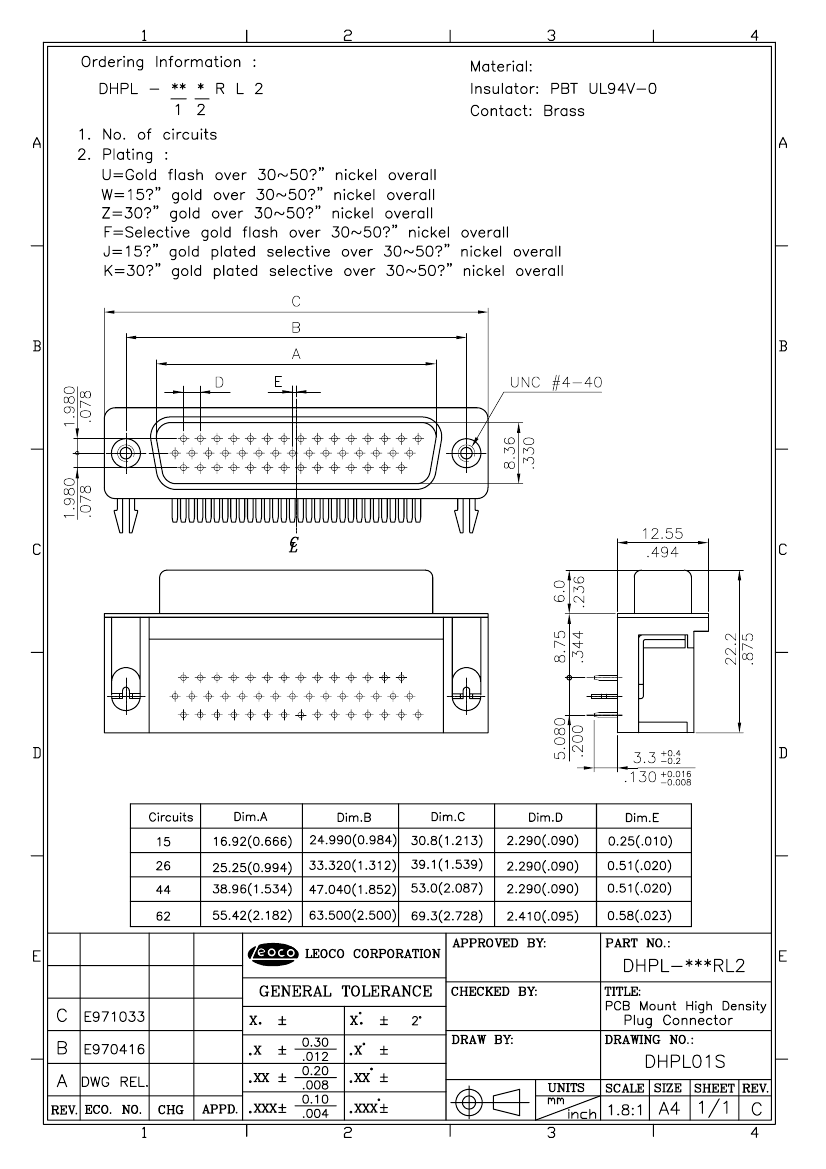

DHPL-44URL2: DescriptionD Type Connector, 44 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size82KB，1 Pages; ManufacturerLeoco USA Corp; Websitehttp://www.leoco.com.tw

Download Datasheet Parametric Compare View All

DHPL-44URL2 Overview

D Type Connector, 44 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, #4-40, Receptacle

DHPL-44URL2 Parametric

Parameter Name	Attribute value
Maker	Leoco USA Corp
Reach Compliance Code	unknown
body width	0.494 inch
subject depth	0.639 inch
body length	2.087 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DHPL
Plug contact pitch	0.09 inch
Match contact row spacing	0.078 inch
Installation option 1	#4-40
Installation option 2	FLUSH
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.13 inch
Terminal pitch	2.286 mm
Termination type	SOLDER
Total number of contacts	44

Preview

Download Datasheet

View All

DHPL-44URL2 Related Products

	DHPL-44URL2	DHPL-62ZRL2	DHPL-15ZRL2	DHPL-26JRL2	DHPL-26KRL2	DHPL-26WRL2	DHPL-26ZRL2	DHPL-26FRL2	DHPL-44FRL2	DHPL-44WRL2
Description	D Type Connector, 44 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, #4-40, Receptacle	D Type Connector, 62 Contact(s), Male, 0.095 inch Pitch, Solder Terminal, #4-40, Receptacle	D Type Connector, 15 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, #4-40, Receptacle	D Type Connector, 26 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, #4-40, Receptacle	D Type Connector, 26 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, #4-40, Receptacle	D Type Connector, 26 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, #4-40, Receptacle	D Type Connector, 26 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, #4-40, Receptacle	D Type Connector, 26 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, #4-40, Receptacle	D Type Connector, 44 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, #4-40, Receptacle	D Type Connector, 44 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, #4-40, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
body width	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch
subject depth	0.639 inch	0.639 inch	0.639 inch	0.639 inch	0.639 inch	0.639 inch	0.639 inch	0.639 inch	0.639 inch	0.639 inch
body length	2.087 inch	2.728 inch	1.213 inch	1.539 inch	1.539 inch	1.539 inch	1.539 inch	1.539 inch	2.087 inch	2.087 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DHPL	DHPL	DHPL	DHPL	DHPL	DHPL	DHPL	DHPL	DHPL	DHPL
Plug contact pitch	0.09 inch	0.095 inch	0.09 inch	0.09 inch	0.09 inch	0.09 inch	0.09 inch	0.09 inch	0.09 inch	0.09 inch
Match contact row spacing	0.078 inch	0.078 inch	0.078 inch	0.078 inch	0.078 inch	0.078 inch	0.078 inch	0.078 inch	0.078 inch	0.078 inch
Installation option 1	#4-40	#4-40	#4-40	#4-40	#4-40	#4-40	#4-40	#4-40	#4-40	#4-40
Installation option 2	FLUSH	FLUSH	FLUSH	FLUSH	FLUSH	FLUSH	FLUSH	FLUSH	FLUSH	FLUSH
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	3	3	3	3	3	3	3	3	3	3
Number of rows loaded	3	3	3	3	3	3	3	3	3	3
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Plating thickness	FLASH inch	30u inch	30u inch	15u inch	30u inch	15u inch	30u inch	FLASH inch	FLASH inch	15u inch
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Terminal length	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch	0.13 inch
Terminal pitch	2.286 mm	2.413 mm	2.286 mm	2.286 mm	2.286 mm	2.286 mm	2.286 mm	2.286 mm	2.286 mm	2.286 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	44	62	15	26	26	26	26	26	44	44
