74LVC157ADB-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 74LVC157ADB-T

74LVC157ADB-T: DescriptionMultiplexer, 4-Func, 2 Line Input, CMOS, PDSO16; Categorylogic logic; File Size336KB，8 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

74LVC157ADB-T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	74LVC157ADB-T	-	-	View	Buy Now

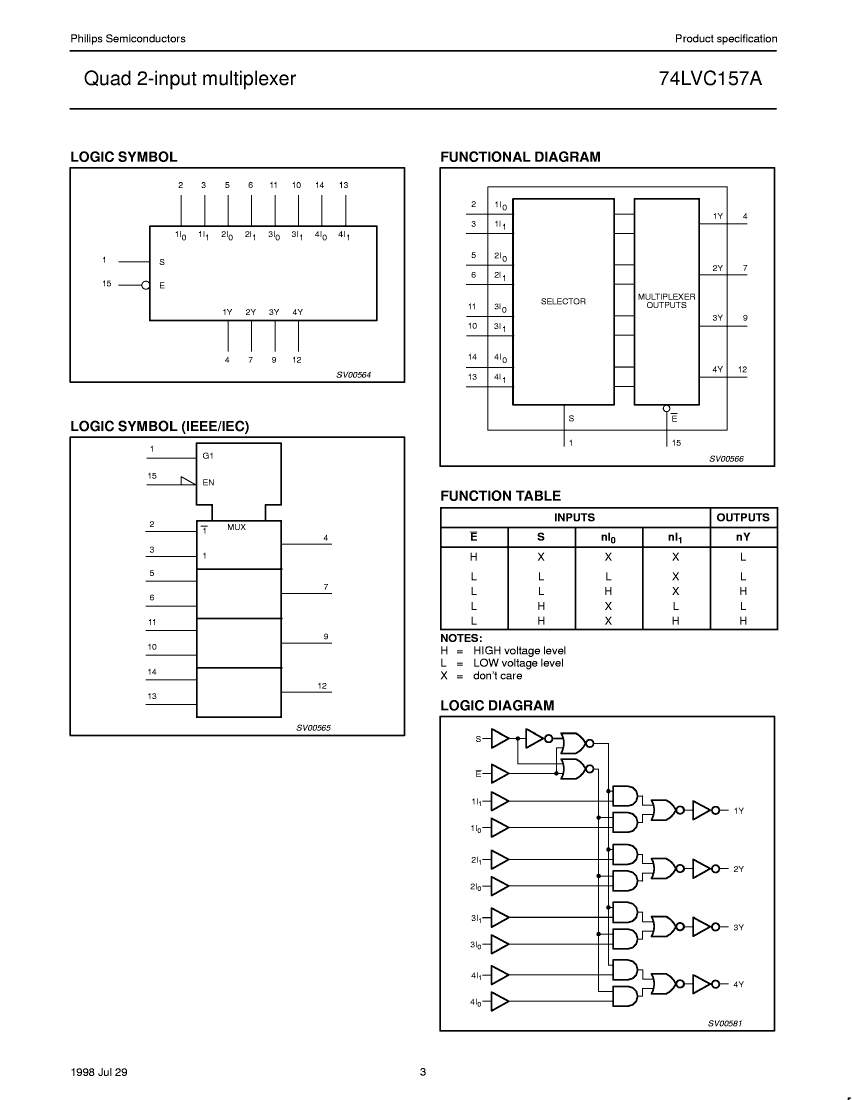

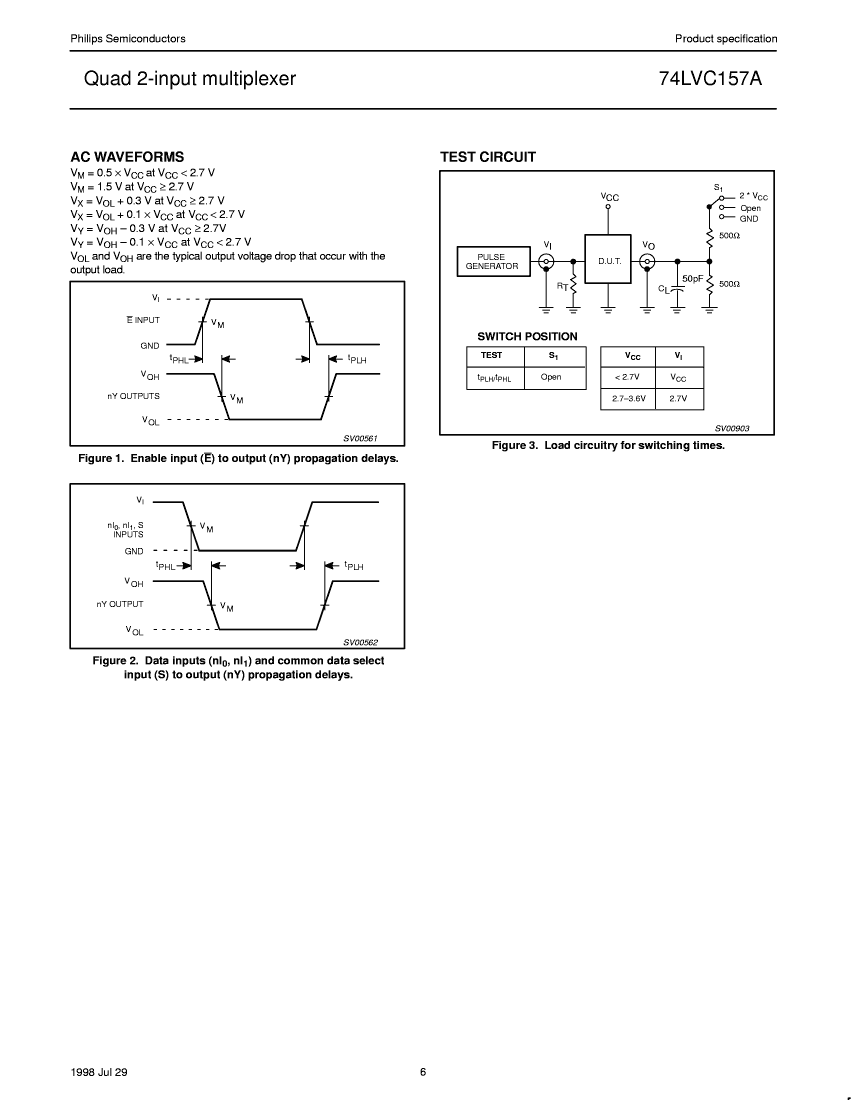

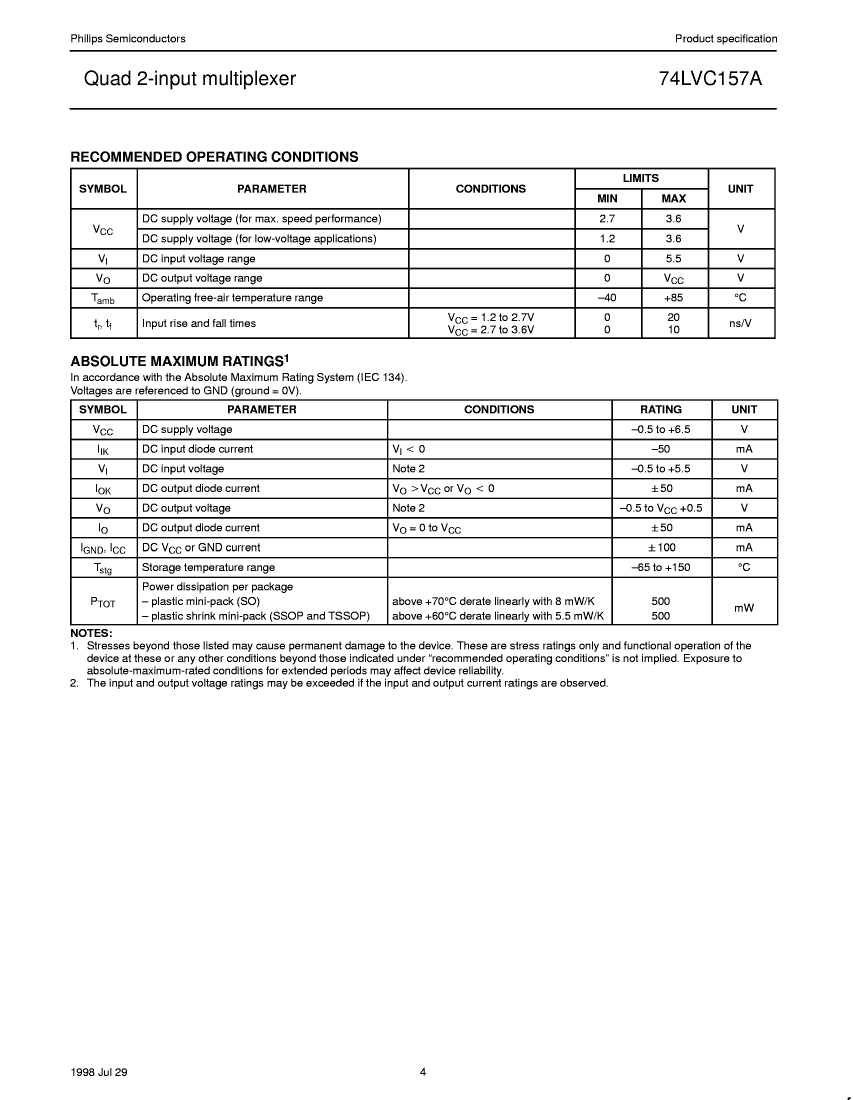

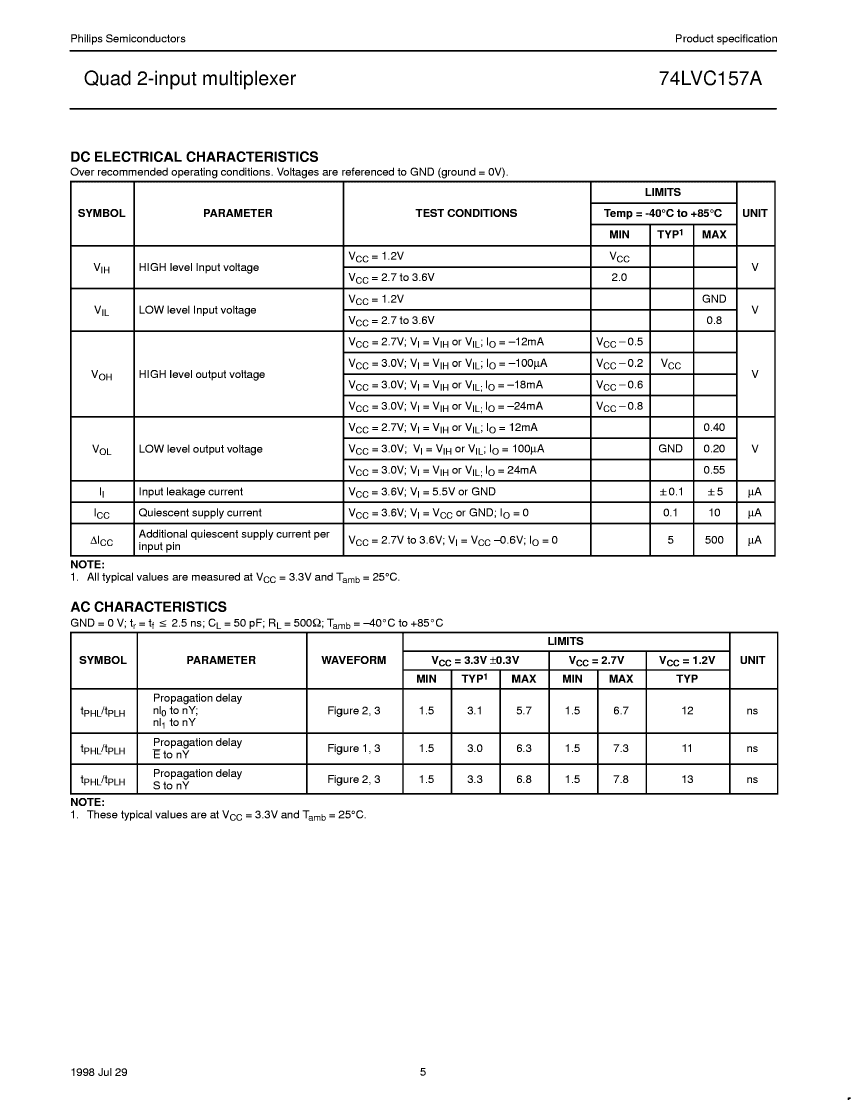

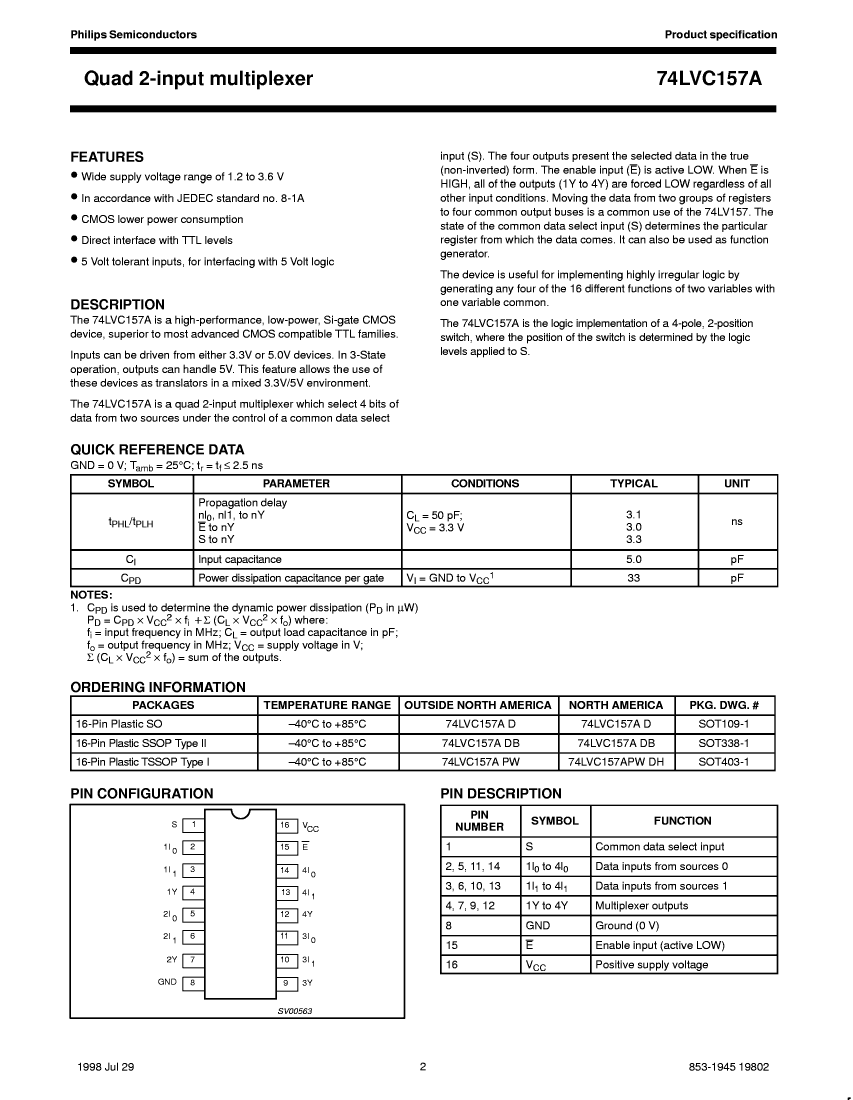

74LVC157ADB-T Overview

Multiplexer, 4-Func, 2 Line Input, CMOS, PDSO16

74LVC157ADB-T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	SSOP, SSOP16,.3
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G16
Load capacitance (CL)	50 pF
Logic integrated circuit type	MULTIPLEXER
MaximumI(ol)	0.024 A
Humidity sensitivity level	1
Number of functions	4
Number of entries	2
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SSOP16,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
method of packing	TAPE AND REEL
power supply	3.3 V
Prop。Delay @ Nom-Sup	5.7 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

74LVC157ADB-T Related Products

	74LVC157ADB-T	74LVC157AD-T	74LVC157APW-T
Description	Multiplexer, 4-Func, 2 Line Input, CMOS, PDSO16	Multiplexer, 4-Func, 2 Line Input, CMOS, PDSO16	Multiplexer, 4-Func, 2 Line Input, CMOS, PDSO16
Is it Rohs certified?	conform to	conform to	conform to
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	SSOP, SSOP16,.3	SOP, SOP16,.25	TSSOP, TSSOP16,.25
Reach Compliance Code	unknown	unknown	unknown
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16
Load capacitance (CL)	50 pF	50 pF	50 pF
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
MaximumI(ol)	0.024 A	0.024 A	0.024 A
Number of functions	4	4	4
Number of entries	2	2	2
Number of terminals	16	16	16
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SOP	TSSOP
Encapsulate equivalent code	SSOP16,.3	SOP16,.25	TSSOP16,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
power supply	3.3 V	3.3 V	3.3 V
Prop。Delay @ Nom-Sup	5.7 ns	5.7 ns	5.7 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	0.635 mm	1.27 mm	0.635 mm
Terminal location	DUAL	DUAL	DUAL
Humidity sensitivity level	1	1	-
