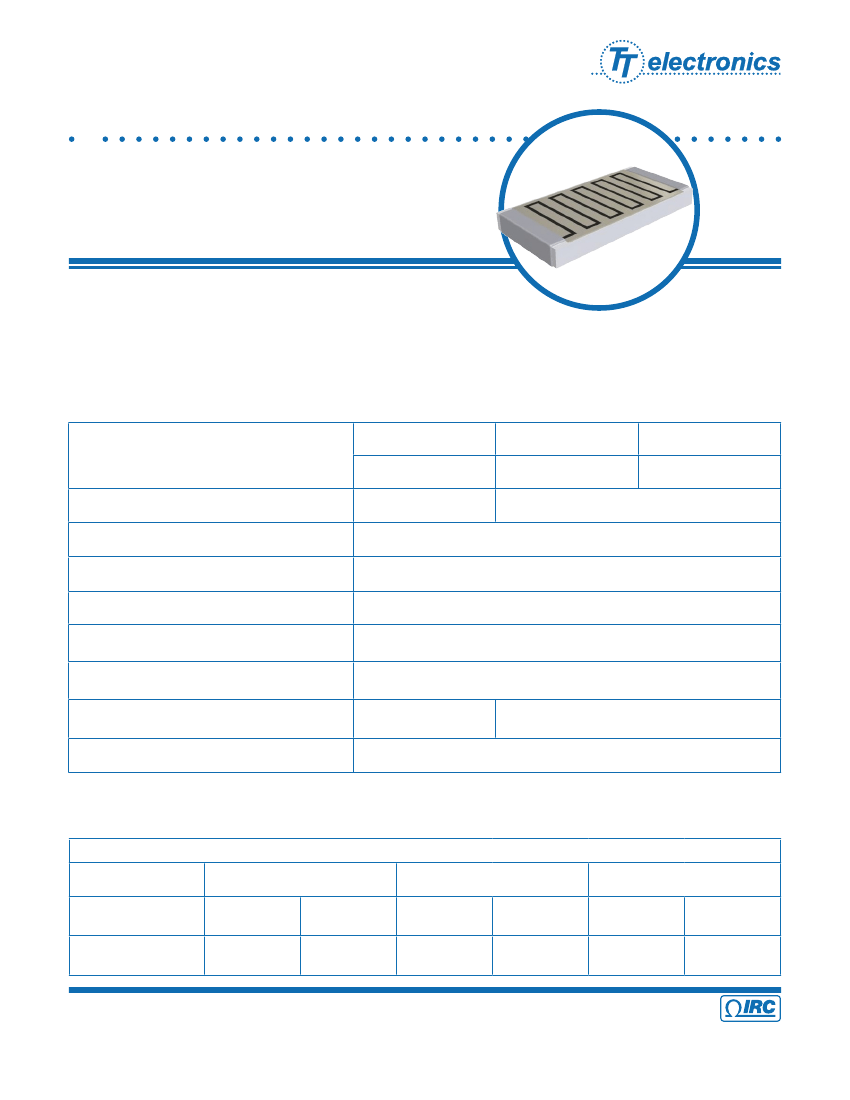

Platinum Temperature
Sensor Chip
PTS Series
•
High stability thin film Platinum sensor
•
High resolution, accuracy and interchangeability
•
Compatible with automatic placement equipment
•
Wide temperature range - very fast response time
•
Surface mount package with Pb-free terminations
The temperature sensor is a conventional thin film platinum RTD in a surface
mount package designed for temperature sensing, over-temperature protection and temperature compensation
in any application where printed circuit board temperature sensing is desired.
Electrical Data
P0603
Self Heating at 0°C
0.8°C/mW
Available Resistances at 0°C
Temperature
Tolerances
Operating Temperature Range
Temperature Coefficient
Insulation Resistance
Recommended Measuring Current To
Minimize Self Heating Error
Long Term Stability (130°C)
Termination
* Temperature coefficient in accordance with IEC751
P0805
0.8°C/mW
100Ω, 1000Ω
Class B = ±0.3°C @ 0°C (R
0
±0.12%)
Class 2B = ±0.6°C @ 0°C (R
0
±0.24%)
P1206
0.4°C/mW
1000Ω
-55°C to +130°C
(-55°C to +150°C if board CTE is 6-8ppm/°C)
+3850 ppm/°C per IEC751
100MΩ minimum at 20°C
100Ω
≤1mA
1000Ω
≤0.3mA
<0.06% at 250hrs
<0.06% at 1000hrs
100% Sn over Ni Barrier
(minimum 5mm Ni thickness)
Performance Data
Settling Response Time
P0603
Rapidly Stirred Oil
Air @ 1m/s
<0.2s
(t
0.5
)
<3.5s
(t
0.5
)
<0.6s
(t
0.9
)
<10s
(t
0.9
)
<0.1s
(t
0.5
)
<2.5s
(t
0.5
)
P0805
<0.4s
(t
0.9
)
<8s
(t
0.9
)
<0.1s
(t
0.5
)
<2.5s
(t
0.5
)
P1206
<0.4s
(t
0.9
)
<8s
(t
0.9
)
General Note
IRC reserves the right to make changes in product specification without notice or liability.
All information is subject to IRC’s own data and is considered accurate at time of going to print.
© IRC Advanced Film Division
• 4222 South Staples Street • Corpus Christi Texas 78411 USA
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Website: www.irctt.com
A subsidiary of
TT electronics plc
PTS Series Issue September 2009 Sheet 1 of 2
Platinum Temperature
Sensor Chip
Physical Data
L
TOP
W
a
BOTTOM
SIDE
b
H
L (mm)
P0603
P0805
P1206
1.7 ±0.2
2.25 ±0.2
3.2 ±0.2
W (mm)
0.9 ±0.2
1.4 ±0.25
1.6 ±0.2
H (mm)
0.45 ±0.1
0.6 ±0.1
0.6 ±0.1
a (mm)
0.3 ±0.2
0.35 ±0.2
0.5 ±0.2
b (mm)
0.3 ±0.2
0.35 ±0.2
0.5 ±0.2
Ordering Data
Prefix
Model
PTS
-
P1206LF
-
1001
-
B
P1206LF = 1206 chip with Pb-Free terminations
P0805LF = 0805 chip with Pb-Free terminations
P0603LF = 0603 chip with Pb-Free terminations
Resistance Code
Standard 4-Digit resistance code
Ex: 1000 = 100Ω; 1001 = 1000Ω
Tolerance Code
B = R
0
±0.12%
2B = R
0
±0.24%
For additional information or to discuss your specific requirements,
please contact our Applications Team using the contact details below.
© IRC Advanced Film Division
• 4222 South Staples Street • Corpus Christi Texas 78411 USA
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Website: www.irctt.com
PTS Series Issue September 2009 Sheet 2 of 2
