8843.ZP30 Overview

IEC Appliance Inlet C14, Screw-on Mounting, Front Side, Solder Terminal

Preview

Download Datasheet

View All

Connectors (Inlets/Outlets)

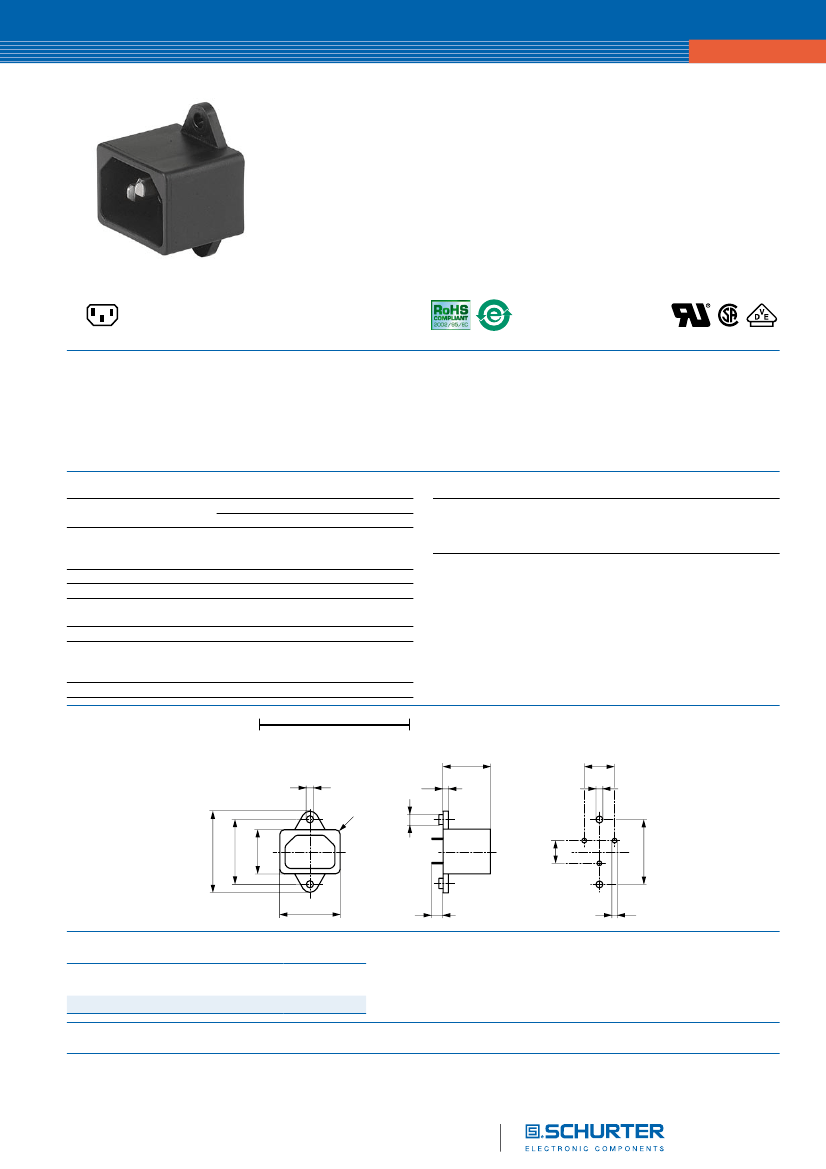

8843.ZP30

www.schurter.com/pg07

IEC Appliance Inlet C14, Screw-on Mounting, Front Side, Solder Terminal

C14

70° C

Description

- Panel Mount:

Screw-on mounting on PCB from front side

- Appliance Inlet, Pin temperature 70 °C, Protection class I

- For PCB mounting

References

Weblinks

General Product Information

Approvals, RoHS, CHINA-RoHS, Mating Connectors, e-Store,

Distributor-Stock-Check, Accessories

Approvals

- VDE License Number: 40022665

- UL License Number: E96454

Technical Data

Ratings IEC

Ratings UL/CSA

Dielectric Strength

10 A / 250 VAC; 50 Hz

10 A / 250 VAC; 60 Hz

> 2 kVAC between L-N

> 2 kVAC between L/N-PE

(1 min/50 Hz)

-25 °C to 70 °C

from front side IP 40 acc. to IEC 60529

Suitable for appliances with protection

class 1 acc. to IEC 61140

For PCB mounting

Screw-on mounting on PCB: max

1.6 mm

Mounting screw torque

Thermoplastic, black, UL 94V-0

Appliance Inlet

C14 acc. to IEC/EN 60320-1,

UL 498, CSA C22.2 no. 42 (for cold

conditions) pin-temperature 70 °C, 10 A,

Protection Class 1

Allowable Operation Temp.

Degree of Protection

Protection Class

Terminal

Panel Thickness s

Material: Housing

Dimensions

38 mm

22.5

3.3

max.R2

2.8

3.2

20.3

ø5

10.5

27.8

4.5

2.2

Variants

Panel mounting

Screw-on mounting on PCB

Panel Thickness

s [mm]

1.6

Order Number

4300.0076

Packaging unit

50 Pcs

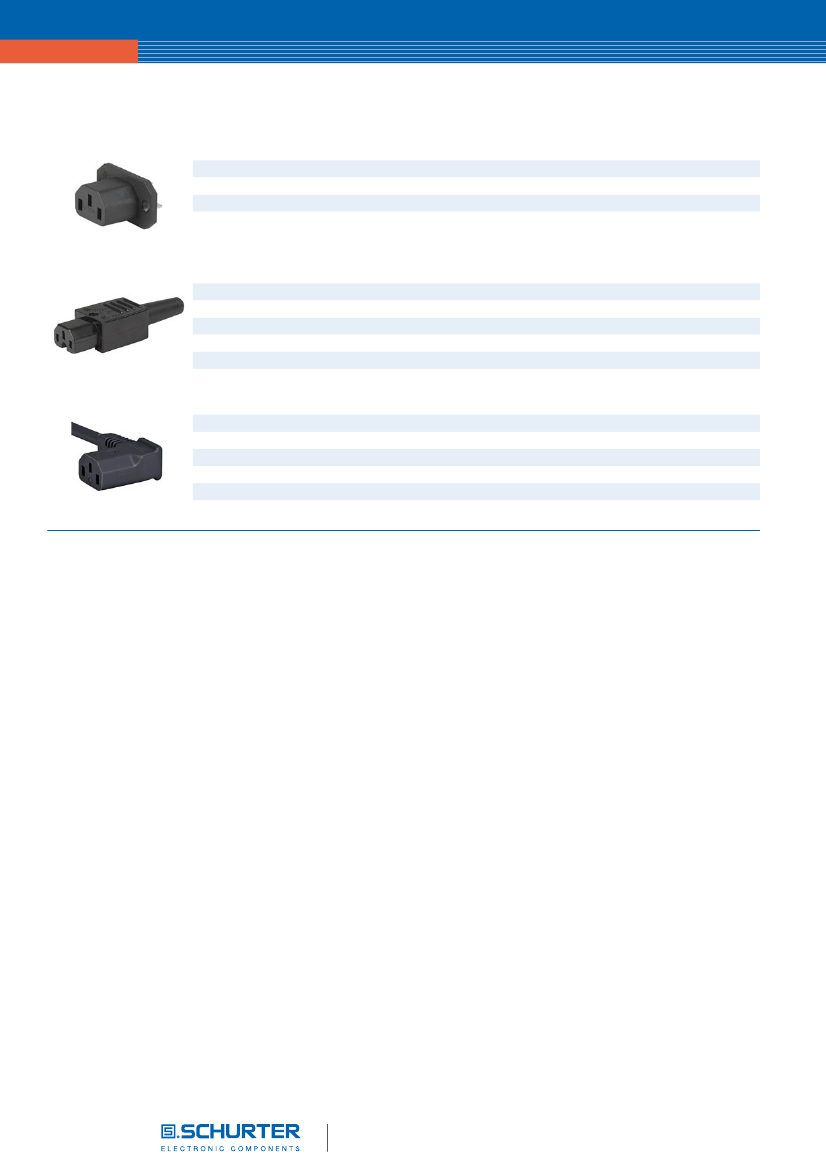

Connectors
