P1144-3SDS-FREQ-30 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> P1144-3SDS-FREQ-30

P1144-3SDS-FREQ-30: DescriptionCMOS Output Clock Oscillator, 70MHz Min, 107MHz Max, ROHS COMPLIANT, LCC, CERAMIC, DIP-14/4; CategoryPassive components oscillator; File Size285KB，7 Pages; ManufacturerPletronics; Environmental Compliance

Download Datasheet Parametric Compare View All

P1144-3SDS-FREQ-30 Overview

CMOS Output Clock Oscillator, 70MHz Min, 107MHz Max, ROHS COMPLIANT, LCC, CERAMIC, DIP-14/4

P1144-3SDS-FREQ-30 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Pletronics
Reach Compliance Code	unknown
Other features	ENABLE/DISABLE FUNCTION; TUBE PACKAGING IS AVAILABLE
maximum descent time	6 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
Manufacturer's serial number	P113SD
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	107 MHz
Minimum operating frequency	70 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	CMOS
Output load	30 pF
physical size	20.0mm x 12.37mm x 5.72mm
longest rise time	6 ns
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	45/55 %

Preview

Download Datasheet

View All

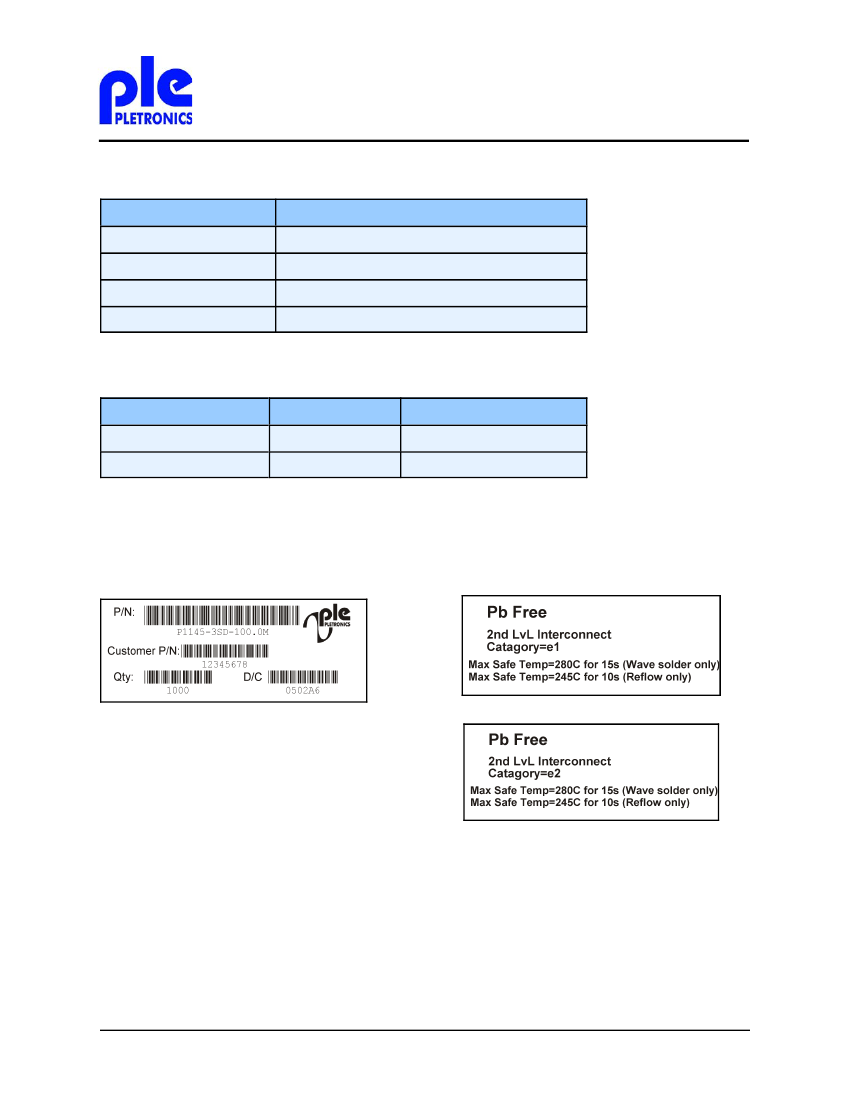

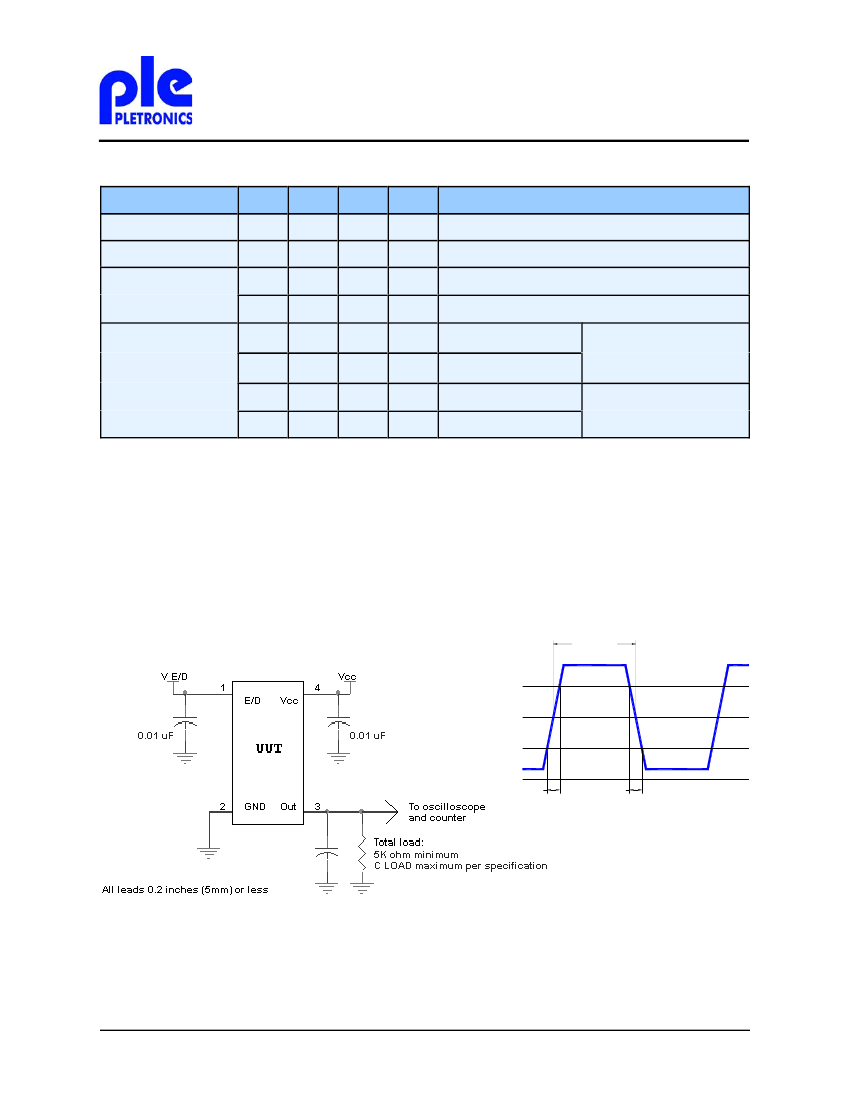

P113SD Series 5.0 V

CMOS Clock Oscillators

July 2007

Pletronics Inc. certifies this device is in accordance with the

RoHS (2002/95/EC) and WEEE (2002/96/EC) directives.

Pletronics Inc. guarantees the device does not contain the following:

Cadmium, Hexavalent Chromium, Lead, Mercury, PBB’s, PBDE’s

Weight of the Device: 4.0 grams

Moisture Sensitivity Level: 1 As defined in J-STD-020C

Second Level Interconnect code: e1 or e2

Absolute Maximum Ratings:

Parameter

Supply Voltage

Input Voltage

Inc.

Output Voltage

Thermal Characteristics

The maximum die or junction temperature is 155

The thermal resistance junction to board is 120

C/Watt depending on the solder pads, ground plane and

construction of the PCB.

Unit

-0.5V to +7.0V

-0.5V to V

+ 0.5V

-0.5V to V

+ 0.5V

Product informatin is current as of publication date. The product conforms

to specifications per the terms of the Pletronics standard warranty. Production

processsing does not necesarily include testing of all parameters.

•

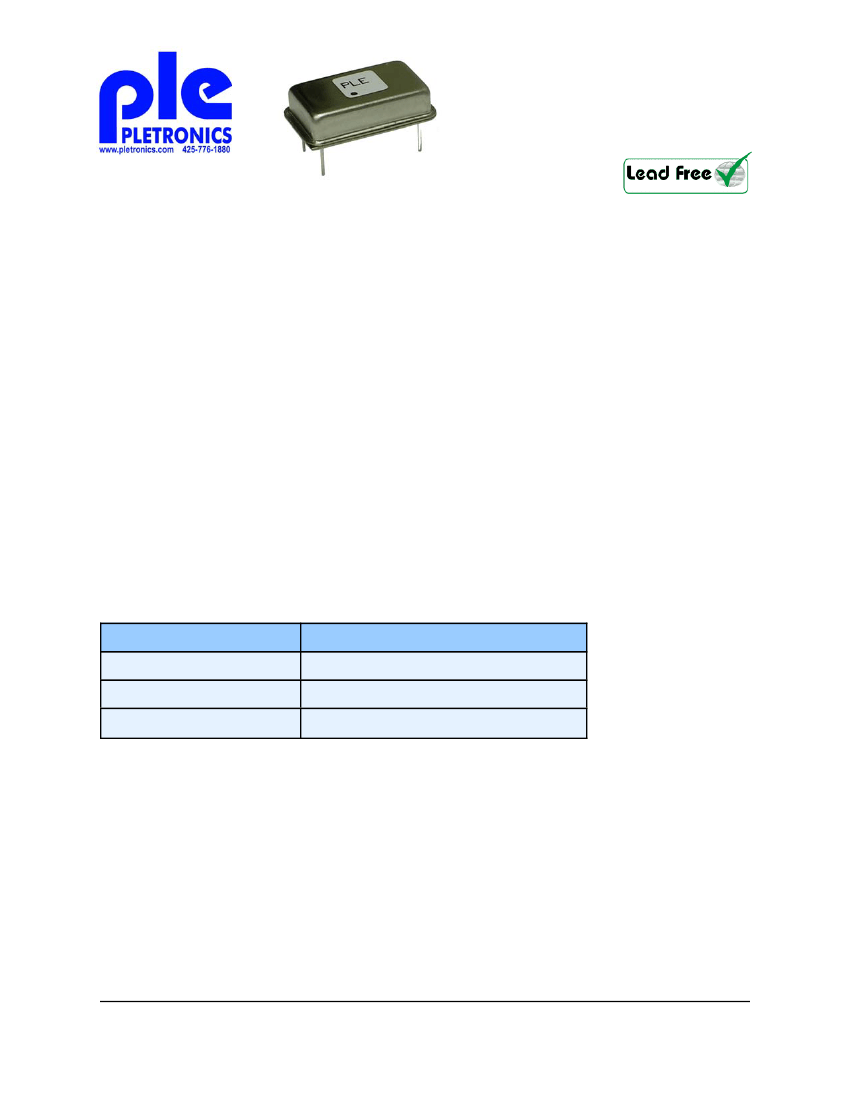

• Pletronics’ P113SD Series is a quartz crystal

controlled precision square wave generator

with a CMOS output.

• The P113SD series will directly interface TTL

devices also.

• Greatly reduces RFI and EMI system sensitivity

• Minimizes RFI radiation, eases meeting FCC

Class B emissions standards.

• Capable of driving up to 30pF capacitive loads

• Tube packaging is available.

•

70 to 107 MHz

Full Size Thru-Hole DIP package

Enable/Disable Function

Disable function includes low standby power

mode

Overtone Crystals used

Improved circuit to minimize oscillator issues

such as multi-mode output signal.

Low Jitter

Has internal bypass capacitor on the Vcc lead

5x7 mm LCC ceramic oscillator inside
