SY100S811JCTR datasheet, PDF - EEWORLD Datasheet

SY100S811JCTR: DescriptionLow Skew Clock Driver, 100S Series, 9 True Output(s), 0 Inverted Output(s), ECL, PQCC28,; Categorylogic logic; File Size105KB，3 Pages; ManufacturerSynergy Semiconductor Corp

Download Datasheet Parametric View All

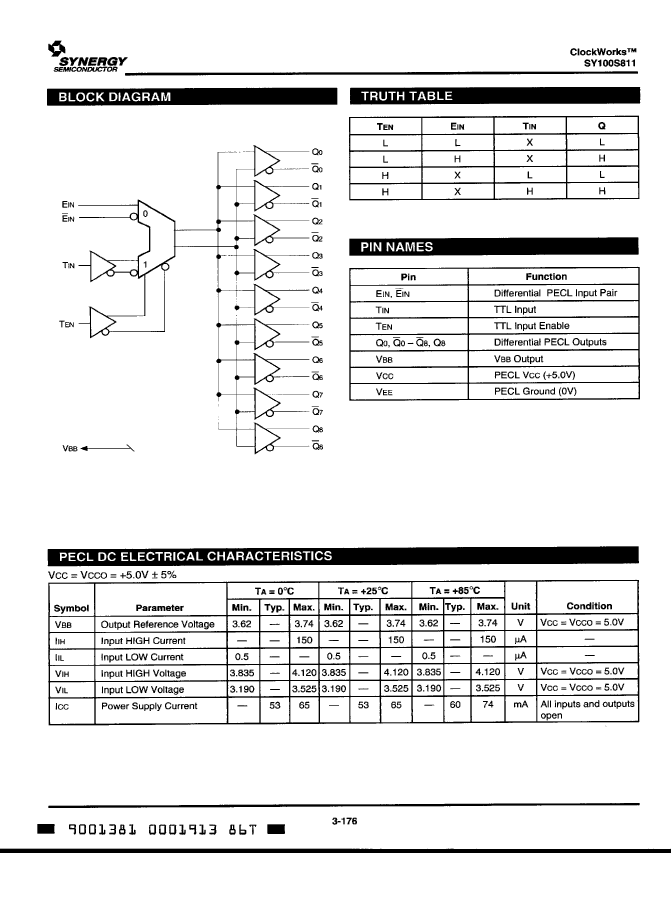

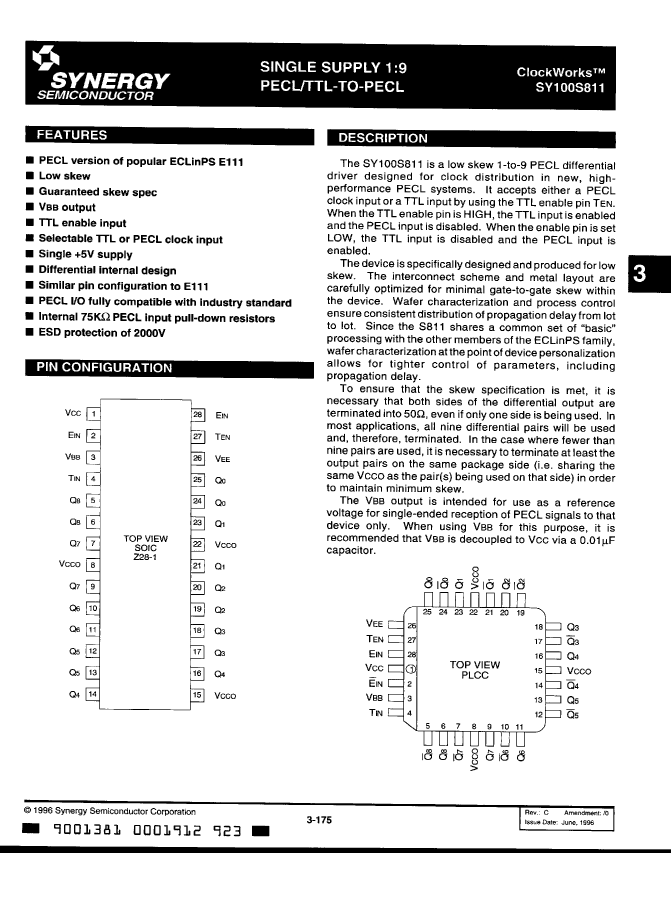

SY100S811JCTR Overview

Low Skew Clock Driver, 100S Series, 9 True Output(s), 0 Inverted Output(s), ECL, PQCC28,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Synergy Semiconductor Corp
Reach Compliance Code	unknown
Other features	TTL & ECL INPUT SIGNALS ARE MUXED; WITH DIFFERENTIAL OUTPUT
series	100S
Input adjustment	DIFFERENTIAL MUX
JESD-30 code	S-PQCC-J28
JESD-609 code	e0
Logic integrated circuit type	LOW SKEW CLOCK DRIVER
Number of functions	1
Number of inverted outputs
Number of terminals	28
Actual output times	9
Maximum operating temperature	85 °C
Minimum operating temperature
Output characteristics	OPEN-EMITTER
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC28,.5SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V

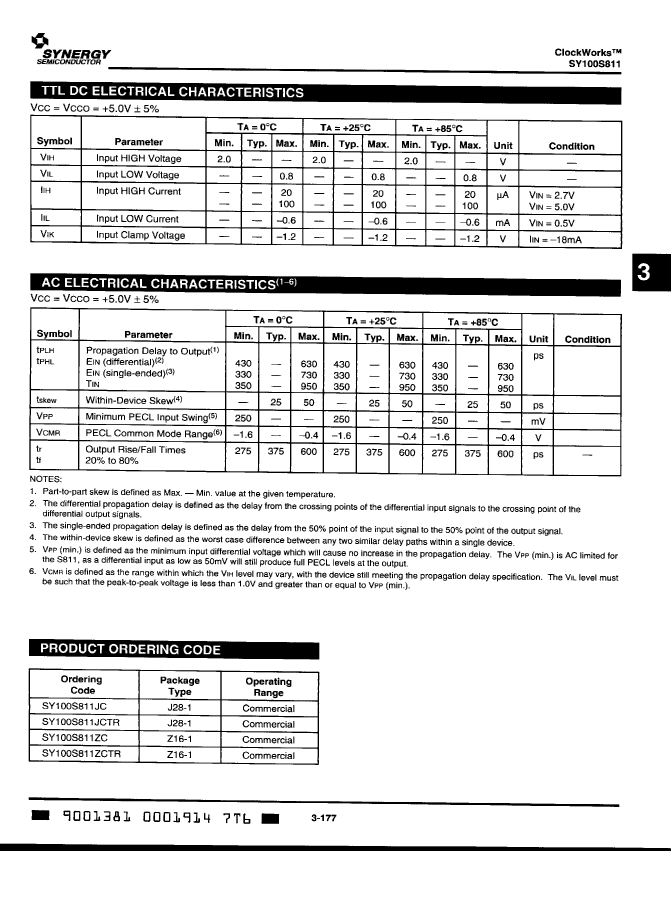

Maximum supply current (ICC)	74 mA
propagation delay (tpd)	0.95 ns
Certification status	Not Qualified
Same Edge Skew-Max（tskwd）	0.05 ns
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	ECL
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD

This Material Copyrighted By Its Respective Manufacturer
