SP6155 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> SP6155

SP6155: Description300 MHz - 1000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, FP4, 4 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size200KB，4 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric View All

SP6155 Overview

300 MHz - 1000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, FP4, 4 PIN

SP6155 Parametric

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	10.5 dB
Maximum input power (CW)	10 dBm
Maximum operating frequency	1000 MHz
Minimum operating frequency	300 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

Cross Reference Guide

FP6155 / SP6155*

* Part number for additional environmental screening.

Performance Data

Frequency

Gain

Noise Figure

1dB

Order Intercept

VSWR

Reverse Isolation

Power Supply

Operating Temperature

300.0 - 1000.0 MHz

12.5 dB Typical

10.5 dB Min

4.0 dB Typical

5.5 dB Max

19.5 dBm Typical

18.0 dBm Min

33.0 dBm Typical

45.0 dBm Typical

1.5/2.0 Input Typ/Max

2.0/2.0 Output Typ/Max

-13.0 dB Typical

-12.0 dB Min

15.0 Volts

50.0 mA

-55.0 - 85.0 °C

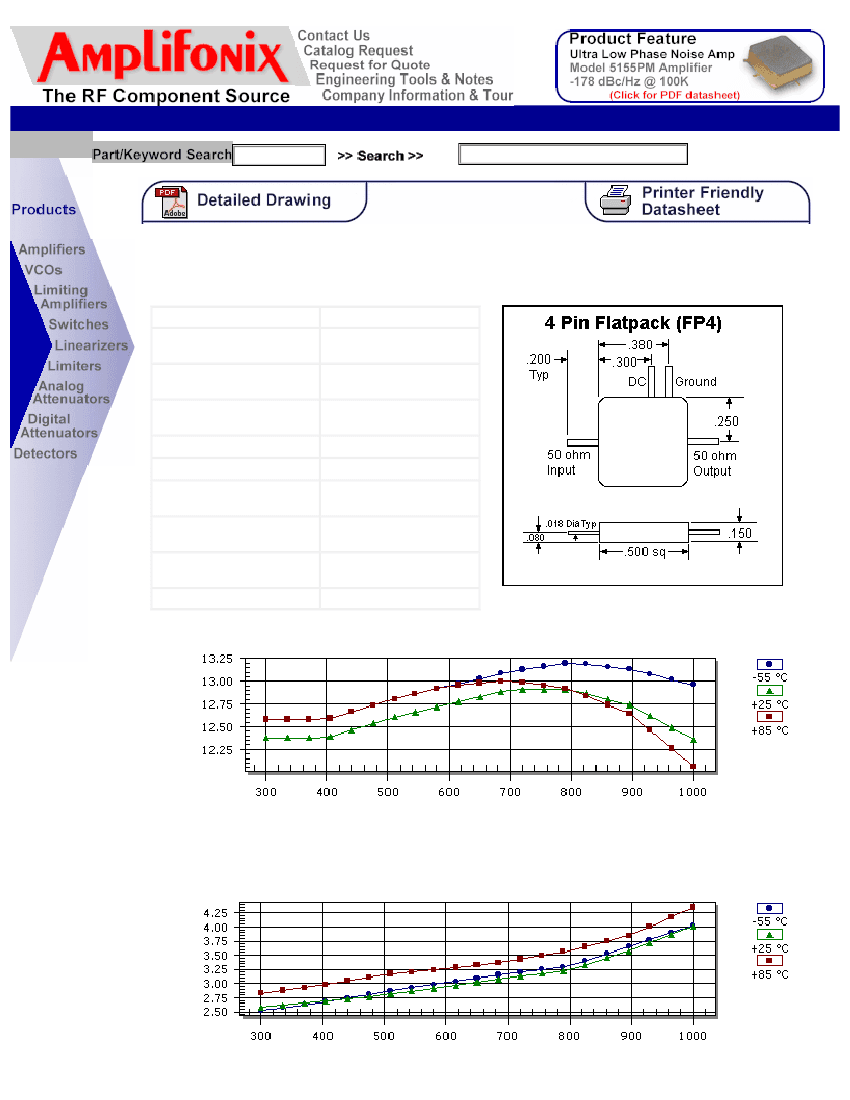

Package Drawing

Gain

Frequency (MHz)

Noise Figure
