) ............................................................................................................................ 2.7 V minimum, 5 V typical, 5.5 V maximum
Supply Current @ 5 V ................................................................................................................1.2 mA minimum, 2 mA typical, 3.5 mA maximum
Operating Temperature................................................................................................................................... -40 °C to +85 °C (-40 °F to +185 °F)
Storage Temperature .................................................................................................................................... -55 °C to +100 °C (-67 °C to +212 °F)
Pressure Range......................................................................................0.15 to 1.0 psi (10.3 to 68.9 mbar; 1.03 to 6.89 KPa; 4.2 to 27.7 in H2O)
Output ..................................................................................................................................................................................................Digital I
2
C
(1)
Effective ADC Resolution ................................................................................................................................................................................ 13 bit
Accuracy @ 25 °C ................................................................................................................................................................................. ±0.25 % FS
Total Error Band over 0 °C to 60 °C (+32 °F to +140 °F)........................................................................................................................ ± 1.5 % FS
Long Term Stability ................................................................................................................................................................................. ± 0.5 % FS
Startup Time .................................................................................................................................................................................. 15 ms maximum
Digital Update Time ...............................................................................................................................................................................5 ms typical
Proof Pressure....................................................................................................................................................................... 5X full scale pressure
Marking .................................................................................. Partial model number, media compatibility, pressure type, pressure rating, lot code
Standard Packaging ............................................................................................................................................................... 250 pcs./13-inch reel
Consult factory for custom options such as supply voltage,
temperature calibration range, output range accuracy
specification, and update rate.
GND
4
Note: Power supply decoupling included.
* RoHS3 Directive 2015/863 Amendments of Annex II on March 31, 2015
** Bourns
®
products have not been designed for and are not intended for use in “lifesaving,” “life-critical” or “life-sustaining” applications nor any other applications
where failure or malfunction of the Bourns
®
product may result in personal injury or death. See Legal Disclaimer Notice on the last page of this document, and at
www.bourns.com/docs/legal/disclaimer.pdf.
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.
BPS120
mm
-
12
Trimming Potentiometer
3312 - 2
Series
SMD

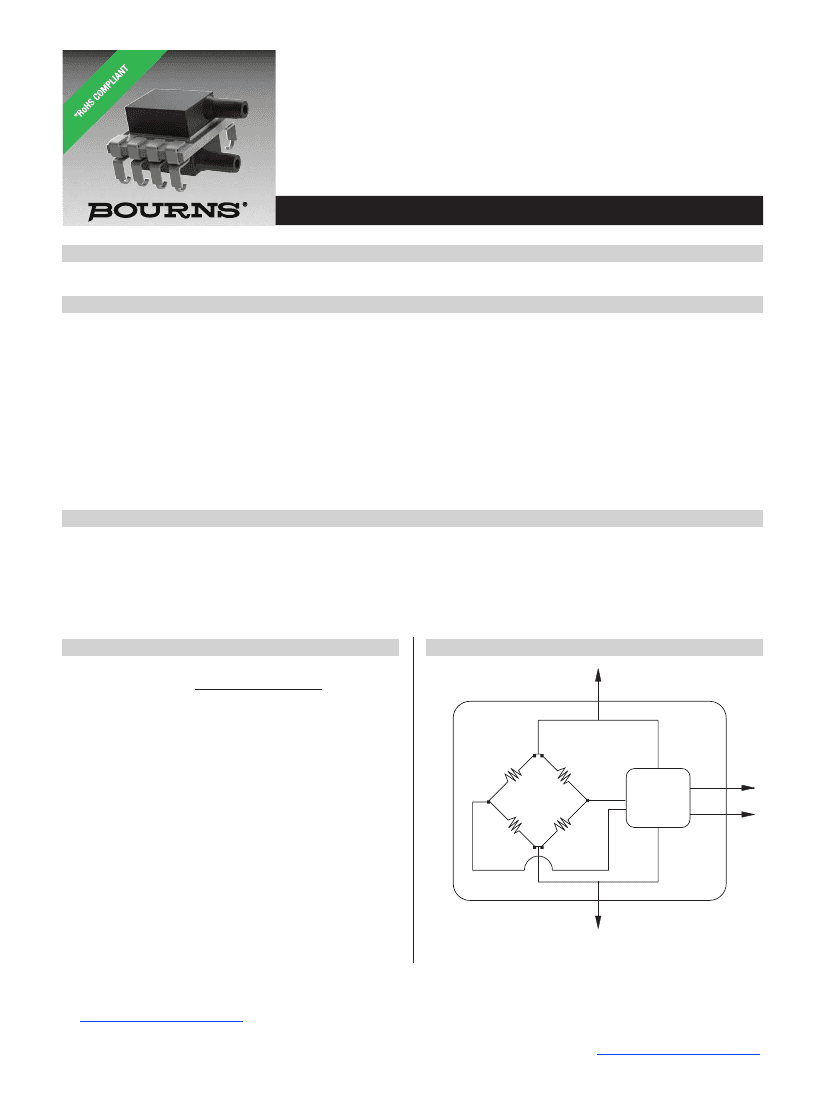

mm Digital Low Pressure Sensor
SCL Clock Frequency f
SCL
...............................................................................................................................................................100 to 400 kHz
Combined low and high widths must equal or exceed minimum SCLK period.
I
2
C Parameters
I
2
C Parameters
I
2
C Communication

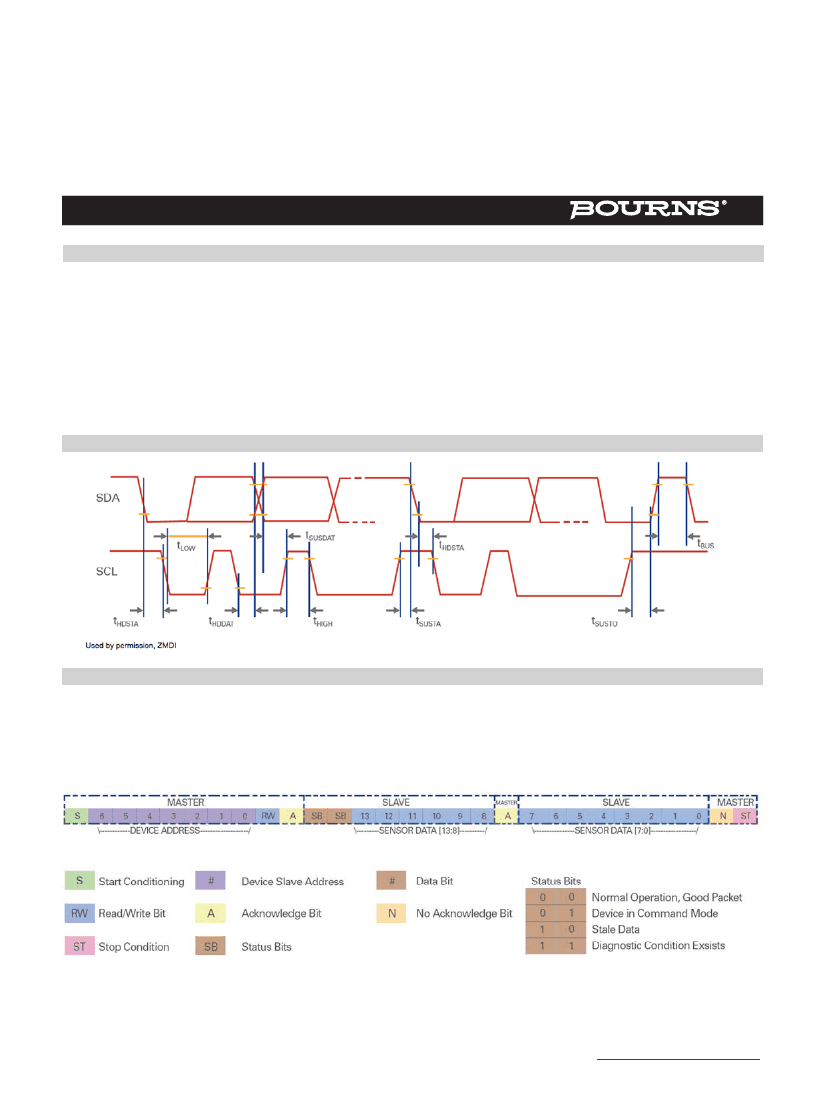

Communication to the Model BPS120 is read only. To read the pressure counts, the master performs a read request by asserting a start
condition, sending the 7-bit address of the part (0x28), and sets the read/write bit. The master then waits for an acknowledgement. The
acknowledgement is sent by the pressure sensor along with 2 bits of status and bits 13:8 of the pressure counts, the master acknowledges the
first 8 bits, and the pressure sensor sends the remaining 8 bits of data. The master then does not acknowledge and sends a stop condition,
signaling the end of the transaction.
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.
BPS120
mm
-
12
Trimming Potentiometer
3312 - 2
Series
SMD
mm Digital Low Pressure Sensor

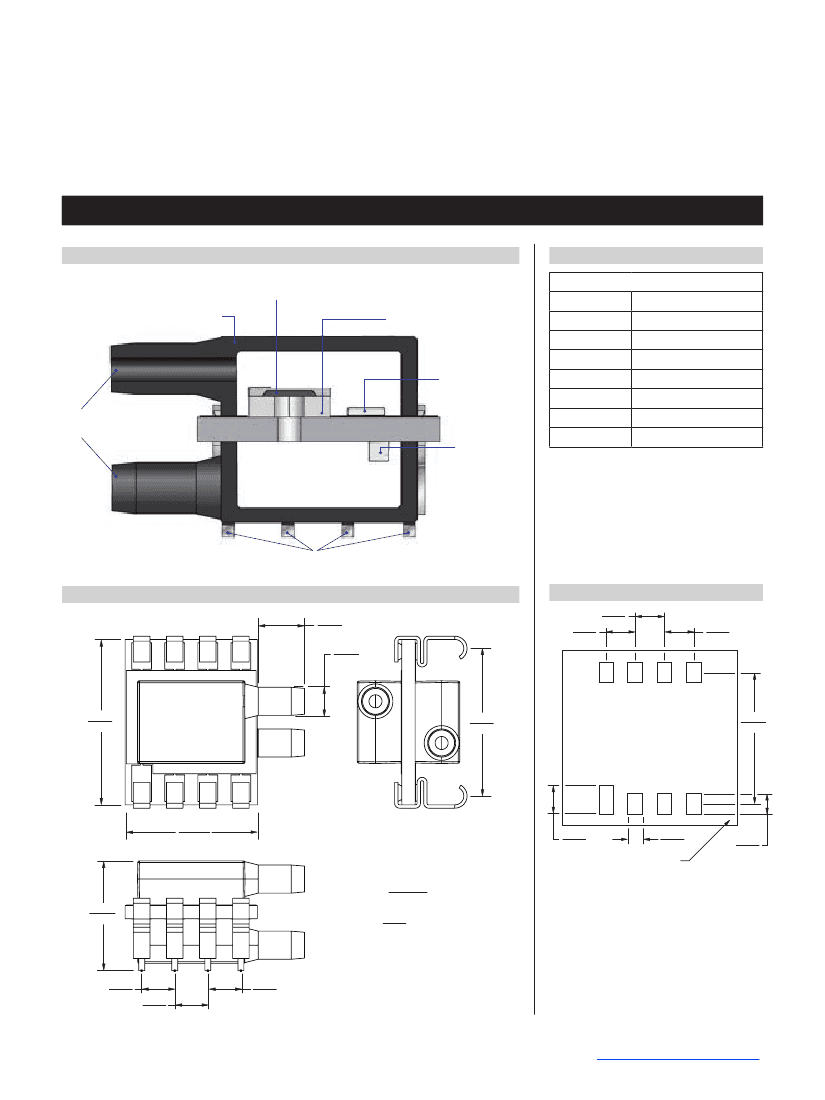

Cross Section
MEMS Sensing Element
(Differential Pressure)
Cover/Mechanical Protection
Soft Die Attach Material
Terminal Assignment
DEVICE PINOUT
P1
P2
P3
P4
Integrated Signal
Conditioning
(ASIC)
V
s
N/C
N/C
VSS - Ground
N/C
N/C
SDA - I
2
C Data
P5
P6
P7
P8
Media Inlet Ports
Filter Capacitor
SCL - I
2
C Clock
Electrical Connections
Product Dimensions
3.6
(0.142)
3.6
(0.142)
2.2
5
Recommended PCB Layout
2.5
(0.098)
2.5
2.5
(0.098)
(0.098)
2.5
(0.098)
8
8
2.5
(0.098)
2.5
(0.098)
7
7
8
8
7
7
6
6
5
(0.087)
2.2
DIA.
(0.087)
DIA.
6
6
5
5
12.7
(0.500)
12.7
(0.500)
11.3
(0.445)
11.3
(0.445)
11.4
(0.449)
11.4
(0.449)
1
1
2
2
3
3
4
4
1
1
2
2
3
3
4
4
10.2
(0.402)
10.2
(0.402)
1.3
2.5
1.3
2.5
(0.051)
(0.098)
(0.051)
(0.098)
SMT LANDING PAD LAYOUT
SMT LANDING PAD LAYOUT
1.9
1.9
(0.075)
(0.075)
8.4
(0.331)
8.4
(0.331)
DIMENSIONS:
MM
(INCHES)
0.3
TOLERANCES:
(0.012)
2.5
2.5
(0.098)
(0.098)
2.5
2.5
(0.098)
(0.098)
2.5
2.5
(0.098)
(0.098)
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.
BPS120
mm
-
12
Trimming Potentiometer
3312 - 2
Series
SMD
mm Digital Low Pressure Sensor
How To Order
Model Series
Digital
Media Compatibility
A = Air/Gas
Pressure Type
G = Gauge
D = Differential
Pressure (psi)
0P15 = 0.15
0P30 = 0.30
01P0 = 1.0
Terminal Pins
2 = Surface Mount Terminals
Port Style
D = Dual Port, Horizontal
Packaging Designator
G = 250 pcs. per 13-inch Reel
BPS120 - A D 0P30 - 2 D G
Solder Profile
300
250 °C Max.
(5 Seconds Max.)
200
150 ±5 °C
100
TEMPERATURE (°C)
Notes:
1. No clean solder paste is recommended.
2. Aqueous wash is not recommended.
3. Use of water soluble soldering flux
should be avoided due to possible
corrosion.
4. Multiple passes through the soldering
process is not recommended.
5. Other SMD processes and profiles
should be verified by the customer.
Time
80-100 Seconds
60 Seconds Max.
Processing Method: Reflow soldering with infrared heat or forced air convection (only once).
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.
BPS120
mm
-
12
Trimming Potentiometer
3312 - 2
Series
SMD
mm Digital Low Pressure Sensor
Packaging Specification
250 pieces per 13-inch reel.
Meets specifications of EIA-481-1 or EIA-481-2.
3.81
(0.15)
EQUAL SPACED
3 PLCS.
20.32
DIA.
(0.8)
29.21
(1.15)
12.7
DIA.
(0.5)
2.0
(0.079)
4.0
(0.157)
101.6
(4.0)
32.0
(1.260)
330.2
DIA.
(13.0)
25.4
(1.0)
16.0
(0.630)
DIMENSIONS:
MM
(INCHES)
0.25
TOLERANCES:
(0.010)
Asia-Pacific:
