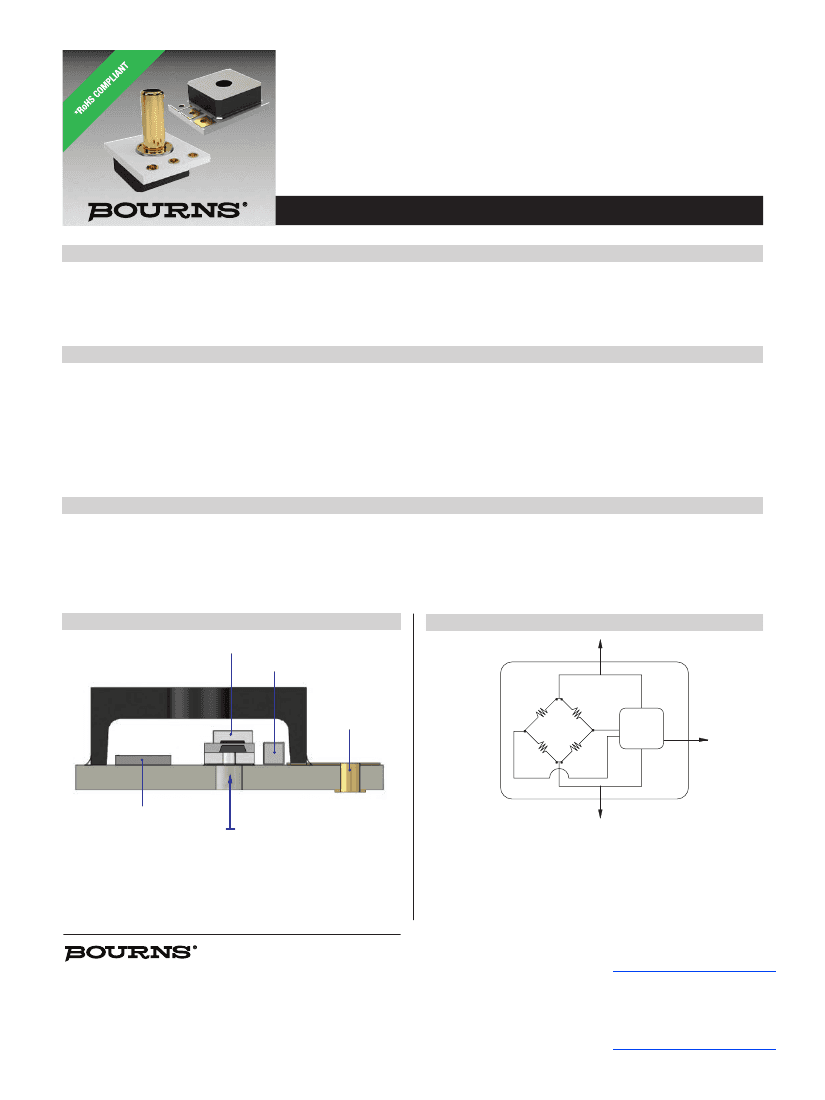

Features
n
Compensated output
n
Direct-media monitoring
n
Gauge and absolute types
n
Isolated onboard electronics
n
Gold-plated Kovar
™
port option
n
RoHS compliant*
Industrial:
n
Refrigerant systems
n
Water level & pressure monitoring
**Medical Devices (low/medium risk):
n
Diagnostic/analysis equipment
***Heavy Equipment:
n
Oil & fuel systems
n
Exhaust gas pressure sensing
Applications
BPS130 Series -
10 mm Analog High Pressure Sensor
Supply Voltage (V
s
) ............................................................................................................................ 4.5 V minimum, 5 V typical, 5.5 V maximum
Supply Current................................................................................................................................................................................................10 mA
Output Current ...............................................................................................................................................................................................2.5 mA
Short Circuit Current .....................................................................................................................................................................................±25 mA
Reverse Polarity Protection ............................................................................................................................................................................. -33 V
Overvoltage Protection ..................................................................................................................................................................................... 33 V
Operating Temperature................................................................................................................................. -40 °C to +150 °C (-40 °F to +302 °F)
Storage Temperature .................................................................................................................................... -55 °C to +150 °C (-67 °C to +302 °F)
Output Range V
out
**** ................................................................................................................................................................... 10 % to 90 % V
s
Output Clamping Limit V
out
****.......................................................................................................................................................... 5% to 95% V
s
Resolution (>12 bit DAC)......................................................................................................................................................................... 0.02 % FS
Accuracy @ 25 °C ................................................................................................................................................................................. ±0.25 % FS
Total Error Band @ -40 °C to +150 °C (-40 °F to +302 °F)...................................................................................................................... ±2.5 % FS
Static Proof Pressure................................................................................................................................................................... 2X full scale PSIA
Burst Pressure ............................................................................................................................................................................. 3X full scale PSIA
Lifetime Drift ............................................................................................................................................................................................ ±0.5 % FS
Media Compatibility .............................................................................................................................................. Harsh media (air, liquid and gas)
Moisture Sensitivity Level .......................................................................................................................................................................................1
ESD Classification (HBM)................................................................................................................................................................................>4 kV
Marking .................................................................................. Partial model number, media compatibility, pressure type, pressure rating, lot code
Standard Packaging ......................................................................................................................................250 pcs./13-inch reel or 200 pcs./tray
Weight .................................................................................................................................................................................1.080 grams (0.038 oz)
Electrical Characteristics
Performance Characteristics
Product Characteristics
Cross Section
MEMS Sensing Element
Capacitor
Basic Circuit Schematic
Vs
Solder Pad
ANALOG
OUT
SSC
Vout
GND
ASIC
Pressure
“Wetted” Materials: Silicon, glass, Au/Sn, ceramic
(Ported version also contains Au and solder)
Any material in contact with the media is
considered a “wetted” material.
Note: Power supply decoupling and output filtering included.
Consult factory for custom options such as supply voltage,
temperature calibration range, output range accuracy
specification, and update rate.
* RoHS3 Directive 2015/863 Amendments of Annex II on March 31, 2015
** Bourns
®
products have not been designed for and are not intended for use in
“lifesaving,” “life-critical” or “life-sustaining” applications nor any other applications
where failure or malfunction of the Bourns
®
product may result in personal injury or
death. See Legal Disclaimer Notice on the last page of this document, and at
www.bourns.com/docs/legal/disclaimer.pdf.
*** Custom engineered solutions. Check with factory for availability.
**** 5 V input voltage.
“Kovar” is a trademark of CRS Holdings, Inc., Delaware.
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as
set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.
Asia-Pacific:
Tel: +886-2 2562-4117 • Email: asiacus@bourns.com
EMEA:
Tel: +36 88 520 390 • Email: eurocus@bourns.com
The Americas:
Tel: +1-951 781-5500 • Email: americus@bourns.com
www.bourns.com
BPS130
mm
-
10
Trimming Potentiometer
3312 - 2
Series
SMD
mm Analog High Pressure Sensor
Solder Profile
300
250 °C Max.
(5 Seconds Max.)
200
150 ±5 °C
100
TEMPERATURE (°C)
Time
80-100 Seconds
60 Seconds Max.
Notes:
1. No clean solder paste is recommended.
2. Aqueous wash is not recommended.
3. Use of water soluble soldering flux
should be avoided due to possible
corrosion.
4. Multiple passes through the soldering
process is not recommended.
5. Other SMD processes and profiles
should be verified by the customer.
Processing Method: Reflow soldering with infrared heat or forced air convection (only once).
Packaging Specification
250 pieces per 13-inch reel.
Meets specifications of EIA-481-1 or EIA-481-2.
3.81
(0.15)
EQUAL SPACED
3 PLCS.
20.32
DIA.
(0.8)
29.21
(1.15)
12.7
DIA.
(0.5)
2.0
(0.079)
4.0
(0.157)
11.5
(0.453)
101.6
(4.0)
24.0
(0.945)
330.2
DIA.
(13.0)
25.4
(1.0)
16.0
(0.630)
DIMENSIONS:
MM
(INCHES)
0.25
TOLERANCES:
(0.010)
REV. 01/19
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.
