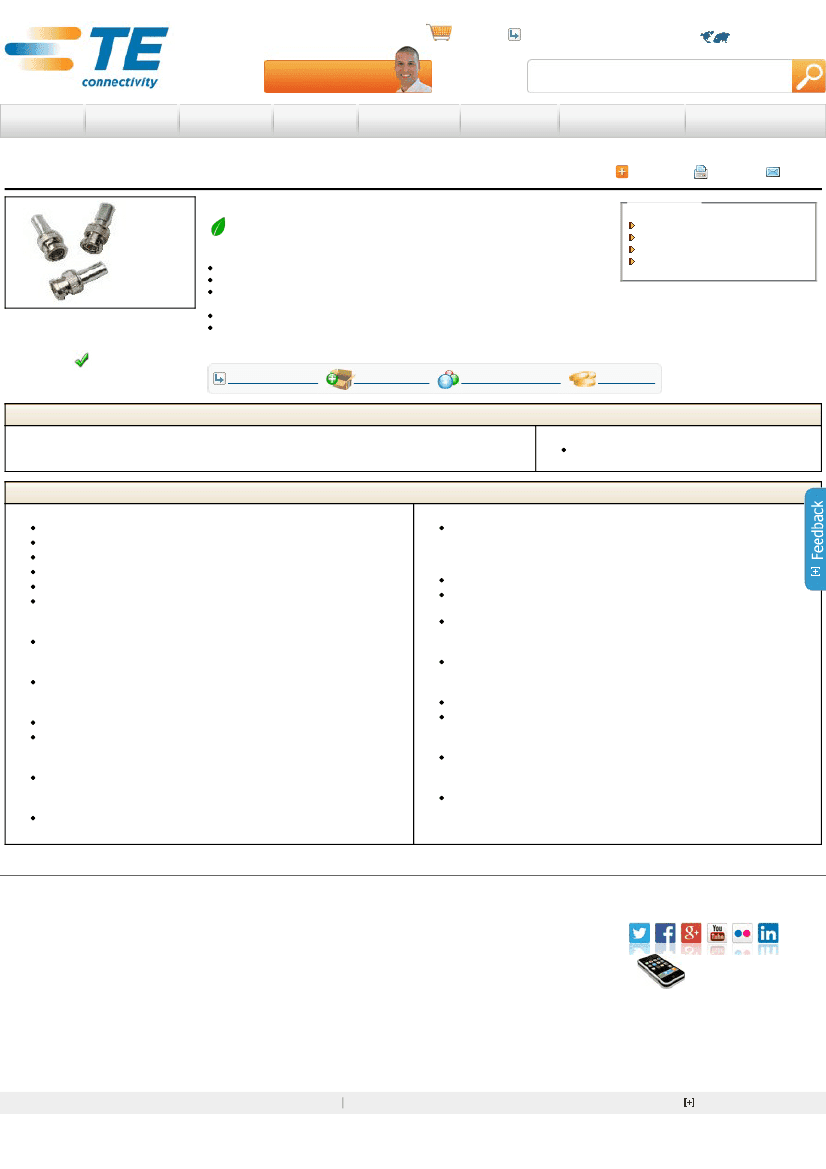

BNC26N Product Details
Broadcast Solutions
Always EU RoHS/ELV Compliant
(
Statement of Compliance
)
Product Highlights:
Product Category = Broadcast Connectors
Connector RF
Coaxial Cable Type (RG/U or Mfg.) = 0.6/2.8, 3CFB,
Image360, SDV25
RF Connector Type = BNC
Cable Type = Coaxial
View all Features
Share
Print
Email
Quick Links
Pricing & Availability
Search for Tooling
Product Feature Selector
Contact Us About This Product
BNC26N
(1359594)
TE Internal Number: 1359594
Active
Add to My Part List
Request Sample
Find Similar Products
Buy Product
Documentation & Additional Information
Documents are temporarily unavailable. We are working hard to correct the problem. Please try
again later.
Related Products:
Tooling
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
Product Category = Broadcast Connectors
Product Type = Connector RF
RF Connector Type = BNC
Cable Type = Coaxial
Size = Standard
Connector Type = Connector Assembly
Electrical Characteristics:
Impedance (Ω) = 75
Dimensions:
Crimp Area, Hex Flats Distance (mm [in]) = 5 [0.197]
Body Features:
Mount Style = Cable
Body Style = Straight
Contact Features:
Crimp Area, Center Pin (mm [in]) = 1.73 [0.068]
Housing Features:
Connector Style = Plug
Configuration Features:
Coaxial Cable Type (RG/U or Mfg.) = 0.6/2.8, 3CFB, Image360,
SDV25
Industry Standards:
RoHS/ELV Compliance = RoHS compliant, ELV compliant
Lead Free Solder Processes = Not reviewed for lead free solder
process
RoHS/ELV Compliance History = Always was RoHS compliant
Conditions for Usage:
Applies To = Wire/Cable
Packaging Features:
Packaging Method = Individual
Packaging Quantity = 1
Product Availability:
Region = North America
Other:
Brand = ADC
