DG611DJ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> DG611DJ

DG611DJ: DescriptionSPST, 4 Func, 1 Channel, NMOS, CDIP16,; CategoryAnalog mixed-signal IC The signal circuit; File Size384KB，9 Pages; ManufacturerTEMIC; Websitehttp://www.temic.de/

Download Datasheet Parametric Compare View All

DG611DJ Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DG611DJ	-	-	View	Buy Now

DG611DJ Overview

SPST, 4 Func, 1 Channel, NMOS, CDIP16,

DG611DJ Parametric

Parameter Name	Attribute value
Maker	TEMIC
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-GDIP-T16
Nominal Negative Supply Voltage (Vsup)	-3 V
Number of channels	1
Number of functions	4
Number of terminals	16
Nominal off-state isolation	74 dB
On-state resistance matching specifications	2 Ω
Maximum on-state resistance (Ron)	45 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum supply current (Isup)	0.005 mA
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	25 ns
Maximum connection time	35 ns
technology	NMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL

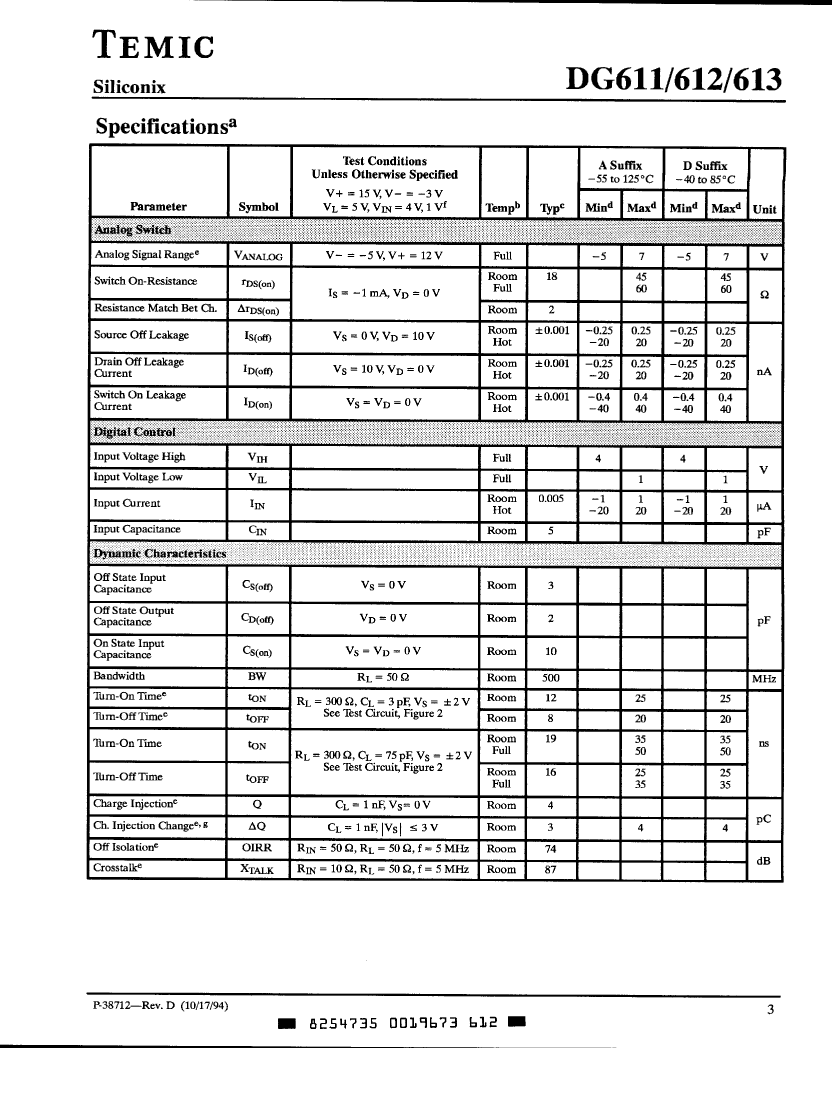

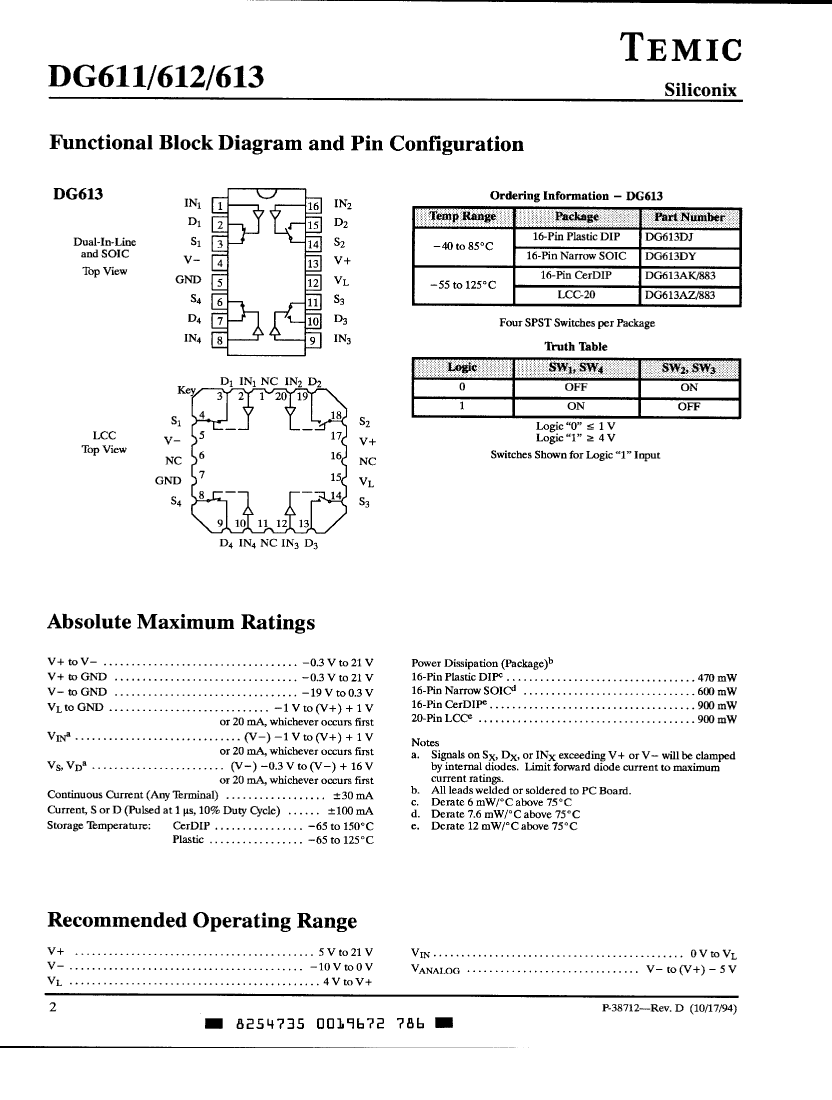

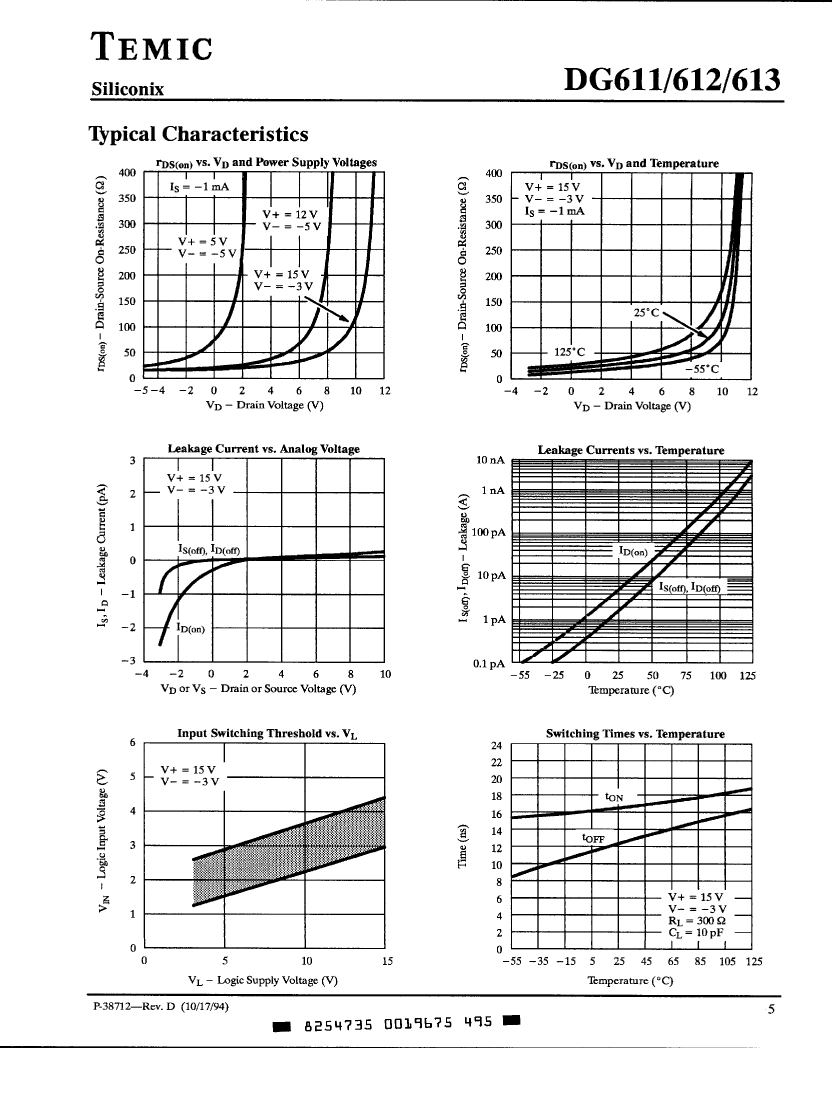

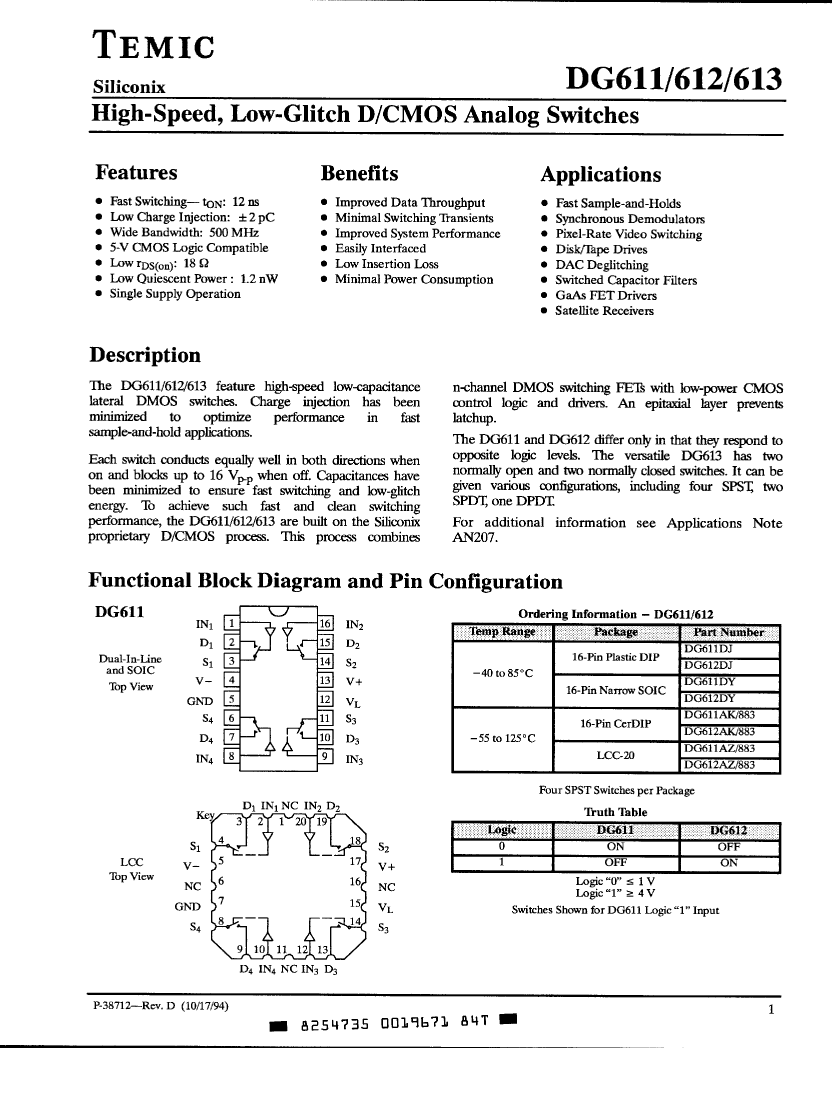

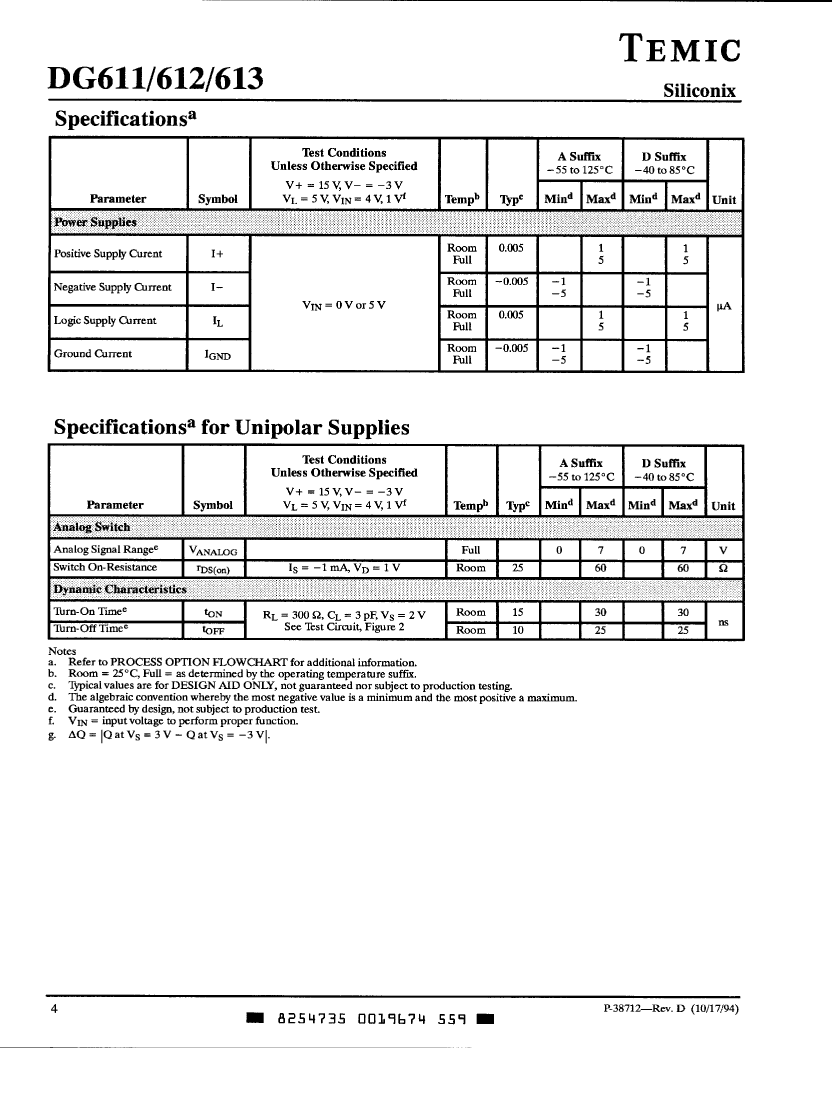

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

DG611DJ Related Products

	DG611DJ	DG611AK/883	DG612AZ/883	DG611AZ/883	DG611DY	DG612DY	DG612DJ
Description	SPST, 4 Func, 1 Channel, NMOS, CDIP16,	SPST, 4 Func, 1 Channel, NMOS, CDIP16,	SPST, 4 Func, 1 Channel, NMOS, CQCC20,	SPST, 4 Func, 1 Channel, NMOS, CQCC20,	SPST, 4 Func, 1 Channel, NMOS, PDSO16,	SPST, 4 Func, 1 Channel, NMOS, PDSO16,	SPST, 4 Func, 1 Channel, NMOS, CDIP16,
Maker	TEMIC	TEMIC	TEMIC	TEMIC	TEMIC	TEMIC	TEMIC
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	SPST	SPST	SPST	SPST	SPST	SPST	SPST
JESD-30 code	R-GDIP-T16	R-GDIP-T16	S-CQCC-N20	S-CQCC-N20	R-PDSO-G16	R-PDSO-G16	R-GDIP-T16
Nominal Negative Supply Voltage (Vsup)	-3 V	-3 V	-3 V	-3 V	-3 V	-3 V	-3 V
Number of channels	1	1	1	1	1	1	1
Number of functions	4	4	4	4	4	4	4
Number of terminals	16	16	20	20	16	16	16
Nominal off-state isolation	74 dB	74 dB	74 dB	74 dB	74 dB	74 dB	74 dB
On-state resistance matching specifications	2 Ω	2 Ω	2 Ω	2 Ω	2 Ω	2 Ω	2 Ω
Maximum on-state resistance (Ron)	45 Ω	45 Ω	45 Ω	45 Ω	45 Ω	45 Ω	45 Ω
Maximum operating temperature	85 °C	125 °C	125 °C	125 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-55 °C	-55 °C	-55 °C	-40 °C	-40 °C	-40 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply current (Isup)	0.005 mA	0.005 mA	0.005 mA	0.005 mA	0.005 mA	0.005 mA	0.005 mA
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	YES	YES	YES	YES	NO
Maximum disconnect time	25 ns	25 ns	25 ns	25 ns	25 ns	25 ns	25 ns
Maximum connection time	35 ns	35 ns	35 ns	35 ns	35 ns	35 ns	35 ns
technology	NMOS	NMOS	NMOS	NMOS	NMOS	NMOS	NMOS
Temperature level	INDUSTRIAL	MILITARY	MILITARY	MILITARY	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	NO LEAD	GULL WING	GULL WING	THROUGH-HOLE
Terminal location	DUAL	DUAL	QUAD	QUAD	DUAL	DUAL	DUAL
