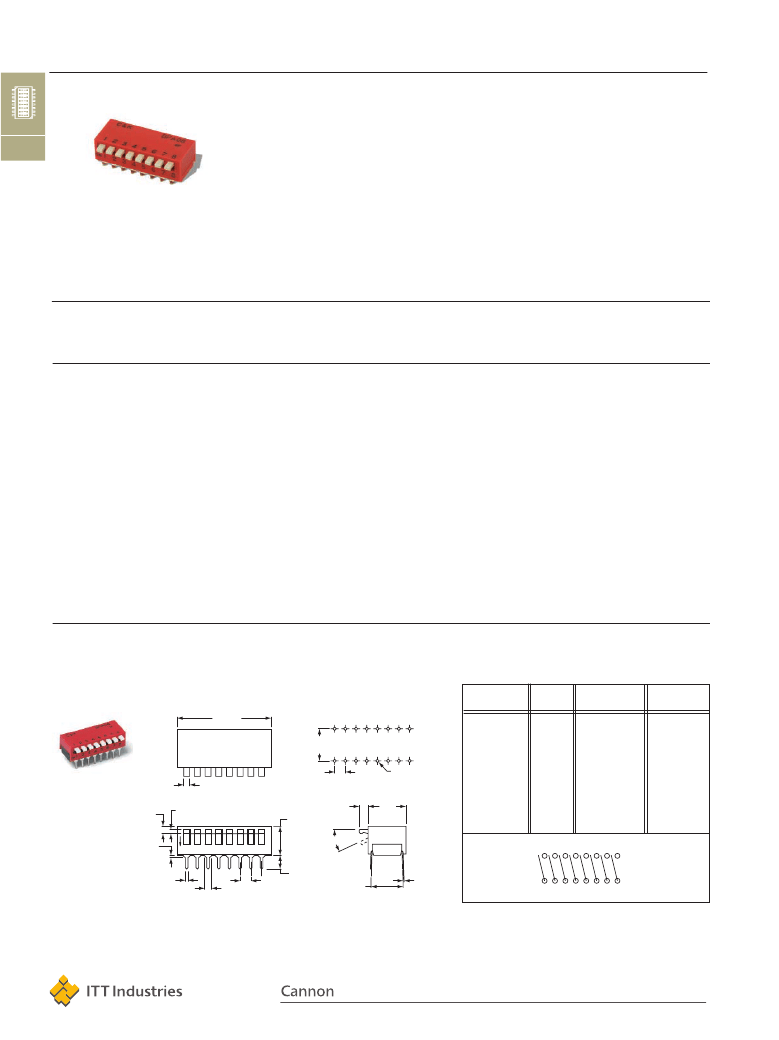

C&K BPA Series
Side Actuated DIP Switches
Features/Benefits
Typical Applications
•
Address switch for industrial
controls
•
Logic switching for computers
and peripherals
•
Function controlling for
numerous applications
•
Side actuated contacts
•
Available in thru-hole or SMT
models
•
High pressure contact system
does not require tape seal
H
DIP
How To Order
Complete part numbers for BPA Series are shown on pages H-11 thru H-12. All switches supplied in “OFF” position.
Specifications
SWITCH FUNCTION: 2 thru 10 position available
(except 3 position).
CONTACT RATING: 100 mA max. @ 5 V DC or 25 mA max.
@ 24 V DC.
MECHANICAL AND ELECTRICAL LIFE: 1,000 cycles min.
@ 5 V DC 10mA.
CONTACT RESISTANCE: 50 milliohms initial max.
INSULATION RESISTANCE: 100 V DC 100 megohms min.
DIELECTRIC WITHSTAND VOLTAGE: 300 V AC for 1 minute.
STORAGE TEMPERATURE: -40°C to 85°C.
OPERATING TEMPERATURE: -20°C to 85°C.
OPERATING FORCE: 800 grams max.
SOLDERABILITY: Flow solderable and washable
(soldering: 235°C ± 5°C for 5 sec.)
PACKAGING: Switches supplied in rigid dispensing tubes in full-
tube quantities only, this may affect order quantity. Numbers of
switches per tube varies with model. Tape and reel packaging
only available for 4, 8 & 9 positions.
Materials
HOUSING: PBT (thru-hole) color: Black. PPA (SMT) color: Red
(all UL94V-0).
COVER: PBT (thru-hole) color: Red. PPA (SMT) color: Red
(all UL94V-0).
ACTUATOR: PBT (thru-hole): PA-6T (SMT) (UL94V-0).
CONTACTS: Beryllium copper with gold plate.
TERMINALS: Brass/Tin-lead plated.
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
Side Actuator – Thru-hole Terminals
PART
NUMBER
DIM 'A'
.300
(7,6)
1
2
3
4
5
6
7
8
NO.
POS.
2
4
5
6
7
8
9
10
DIM. ‘A’
.280 (7,11)
.480 (12,19)
.578 (14,68)
.680 (17,30)
.778 (19,76)
.878 (22,30)
.978 (24,84)
1.078 (27,43)
QUANTITY
PER TUBE
60
35
30
25
20
20
15
15
BPA08K
.055
(1,40)
.069
(1,75)
REF
.022
(0,56)
.024
(0,61)
.039
(1,0)
.271
(6,9)
MAX.
2
3
4
5
6
7
8
.100
(2,54)
.083
(2,1)
25°
ø.032 TYP.
(0,8)
.354
(9,0)
BPA02K
BPA04K
BPA05K
BPA06K
BPA07K
BPA08K
BPA09K
BPA10K
Schematic
ON 1
.063
(1,6)
.128
.100 (3,25)
(2,54) TYP.
TYP.
.295/.343
(7,6/8,7)
.010 TYP.
(0,25)
SPST
NOTE:
Reverse throw available, add “R” to part number for “on” in
“up” position. (example: BPA08RK)
Dimensions are shown in inch (mm )
Dimensions subject to change
H-12
www.ittcannon.com
C&K BPA Series
Side Actuated DIP Switches

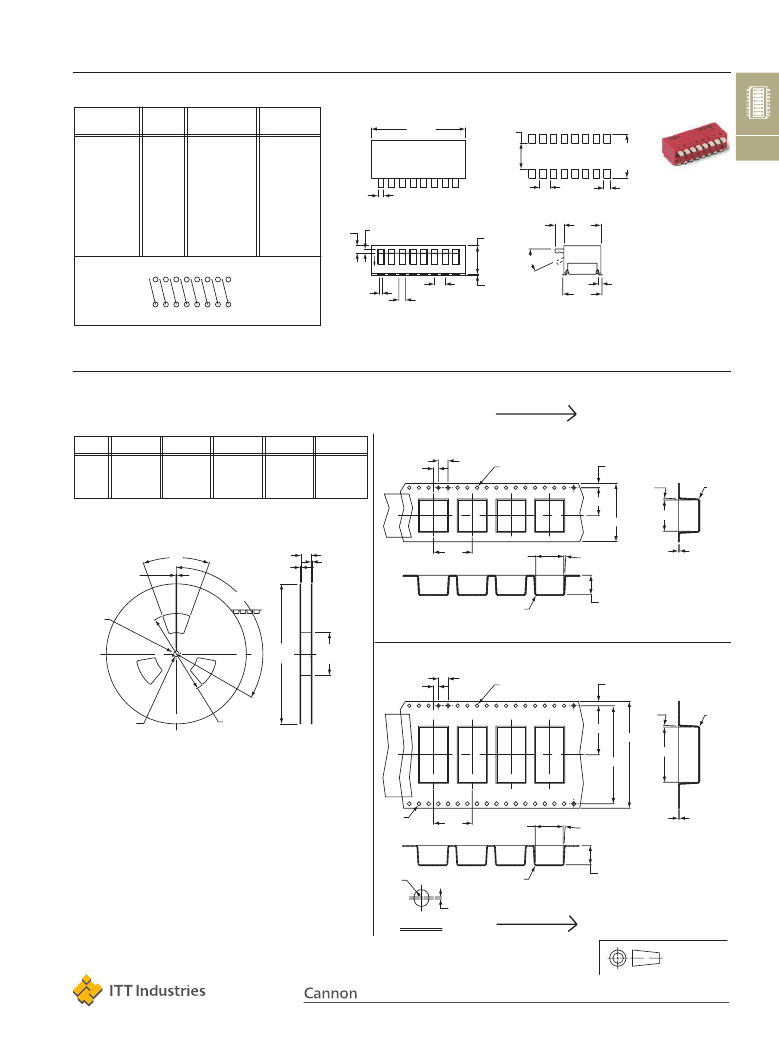

Side Actuator – Surface Mount Terminals
PART
NUMBER
NO.
POS.
2
4
5
6
7
8
9
10
DIM. ‘A’
.280 (7,11)
.480 (12,19)
.578 (14,68)
.680 (17,30)
.778 (19,76)
.878 (22,30)
.978 (24,84)
1.078 (27,43)
QUANTITY
PER TUBE
60
35
30
25
20
20
15
15
.069
(1,75)
REF
.039
(1,0)
.266
(6,76)
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
DIM 'A'
BPA02SK
BPA04SK
BPA05SK
BPA06SK
BPA07SK
BPA08SK
BPA09SK
BPA10SK
Schematic
.240 MAX.
(6,1)
TYP.
.410 MIN.
(10,41)
TYP.
.060 MIN.
(1,52)
TYP.
.083
(2,1)
25°
.346
(8,79)
H
DIP
DIP
BPA08SK
.055
(1,40)
.100 TYP.
(2,54)
ON 1
.024
(0,61)
SPST
NOTE:
Reverse throw available, add “R” to part number for “on” in
“up” position. (example: BPA08RSK)
.063
(1,6)
.100
(2,54)
TYP.
.008
(0,20)
.366
(9,30)
.031
(0,79)
Tape & Reel Packaging - Surface Mount Options Only
4, 8 & 9 Positions Only
Direction of feed
POLES
4
8
9
DIM. ‘A’
.453 (11,5)
.795 (20,2)
.795 (20,2)
DIM. ‘B’
––
1.590 (40,4)
1.590 (40,4)
DIM. ‘C’
.945 (24,0)
1.732 (44,0)
1.732 (44,0)
DIM. ‘D’
.508 (12,9)
.894 (22,7)
1.004 (25,5)
DIM. ‘E’
.961 (24,4)
1.748 (44,4)
1.748 (44,4)
DIM. 'A'
Note: For tape and reel packaging, add ‘R’ to end of part number.
DIM. 'C'
4 Position
.079
(2,00)
.157
(4,00)
Ø.059
(1,50)
.069
(1,75)
3°
MAX.
DIM 'D'
Ø.012
(0,30)
MAX.
40°
.079
(2,00)
120°
.827
(21,0)
DIM. 'E'
.079
(2,00)
.079
(2,00)
.630
(16,0)
.450
(11,5)
3° MAX.
.016
(0,40)
Ø.012
(0,30)
MAX.
12.99
(330,0)
3.937
(100,0)
.315
(8,00)
8 & 9 Position
.079
(2,00)
.157
(4,00)
Ø.059
(1,50)
.069
(1,75)
3°
MAX.
DIM. 'C'
DIM 'D'
DIM. 'B'
Ø.012
(0,30)
MAX.
.512
(13,0)
7.48
(190,0)
DIM. 'A'
SEE
DETAIL A
.630
(16,0)
.450
(11,5)
3° MAX.
.016
(0,40)
Ø.030
(0,75)
.008
(0,20)
Ø.012
(0,30)
MAX.
.315
(8,00)
DETAIL A
Direction of feed
Third Angle
Projection
Dimensions are shown inch (mm)
Dimensions subject to change
H-13
www.ittcannon.com
