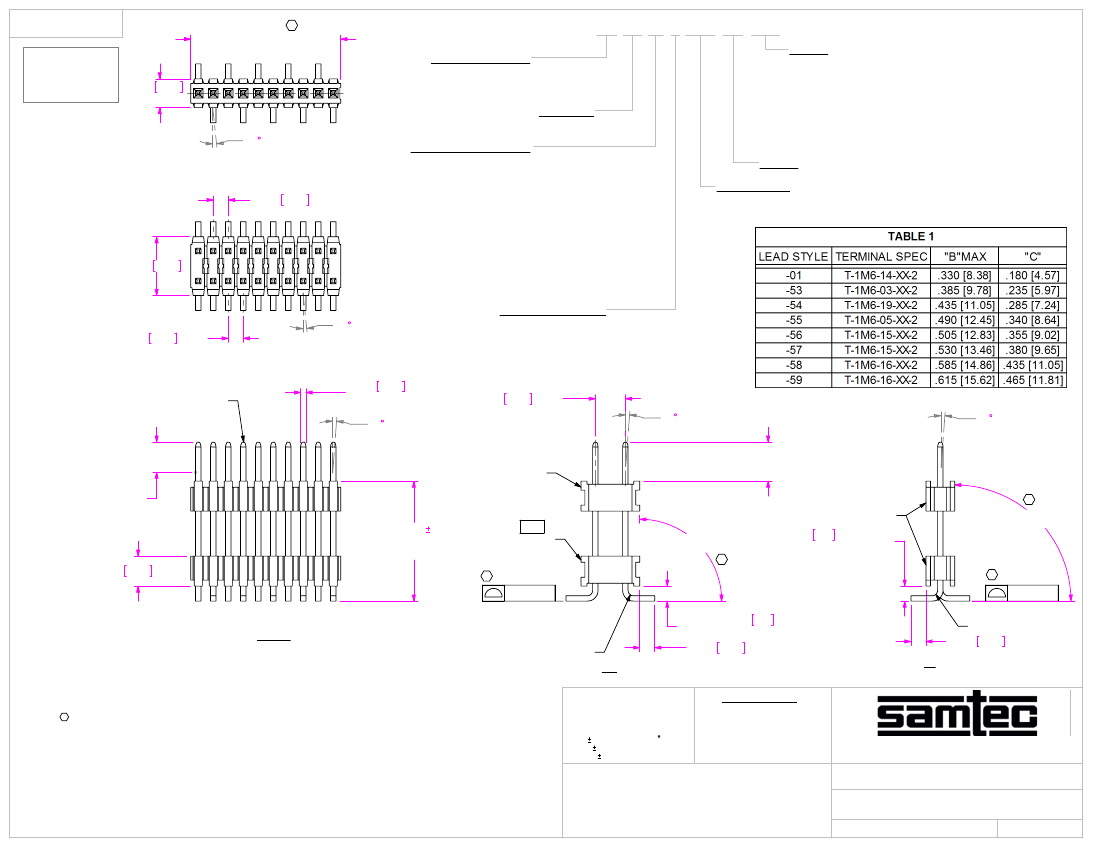

REVISION AV
DO NOT
SCALE FROM
THIS PRINT
NO OF POS X .050
- .010
[
+.05
]
-.25
02
.096 2.44
REF
03
01
2 MAX SWAY
(EITHER DIRECTION)
C
L
C
+.002
HDWM-XX-XX-XX-X-XXX-SM-XXX
BODY LENGTH SPEC
EXPRESSED IN # POS PER ROW
(-01 THRU -50)
LEAD STYLE
SEE TABLE 1
PLATING SPECIFICATION
-G: 10µ" GOLD IN CONTACT AREA,
3µ" GOLD ON TAIL
-T: MATTE TIN CONTACT AND TAIL,
(ONLY AVAILABLE IN LEAD STYLE -01)
-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-L: 10µ" LIGHT SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-TM: MATTE TIN CONTACT AND TAIL,
(ONLY AVAILABLE IN LEAD STYLE -01)
-SM: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
BODY SPECIFICATION
-S: SINGLE (USE HTMS-XX-S)
-D: DOUBLE (USE HTMS-XX-D)
OPTION
-POLARIZING SPECIFICATION
XXX INDICATES POSITION TO BE OMITTED
-A: STAKED ALIGNMENT PIN (SEE SHT 2, FIG 2)
(6 POS MIN, BODY SPEC -D ONLY, USE SM-A8H)
-LC: STAKED LOCKING CLIP (SEE SHT 2, FIG 3)
(5 POS MIN, BODY SPEC -D ONLY, USE LC-05-TM)
-P: PICK & PLACE PAD (SEE SHT 2, FIG 4)
(FOR SINGLE ROW, 9 POSITION MINIMUM REQUIRED)
(.100 MIN POST HEIGHT)
OPTION
-SM: SURFACE MOUNT
BOARD SPACE
"XXX" = "B"
(SEE TABLE 1)
(SEE NOTE 9)
02
.050 1.27 REF
.196 4.98
01
.050 1.27 REF
2 MAX SWAY
(EITHER DIRECTION)
T-1M6-XX-XX-2
.018 0.46 SQ
REF (TYP)
2 MAX SWAY
(EITHER DIRECTION)
.100 2.54 REF
2 MAX SWAY
(EITHER DIRECTION)
POST DIM = {(C + .150) - B} REF
C
2 MAX SWAY
(EITHER DIRECTION)
HTMS-50-D
CONTACT AREA
"B"±.008 [ .20]
(SEE NOTE 9)
(MEASURE AT BEND RADIUS)
.100 2.54 REF
C
SEE NOTE 8
AV
HTMS-XX-S
90°
- 2°
(TYP)
C
+4°
.05 1.3
(MEASURE AT BEND RADIUS)
C
90°
- 2°
+4°
.006[.15]
(SEE NOTE 8)
HDWM-10-57-XX-X-400-SM SHOWN
FIG 1
R.028 [.71] REF
-D
.05 1.3
(MEASURE AT BEND RADIUS)
.050 1.27 (TYP)
.006[.15]
(SEE NOTE 2)
R.028 [.71] REF
.050 1.27 (TYP)
-S
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MAXIMUM COPLANARITY: .006[.15].
3. MAXIMUM HEIGHT VARIATION BETWEEN ANY TWO POSTS: .010[.25].
4. MINIMUM PUSHOUT FORCE: 2 LB.
5. TUBE POSITIONS -07 THRU -50 ONLY; POSITIONS -01 THRU -06 TO BE LAYER PACKAGED.
6. MAXIMUM CUT FLASH: .010[.25].
7. MAXIMUM BURR ALLOWANCE: .003[.08] MAX.
8. USE DWM-50-D WHEN RAN ON BOARD STACKER AUTOMATION, USE HTMS-50-D FOR HAND FILL
AND SINGLE BODY AUTOMATION.
9. MINIMUM BOARD SPACE: .250[6.35].
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 3:1
INSULATOR: LCP, UL 94 VO, COLOR: BLACK
TERMINAL: PHOS BRONZE
BOARD SPACING SM MICRO STRIPS
c:\enterprisevault\DWG\MISC\MKTG\HDWM-XX-XX-XX-X-XXX-SM-XXX-MKT.SLDDRW
BY:
BRYAN T
HDWM-XX-XX-XX-X-XXX-SM-XXX
07/09/1992
SHEET
1
OF
3
REVISION AV
"N"
.400 10.16
REF
"Q"
.160 4.06
REF
.270 6.86
REF
.100 2.54
MIN
PPP-07
.090 2.29
.040 1.02 REF
SM-A8H
.105 2.67
.0430 1.092 REF
LC-05-TM
"N"
SINGLE ROW
.250 6.35
REF
(No OF POS - 2) X .0500 [1.270]
(No OF POS - 2) X .0500 [1.270]
.390 9.91
REF
"Q"
.270 6.86
REF
.100 2.54
MIN
PPP-06

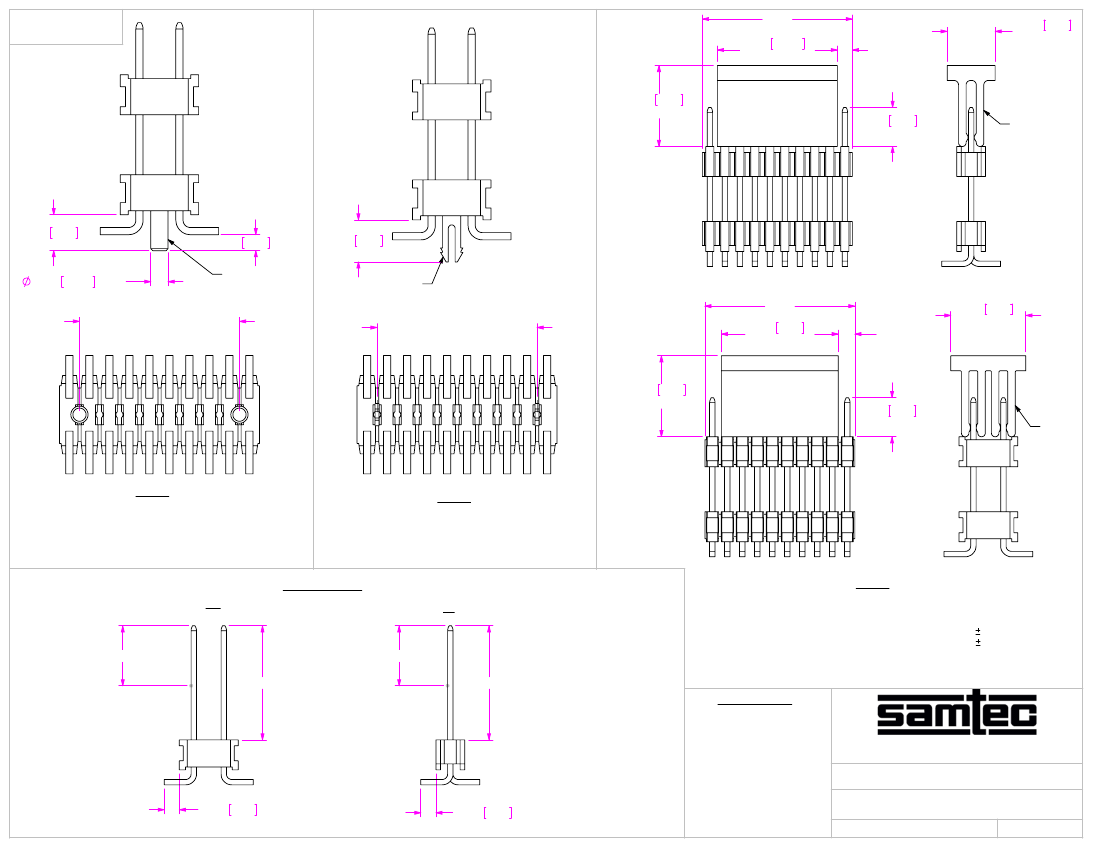

FIG 2
-A OPTION: STAKED ALIGNMENT PIN
(6 POSITIONS MINIMUM)
[BODY SPEC -D ONLY]
HDWM-10-57-XX-X-400-SM-A SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 3
-LC OPTION: STAKED LOCKING CLIP
(5 POSITIONS MINIMUM)
[BODY SPEC -D ONLY]
HDWM-10-57-XX-X-400-SM-LC SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
-D
IN-PROCESS
-S
CONTACT AREA
"C"
"C"
DOUBLE ROW
CONTACT AREA
-P OPTION: PICK & PLACE PAD
(MIN POST HEIGHT .100 [2.54])
"N" = USE MEASURED DIMENSION
FOR DOUBLE ROW: "Q" = {("N" - .390 [9.91]) /2} .020 [.51]
FOR SINGLE ROW: "Q" = {("N" - .400 [10.16]) /2} .020 [.51]
HDWM-10-57-XX-X-400-SM-P SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
FIG 4
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 3:1
BOARD SPACING SM MICRO STRIPS
.050 1.27 (TYP)
c:\enterprisevault\DWG\MISC\MKTG\HDWM-XX-XX-XX-X-XXX-SM-XXX-MKT.SLDDRW
.050 1.27 (TYP)
HDWM-XX-XX-XX-X-XXX-SM-XXX
07/09/1992
SHEET
2
OF
3
BY:
BRYAN T
REVISION AV
PT-1-24-04-44
PT-1-24-02-44
PT-1-24-01-48

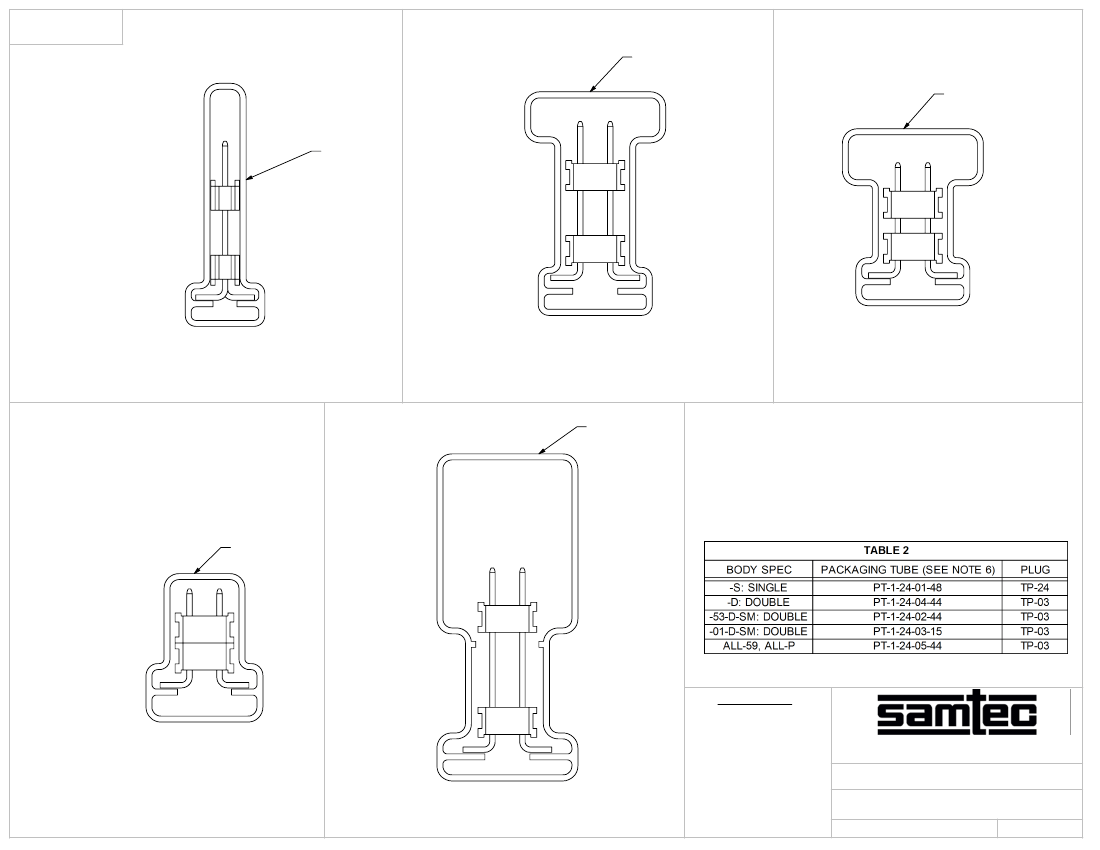

-S: SINGLE
LEAD STYLES -01, -53, -54,
-55, -56, -57, -58, -59
-D: DOUBLE
LEAD STYLES -54, -55,-56, -57, -58
-53-D-SM: DOUBLE
PT-1-24-05-44
PT-1-24-03-15
ALL TUBES WORK FOR THE ALIGNMENT PIN OPTION.
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
-01-D-250-SM: DOUBLE
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
BOARD SPACING SM MICRO STRIPS
ALL -59-D, ALL -P
c:\enterprisevault\DWG\MISC\MKTG\HDWM-XX-XX-XX-X-XXX-SM-XXX-MKT.SLDDRW
SHEET SCALE: 3:1
HDWM-XX-XX-XX-X-XXX-SM-XXX
07/09/1992
SHEET
3
OF
3
BY:
BRYAN T
