P8-V
COMPACT
PUSHBUTTONS
VANDAL RESISTANT PUSHBUTTON SWITCHES
MOMENTARY ACTION, SHORTER BEHIND PANEL, SUBMINIATURE DOUBLE BREAK, SNAP-ACTION
The P8 Vandal Resistant series is a durable, robust switch,
offering the same quality and precision tactile feedback found in
the standard P8 series. With a variety of case, mounting and
terminal styles and a mechanical life of 1,000,000 cycles, this
stainless steel sealed switch is ideal for door access security
systems, public transit systems, emergency phones, traffic signals,
industrial and process control environments and anywhere that
ruggedness, durability and security are crucial.
OTTO P8 series pushbutton switches feature a shortened
back of panel depth while offering all the features of the regular
size P1 and P3 series switches. P8 series switches offer vastly
improved electrical and mechanical life under extreme conditions
found in most military and industrial environments.
On sealed models, a silicone boot operating on our patented
“rolling sleeve” principle protects the contact area against
contamination at the button area. This boot provides long life and
smooth operation over a wide temperature range. Sealed terminals
protect the contact area from hostile environments and solder flux
on both sealed and unsealed models.
High contact pressure (120g/4.2 oz), low contact resistance
(25mΩ) and short contact bounce (5ms max) are all a result
of our patented snap-action mechanism. These characteristics
provide exceptional current carrying capabilities over the life of
the switch. Optional low level (gold plate) configuration makes
the P8-V switches well suited to interface directly to computers
and other solid state devices.
Standard Characteristics/Ratings:
ELECTRICAL RATINGS:
Load
Resistive
Inductive
Lamp
Low Level
Electrical Life:
Mechanical Life:
Seal:
Operating Force:
Total Travel:
Overtravel:
Sea Level @ 28VDC
or 115VAC, 60/400Hz
10A
5A
3A
10mA @ 30mV
100,000 cycles
1,000,000 cycles
IP64 or IP68S
Flush Mount,

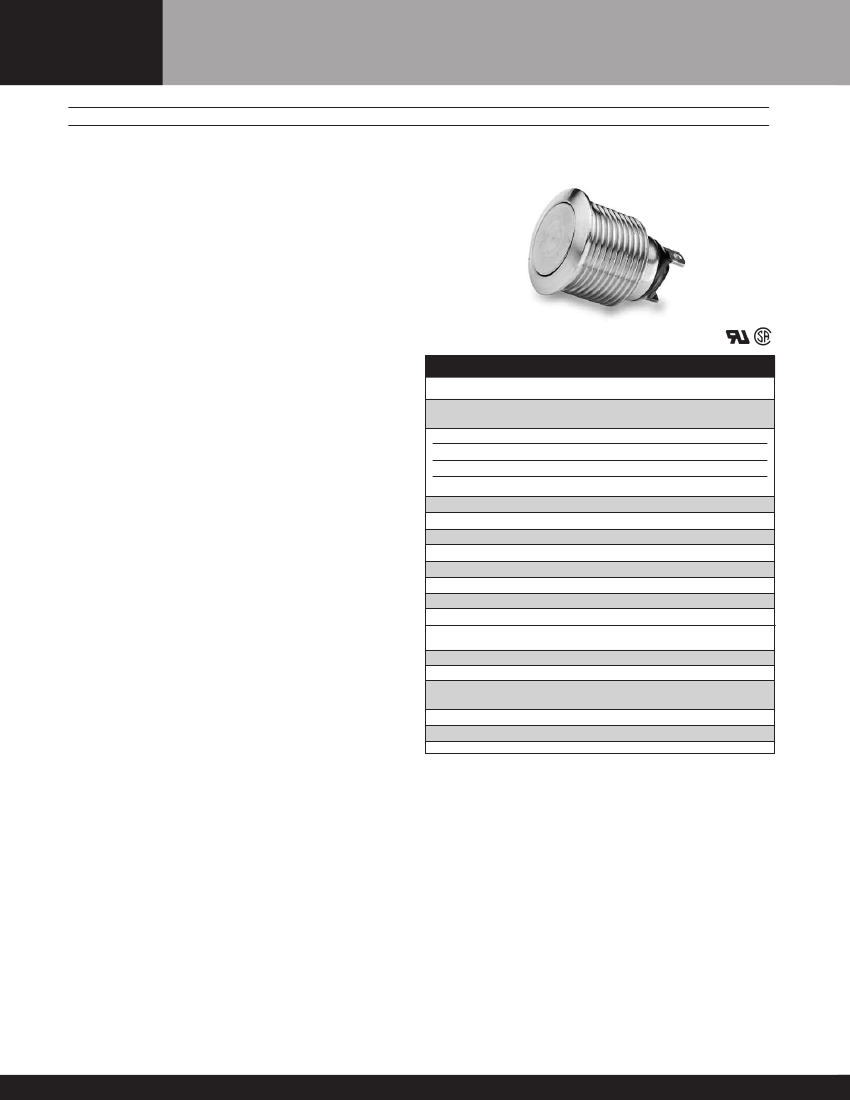

5/8" Thread Shown
®
Operating Temp Range:
-55°C to +85°C
2.5 lbs. +0.5 /-1.0 lb. to 4.0 lbs. +/- 1.0 lb.
0.085 +/- 0.015 inches
0.012 inches min
Features:
• Stainless steel vandal resistant case
• Aluminum security level case
• Watertight to IP68S or moistureproof & dusttight
to IP64
• Positive tactile feedback
• Less than 25mΩ contact resistance
• Variety of case and button styles available
• Mechanical life 1 million cycles
• UL recognized
• UL1500 ignition protected
Movement Differential:
0.015 inches min
MATERIALS:
Case:
Button:
Terminals:
Terminal Hardware:
Mounting Hardware:
Anodized aluminum alloy or stainless steel
Anodized aluminum alloy or stainless steel
Standard silver plate with optional gold plate for
low level applications
Terminal lugs, screws and lockwasher when applicable
Hex nut, lockwasher and panel seal gasket
90
OTTO Full Line Catalog
Specifications Subject To Change Without Notice
P8-V
VANDAL RESISTANT PUSHBUTTON SWITCHES
High Profile, with Flat Button
Style 1
COMPACT
PUSHBUTTONS
MOMENTARY ACTION, SHORTER BEHIND PANEL, SUBMINIATURE DOUBLE BREAK, SNAP-ACTION
Low Profile, with Curved Button
PUSHBUTTONS
Style 4
High Profile, with Curved Button
Style 2
Flush Mount
Style 5
Low Profile, with Flat Button
Style 3

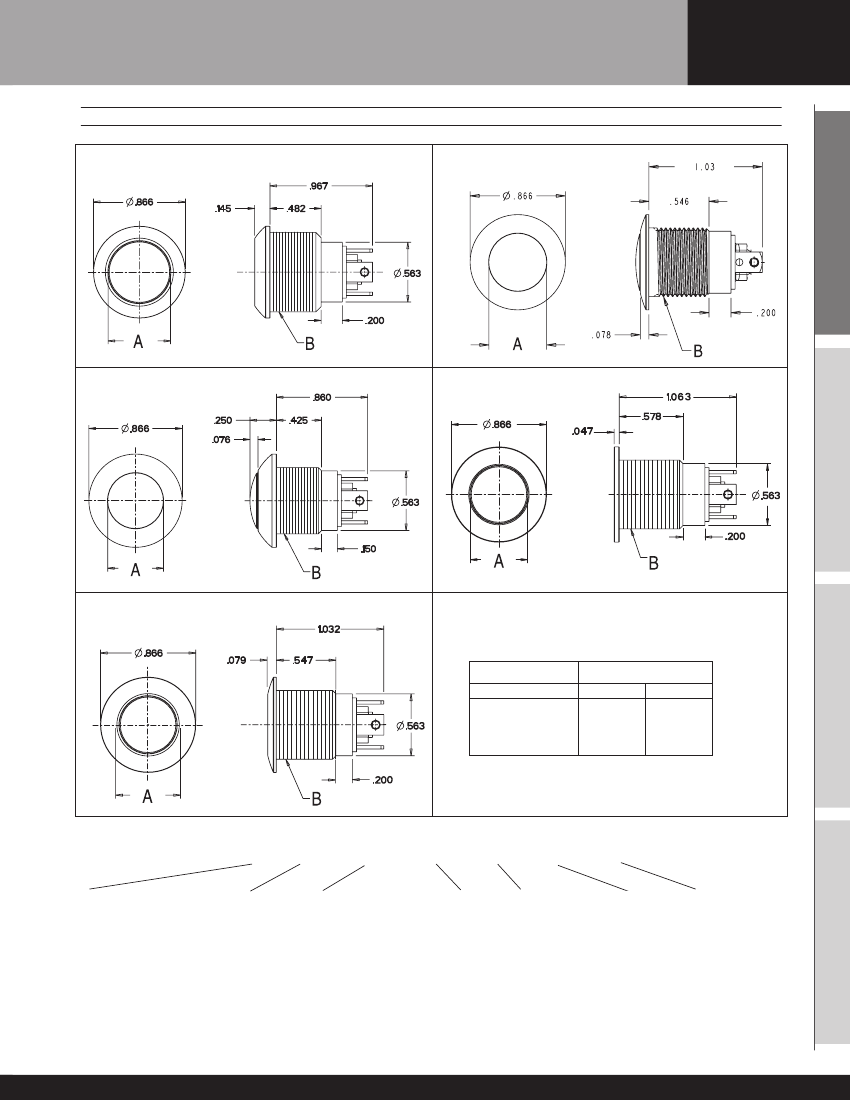

Dimension
A (Button Dia.)
B (Thread)
D-Flat
Case Style
1-4
5-8
0.525
0.590
0.625-24
0.750-20
0.594
0.718
P8-V PART NUMBER CODE
P8
Type
V.
Vandal Resistant
(SS Case & Button)
A.
Security Level
(AL Case & Button)
–
X
X
X
Terminal Style/
Case Color
1.
Solder Terminal/Silver
2.
Screw Terminal/Silver
3.
Faston Terminal/Silver
4.
Solder Terminal/Black
5.
Screw Terminal/Black
6.
Faston Terminal/Black
X
Circuit
Form
1.
N.O.
2.
N.C.
6.
2 Circuit
X
Current
Rating/Seal
X
X
Operating
Force
1.
2.5 lbs.
2.
4.0 lbs.
Case Style & Mounting
1.
2.
3.
4.
5.
6.
7.
8.
5/8-24 & Hex Nut
5/8-24 & Knurl Nut
5/8-24 W/D–Flat & Hex Nut
5/8-24 W/D–Flat & Knurl Nut
3/4-20 & Hex Nut
3/4-20 & Knurl Nut
3/4-20 W/D–Flat & Hex Nut
3/4-20 W/D–Flat & Knurl Nut
Button Profile
1.
High Profile/Flat Button
2.
High Profile/Curved Button
3.
Low Profile/Flat Button
4.
Low Profile/Curved Button
5.
Flush Profile
2.
Std./Splashproof
3.
Std./Watertight
4.
Low Level/Splashproof
5.
Low Level/Watertight
Only available on P8-A Styles
Overall length +0.12" for faston terminals
Faston receptacles: 0.187” on N.O.; 0.110” on N.C. terminals
Specifications Subject To Change Without Notice
www.ottoexcellence.com
91
