ADS-937/883 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> ADS-937/883

ADS-937/883: DescriptionADC Subsystem, 16-Bit, 1 Func, 1 Channel, Parallel, Word Access, Hybrid, PDIP32, METAL SEALED, SIDE BRAZED, CERAMIC, TDIP-32; CategoryAnalog mixed-signal IC converter; File Size495KB，8 Pages; ManufacturerDATEL Inc.

Download Datasheet Parametric Compare View All

ADS-937/883 Overview

ADC Subsystem, 16-Bit, 1 Func, 1 Channel, Parallel, Word Access, Hybrid, PDIP32, METAL SEALED, SIDE BRAZED, CERAMIC, TDIP-32

ADS-937/883 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	DATEL Inc.
Parts packaging code	DIP
package instruction	DIP, DIP32,.9
Contacts	32
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum analog input voltage	5 V
Converter type	ADC SUBSYSTEM
JESD-30 code	R-PDIP-T32
JESD-609 code	e0
Nominal negative supply voltage	-15 V
Number of analog input channels	1
Number of digits	16
Number of functions	1
Number of terminals	32
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output bit code	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY
Output format	PARALLEL, WORD
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP32,.9
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-5,+-15 V
Certification status	Not Qualified
Sampling rate	1 MHz
Sample and hold/Track and hold	SAMPLE
Filter level	38535Q/M;38534H;883B
Nominal supply voltage	15 V
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	22.86 mm

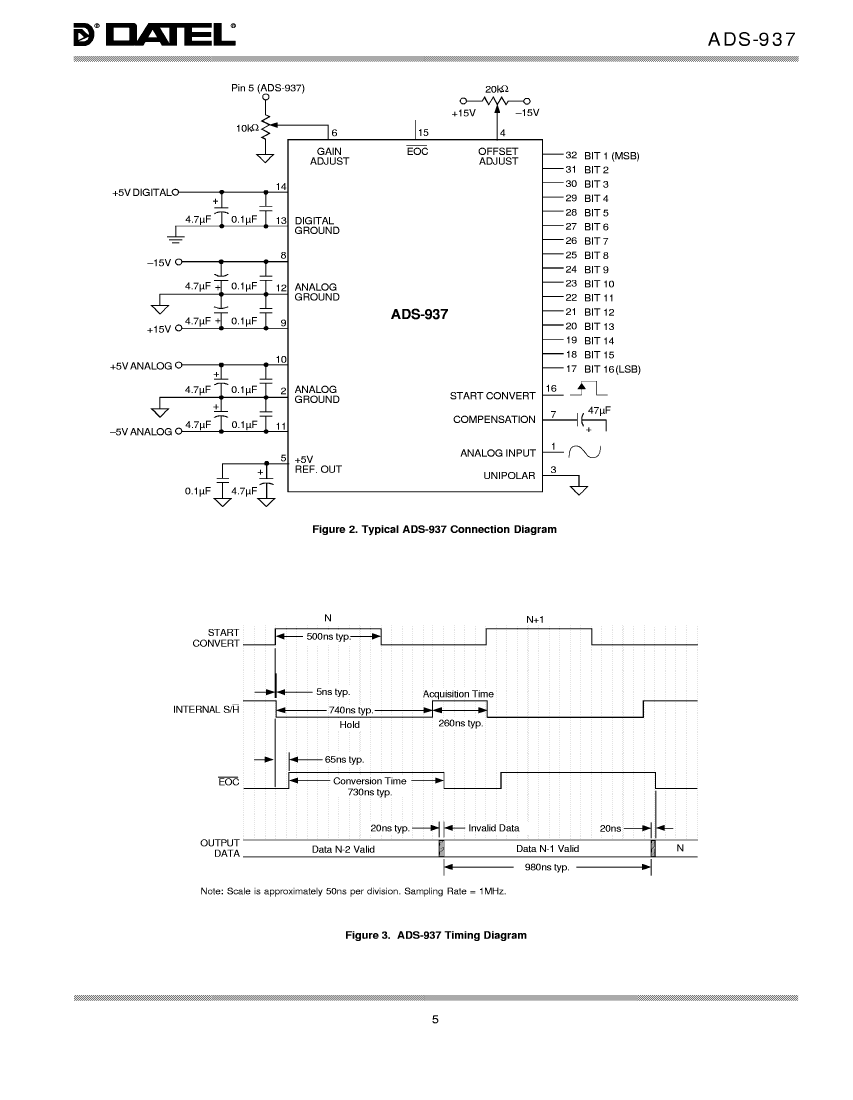

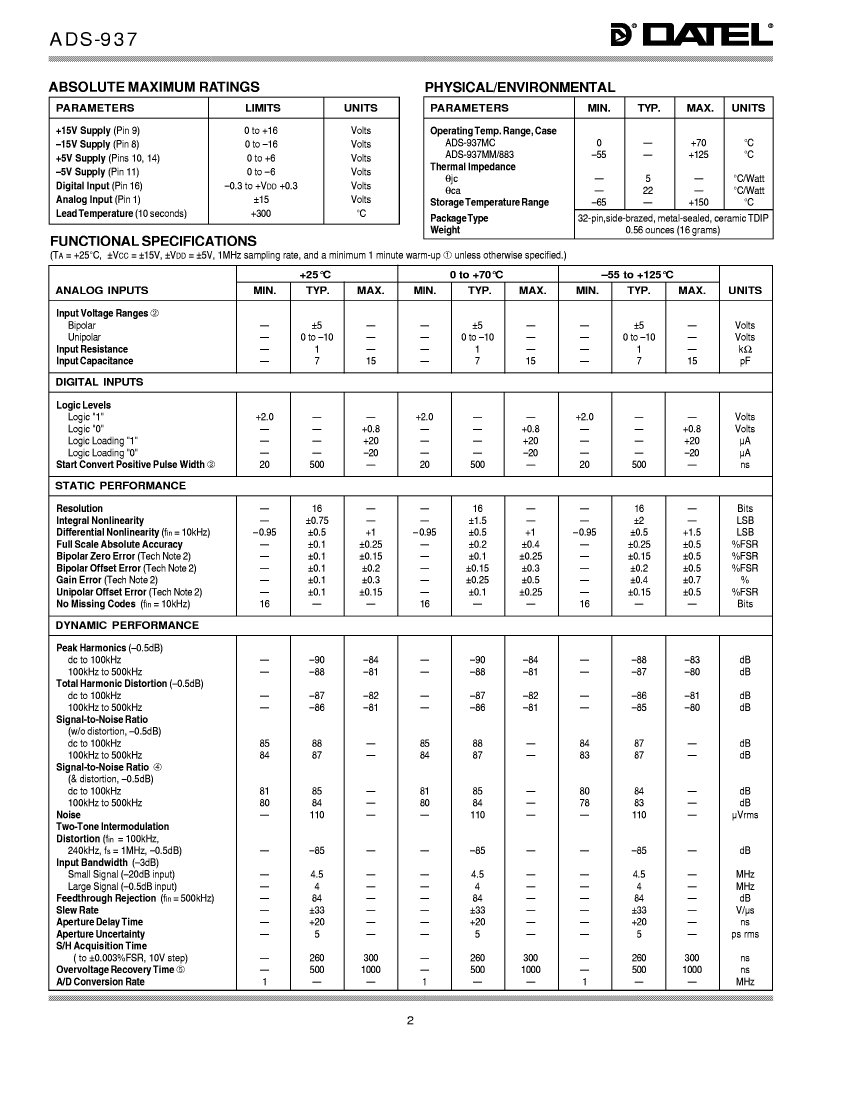

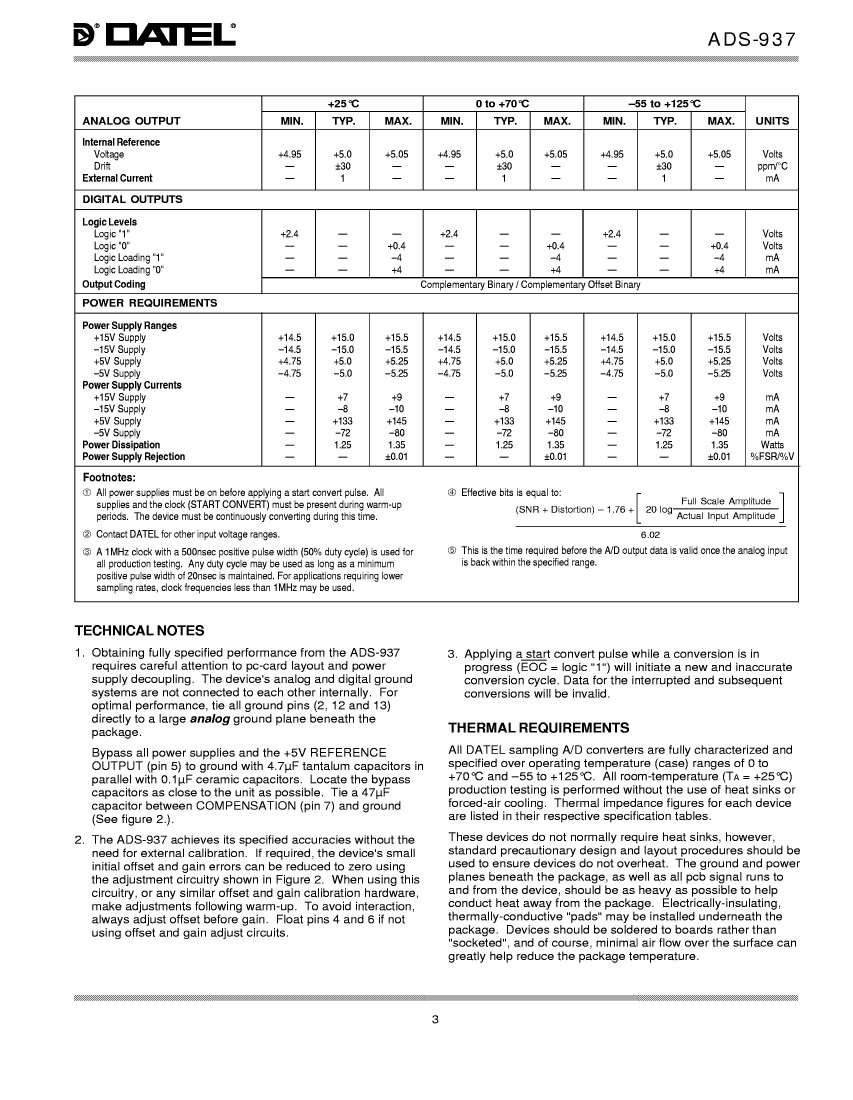

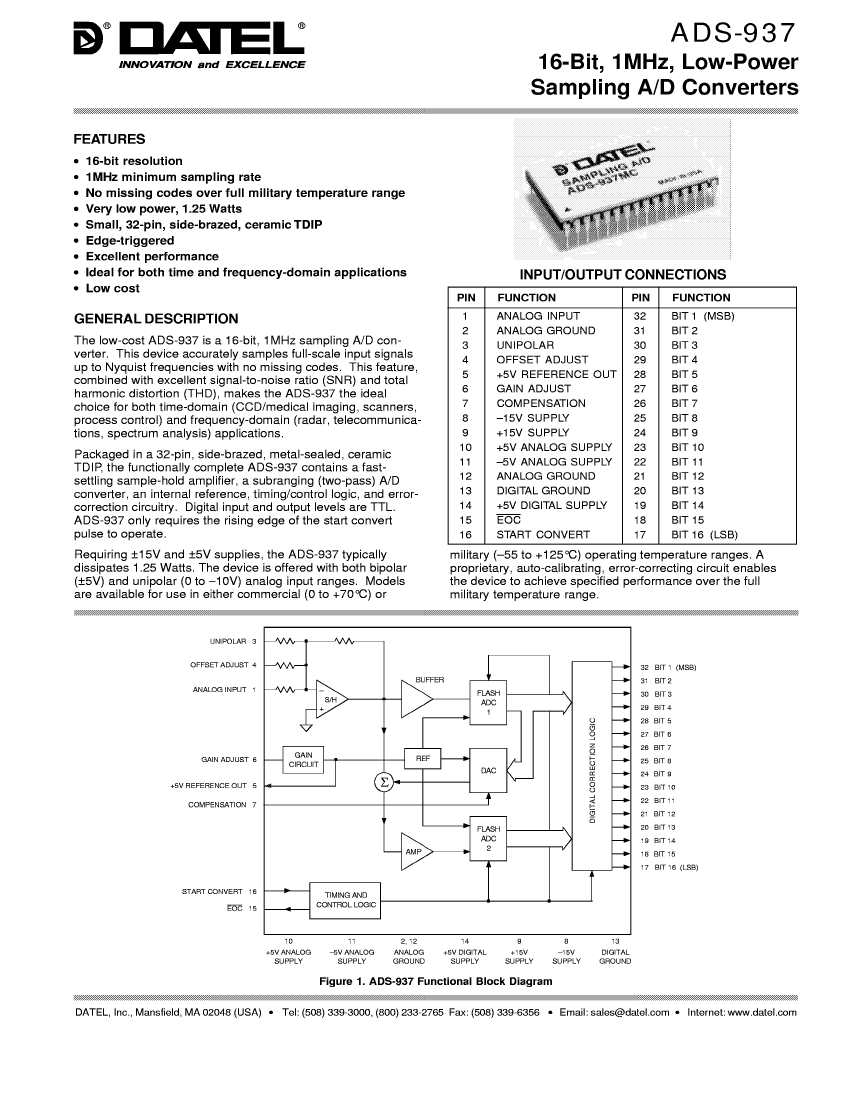

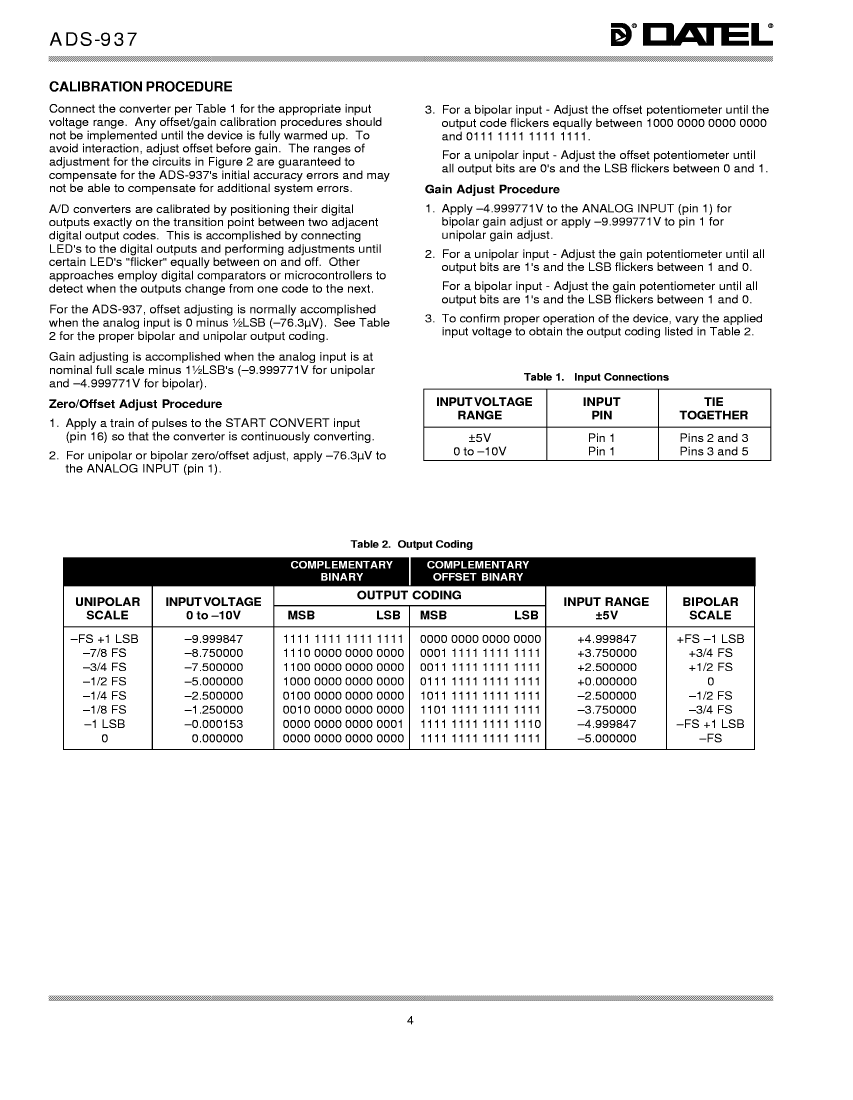

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

ADS-937/883 Related Products

	ADS-937/883	ADS-937MM
Description	ADC Subsystem, 16-Bit, 1 Func, 1 Channel, Parallel, Word Access, Hybrid, PDIP32, METAL SEALED, SIDE BRAZED, CERAMIC, TDIP-32	ADC Subsystem, 16-Bit, 1 Func, 1 Channel, Parallel, Word Access, Hybrid, CDIP32, SIDE BRAZED, METAL SEALED, CERAMIC, TDIP-32
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
Maker	DATEL Inc.	DATEL Inc.
Parts packaging code	DIP	DIP
package instruction	DIP, DIP32,.9	DIP, DIP32,.9
Contacts	32	32
Reach Compliance Code	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C
Maximum analog input voltage	5 V	5 V
Converter type	ADC SUBSYSTEM	ADC SUBSYSTEM
JESD-30 code	R-PDIP-T32	R-CDIP-T32
JESD-609 code	e0	e0
Nominal negative supply voltage	-15 V	-15 V
Number of analog input channels	1	1
Number of digits	16	16
Number of functions	1	1
Number of terminals	32	32
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output bit code	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY	BINARY, OFFSET BINARY
Output format	PARALLEL, WORD	PARALLEL, WORD
Package body material	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP32,.9	DIP32,.9
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	+-5,+-15 V	+-5,+-15 V
Certification status	Not Qualified	Not Qualified
Sampling rate	1 MHz	1 MHz
Sample and hold/Track and hold	SAMPLE	SAMPLE
Nominal supply voltage	15 V	15 V
surface mount	NO	NO
technology	HYBRID	HYBRID
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	22.86 mm	22.86 mm
