CRYSTAL CLOCK OSCILLATORS
Data Sheet 0629G
LVPECL UHF VCXO
SD-X36BXXX-X Series
Description
Rev. J
The SD-X36BXXX Series
of voltage controlled crystal oscillators (VCXO) provides ultra high
frequency with LVPECL complementary output. The outputs can be Tri-stated for test automation or
combining multiple clocks. The device is based on low noise analog harmonic multiplication for
higher frequencies, and packaged in a miniature, low profile leadless ceramic SMD package with 6
gold plated pads.
Applications and Features
•
•
•
•
•
•
•
•
•
Wide frequency range – 60.0MHz to 312.500MHz
Fiber Channel; 10 GbE; Infiniband; Network Processors; SOHO Routing
High Reliability – NEL HALT/HASS qualified for crystal oscillator start-up conditions
Low Phase Noise and Jitter
High Shock Resistance, to 1000g
Ultra High Frequency
Absolute Pull Range (APR) to ± 100 ppm
Grounded lid and internal by-pass capacitor reduce EMI
COTS/Dual use
Creating a Part Number
SD - X
Package code
SD 6 pad 5x7mm SMD
36B
X
X
X - X - FREQ
Environmental
L Contains a level of lead that is in
excess of RoHS directive and is
not designed for reflow
R RoHS compliant
Operating Voltage
A - 3.3 V ± 5%
Enable Option
H Enable High
L Enable Low
N No Enable/Disable
Temperature Range, ºC
A – 0 to 50
B - 0 to 70
C - -20 to 70
D - -40 to 85
9 – customer specific
Absolute Pull Range, ppm
E ±20
F ±32
G ±50
H ±100
9 Customer specific
357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881
Email:
nelsales@nelfc.com
www.nelfc.com
CRYSTAL CLOCK OSCILLATORS
SD-X36BXXX-X Series
LVPECL UHF VCXO
Parameter
Operating Temperature Range
Storage Temperature Range
Supply Voltage
Enable/Disable Voltage
Parameter
Nominal Frequency
Supply Voltage
Supply current
Output Logic Type
Load
Output Levels
Symb
Fo
Vcc
Icc
Output to Vcc-2V, or
Thevenin equivalent
Overall
Symbol
To
Tst
Vcc
Ven/dis
Value
-40 to +85
-50 to +90
-0.5 to 4.5
0 to Vcc
MIN
60
3.135
TYP
3.3
Data Sheet 0629G
Rev. J
Absolute Maximum Ratings
Unit
ºC
ºC
V
V
MAX
312.500
3.465
90
Unit
MHz
V
mA
Ohm
V
Vcc-
1.620
55/45
0.7
Electrical Parameters
(2)
Conditions, Note
Code A
LVPEC
L
80
50
Voh
Vol
Vcc-
1.025
45/55
50/50
0.5
0.3
2.5
35
6
-50
-65
-95
-122
-138
-142
-148
Duty Cycle (Symmetry)
Rise/Fall Time
Jitter
Integrated
Wavecrest
characterized
Tr/Tf
J
At 50% of output voltage
swing
20 to 80, 80 to 20 %
Integrated from Phase Noise,
12 KHz to 20 MHz , RMS
Random
period,
Accumul.,
pk-to-pk
Deterministic
%
ns
ps
ps
ps
ps
dBc
dBc/Hz
Sub-Harmonics
Phase Noise
(1)
£(Δf)
212.5 MHz
@ 10 Hz
@100 Hz
@1 KHz
@10KHz
@100KHz
@>1MHz
Overall, including
temperature, aging 10 years,
shock and vibration @
Vc=Vcc/2;
If -40 to 85°C is selected
Frequency Stability
ΔF/F
30
50
0V
0.4 Vcc
20,32,
50,100
10
10
0.7 Vcc
0
0.7 Vcc
0
Vcc
0.3 Vcc
Vcc
0.3 Vcc
0.5 Vcc
Vcc
0.6 Vcc
ppm
Control Voltage Range
Setability
Absolute Pull Range
Input Impedance
Modulation Bandwidth
Enable High Option
Pin 2 Enabled
Pin 2 Disabled
Enable Low Option
Pin 2 Disabled
Pin 2 Enabled
Vc
Vcs
APR
Zin
Vc to set F at Fo; T, Vcc,
load - nominal, as shipped
Over all conditions, see part
# creation
@ Fmod < 100 Khz
At Vc = Vcc/2, -3dB
CMOS logic 1 or N/C
CMOS logic 0
CMOS logic 1 or N/C
CMOS logic 0
V
V
ppm
KOhm
KHz
V
V
Footnotes: 1) If phase noise data at a particular frequency is needed, contact factory.
2) All parameters, unless otherwise specified, are at nominal conditions, ie: T=25°C, Nominal Vcc & Nominal Load.
357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881
Email:
nelsales@nelfc.com
www.nelfc.com
CRYSTAL CLOCK OSCILLATORS
SD-X36BXXX-X Series
LVPECL UHF VCXO
Electrical Connection
Pin Connection
1 Vco
2 Enable
3 V
EE
4
Output
5
Output Complement
6
V
cc
Data Sheet 0629G
Rev. J
Environmental and Mechanical Characteristics
Operating temp.
range
Mechanical Shock
Thermal Shock
Vibration
Hermetic Seal
Soldering conditions
see part # table
Per MIL-STD-202, Method 213, Cond. A
Per MIL-STD-883, Method 1011, Cond. A
Per MIL-STD-883, Method 2007, Cond. A
Leak rate less than 1x10-8 atm.cc/s of helium
See MAX reflow profile below

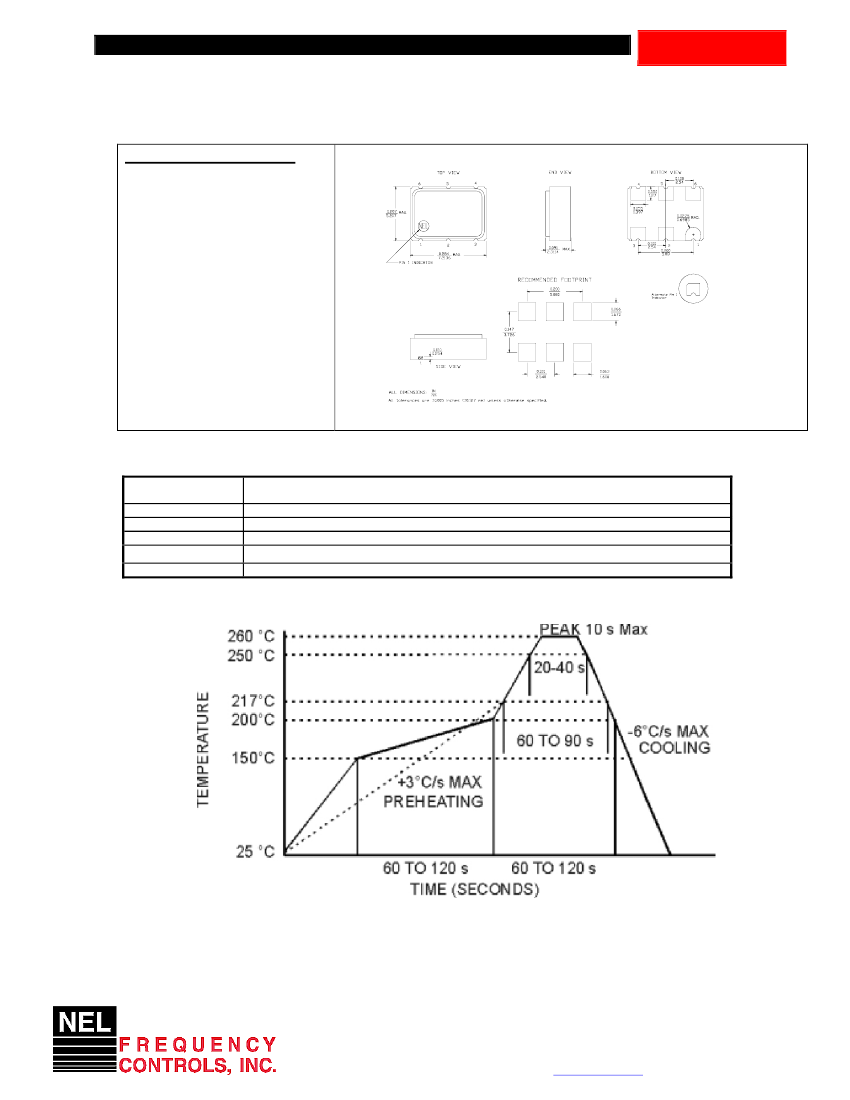

MAX Reflow Profile
