Power entry modules without line filter
https://www.schurter.com /PG05

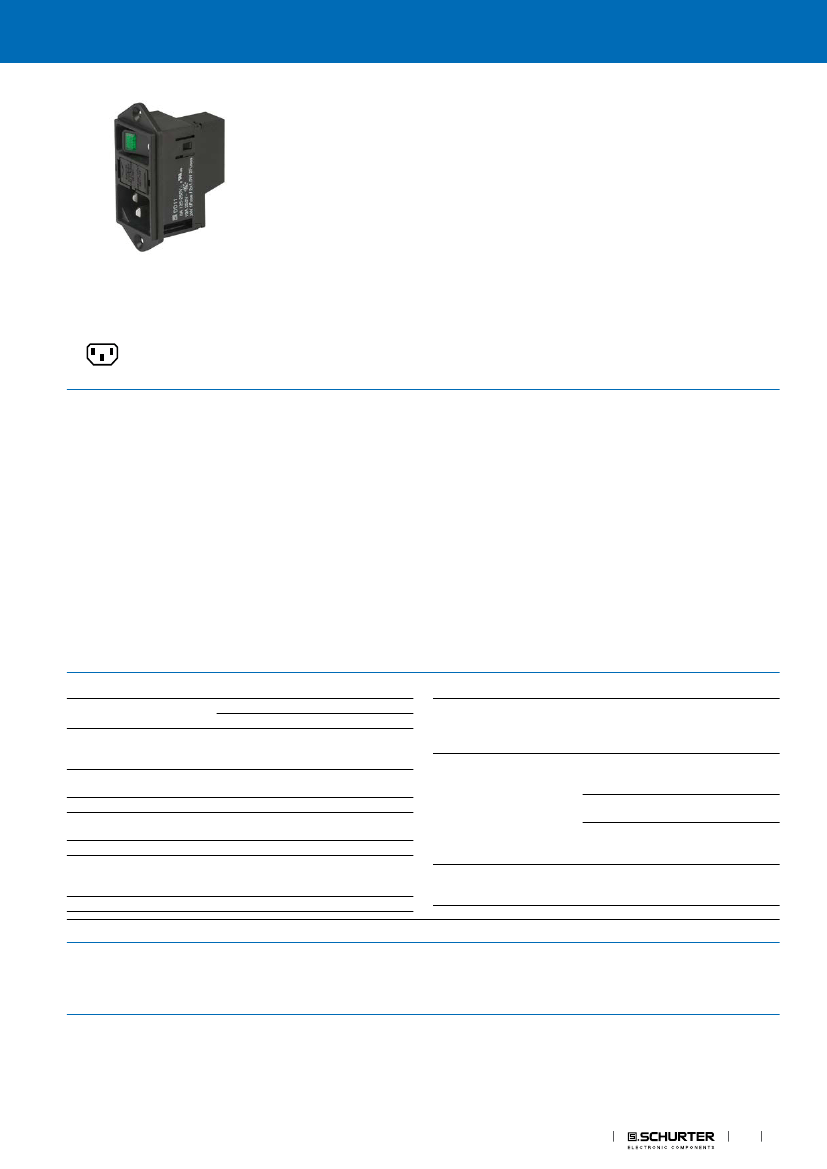

DD11
IEC Appliance Inlet C14 with Line Switch 2-pole, Fuseholder 1- or 2-pole
Order required accessories separately
C14
Approvals and Compliances
70° C
See below:
Description
- Panel mount :
Screw-on version from front or rear side
- 3 Functions :
Appliance Inlet Protection class I , Line Switch 2-pole , Fuseholder for
fuse-links 5 x 20 mm 1- or 2-pole
- V-Lock notch standard
- Meets the requirements of IEC 60335-1 for appliances in unattended
use. This includes the enhanced requirements of glow wire tests acc.
to IEC 60695-2-12 and -13.
- Quick connect terminals 4.8 x 0.8 mm
Characteristics
-
-
-
-
-
-
-
-
-
-
-
Ultra-compact design. Ideal for low profile designs
All single elements are already wired
Fuse drawer meets requirements of medical standard IEC/EN 60601-1
Ideal for application with high transient loads
Suitable for use in equipment according to IEC/UL 60950
Solder terminals
Fuse drawer 1-pole, plus spare fuse case
Fuse drawer 2-pole, with shorting bar
Other rocker marking
Line switch 1-pole
Protection class II, 70°C
Other versions on request
References
Alternative: version with line filter
DD12; DD14
Alternative: version for snap-in mounting
KM
Alternative: version for PCB mounting
DD21
Weblinks
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Accessories, Detailed request for product, Microsite
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
10 A / 250 VAC; 50 Hz
8 A / 250 VAC; 60 Hz ¹⁾
> 2.5 kVAC between L-N
> 3 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 85 °C
from front side IP 40 acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
Quick connect terminals 4.8 x 0.8 mm
Screw-on mounting: max 8 mm
Mounting screw torque max 0.5 Nm
Rear side mounting: max 2 mm
Thermoplastic, black, UL 94V-0
appliance inlet/-outlet
C14 acc. to IEC 60320-1
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 10 A,
Protection Class I
1 or 2 pole, Shocksafe category PC2
acc. to IEC 60127-6,
for fuse-links 5 x 20 mm
5 x 20: 2 W (1 pole)/ 1.6 W (2-pole) per
pole
Admissible power acceptance at higher
ambient temperature see derating cur-
ves
Rocker switch 2-pole, non-illuminated
or illuminated, acc. to IEC 61058-1
Technical Details
Fuseholder
Allowable Operation Tempe-
rature
IP-Protection
Insulation cover
Terminal
Panel Thickness S
Rated Power Acceptance @
Ta 23 °C
Power Acceptance @ Ta >
23°C
Line Switch
Material: Housing
1)
with cover 7 A, without cover 8 A
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: DD11
Connectors
1
DD11
Approval Logo
Certificates
VDE Approvals
UL Approvals
Certification Body
VDE
UL
Power entry modules without line filter
https://www.schurter.com /PG05
Description
Certificate Number: 40046933
UL File Number: E93617
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
IEC 60127-6
IEC 61058-1
UL 498
CSA C22.2 no. 42
Description
Appliance couplers for household and similar general purposes
Miniature fuses. Part 6. Fuse-holders for miniature fuse-links
Switches for appliances. Part 1. General requirements
Standard for Attachment Plugs and Receptacles
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Designed for applications acc.
Designed for applications acc.
Standard
IEC/UL 60950
IEC 60601-1
IEC 60335-1
Description
IEC 60950-1 includes the basic requirements for the safety of information
technology equipment.
Medical electrical equipment - Part 1: General requirements for basic
safety and essential performance
Safety of electrical appliances for household and similar purposes. Meets
the requirements for appliances in unattended use. This includes the en-
hanced requirements of glow wire tests acc. to IEC 60695-2-12 and -13.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
V-Lock system are based on a matching plug-dose combination. The
connector is equipped with a notch intended for use with the latching
cordset. The cord latching system prevents against accidental removal of
the cordset.
Meets the requirements of IEC 60335-1 for appliances in unattended use.
This includes the enhanced requirements of glow wire tests acc. to IEC
60695-2-12 and -13.
Suitable for use in medical equipment according to IEC/UL 60601-1
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
MicrositeV-Lock
SCHURTER AG
White paperGlow wire test
SCHURTER AG
Medical Equipment
SCHURTER AG
2
Connectors
Power entry modules without line filter
https://www.schurter.com /PG05
DD11

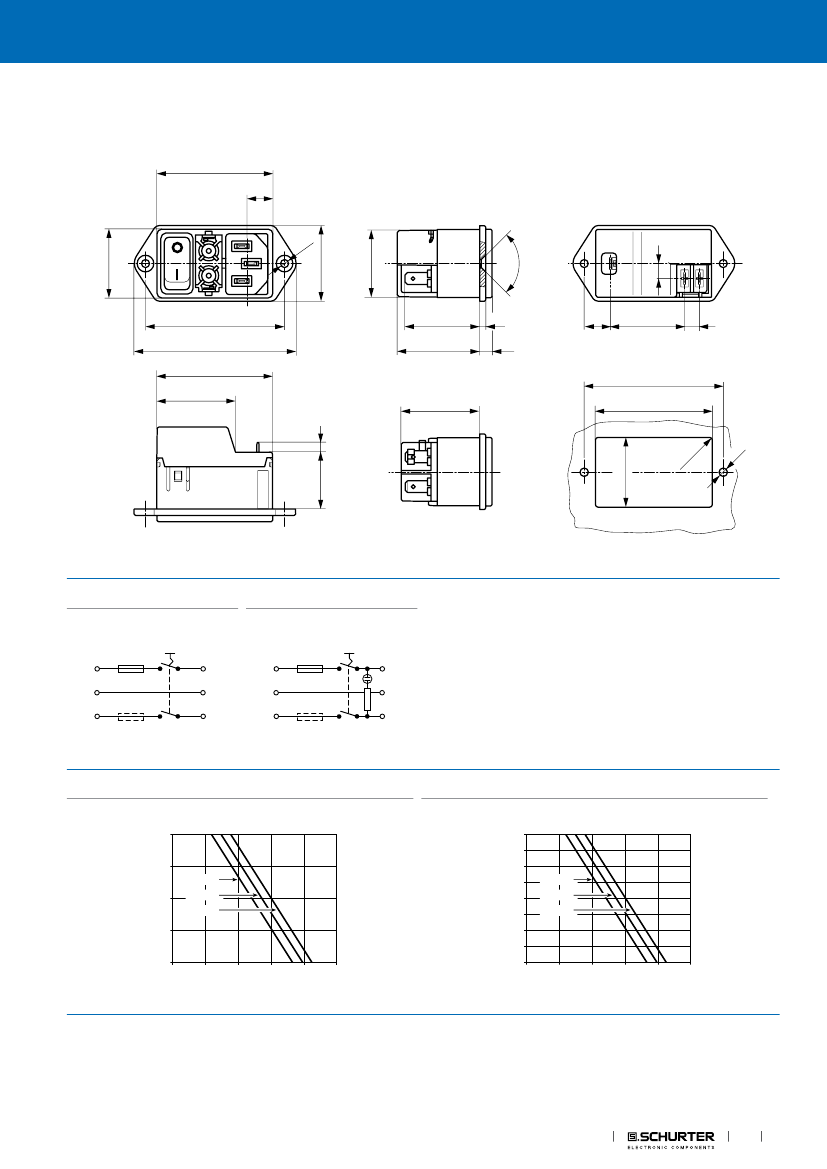

Dimensions [mm]
Screw version
46.7
10.3
30.5
27.1
90°
5
3.2
27.7
PE
N
L
56
65
46.6
31.6
30
33.1
2.5
5
10.6
29.8
6
31.5
4
.0
5
1
±0
28.1
±0.10
22.9
b)
a) view with cover
b) view without cover
Diagrams
non-illuminated
illuminated
1)
L
PE
N
F1
F2
S
L'
2)
1)
L
PE
N
F1
F2
S
R
L'
2)
PE'
N'
PE'
N'
1) Line
2) Load
1) Line
2) Load
Derating Curves
1-pole
Admissible power acceptance in
Watt
2.0
2-pole
Admissible power acceptance in
Watt per pole
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
0
20
40
60
80
100
I = 1.0 I
n
I = 0.7 I
n
I = < < I
n
1.5
I = 1.0 I
n
1.0
I = 0.7 I
n
I = < < I
n
0.5
0.0
0
20
40
60
80
100
Ambient air temperature Ta °C
Ambient air temperature Ta °C
Connectors
R
3.
4
2
6
a)
56
±0.15
47.1
±0.10
2a
2
3
DD11
All Variants
Power entry modules without line filter
https://www.schurter.com /PG05
Fuseholder
1-pole
1-pole
1-pole
2-pole
2-pole
2-pole
1-pole
1-pole
1-pole
2-pole
2-pole
2-pole
Line Switch
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
2-pole
Illumination
non-illuminated
illuminated
illuminated
non-illuminated
illuminated
illuminated
non-illuminated
illuminated
illuminated
non-illuminated
illuminated
illuminated
Color
-
red
green
-
red
green
-
red
green
-
red
green
Cover 1)
V-Lock
l
l
l
l
l
l
Order Number
DD11.0111.1110
DD11.0113.1110
DD11.0114.1110
DD11.0121.1110
DD11.0123.1110
DD11.0124.1110
DD11.0111.1111
DD11.0113.1111
DD11.0114.1111
DD11.0121.1111
DD11.0123.1111
DD11.0124.1111
█
█
█
█
█
█
█
█
█
█
█
█
l
l
l
l
l
l
l
l
l
l
l
l
1) current rating UL: with cover 7 A, without cover 8 A
█
Most Popular.
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Packaging unit

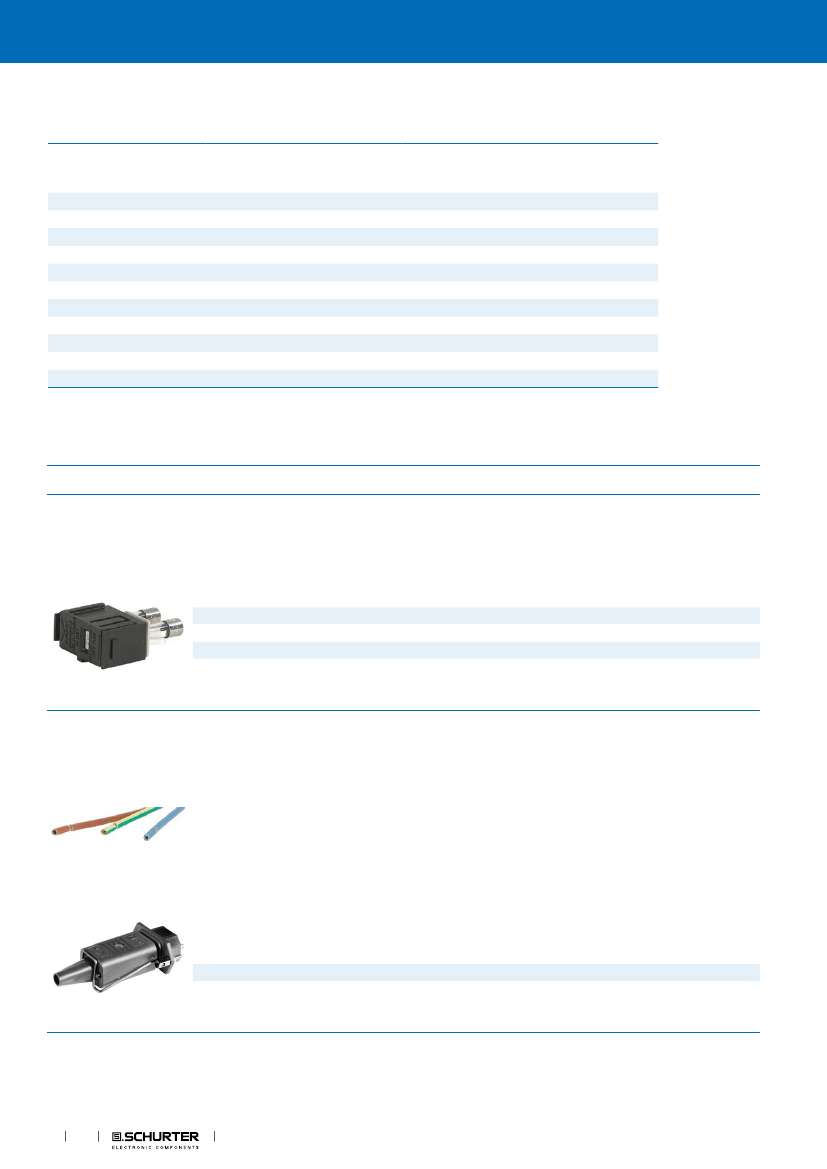

Required Accessory
50 Pcs
Description
Fusedrawer 2
Fusedrawer für Fuse Links 5x20 mm, with or without Voltage Selector Insert
Fingergrip, 2-pole
Extra-Safe, 2-pole
Fingergrip, 1-pole
Extra-Safe, 1-pole
4301.1401
4301.1403
4301.1405
4301.1407
...
Accessories
Wire Harness
Wire harness for SCHURTER products
Cord retaining kits
Cord retaining strain relief
Flat head, A
4700.0001
4
Connectors
Power entry modules without line filter
https://www.schurter.com /PG05
DD11

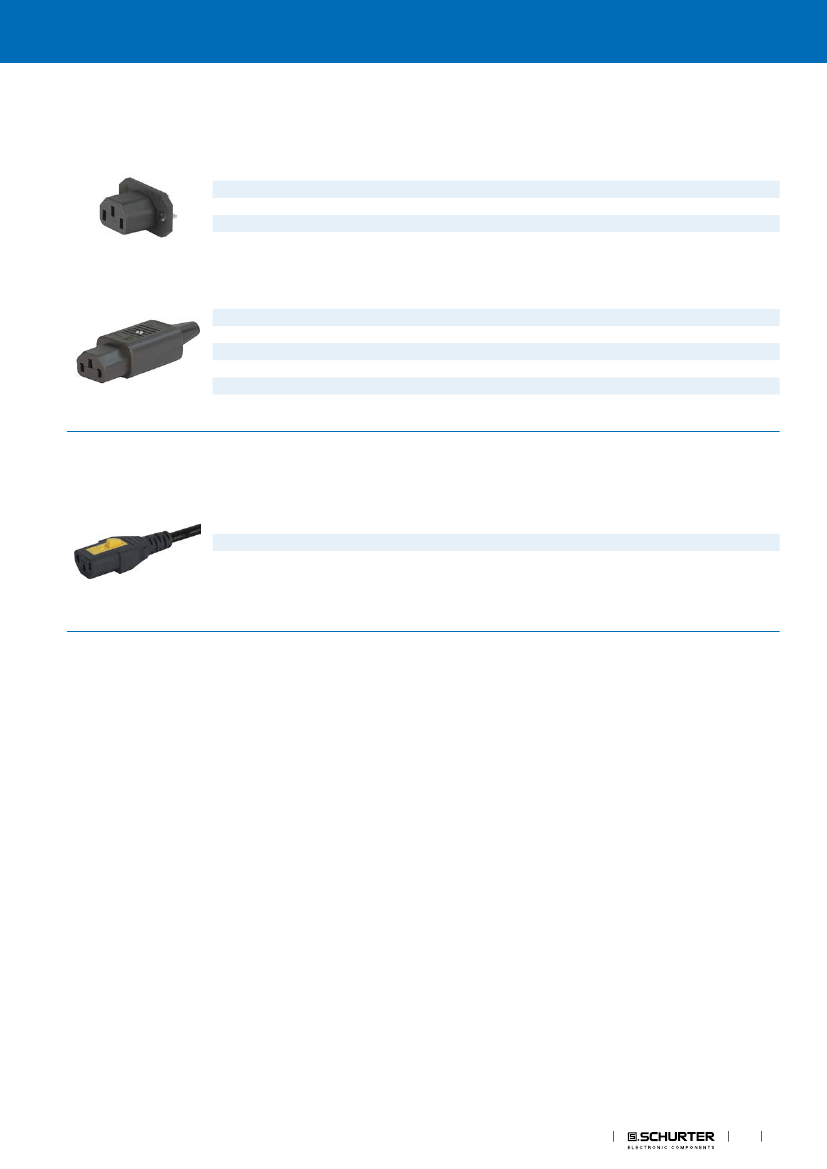

Mating Outlets/Connectors
Category / Description
Appliance Outlet Overview complete
IEC Appliance Outlet F, Screw-on Mounting, Front Side, Solder Terminal
IEC Appliance Outlet F, Snap-in Mounting, Front Side, Solder or Quick-connect Terminal
IEC Appliance Outlet F or H, Screw-on Mounting, Front Side, Solder, PCB or Quick-connect Terminal
Appliance Outlet further types to DD11
4787
4788
5091
Connector Overview complete
4782 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13
4785 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13
4300-06 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13
IEC Connector C15 for hot conditions 120°C, Rewireable, Straight
IEC Connector C15 for hot conditions 120°C, Rewireable, Angled
Connector further types to DD11
4782
4785
4300-06
4781
4784
...
Mating Outlets/Connectors shuttered
Power Cord Overview complete
VAC13KS, Overview, diverse Connector IEC C13, cord end:
Power cord with IEC connector C17, V-Lock, straight
Power Cord further types to DD11
VAC13KS
VAC17KS
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
Connectors
5
11.09.2018
