DD21.0123.1111 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DD21.0123.1111

DD21.0123.1111: Description10A, 125/250VAC, MALE, MAINS POWER CONNECTOR, SOLDER; CategoryThe connector The connector; File Size480KB，3 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DD21.0123.1111 Overview

10A, 125/250VAC, MALE, MAINS POWER CONNECTOR, SOLDER

DD21.0123.1111 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SCHURTER
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	9 weeks 2 days
Samacsys Description	Inlet,PCB mount, Fuse, 2pole
Other features	STANDARDS: IEC/EN 60320-1/C14, UL 94V-0, UL 498, CSA C22.2, VDE
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
MIL compliance	NO
Power Connector Ratings	10A, 125/250VAC
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell material	THRMOPLASTIC
Termination type	SOLDER
Total number of contacts	3

Preview

Download Datasheet

View All

Power entry modules without line filter

www.schurter.com/pg05

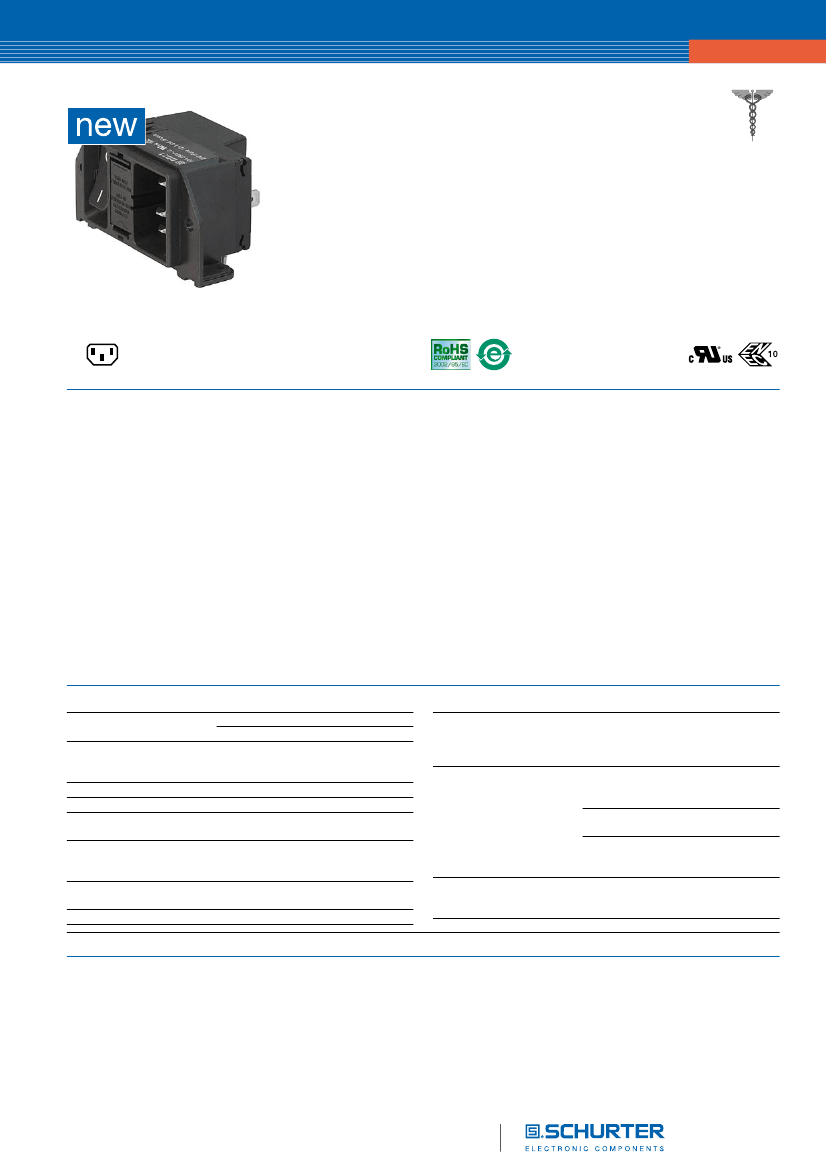

IEC Appliance Inlet C14 with Line Switch 2-pole, Fuseholder 1- or 2-pole, for PCB mounting,

DD2

Standard or Medical Fuse drawer

C14

70° C

- Panel Mount:

Screw-on mounting on PCB from rear-side

- 3 Functions:

Appliance Inlet Protection class I, Line Switch 2-pole, Fuseholder for

fuse-links 5 x 20 mm 1- or 2-pole

- PCB solder terminals

- Alternative: version with line filter DD22 Alternative: version for pa-

nel mounting DD11

- With cover on rear-side

Description

Characteristics

- Ultra-compact design. Ideal for low profile designs

- All single elements are already wired

- For added safety "Extra-Safe" fuse drawers are available

Fuse drawer meets requirements of medical standard IEC/EN 60601-1

The fuse drawer can only be opened with the aid of a tool

The fuseholder is accessible from the equipment front

- Ideal for application with high transient loads

- Qualified for use in equipment according IEC/EN 60950

Other versions on request

Approvals

- VDE License Number: 40018283

- UL License Number: E93617

- Fuse drawer 1-pole, plus spare fuse case

- Fuse drawer 2-pole, with shorting bar

- Other rocker marking

- Line switch 1-pole

- Protection class II, 70°C

- Without cover

References

Weblinks

General Product Information

Approvals, RoHS, CHINA-RoHS, Mating Connectors, e-Store,

Distributor-Stock-Check, Accessories

Technical Data

Ratings IEC

Ratings UL/CSA

Dielectric Strength

10 A / 250 VAC; 50 Hz

10 A / 125 VAC; 60 Hz ¹⁾

> 2.5 kVAC between L-N

> 3 kVAC between L/N-PE

(1 min/50 Hz)

-25 °C to 85 °C

from front side IP 40 acc. to IEC 60529

Suitable for appliances with protection

class 1 or 2 acc. to IEC 61140

For PCB mounting 3 mm, Ground ter-

minal, additional quick connect 4.8 x

0.8 mm

Screw-on mounting: max 3 mm

Mounting screw torque max 0.5 Nm

Thermoplastic, black, UL 94V-0

Appliance Inlet

C14 acc. to IEC/EN 60320-1

UL 498, CSA C22.2 no. 42 (for cold

conditions) pin-temperature 70 °C, 10 A,

Protection Class 1

1 or 2 pole, Shocksafe category PC2

acc. to IEC 60127-6,

for fuse-links 5 x 20 mm

5 x 20: 2 W (1 pole)/ 1.6 W (2-pole) per

pole

Admissible power acceptance at hig-

her ambient temperature see derating

curves

Rocker switch 2-pole, non-illuminated

or illuminated, acc. to IEC 61058-1

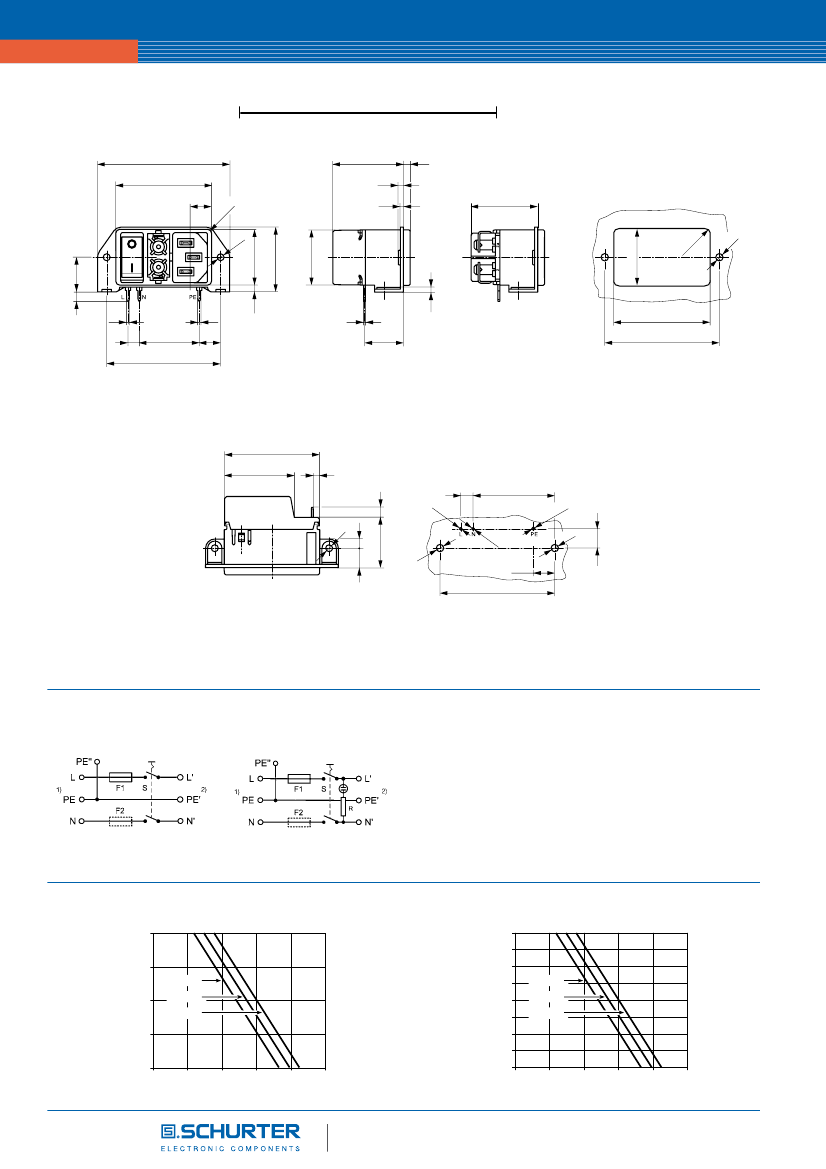

Technical details

Fuseholder

Allowable Operation Temp.

Degree of Protection

Protection Class

Terminal

Rated Power Acceptance @

Ta 23 °C

Power Acceptance @ Ta >

23°C

Line Switch

Panel Thickness s

Material: Housing

1) with cover 8 A, without cover 10 A

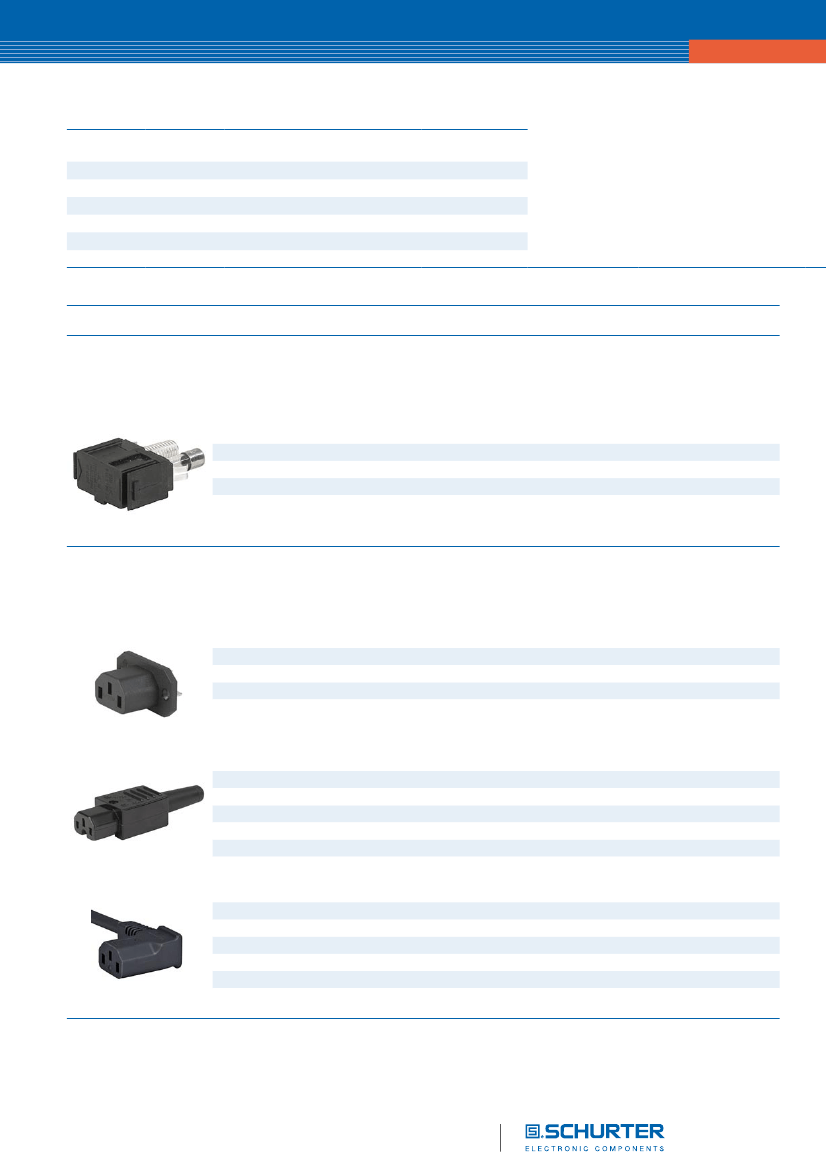

Connectors

DD21.0123.1111 Related Products

	DD21.0123.1111	DD21	DD21.0121.1111	DD21.0114.1111
Description	10A, 125/250VAC, MALE, MAINS POWER CONNECTOR, SOLDER	10A, 125/250VAC, MALE, MAINS POWER CONNECTOR, SOLDER	10A, 125/250VAC, MALE, MAINS POWER CONNECTOR, SOLDER	10A, 125/250VAC, MALE, MAINS POWER CONNECTOR, SOLDER
Coupling type	SNAP	SNAP	SNAP	SNAP
Installation type	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	THRMOPLASTIC	THRMOPLASTIC	THRMOPLASTIC	THRMOPLASTIC
Total number of contacts	3	3	3	3
Is it Rohs certified?	conform to	-	conform to	conform to
package instruction	ROHS COMPLIANT	-	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	-	compli	compli
Factory Lead Time	9 weeks 2 days	-	9 weeks 2 days	9 weeks 2 days
Other features	STANDARDS: IEC/EN 60320-1/C14, UL 94V-0, UL 498, CSA C22.2, VDE	-	STANDARDS: IEC/EN 60320-1/C14, UL 94V-0, UL 498, CSA C22.2, VDE	STANDARDS: IEC/EN 60320-1/C14, UL 94V-0, UL 498, CSA C22.2, VDE
Connector type	MAINS POWER CONNECTOR	-	MAINS POWER CONNECTOR	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	-	MALE	MALE
Contact material	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	-	NO	NO
IEC compliance	YES	-	YES	YES
MIL compliance	NO	-	NO	NO
Power Connector Ratings	10A, 125/250VAC	-	10A, 125/250VAC	10A, 125/250VAC
Plug information	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Termination type	SOLDER	-	SOLDER	SOLDER
