BAR2504D: DescriptionRectifier Diode, 1 Phase, 1 Element, 25A, 400V V(RRM), Silicon, DIE-1; CategoryDiscrete semiconductor diode; File Size132KB，1 Pages; ManufacturerDiotec Electronics Corp; Environmental Compliance

Download Datasheet Parametric Compare View All

BAR2504D Overview

Rectifier Diode, 1 Phase, 1 Element, 25A, 400V V(RRM), Silicon, DIE-1

BAR2504D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Diotec Electronics Corp
Parts packaging code	DIE
package instruction	O-XUUC-N1
Contacts	1
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HIGH RELIABILITY
application	GENERAL PURPOSE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.85 V
JESD-30 code	O-XUUC-N1
Maximum non-repetitive peak forward current	500 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	175 °C
Maximum output current	25 A
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	UNCASED CHIP
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
surface mount	YES
Terminal form	NO LEAD
Terminal location	UPPER

Preview

Download Datasheet

View All

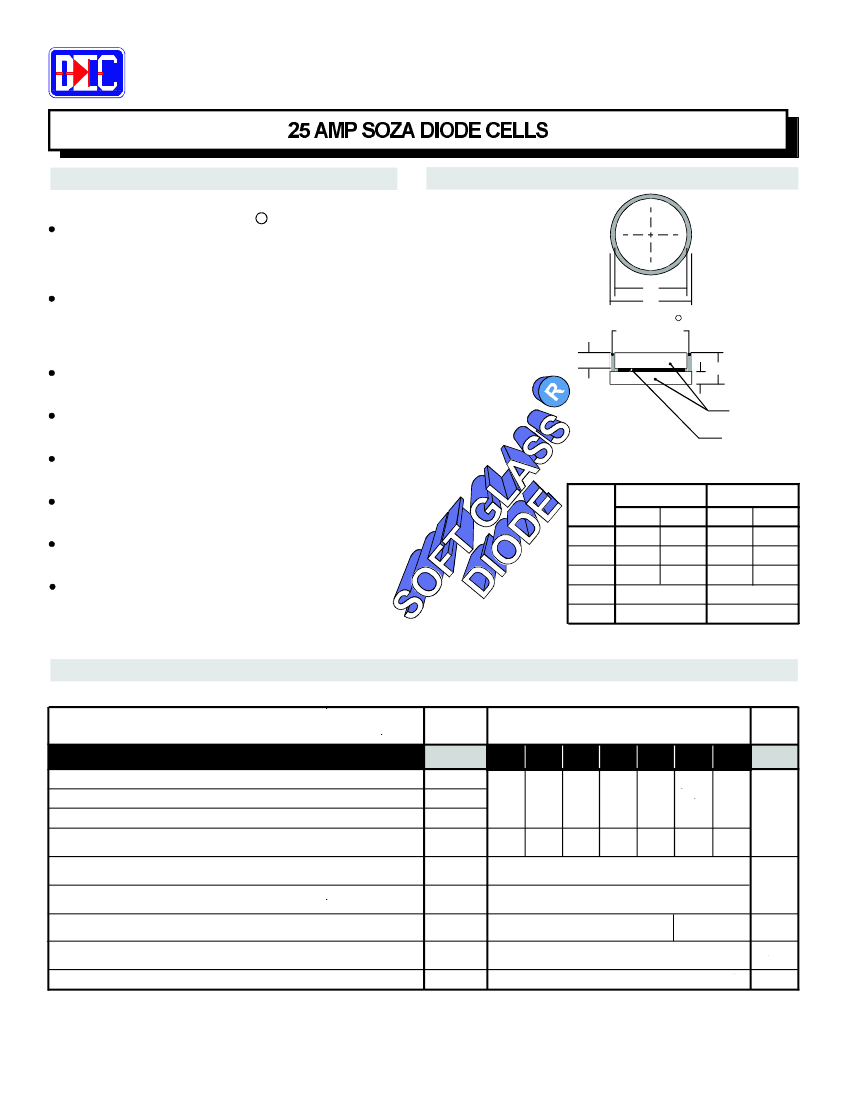

DIOTEC ELECTRONICS CORP.

18020 Hobart Blvd., Unit B

Gardena, CA 90248 U.S.A

Tel.: (310) 767-1052 Fax: (310) 767-7958

Data Sheet No. BUDI-2500D-1A

FEATURES

R

MECHANICAL SPECIFICATION

PROPRIETARY

SOFT GLASS

JUNCTION

PASSIVATION FOR SUPERIOR RELIABILITY AND

PERFORMANCE

VOID FREE VACUUM DIE SOLDERING FOR MAXIMUM

MECHANICAL STRENGTH AND HEAT DISSIPATION

(Solder Voids: Typical < 2%, Max. < 10% of Die Area)

Die Size:

0.180"

Round

D

A

Soft Glass

Passivation

G

B

Silver Plated

Copper Slugs

Silicon Die

R

Large die for high power capability

F

Very low forward voltage drop

Built-in stress relief mechanism for die protection

MILLIMETERS

DIM

A

B

Protects expensive automotive electronics and mobile

equipment

D

F

G

MIN

5.36

1.98

4.72

MAX

5.56

2.18

4.93

INCHES

MIN

0.211

0.078

0.186

MAX

0.219

0.086

0.194

Silver plated substrates for easy soldering or installation

Soldering temperature: 250

o

C maximum

0.76 Typ

1.02 Typ

0.030 Typ

0.040 Typ

MAXIMUM RATINGS & ELECTRICAL CHARACTERISTICS

Ratings at 25 °C ambient temperature unless otherwise specified.

PARAMETER (TEST CONDITIONS)

Series Number

Maximum Recurrent Peak Reverse Voltage

Working Peak Reverse Voltage

Maximum DC Blocking Voltage

Non-repetitive Peak Reverse Voltage

(Half wave, Single phase, 60Hz peak)

Average Rectified Forward Current (Single phase, Resistive load,

60Hz)

Non-repetitive Peak Forward Surge Current

(Half wave, Single phase, 60Hz sine applied to rated load)

Maximum Instantaneous Forward Voltage

Maximum DC Reverse Current

At Rated DC Blocking Voltage

Operating & Storage Temperature Range

@ I

F

= 6 Amps

@ I

F

= 25 Amps

@ Tc = 25

o

C

SYMBOL

RATINGS

BAR BAR BAR BAR BAR BAR BAR

2500D 2501D 2502D 2504D 2506D 2508D 2510D

UNITS

V

RRM

V

RWM

V

DC

V

RSM

I

o

I

FSM

V

F

I

R

T

J

,T

STG

0.85

1.05

0.5

-65 to +175

60

120

240

480

25

AMPS

500

0.90

1.10

VOLTS

µA

°C

BAR25d

50

100

200

400

600

800

1000

VOLTS

720

960

1200

K3

BAR2504D Related Products

	BAR2504D	BAR2500D	BAR2501D	BAR2506D	BAR2502D	BAR2510D	BAR2508D
Description	Rectifier Diode, 1 Phase, 1 Element, 25A, 400V V(RRM), Silicon, DIE-1	Rectifier Diode, 1 Phase, 1 Element, 25A, 50V V(RRM), Silicon, DIE-1	Rectifier Diode, 1 Phase, 1 Element, 25A, 100V V(RRM), Silicon, DIE-1	Rectifier Diode, 1 Phase, 1 Element, 25A, 600V V(RRM), Silicon, DIE-1	Rectifier Diode, 1 Phase, 1 Element, 25A, 200V V(RRM), Silicon, DIE-1	Rectifier Diode, 1 Phase, 1 Element, 25A, 1000V V(RRM), Silicon, DIE-1	Rectifier Diode, 1 Phase, 1 Element, 25A, 800V V(RRM), Silicon, DIE-1
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Parts packaging code	DIE	DIE	DIE	DIE	DIE	DIE	DIE
package instruction	O-XUUC-N1	O-XUUC-N1	O-XUUC-N1	O-XUUC-N1	O-XUUC-N1	O-XUUC-N1	O-XUUC-N1
Contacts	1	1	1	1	1	1	1
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.85 V	0.85 V	0.85 V	0.85 V	0.85 V	0.9 V	0.9 V
JESD-30 code	O-XUUC-N1	O-XUUC-N1	O-XUUC-N1	O-XUUC-N1	O-XUUC-N1	O-XUUC-N1	O-XUUC-N1
Maximum non-repetitive peak forward current	500 A	500 A	500 A	500 A	500 A	500 A	500 A
Number of components	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1
Number of terminals	1	1	1	1	1	1	1
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Maximum output current	25 A	25 A	25 A	25 A	25 A	25 A	25 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	400 V	50 V	100 V	600 V	200 V	1000 V	800 V
surface mount	YES	YES	YES	YES	YES	YES	YES
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maker	Diotec Electronics Corp	Diotec Electronics Corp	-	-	Diotec Electronics Corp	Diotec Electronics Corp	Diotec Electronics Corp
