C6050ALBB: DescriptionRocker Switch, DPST, Latched, Quick Connect Terminal, Softline Matt Type Actuator, Panel Mount, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size292KB，2 Pages; ManufacturerArcolectric

Download Datasheet Parametric View All

C6050ALBB Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	C6050ALBB	-	-	View	Buy Now

C6050ALBB Overview

Rocker Switch, DPST, Latched, Quick Connect Terminal, Softline Matt Type Actuator, Panel Mount, ROHS COMPLIANT

C6050ALBB Parametric

Parameter Name	Attribute value
Maker	Arcolectric
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator type	SOFTLINE MATT TYPE
body width	25 mm
body height	30 mm
Body length or diameter	31.5 mm
Contact (AC) maximum rated R load	20A@277VAC
Maximum contact current (AC)	20 A
Maximum contact voltage (AC)	277 V
Manufacturer's serial number	6050
Installation features	PANEL MOUNT
seal	IP44
surface mount	NO
Switch action	LATCHED
switch function	DPST
Switch type	ROCKER SWITCH
Termination type	QUICK CONNECT

Preview

Download Datasheet

View All

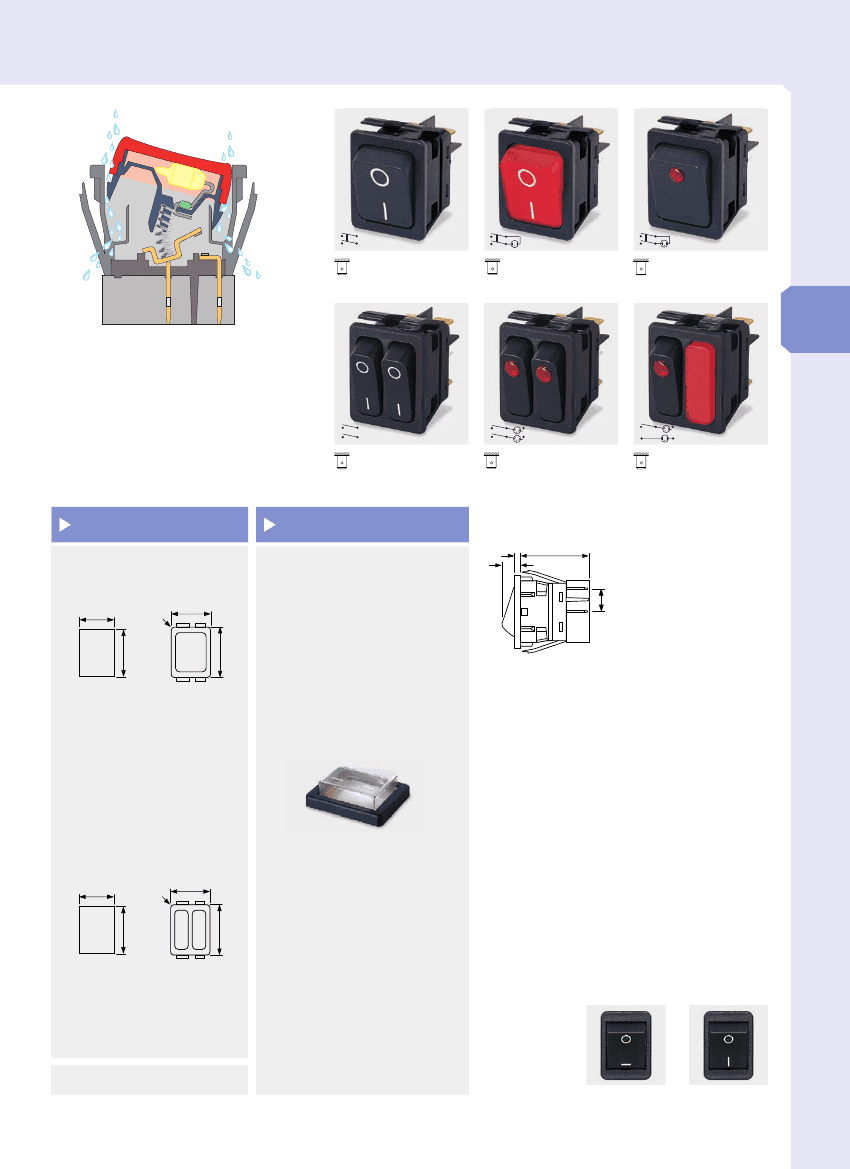

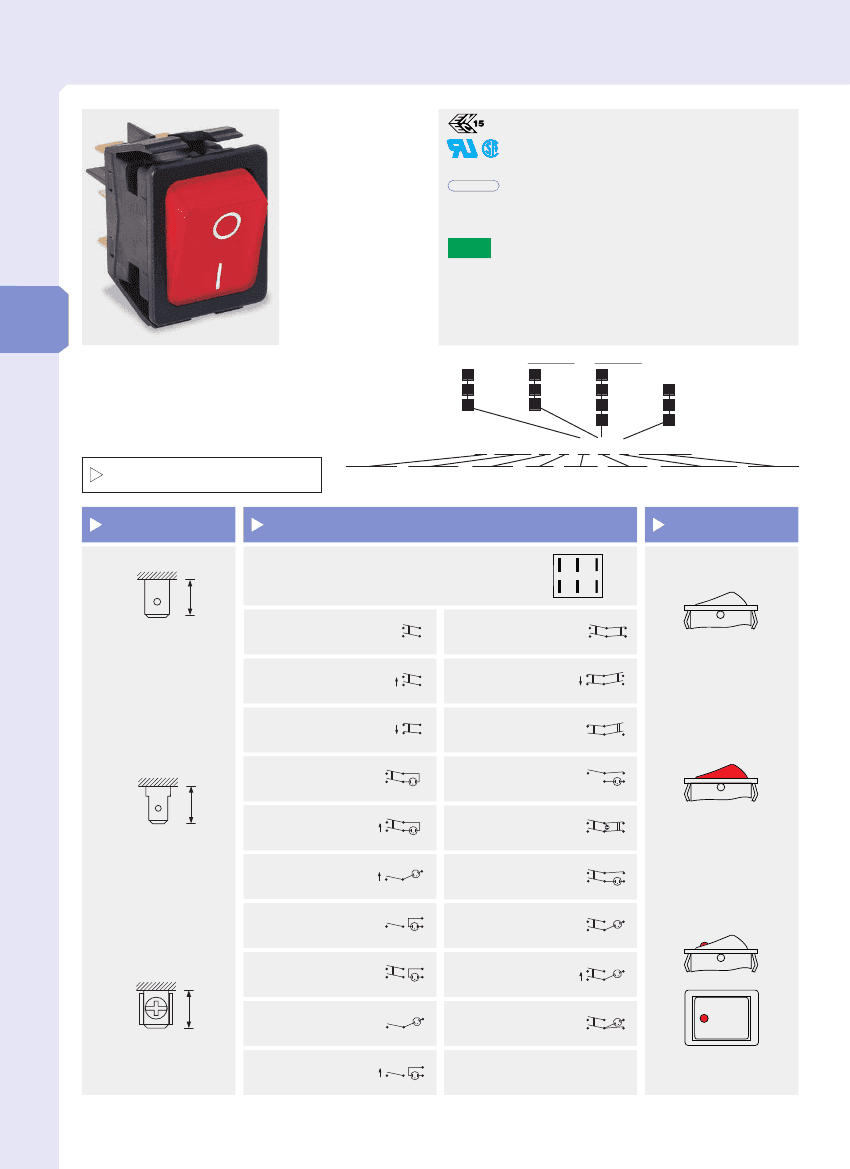

6050 DP Splash Resistant Switches - & Twins

Ratings up to 20A,

277V ac

High in-rush (ON-OFF

types)

Positive switch action

Distinctive styling

Illuminated & non-

illuminated

Double pole

Panel cut out:

30.1 x 22.2

rocker

switches

In house test

16A 250Vac

European 16(4)A 250Vac T125, 10A 400Vac T125

UL CSA 20A 277Vac, 250Vac 1

hp, 125Vac 1hp

UL 100˚C, file E45221, CSA file LR10990

Inrush 150A* to EN61058-1

8(8)A 250Vac T125 5E4 on 6050 only

applies to non-momentary types

RoHS compliant

RoHS

3mm contact gap with Positive Break switching.

# Call sales for IP details on Twin units.

Technical data on pages 4 & 5 (switches), 6 (indicators).

Patent app.

NON-LIT

BLACK

RED

WHITE

BLACK

RED

WHITE

LIT

AMBER

CLEAR

GREEN

RED

125V NEON

250V NEON

12V INCANDESCENT

C 6053 A L B R 2 1197W

ORDER FORMAT

TERMINAL

Approvals & ratings vary with function

ON OFF Switches - ON when pressed over terminals 3 & 6

9.7

TERMINAL

CODE

FUNCTION

CODE

FUNCTION

ROCKER

CODE

BODY BODY

CODE COLOR

ROCKER

COLOR

LAMP VOLTAGE

IF REQUIRED

ROCKER

Softline

Matt

LEGEND &

OPTIONS

6.3 x 0.8

6050

6051

ON - OFF

6060

6061

ON - ON

ON - OFF

(momentary ON)

ON - OFF

(momentary OFF)

ON - OFF

Lit

ON - OFF

(momentary ON)

Lit

ON - OFF (Single pole)

(momentary ON)

Lit

ON - OFF (Single pole)

Isolated light

ON - OFF

Isolated light

ON - OFF (Single pole)

Lit

ON - OFF (Single pole)

(momentary ON)

Isolated light

ON - ON

(momentary 1 side)

6052

6053

9.7

6062

2 Circuit ON - ON

Softline

Matt

In house tests only

6066

ON - ON (Single pole)

Isolated light

ON - ON

Lit

ON - ON 1pole

ON - OFF Lit 1pole

ON - OFF 1pole

ON - OFF Lit 1pole

ON - OFF

(momentary ON)

Lit

ON - OFF 1 pole

ON - ON 1 pole

Lit

Circuits are Double Pole

unless described otherwise

Lit Window

Lit

6054

4.8 x 0.8

6067

6055

6068

Lit Window

Matt

6056

6090

9.7

6057

6091

6058

6092

Screw & Clamp

N/A for assemblies

with 3 terminals in either pole

6059

Phone: 760-343-3650 •

Arcolectric

• Email: americas@elektron-technology.com
