5962-8976301EX: DescriptionIC DUAL 1-CHANNEL, SGL POLE DOUBLE THROW SWITCH, CDIP16, CERAMIC, DIP-16, Multiplexer or Switch; CategoryAnalog mixed-signal IC The signal circuit; File Size302KB，10 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

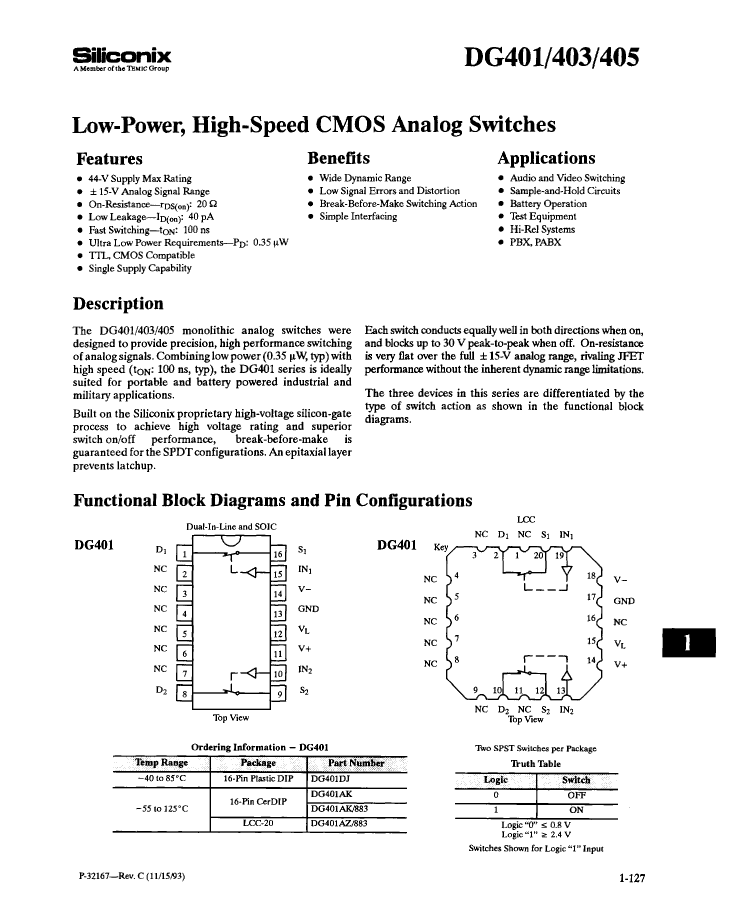

5962-8976301EX Overview

IC DUAL 1-CHANNEL, SGL POLE DOUBLE THROW SWITCH, CDIP16, CERAMIC, DIP-16, Multiplexer or Switch

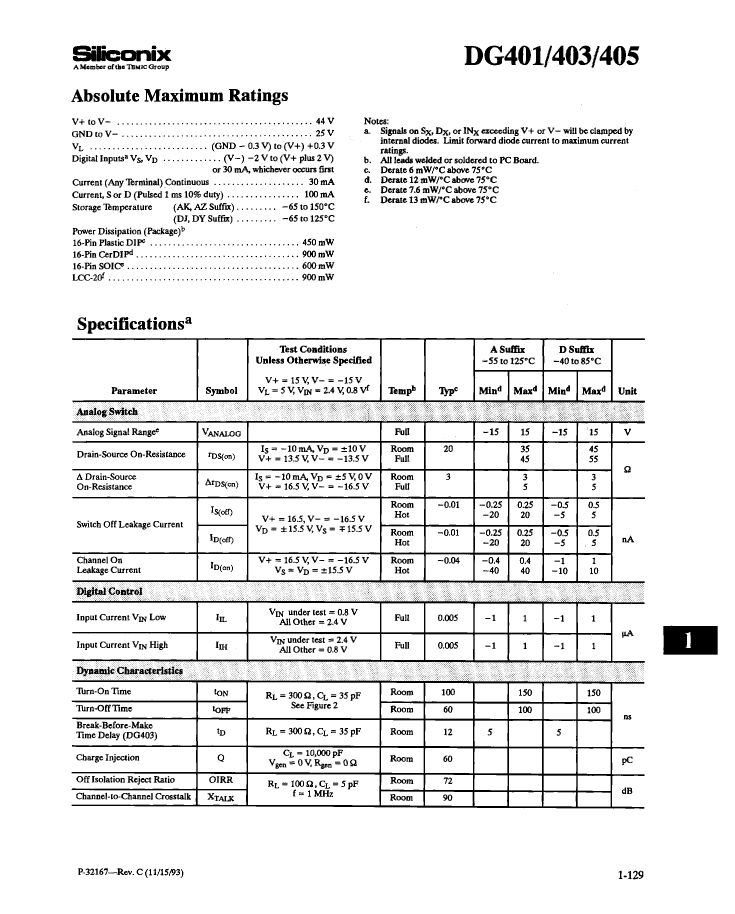

5962-8976301EX Parametric

Parameter Name	Attribute value
Maker	Vishay
Parts packaging code	DIP
package instruction	DIP,
Contacts	16
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SPDT
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	1
Number of functions	2
Number of terminals	16
Maximum on-state resistance (Ron)	35 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Filter level	MIL-STD-883
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	100 ns
Maximum connection time	150 ns
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal location	DUAL

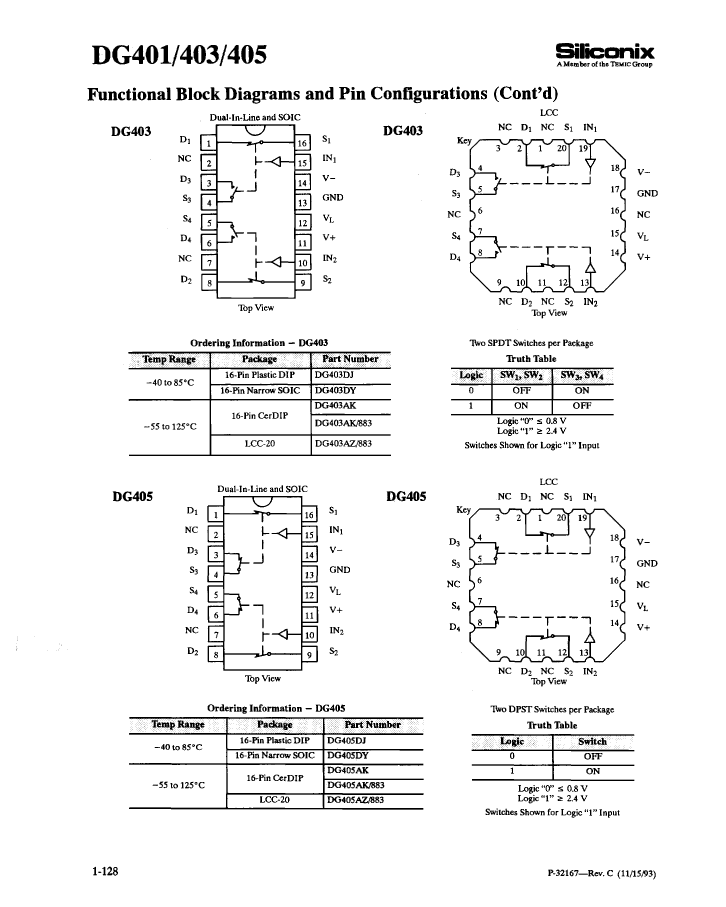

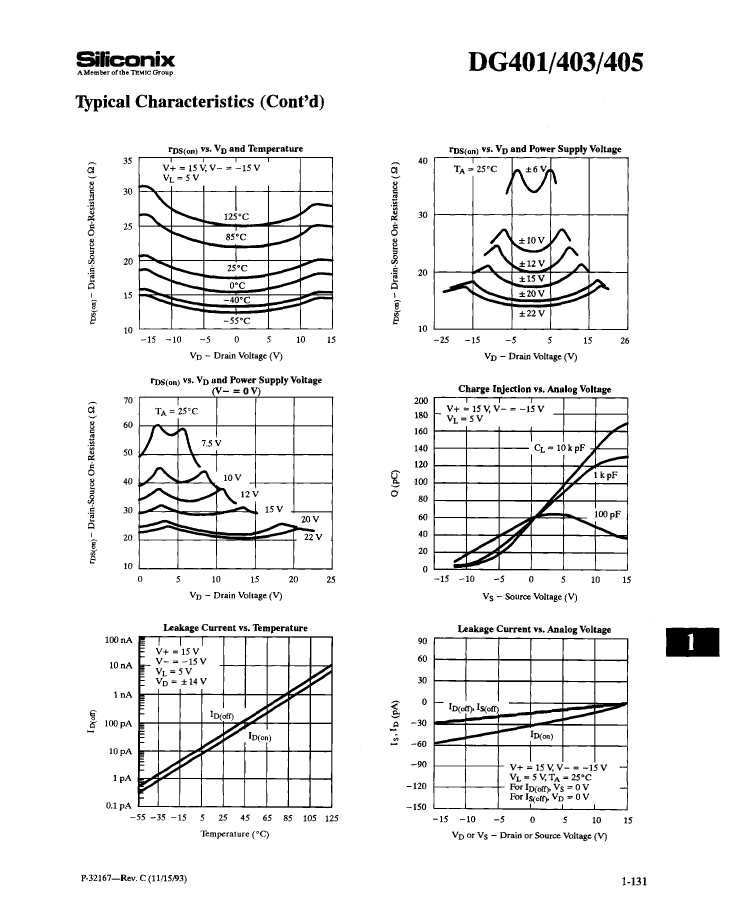

Preview

Download Datasheet

View All

5962-8976301EX Related Products

	5962-8976301EX	5962-89763012A	5962-9056901EA	5962-90569012A	5962-90569012X	5962-8976301EA	5962-89763012X	364507V167	DG403AZ/883
Description	IC DUAL 1-CHANNEL, SGL POLE DOUBLE THROW SWITCH, CDIP16, CERAMIC, DIP-16, Multiplexer or Switch	SPDT, 2 Func, 1 Channel, CMOS, CQCC20, CERAMIC, LCC-20	SPST, 2 Func, 1 Channel, CMOS, CDIP16	SPST, 2 Func, 1 Channel, CMOS, CQCC20	SPST, 2 Func, 1 Channel, CMOS, CQCC20	SPDT, 2 Func, CMOS, CDIP16,	SPDT, 2 Func, 1 Channel, CMOS, CQCC20, CERAMIC, LCC-20	RAST 5 connectors, pitch 5.0 mm	SPDT, 2 Func, 1 Channel, CMOS, CQCC20, LCC-20
Parts packaging code	DIP	QLCC	-	-	-	DIP	QLCC	-	QLCC
package instruction	DIP,	-	DIP,	QCCN,	QCCN,	-	QCCN,	-	QCCN,
Contacts	16	20	-	-	-	16	20	-	20
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	unknown	-	unknown
Analog Integrated Circuits - Other Types	SPDT	SPDT	SPST	SPST	SPST	SPDT	SPDT	-	SPDT
JESD-30 code	R-GDIP-T16	S-XQCC-N20	R-GDIP-T16	S-CQCC-N20	S-CQCC-N20	R-XDIP-T16	S-CQCC-N20	-	S-CQCC-N20
JESD-609 code	e0	e0	e0	e0	-	e0	e0	-	e0
Nominal Negative Supply Voltage (Vsup)	-15 V	-	-15 V	-15 V	-15 V	-	-15 V	-	-15 V
Number of channels	1	-	1	1	1	-	1	-	1
Number of functions	2	2	2	2	2	2	2	-	2
Number of terminals	16	20	16	20	20	16	20	-	20
Maximum on-state resistance (Ron)	35 Ω	45 Ω	35 Ω	35 Ω	35 Ω	45 Ω	35 Ω	-	35 Ω
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	-	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC	CERAMIC, METAL-SEALED COFIRED	-	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	QCCN	DIP	QCCN	QCCN	DIP	QCCN	-	QCCN
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR	SQUARE	-	SQUARE
Package form	IN-LINE	CHIP CARRIER	IN-LINE	CHIP CARRIER	CHIP CARRIER	IN-LINE	CHIP CARRIER	-	CHIP CARRIER
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified
Nominal supply voltage (Vsup)	15 V	-	15 V	15 V	15 V	-	15 V	-	15 V
surface mount	NO	YES	NO	YES	YES	NO	YES	-	YES
Maximum disconnect time	100 ns	-	100 ns	100 ns	100 ns	-	100 ns	-	100 ns
Maximum connection time	150 ns	150 ns	150 ns	150 ns	150 ns	150 ns	150 ns	-	150 ns
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	-	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	-	MILITARY
Terminal surface	TIN LEAD	Tin/Lead (Sn/Pb) - hot dipped	TIN LEAD	TIN LEAD	-	Tin/Lead (Sn/Pb) - hot dipped	TIN LEAD	-	TIN LEAD
Terminal form	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	NO LEAD	NO LEAD	THROUGH-HOLE	NO LEAD	-	NO LEAD
Terminal location	DUAL	QUAD	DUAL	QUAD	QUAD	DUAL	QUAD	-	QUAD
Base Number Matches	-	1	1	1	1	1	1	-	-
