NJL5145LB: DescriptionDiffuse Photoelectric Sensor, 2.5mm Min, 2.5mm Max, 0.81-0.36mA, Rectangular, Through Hole Mount; CategoryThe sensor Sensor/transducer; File Size138KB，6 Pages; ManufacturerNew Japan Radio Co., Ltd..

Download Datasheet Parametric Compare View All

NJL5145LB Overview

Diffuse Photoelectric Sensor, 2.5mm Min, 2.5mm Max, 0.81-0.36mA, Rectangular, Through Hole Mount

NJL5145LB Parametric

Parameter Name	Attribute value
Maker	New Japan Radio Co., Ltd..
Reach Compliance Code	unknown
Other features	2V VCE, 20NA DARK CURRENT
body width	4.1 mm
body height	4.15 mm
Body length or diameter	7.4 mm
Maximum measuring range (mm)	2.5 mm
Minimum measuring range (mm)	2.5 mm
Installation features	THROUGH HOLE MOUNT
Maximum working current	4 mA
Output range	0.81-0.36mA
Output type	ANALOG CURRENT
Package Shape/Form	RECTANGULAR
Response time	15 µs
Sensor/Transducer Type	LINEAR POSITION SENSOR,PHOTOELECTRIC,DIFFUSE
Maximum supply voltage	1.15 V
Minimum supply voltage	1.08 V
surface mount	NO
Termination type	SOLDER

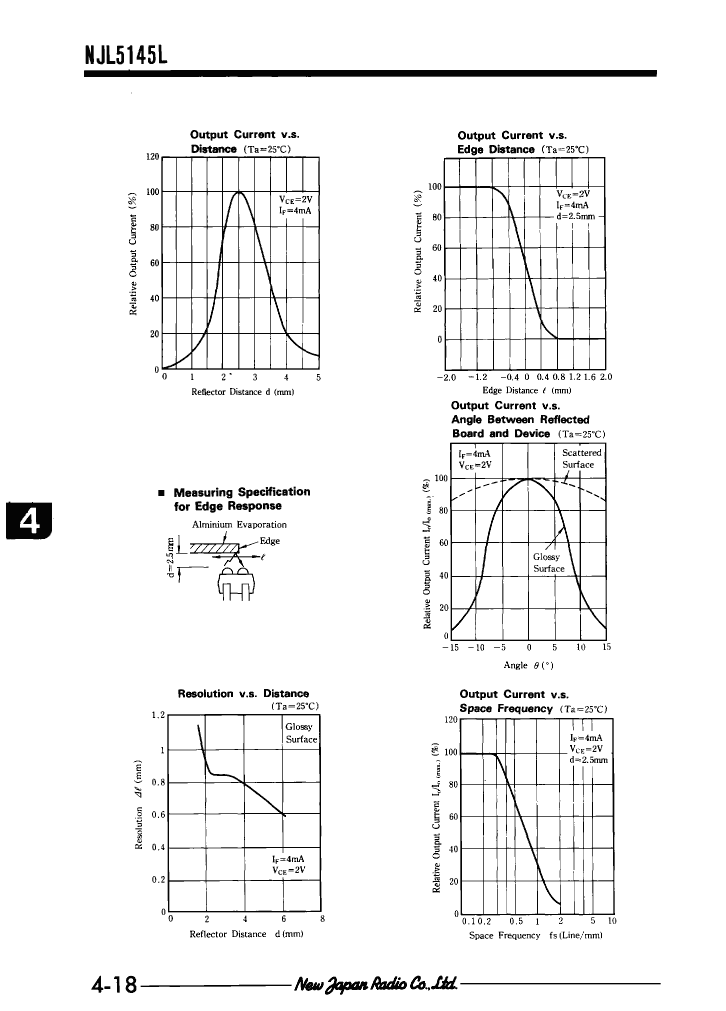

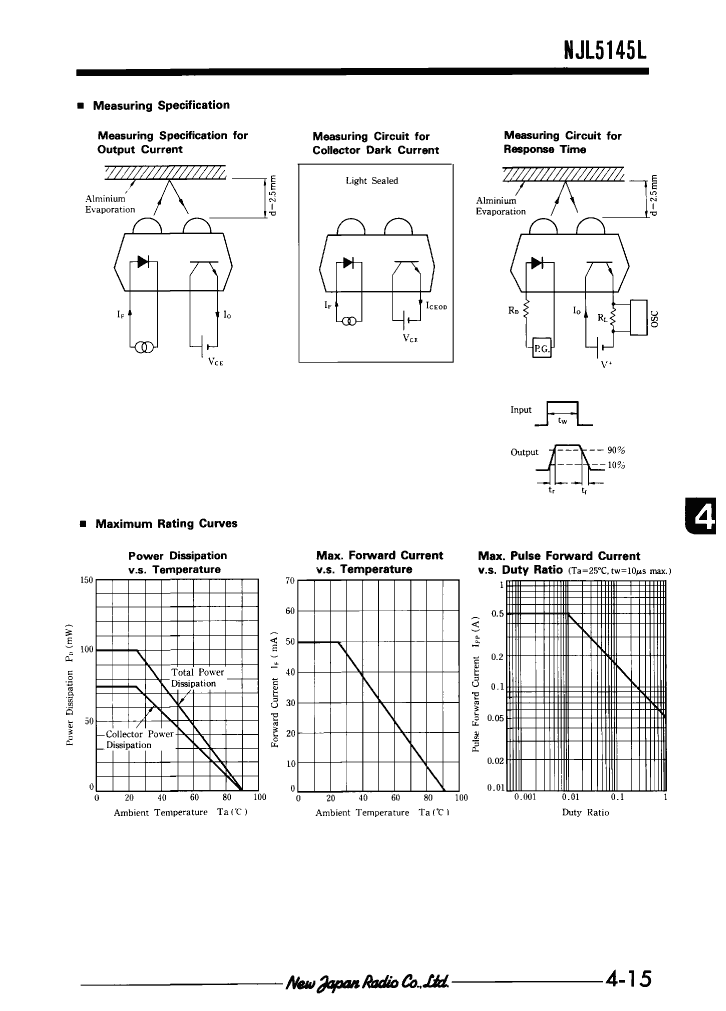

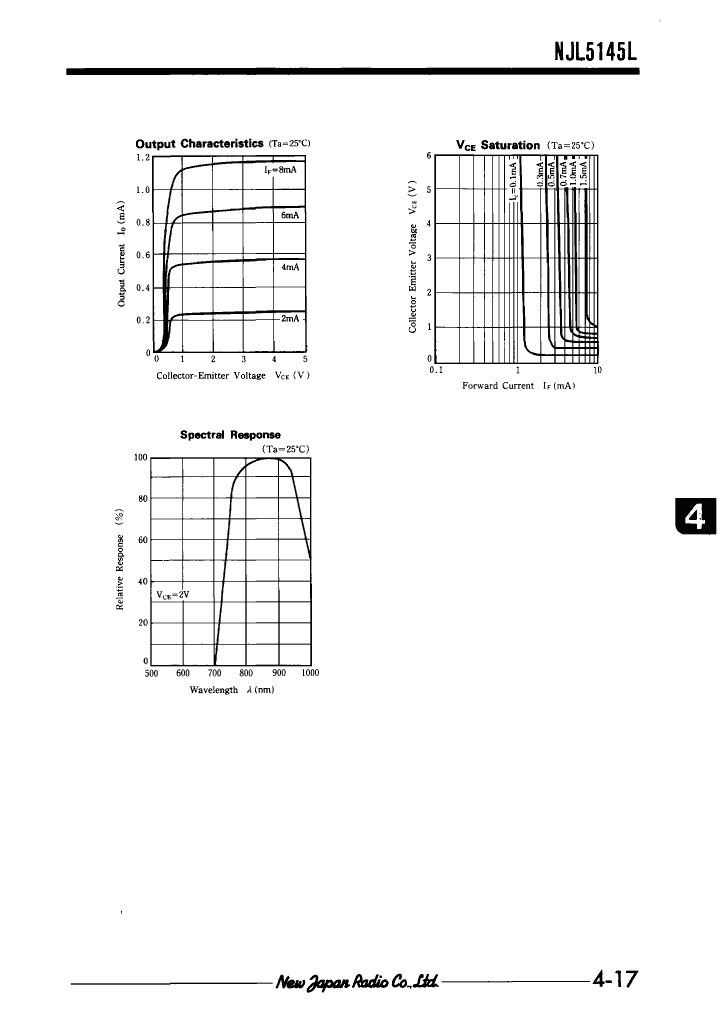

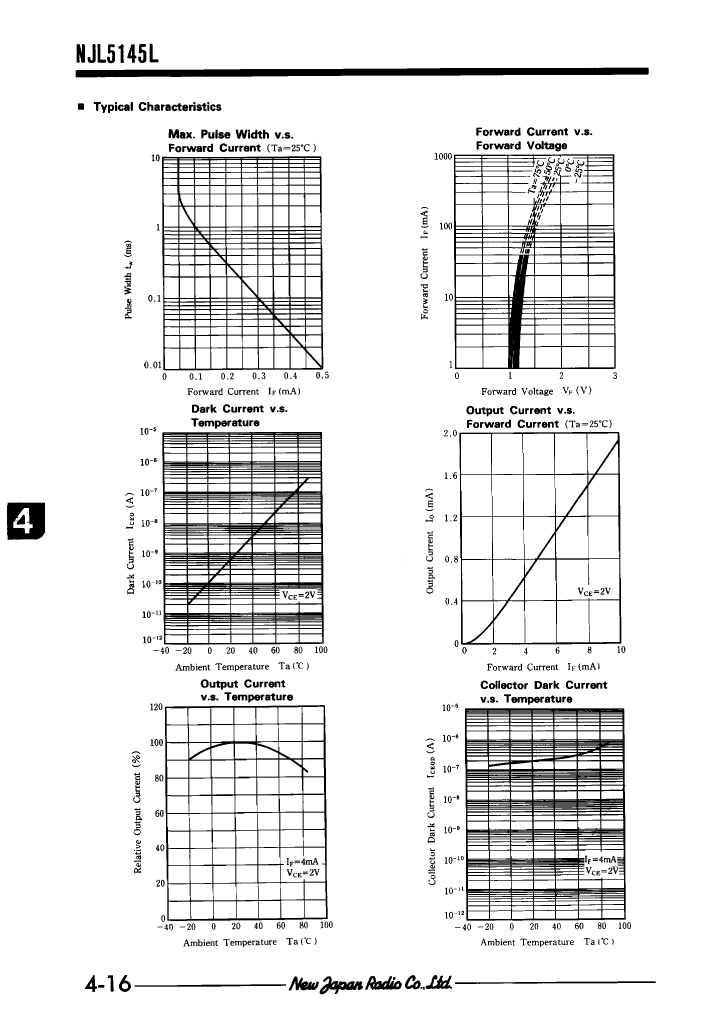

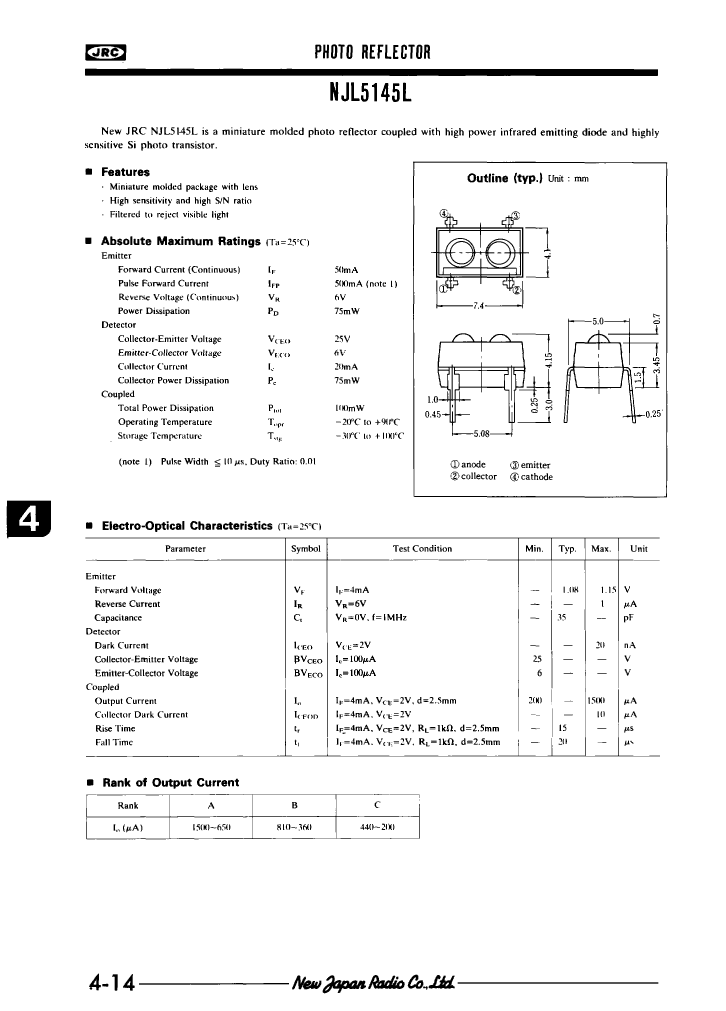

Preview

Download Datasheet

View All

NJL5145LB Related Products

	NJL5145LB	NJL5145LA	NJL5145L	NJL5145LC
Description	Diffuse Photoelectric Sensor, 2.5mm Min, 2.5mm Max, 0.81-0.36mA, Rectangular, Through Hole Mount	Diffuse Photoelectric Sensor, 2.5mm Min, 2.5mm Max, 1.50-0.65mA, Rectangular, Through Hole Mount	Diffuse Photoelectric Sensor, 2.5mm Min, 2.5mm Max, 0.20-1.50mA, 1-Channel, Rectangular, Through Hole Mount,	Diffuse Photoelectric Sensor, 2.5mm Min, 2.5mm Max, 0.44-0.20mA, Rectangular, Through Hole Mount
Maker	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..
Reach Compliance Code	unknown	unknown	compliant	unknown
Other features	2V VCE, 20NA DARK CURRENT	2V VCE, 20NA DARK CURRENT	2V VCE, 20NA DARK CURRENT	2V VCE, 20NA DARK CURRENT
body width	4.1 mm	4.1 mm	4.1 mm	4.1 mm
body height	4.15 mm	4.15 mm	4.15 mm	4.15 mm
Body length or diameter	7.4 mm	7.4 mm	7.4 mm	7.4 mm
Maximum measuring range (mm)	2.5 mm	2.5 mm	2.5 mm	2.5 mm
Minimum measuring range (mm)	2.5 mm	2.5 mm	2.5 mm	2.5 mm
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Maximum working current	4 mA	4 mA	4 mA	4 mA
Output range	0.81-0.36mA	1.50-0.65mA	0.20-1.50mA	0.44-0.20mA
Output type	ANALOG CURRENT	ANALOG CURRENT	ANALOG CURRENT	ANALOG CURRENT
Package Shape/Form	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Response time	15 µs	15 µs	15 µs	15 µs
Sensor/Transducer Type	LINEAR POSITION SENSOR,PHOTOELECTRIC,DIFFUSE	LINEAR POSITION SENSOR,PHOTOELECTRIC,DIFFUSE	LINEAR POSITION SENSOR,PHOTOELECTRIC,DIFFUSE	LINEAR POSITION SENSOR,PHOTOELECTRIC,DIFFUSE
Maximum supply voltage	1.15 V	1.15 V	1.15 V	1.15 V
Minimum supply voltage	1.08 V	1.08 V	1.08 V	1.08 V
surface mount	NO	NO	NO	NO
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
