SN74S151NSRG4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> SN74S151NSRG4

SN74S151NSRG4: DescriptionMultiplexer, S Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, TTL, PDSO16, GREEN, PLASTIC, SOP-16; Categorylogic logic; File Size910KB，23 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

SN74S151NSRG4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SN74S151NSRG4	-	-	View	Buy Now

SN74S151NSRG4 Overview

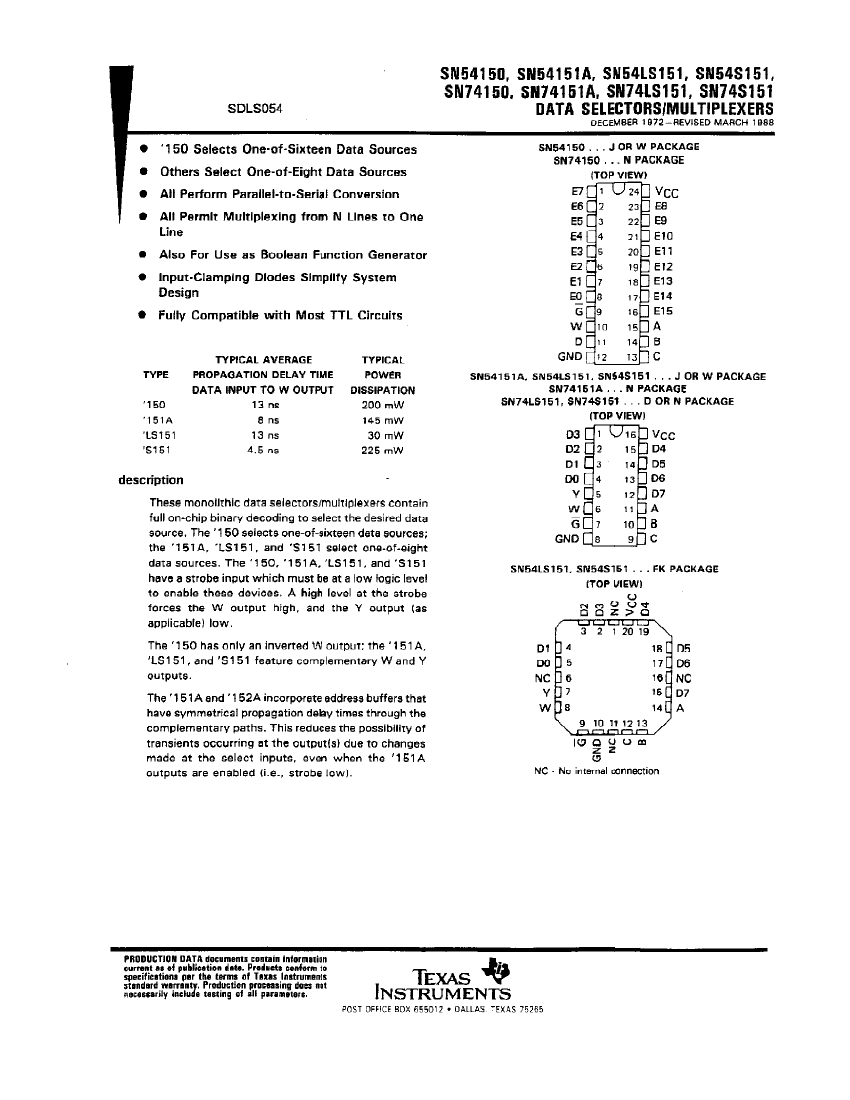

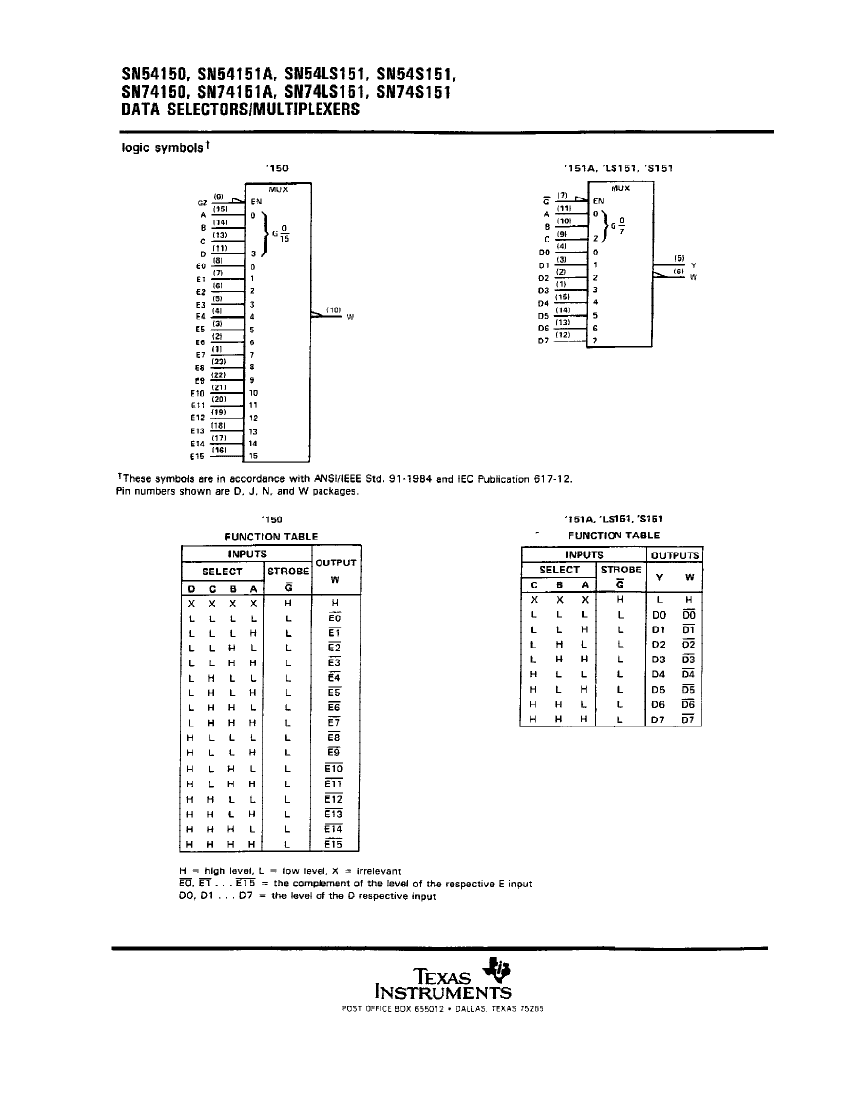

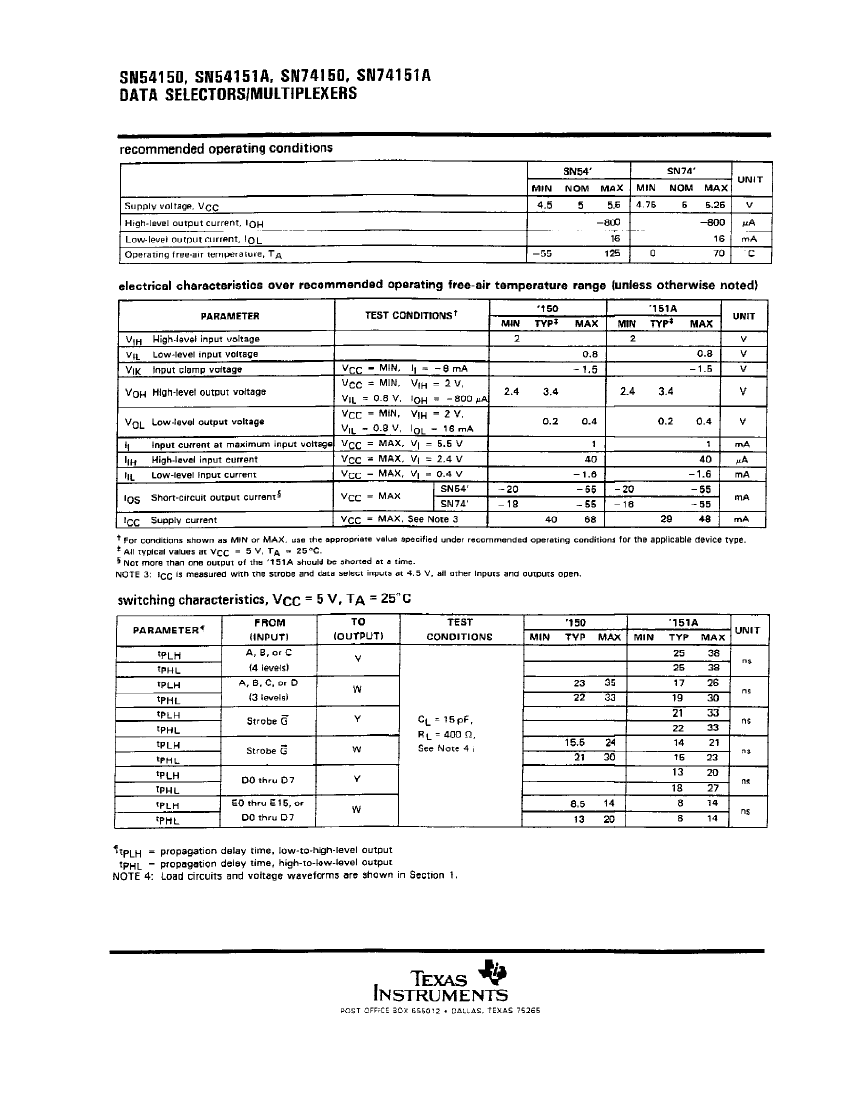

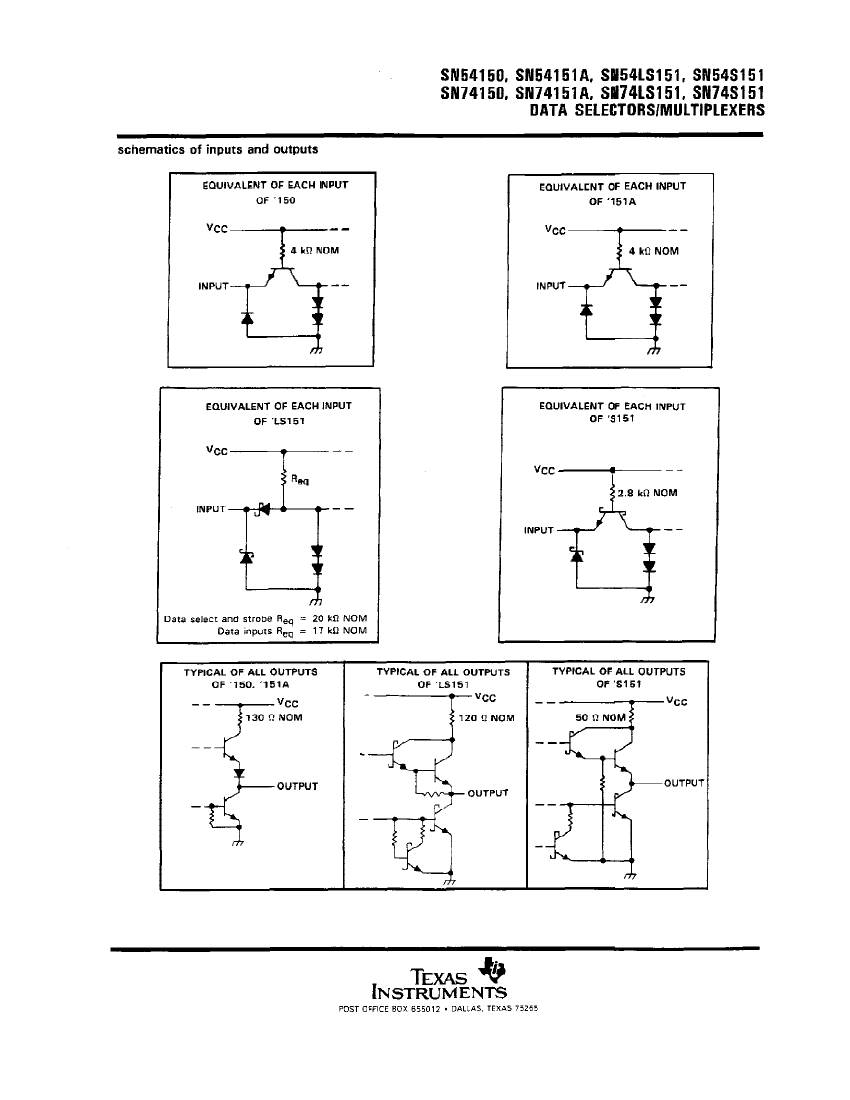

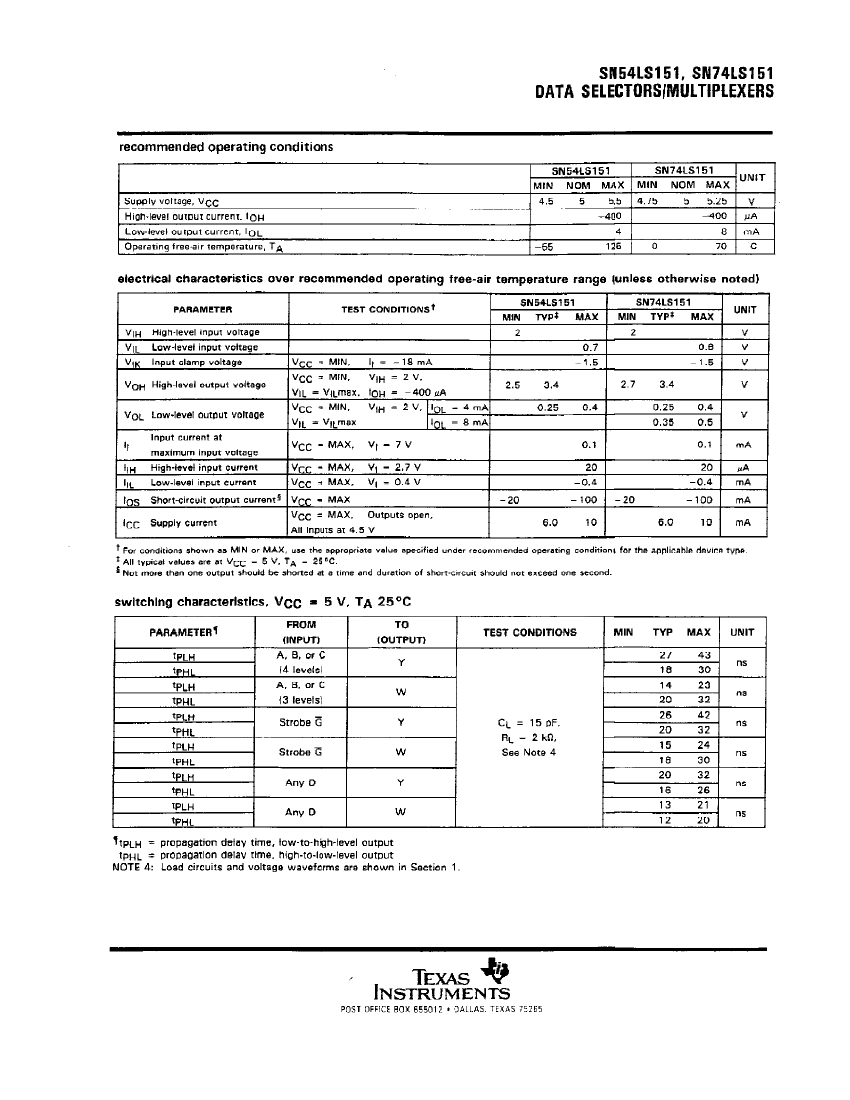

Multiplexer, S Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, TTL, PDSO16, GREEN, PLASTIC, SOP-16

SN74S151NSRG4 Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	SOP,
Reach Compliance Code	unknown
Other features	SN54S15 SERIES PARTS NOT CAPTURED AS THEY BELONG TO LGATE
series	S
JESD-30 code	R-PDSO-G16
length	10.2 mm
Logic integrated circuit type	MULTIPLEXER
Number of functions	1
Number of entries	8
Output times	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	12 ns
Maximum seat height	2 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	5.3 mm

Preview

Download Datasheet

View All

SN74S151NSRG4 Related Products

	SN74S151NSRG4	SN74S151NSRE4	SN74S151NSR
Description	Multiplexer, S Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, TTL, PDSO16, GREEN, PLASTIC, SOP-16	Multiplexer, S Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, TTL, PDSO16, GREEN, PLASTIC, SOP-16	Multiplexer, S Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, TTL, PDSO16, GREEN, PLASTIC, SOP-16
Maker	Rochester Electronics	Rochester Electronics	Rochester Electronics
package instruction	SOP,	SOP,	SOP,
Reach Compliance Code	unknown	unknown	unknown
Other features	SN54S15 SERIES PARTS NOT CAPTURED AS THEY BELONG TO LGATE	SN54S15 SERIES PARTS NOT CAPTURED AS THEY BELONG TO LGATE	SN54S15 SERIES PARTS NOT CAPTURED AS THEY BELONG TO LGATE
series	S	S	S
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16
length	10.2 mm	10.2 mm	10.2 mm
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
Number of functions	1	1	1
Number of entries	8	8	8
Output times	1	1	1
Number of terminals	16	16	16
Maximum operating temperature	70 °C	70 °C	70 °C
Output polarity	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
propagation delay (tpd)	12 ns	12 ns	12 ns
Maximum seat height	2 mm	2 mm	2 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	YES
technology	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
width	5.3 mm	5.3 mm	5.3 mm
