KPT-3216MBCK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> KPT-3216MBCK

KPT-3216MBCK: DescriptionSingle Color LED, Blue, Water Clear, 2mm, 3.20 X 1.60 MM, 0.75 MM HEIGHT, SUPER THIN, 1206, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size92KB，1 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric Compare View All

KPT-3216MBCK Overview

Single Color LED, Blue, Water Clear, 2mm, 3.20 X 1.60 MM, 0.75 MM HEIGHT, SUPER THIN, 1206, 2 PIN

KPT-3216MBCK Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
package instruction	3.20 X 1.60 MM, 0.75 MM HEIGHT, SUPER THIN, 1206, 2 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
color	BLUE
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	6.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	0.75 mm
method of packing	TAPE AND REEL
peak wavelength	430 nm
shape	RECTANGULAR
size	2 mm
surface mount	YES
Terminal pitch	3.75 mm
perspective	120 deg

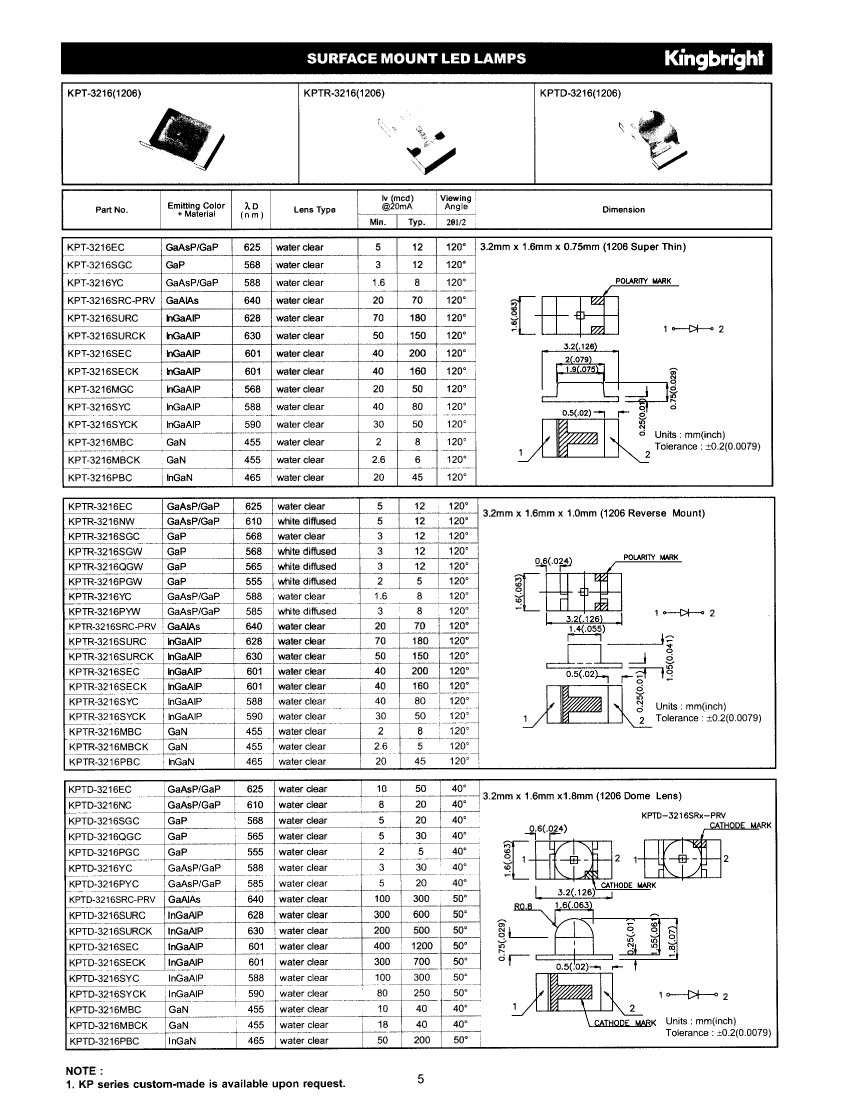

Preview

Download Datasheet

View All

KPT-3216MBCK Related Products

	KPT-3216MBCK	KPTR-3216NW	KPTD-3216PYC	KPTR-3216QGW	KPTR-3216PGW	KPTD-3216QGC	KPTR-3216MBCK	KPTD-3216PGC	KPTR-3216PYW	KPTD-3216NC
Description	Single Color LED, Blue, Water Clear, 2mm, 3.20 X 1.60 MM, 0.75 MM HEIGHT, SUPER THIN, 1206, 2 PIN	Single Color LED, Pure Orange, Diffused White, 1.6mm, 3.20 X 1.60 MM, 1 MM HEIGHT, REVERSE MOUNT, 1206, 2 PIN	Single Color LED, Pure Yellow, Water Clear, 1.6mm, 3.20 X 1.60 MM, 1.80 MM HEIGHT, 1206, 2 PIN	Single Color LED, Green, Diffused White, 1.6mm, 3.20 X 1.60 MM, 1 MM HEIGHT, REVERSE MOUNT, 1206, 2 PIN	Single Color LED, Pure Green, Diffused White, 1.6mm, 3.20 X 1.60 MM, 1 MM HEIGHT, REVERSE MOUNT, 1206, 2 PIN	Single Color LED, Green, Water Clear, 1.6mm, 3.20 X 1.60 MM, 1.80 MM HEIGHT, 1206, 2 PIN	Single Color LED, Blue, Water Clear, 1.6mm, 3.20 X 1.60 MM, 1 MM HEIGHT, REVERSE MOUNT, 1206, 2 PIN	Single Color LED, Pure Green, Water Clear, 1.6mm, 3.20 X 1.60 MM, 1.80 MM HEIGHT, 1206, 2 PIN	Single Color LED, Pure Yellow, Diffused White, 1.6mm, 3.20 X 1.60 MM, 1 MM HEIGHT, REVERSE MOUNT, 1206, 2 PIN	Single Color LED, Pure Orange, Water Clear, 1.6mm, 3.20 X 1.60 MM, 1.80 MM HEIGHT, 1206, 2 PIN
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Maker	Kingbright	Kingbright	Kingbright	Kingbright	Kingbright	Kingbright	Kingbright	Kingbright	Kingbright	Kingbright
package instruction	3.20 X 1.60 MM, 0.75 MM HEIGHT, SUPER THIN, 1206, 2 PIN	3.20 X 1.60 MM, 1 MM HEIGHT, REVERSE MOUNT, 1206, 2 PIN	3.20 X 1.60 MM, 1.80 MM HEIGHT, 1206, 2 PIN	3.20 X 1.60 MM, 1 MM HEIGHT, REVERSE MOUNT, 1206, 2 PIN	3.20 X 1.60 MM, 1 MM HEIGHT, REVERSE MOUNT, 1206, 2 PIN	3.20 X 1.60 MM, 1.80 MM HEIGHT, 1206, 2 PIN	3.20 X 1.60 MM, 1 MM HEIGHT, REVERSE MOUNT, 1206, 2 PIN	3.20 X 1.60 MM, 1.80 MM HEIGHT, 1206, 2 PIN	3.20 X 1.60 MM, 1 MM HEIGHT, REVERSE MOUNT, 1206, 2 PIN	3.20 X 1.60 MM, 1.80 MM HEIGHT, 1206, 2 PIN
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compli
color	BLUE	PURE ORANGE	PURE YELLOW	GREEN	PURE GREEN	GREEN	BLUE	PURE GREEN	PURE YELLOW	PURE ORANGE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.03 A	0.03 A	0.03 A	0.025 A	0.025 A	0.025 A	0.03 A	0.025 A	0.03 A	0.03 A
Lens type	WATER CLEAR	DIFFUSED WHITE	WATER CLEAR	DIFFUSED WHITE	DIFFUSED WHITE	WATER CLEAR	WATER CLEAR	WATER CLEAR	DIFFUSED WHITE	WATER CLEAR
Nominal luminous intensity	6.0 mcd	12.0 mcd	20.0 mcd	12.0 mcd	5.0 mcd	30.0 mcd	5.0 mcd	5.0 mcd	8.0 mcd	20.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	80 °C	85 °C	85 °C	85 °C	85 °C	85 °C	80 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	0.75 mm	1.05 mm	1.8 mm	1.05 mm	1.05 mm	1.8 mm	1.05 mm	1.8 mm	1.05 mm	1.8 mm
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
peak wavelength	430 nm	607 nm	583 nm	560 nm	555 nm	560 nm	430 nm	555 nm	583 nm	607 nm
shape	RECTANGULAR	RECTANGULAR	ROUND	RECTANGULAR	RECTANGULAR	ROUND	RECTANGULAR	ROUND	RECTANGULAR	ROUND
size	2 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal pitch	3.75 mm	3.6 mm	3.75 mm	3.6 mm	3.6 mm	3.75 mm	3.6 mm	3.75 mm	3.6 mm	3.75 mm
perspective	120 deg	120 deg	40 deg	120 deg	120 deg	40 deg	120 deg	40 deg	120 deg	40 deg
Is it Rohs certified?	conform to	-	-	conform to	conform to	conform to	conform to	conform to	conform to	conform to
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-
