PRODUCT INFORMATION
CDC 3217G
May/2005
CDC 3217G
ARM7-Based Car Dashboard Controller
The CDC 3217G is a pin-compatible Flash
ROM derivate of Micronas’ 32-bit Car Dash-
board Controller family based on an
ARM7TDMI CPU core (CDC32xxG).
This device comes along with additional
features of the Cx platform like a superior
power saving module (PSM), four high-
speed CAN modules (Bosch V2.0B) and a
device lock module to inhibit Flash access.
Main characteristics of the PSM are three
additional low-power modes (IDLE, WAKE,
and STANDBY), an internal RC oscillator, a
polling/Flash timer output, as well as an
RTC (Real Time Clock).
The CDC 3217G also contains the patented
built-in ERM (EMI Reduction Module).
◆
RTC delivering hours, minutes, seconds
◆
Polling/Flash timer output
◆
PLL circuitry delivering up to 50 MHz
◆
4- to 5-MHz oscillator
◆
EMI reduction module (ERM)
◆
Digital watchdog
◆
Central clock divider
◆
Interrupt controller with 40 inputs and
16 priority levels
◆
Six port interrupts
◆
Regulator input supervision for reset/
alarm (alarm comparator)
◆
Clock and supply supervision
◆
16-channel 10-bit ADC
◆
Two I
2
C master modules
◆
Seven stepper motor drivers
◆
Six PWM modules
(configurable as 2×8 bit or 1×16 bit)
◆
Pulse frequency modulator
◆
Sound generator with auto decay
◆
Two SW-selectable clock outputs
◆
16-bit free-running counter with six cap-
ture/compare modules
◆
Patch module (up to 10 cells)
◆
Device lock module (DLM) inhibiting
Flash access
◆
1
×16-bit
timer and 4×8-bit timer
◆
JTAG interface
◆
−40
to +105 °C case temperature range
◆
Single 3.5 V to 5.5 V supply voltage
(limited I/O performance below 4.5 V)
◆
Up to 102 GPIOs
◆
128-pin PQFP package, 0.5 mm pin pitch
Features
◆
1024 KB Flash
◆
32 KB SRAM
◆
8 KB boot ROM
◆
Four CPU operation modes
(Deep Slow, Slow, Fast, PLL)
◆
Three low-power modes
(Idle, Wake, Standby)
◆
Two comparators
◆
ADC reference (1 internal, 3 external)
◆
48
×4
LCD module
◆
Three DMA channels
◆
Two UARTs, two SPIs
◆
DigitBus master module
◆
Four CAN modules with 512 Bytes each
of object RAM according to Bosch speci-
fication V2.0B (32 message objects)
PRODUCT INFORMATION
CDC 3217G
Development Tools
◆
Evaluation chip CDC 3205G featuring
– ETM via embedded emulation JTAG
– ROM/Flash emulation with external
SRAM (up to 8 MBytes)
◆
Evaluation Board (EVB) including the
CDC 3205G for evaluation and debug-
ging of embedded systems
◆
Application Board (APB) for Flash mem-
ory programming
◆
Probe for PQFP128
◆
Software environment (compiler, linker,
assembler) from 3
rd
party vendors
◆
RTOS from 3
rd
party vendors
◆
CAN protocol stacks
Logic Analyzer
JTAG
Probe
JTAG
JTAG
May/2005
ETM
Trace Probe
EVB

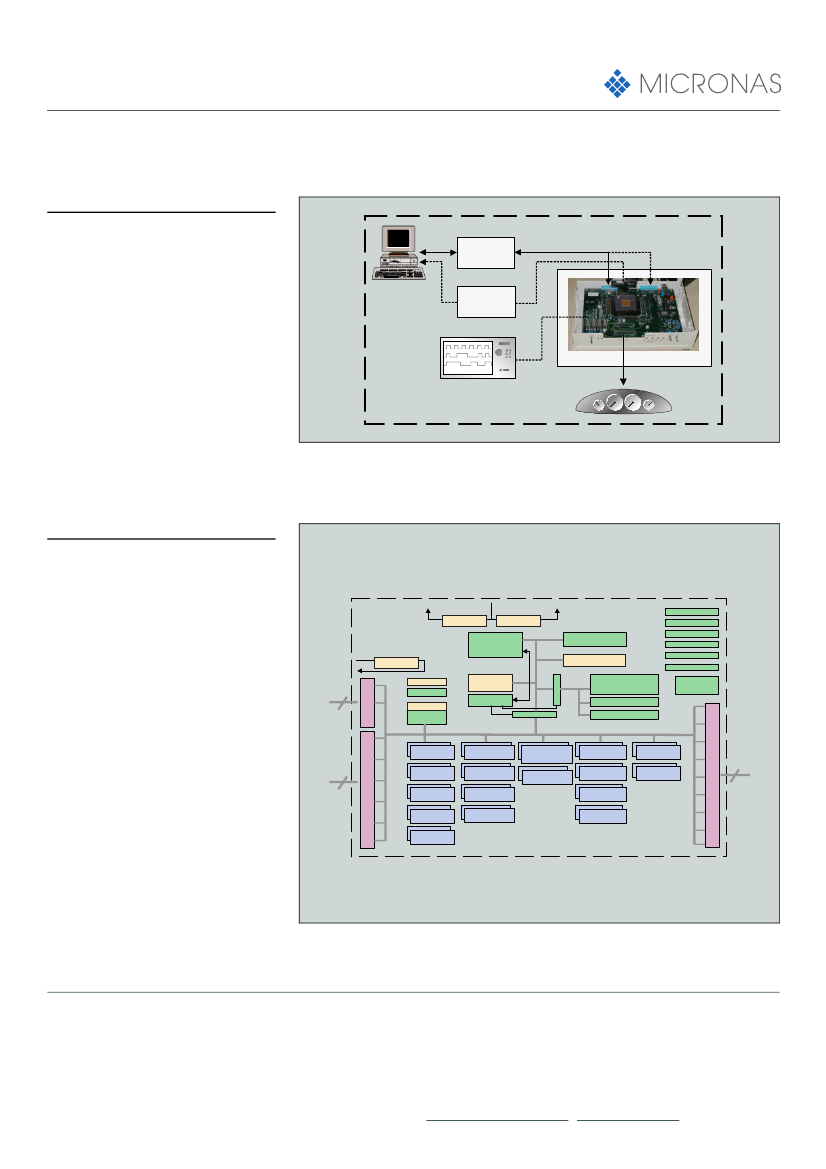

Fig. 2:
Block diagram of the CDC 3217G
System Architecture
The Car Dashboard Controller CDC 3217G
contains an embedded ARM7TDMI proces-
sor which operates at a maximum clock fre-
quency of 50 MHz.
The internal high-speed bus connects the
following peripherals to the ARM7TDMI pro-
cessor:
◆
ICU (Interrupt Control Unit)
◆
SRAM
◆
DMA
The 16/32-bit bus connects to Flash and
boot ROM. All other peripherals are con-
nected to the I/O bus. All I/O ports have
multiple functions to obtain utmost flexibility.
A total of 102 GPIOs can be selected.
The built-in ERM delivers superb EMI
results reducing the peak values by up to
10 dBµV.
The CDC 3217G is fully pin- and software-
compatible with all other members of the
CDC 32xxG family.
HPorts
VREFINT
VREF
AVDD
AVSS
BVDD
UVDD
UVSS
FVDD
FVSS
VDD
VSS
Reset
Test
Watchdog Clock
PLL/ERM
RTC
Power Saving
3.3-V Reg.
2.5-V Reg.
ARM7TDMI
CPU
2.5-V Reg.
Wait Comp
40-Input
Interrupt Controller
32 KB SRAM
DMA Contr.
Bus Controller
PPorts
P0.6 Comp
Bandgap Ref.
18
Bridge
1024 KB Flash
8 KB Boot ROM
JTAG Interface
Test / Debug
10-Bit ADC
Bridge
Patch Module
UARTS
2
×
UART
UARTS
LCD Control
UARTS
Audio Module
UARTS
Clock Out 0,1
PFM 0/1
7
×
Stepper Motor
Module
UARTS
16-Bit CCC 0
UARTS
CAPCOM 0,1,2,3
UARTS
16-Bit CCC 1
UARTS
5
CAPCOM 4,
1
UARTS
×
16-Bit Timer
32
UARTS
2
×
SPI
UARTS
4
×
CAN
UARTS
DIGITBus
UARTS
2
×
I²C Bus
6
UARTS
×
8/16-Bit PWM
UARTS
4
×
8-Bit Timer
UPorts
52
Fig. 1:
Development tool setup
