HD74LS06RP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> HD74LS06RP

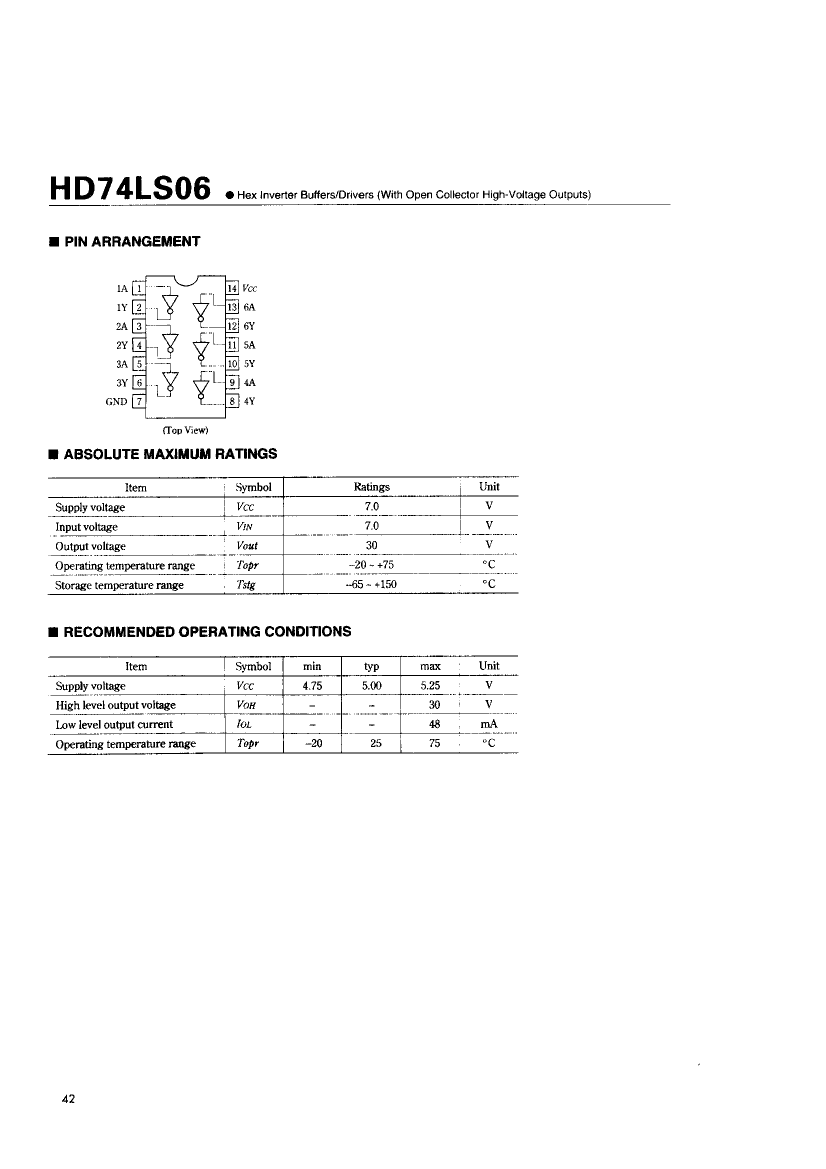

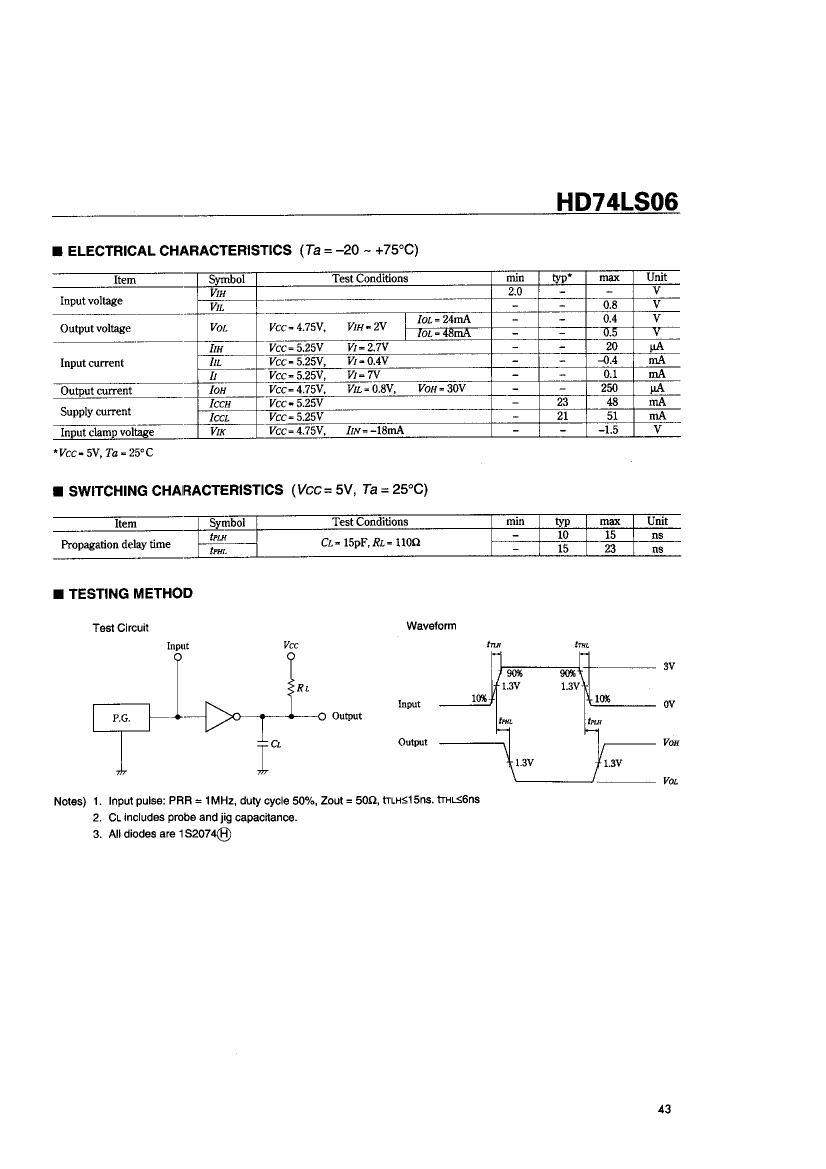

HD74LS06RP: DescriptionLS SERIES, HEX 1-INPUT INVERT GATE, PDSO14; Categorylogic logic; File Size55KB，6 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

HD74LS06RP Overview

LS SERIES, HEX 1-INPUT INVERT GATE, PDSO14

HD74LS06RP Parametric

Parameter Name	Attribute value
Maker	Hitachi （Renesas ）
Parts packaging code	SOIC
package instruction	SOP, SOP14,.25
Contacts	14
Reach Compliance Code	unknow
Is Samacsys	N
series	LS
JESD-30 code	R-PDSO-G14
length	8.65 mm
Load capacitance (CL)	15 pF
Logic integrated circuit type	INVERTER
MaximumI(ol)	0.048 A
Number of functions	6
Number of entries	1
Number of terminals	14
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Output characteristics	OPEN-COLLECTOR
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum supply current (ICC)	51 mA
Prop。Delay @ Nom-Su	23 ns
propagation delay (tpd)	23 ns
Certification status	Not Qualified
Schmitt trigger	NO
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm
Base Number Matches	1

Preview

Download Datasheet

View All

HD74LS06RP Related Products

	HD74LS06RP	7406	74LS06	HD74LS06	HD74LS06FP(SMD)	HD74LS06P(DIP)	HD74LS06RP(SMD)	HD74LS06FP	HD74LS06P
Description	LS SERIES, HEX 1-INPUT INVERT GATE, PDSO14	LS SERIES, HEX 1-INPUT INVERT GATE, PDSO14	LS SERIES, HEX 1-INPUT INVERT GATE, PDSO14	LS SERIES, HEX 1-INPUT INVERT GATE, PDSO14	LS SERIES, HEX 1-INPUT INVERT GATE, PDSO14	LS SERIES, HEX 1-INPUT INVERT GATE, PDSO14	LS SERIES, HEX 1-INPUT INVERT GATE, PDSO14	LS SERIES, HEX 1-INPUT INVERT GATE, PDSO14	LS SERIES, HEX 1-INPUT INVERT GATE, PDSO14
series	LS	LS	LS	LS	LS	LS	LS	LS	LS
Number of functions	6	6	6	6	6	6	6	6	6
Number of terminals	14	14	14	14	14	14	14	14	14
Maximum operating temperature	75 °C	75 Cel	75 Cel	75 Cel	75 Cel	75 Cel	75 Cel	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 Cel	-20 Cel	-20 Cel	-20 Cel	-20 Cel	-20 Cel	-20 °C	-20 °C
Output characteristics	OPEN-COLLECTOR	O-COL	O-COL	O-COL	O-COL	O-COL	O-COL	OPEN-COLLECTOR	OPEN-COLLECTOR
surface mount	YES	Yes	Yes	Yes	Yes	Yes	Yes	YES	NO
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE
Terminal location	DUAL	pair	pair	pair	pair	pair	pair	DUAL	DUAL
Maximum supply/operating voltage	-	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	-	-
Minimum supply/operating voltage	-	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	-	-
Rated supply voltage	-	5 V	5 V	5 V	5 V	5 V	5 V	-	-
Processing package description	-	FP-14DA	FP-14DA	FP-14DA	FP-14DA	FP-14DA	FP-14DA	-	-
state	-	TRANSFERRED	TRANSFERRED	TRANSFERRED	TRANSFERRED	TRANSFERRED	TRANSFERRED	-	-
Craftsmanship	-	TTL	TTL	TTL	TTL	TTL	TTL	-	-
packaging shape	-	Rectangle	Rectangle	Rectangle	Rectangle	Rectangle	Rectangle	-	-
Package Size	-	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	-	-
Terminal spacing	-	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	-	-
terminal coating	-	tin lead	tin lead	tin lead	tin lead	tin lead	tin lead	-	-
Packaging Materials	-	Plastic/Epoxy	Plastic/Epoxy	Plastic/Epoxy	Plastic/Epoxy	Plastic/Epoxy	Plastic/Epoxy	-	-
Logic IC type	-	No	No	No	No	No	No	-	-
Number of inputs	-	1	1	1	1	1	1	-	-
propagation delay TPD	-	23 ns	23 ns	23 ns	23 ns	23 ns	23 ns	-	-
