General Description
KR Electronics part number 3200-SMA is a 19.95 MHz band-
pass filter. The filter has a 3 dB bandwidth of 600 KHz. Other
center frequencies and are bandwidths available. Please consult
the factory.
www.krfilters.com
Features
19.95 MHz Bandpass
Narrow 3% Bandwidth
3 dB Bandwidth 600 KHz
Sharp Elliptic Type Design
High Ultimate Rejection
50
Source and Load
SMA Connectors
Typical Performance
Overall Response
(10 dB/div)
KR Electronics, Inc.
91 Avenel Street
Avenel, NJ 07001
© 2015, KR Electronics, Inc.
3200-SMA, 19.95 MHz Bandpass, Rev 0
Web
Email
Phone
Fax
www.krfilters.com
sales@krfilters.com
(732) 636-2500
(732) 636-2582
Page 1
KR Electronics, Inc.
KR Electronics
Typical Performance
Passband Amplitude
(1 dB/div )
www.krfilters.com
Overall Response
(10 dB/div)
KR Electronics, Inc.
91 Avenel Street
Avenel, NJ 07001
© 2015, KR Electronics, Inc.
3200-SMA, 19.95 MHz Bandpass, Rev 0
Web
Email
Phone
Fax
www.krfilters.com
sales@krfilters.com
(732) 636-2500
(732) 636-2582
Page 2
KR Electronics, Inc.
KR Electronics 3200-SMA
Specifications
Parameter
Filter type
Center Frequency
Insertion Loss
3 dB Bandwidth
40 dB Bandwidth
60 dB Bandwidth
Source and Load
Specification
Bandpass
19.95 MHz
9 dB max
600 KHz ±10%
1090 KHz typical
1250 KHz typical
50
www.krfilters.com
6.5 dB typical

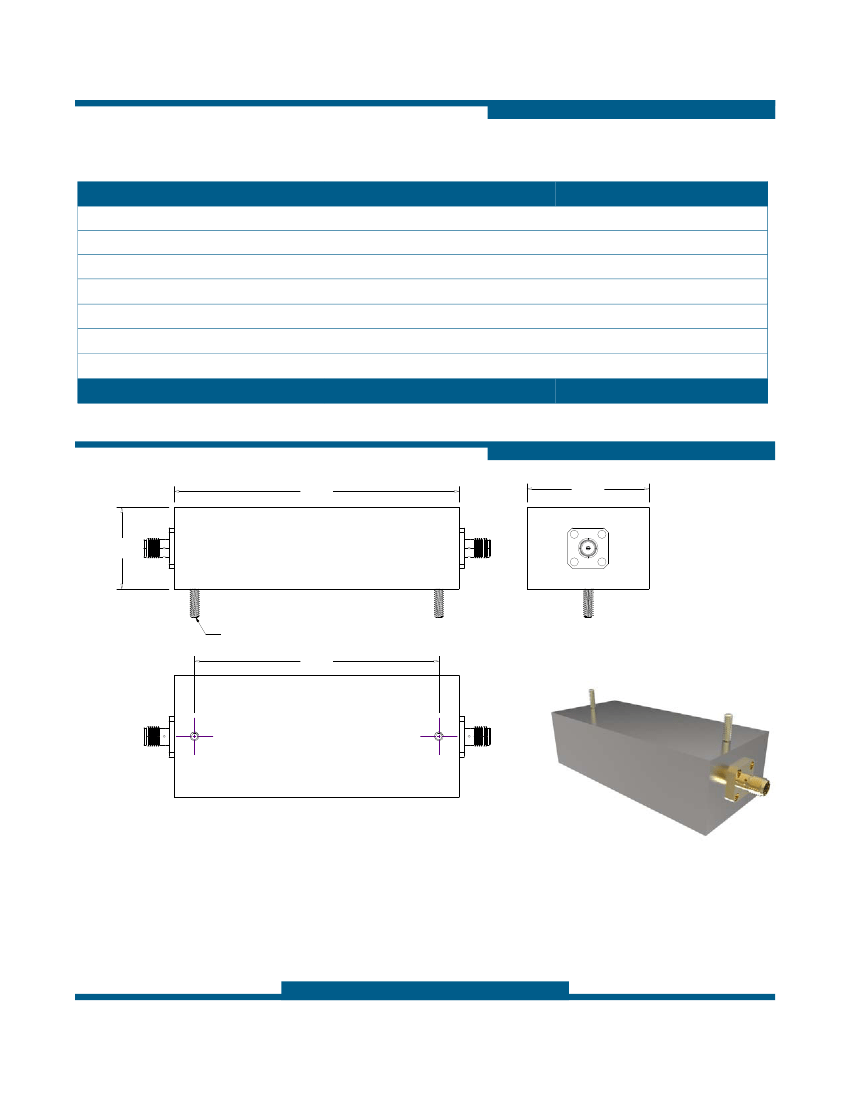

Physical Dimensions
3.500
1.500
1.000
4-40 UNC STUD 2x
3.000
Notes:
1. Dimensions in inches
2. SMA(F) Connectors In/Out
3. Rectangular case
4. Other configurations available
