155 Mbps Bi-directional SC Receptacle
Single Fiber Transceiver
B-15/13-155-T(3)-SSC4
Features
• Diplexer Single Mode, Single Fiber 1x9 SC Receptacle
Connetor
• Wavelength Tx 1530nm/Rx 1310 nm
• SONET OC-3 SDH STM-1 Compliant
• Single +5V Power Supply (B-15/13-155-T-SSC4)
• Single +3.3V Power Supply (B-15/13-155-T3-SSC4)
• PECL/LVPECL Differential Inputs and Outputs
• Wave Solderable and Aqueous washable
• LED Multisourced 1x9 Transceiver Interchangeable
• Class 1 laser Int. Safety Standard IEC 825 Compliant
• Uncooled Laser Diode with MQW structure
• Complies with Telcordia (Bellcore) GR-468-CORE
• Temperature Range: 0 to 70ºC
• Optical Isolation > 30 dB
• Cross Talk < -33 dB
Absolute Maximum Rating
Parameter
Power Supply Voltage
Power Supply Voltage
Input Voltage
Output Current
Soldering Temperature
Storage Temperature
Symbol
V
cc
V
cc
-
I
out
-
Min.
0
0
0
-
-
-40
Max.
6
3.6
V
cc
30
260
85
Unit
V
V
V
mA
ºC
ºC
Note
B-15/13-155-T-SSC4
B-15/13-155-T3-SSC4
10 seconds on leads only
T
stg
Recommended Operating Condition
Parameter
Power Supply Voltage
Power Supply Voltage
Operating Temperature
Data Rate
Symbol
V
cc
V
cc
T
opr
-
Min.
4.75
3.1
0
-
Typ.
5
3.3
-
155
Max.
5.25
3.5
70
-
Unit
V
V
ºC
Mbps
Transmitter Specifications, (0ºC<T
opr
<70ºC, V
CC
± 5%)
Parameter
Optical
Optical Transmit Power
Output center Wavelength
Output Spectrum Width
Extinction Ratio
Output Eye
Optical Rise Time
Optical Fall Time
Optical Isolation
Relative Intensity Noise
Total Jitter
RIN
TJ
tr
tf
P
o
λ
Δλ
ER
8.5
-
-
30
-
-
-
-
-
-
-
-
-8
1480
-
1530
-3
1580
3
-
2
2
-
-116
1.2
dBm
nm
nm
dB
ns
ns
dB
dB/Hz
ns
Measured with 2
23
-1 PRBS with 72 ones and 72
zeros.
10% to 90% Values
10% to 90% Values
Tx: 1530 nm/ Rx: 1310 nm
RMS(σ)
Output power is coupled into a 9/125 µm single
mode fiber
Symbol
Min
Typical
Max
Unit
Notes
Compliant with ITU-T recommendation G.957/STM1
1
155 Mbps Bi-directional SC Receptacle
Single Fiber Transceiver
B-15/13-155-T(3)-SSC4
Transmitter Specifications, (0ºC<T
opr
<70ºC, V
CC
± 5%)
Parameter
Electrical
Power Supply Current
Data Input Current-Low
Data Input Current-High
Differential Input Voltage
Data Input Voltage-Low
Data Input Voltage-High
I
CC
I
IL
I
IH
V
IH
-V
IL
V
IL
-V
CC
V
IH
-V
CC
-
-350
-
300
-2.0
-1.1
-
-
-
-
-
-
140
-
350
-
-1.58
-0.74
mA
µA
µA
mV
V
V
These inputs are compatible with 10K, 10KH and
100K ECL and PECL inputs
Maximum current is specified at Vcc= Maximum @
maximum temperature
Symbol
Min
Typical
Max
Unit
Notes
Receiver Specifications, (0ºC<T
opr
<70ºC, V
CC
± 5%)
Parameter
Optical
Sensitivity
Maximum Input Power
Signal Detect-Asserted
Signal Detect-Deasserted
Signal Detect-Hysteresis
Cross Talk
Wavelength of Operation
-
-
P
in
Pa
Pd
-
-3
-
-45
1
-
1260
-
-
-
-
-
-
-
-33
-
-33
-
4
-33
1360
dBm
dBm
dBm
dBm
dB
dB
nm
Measured on transition: low to high
Measured on transition: high to low
Measured with 2
23
-1 PRBS, BER 10
-10
Symbol
Min
Typical
Max
Unit
Notes
Receiver Specifications, (0ºC<T
opr
<70ºC, V
CC
± 5%)
Parameter
Electrical
Power Supply Current
Data Output Voltage-Low
Data Input Voltage-High
Signal Detect Output Voltage-Low
Signal Detect Output Voltage-High
I
CC
V
OL
-V
cc
V
OH
-
V
cc
V
SDL-
V
cc
V
SDH-
V
cc
-
-2
-1.1
-2
-1.1
-
-
-
-
-
100
-1.58
-0.74
-1.58
-0.74
mA
V
V
V
V
These outputs are compatible with 10K,
10KH and 100KECL and LVPECL outputs.
The current excludes the output load current
Symbol
Min
Typical
Max
Unit
Notes
2
155 Mbps Bi-directional SC Receptacle
Single Fiber Transceiver
B-15/13-155-T(3)-SSC4
Connection Diagram
1. (Rx GND)
2. (Rx +)
3. (Rx-)
4. (SD)
5. (Rx Vcc)
6. (Tx Vcc)
7. (TD-)
8. (TD+)
9. (Tx GND)
NC
Top View
NC
Receiver Signal Ground
Receiver Data Out
Receiver Data Out Bar
Signal Detect
Receiver Power Supply
Transmitter Power Supply
Transmitter Data In Bar
Transmitter Data in
Transmitter Signal Ground
PIN
1
2
3
4
5
6
7
8
Warnings
9
Symbol
RxGND
RD+
RD-
SD
RxVcc
TxVcc
TD-
TD+
TxGND
Notes
Directly connect this pin to the receiver ground plane
See recommended circuit schematic
See recommended circuit schematic
Active high on this indicates a received optical signal
dc power for the receiver section
dc power for the transmitter section
See recommended circuit schematic
See recommended circuit schematic
Directly connect this pin to the transmitter ground plane
Legal Notice
3
155 Mbps Bi-directional SC Receptacle
Single Fiber Transceiver
B-15/13-155-T(3)-SSC4

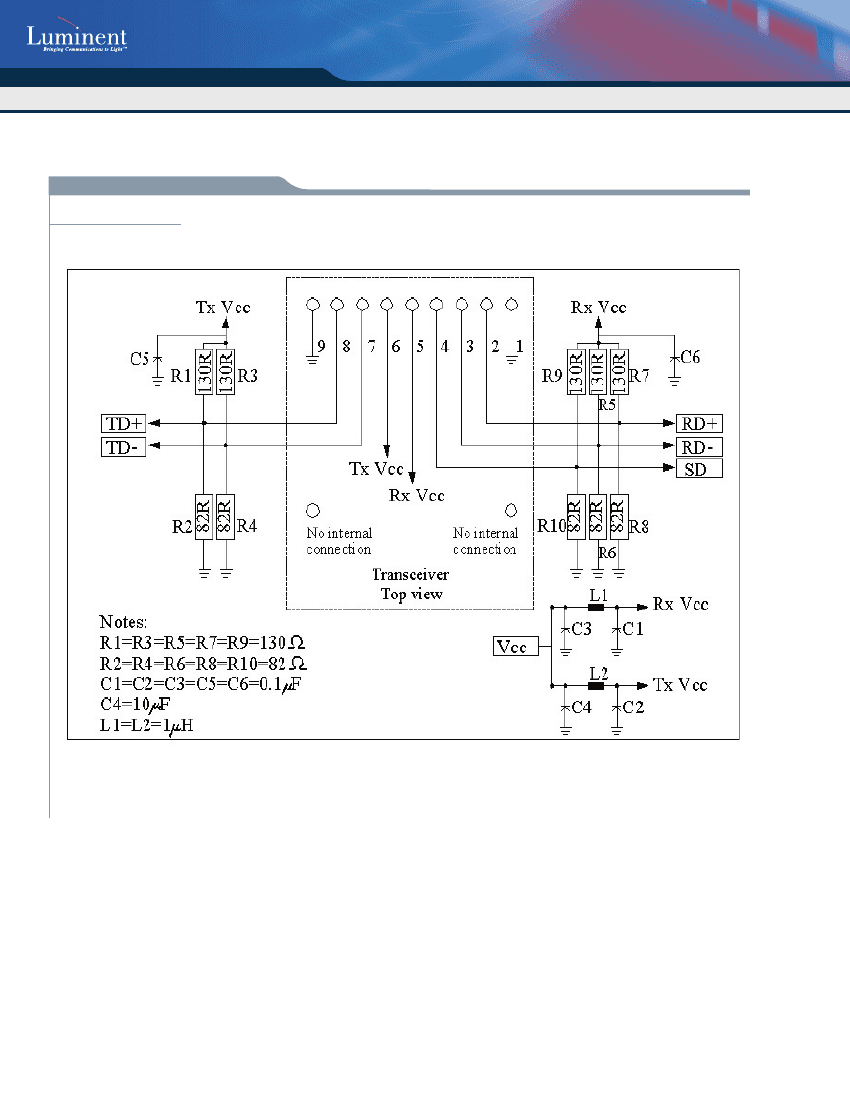

Recommended Circuit Schematic
B-15/13-155-T -SSC4
Tx Vcc
82R
82R
Rx Vcc
R1
R9
TD+
TD-
130R
130R
82R
82R
82R
C5
9 8 7 6 5 4 3 2 1
82R
82R
R3
82R
82R
R7
C6
R5
R2
130R
130R
R4
No internal
connection
No internal
connection
R10
Notes:
R1=R3=R5=R7=R9=82
R2=R4=R6=R8=R10=130
C1=C2=C3=C5=C6=0.1 F
C4=10 F
L1=L2=1 H
Transceiver
Top view
130R
130R
130R
Tx Vcc
Rx Vcc
RD+
RD-
SD
130R 130R
130R
R8
R6
Rx Vcc
C1
L1
Vcc
C3
L2
Tx Vcc
C2
C4
The split-loaded terminations for ECL signals need to be located at the input of devices receiving those ECL signals.
The power supply filtering is required for good EMI performance. Use short tracks from the inductor L1/L2 to the module Rx Vcc.
A GND plane under the module is required for good EMI and sensitivity performance.
4
155 Mbps Bi-directional SC Receptacle
Single Fiber Transceiver
B-15/13-155-T(3)-SSC4
Recommended Circuit Schematic
B-15/13-155-T3-SSC4
The split-loaded terminations for ECL signals need to be located at the input of devices receiving those ECL signals.
The power supply filtering is required for good EMI performance. Use short tracks from the inductor L1/L2 to the module Rx Vcc.
A GND plane under the module is required for good EMI and sensitivity performance.
5
