9322DCQM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 9322DCQM

9322DCQM: DescriptionMultiplexer, 4-Func, 2 Line Input, TTL, CDIP16,; Categorylogic logic; File Size228KB，6 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

9322DCQM Overview

Multiplexer, 4-Func, 2 Line Input, TTL, CDIP16,

9322DCQM Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	DIP, DIP16,.3
Reach Compliance Code	compliant

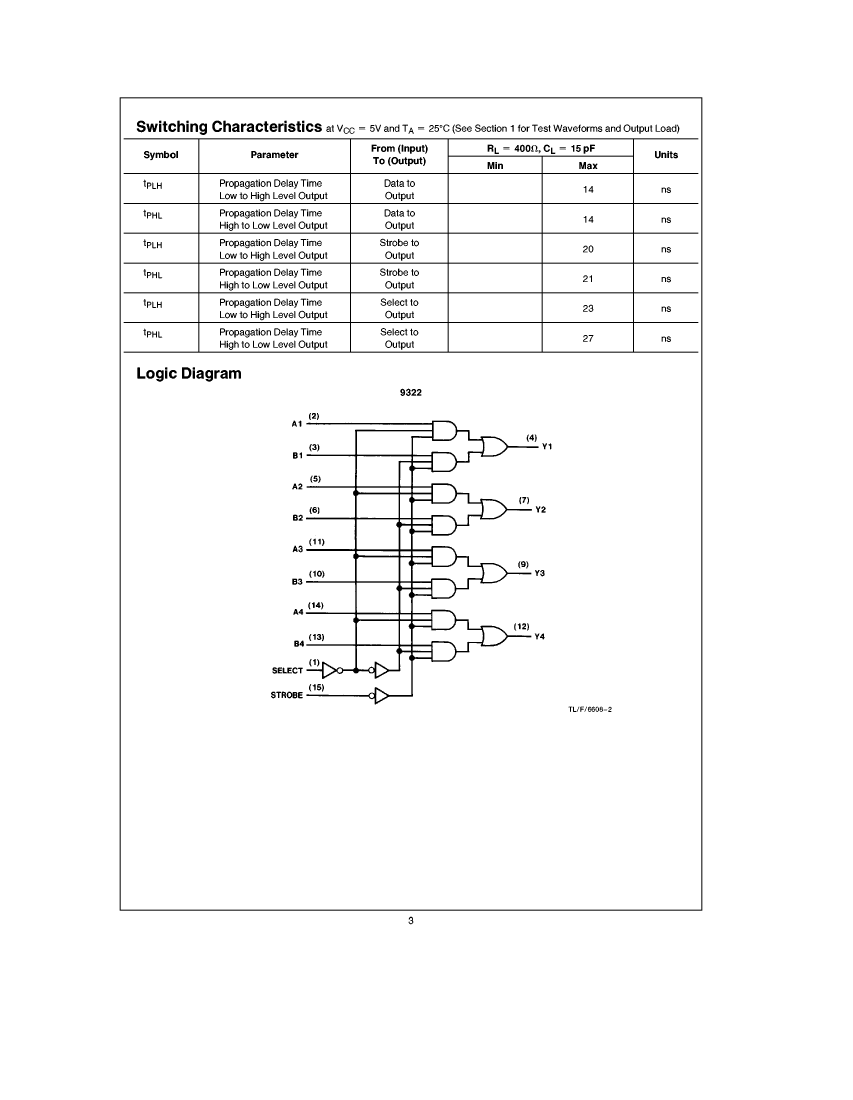

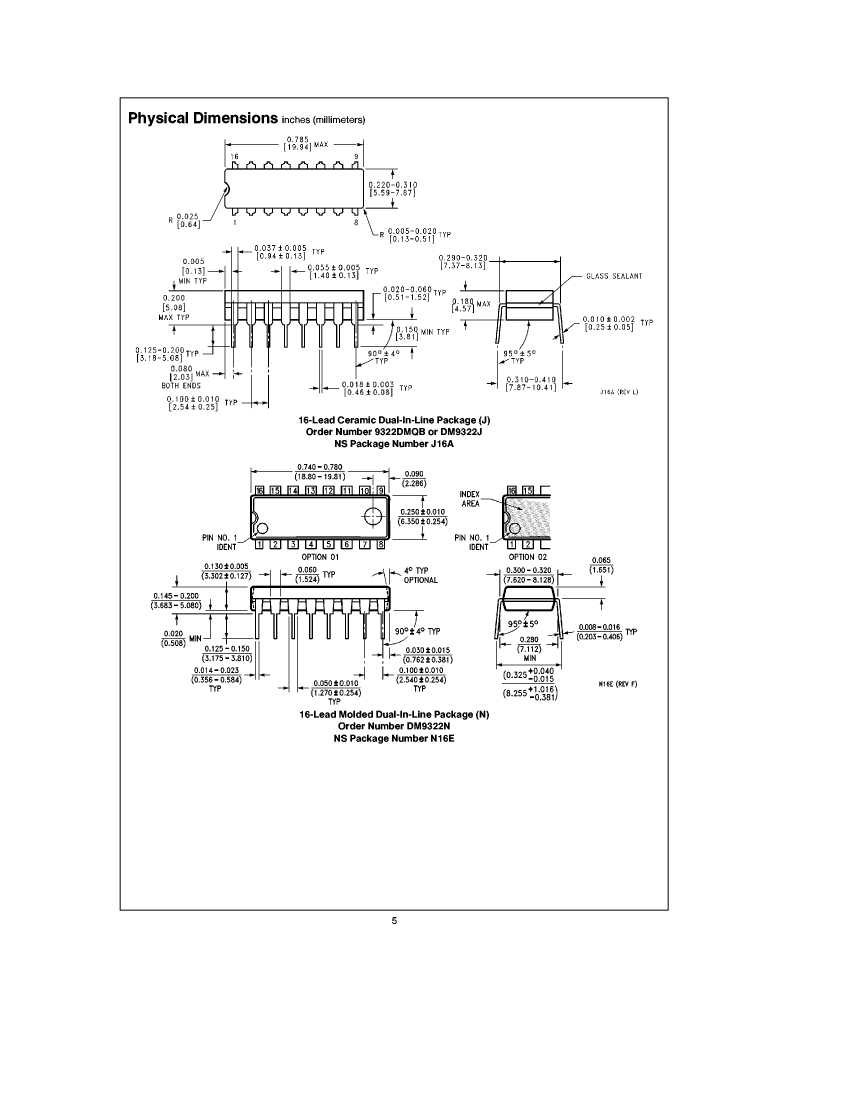

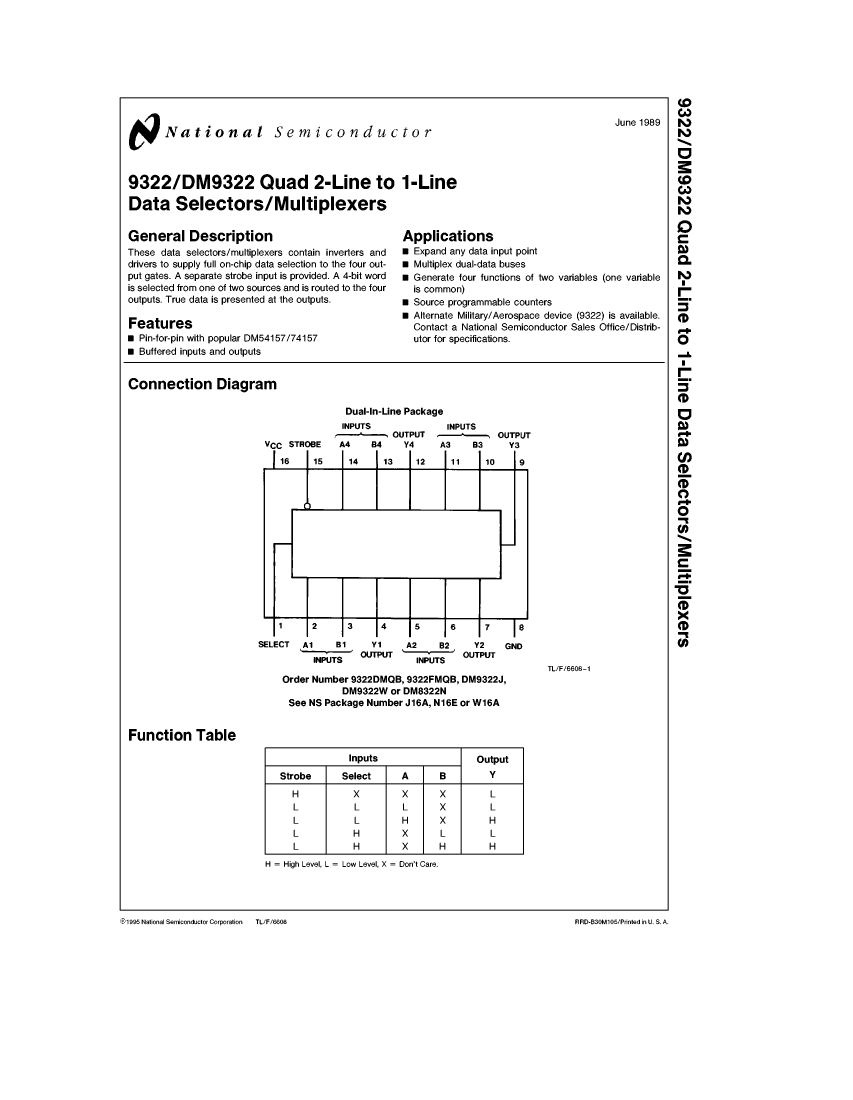

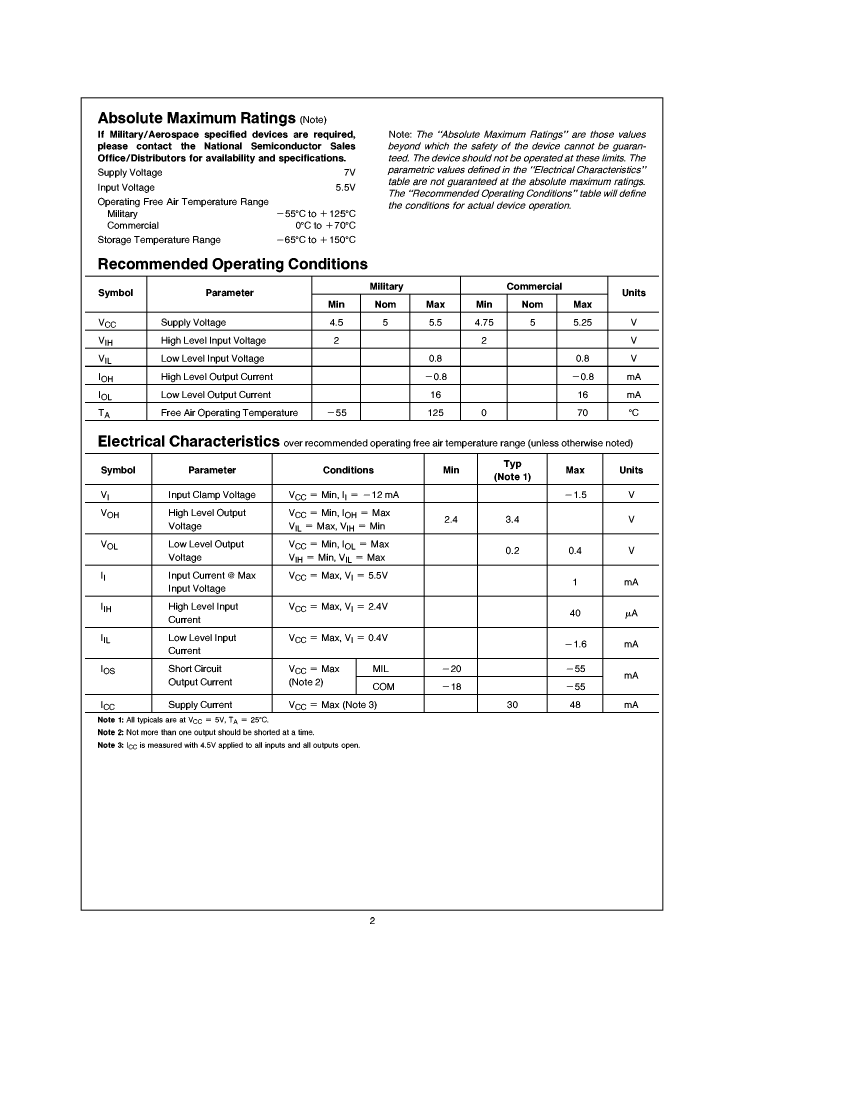

Preview

Download Datasheet

View All

9322DCQM Related Products

	9322DCQM	5962-01-011-2406	5962-01-225-4624	9322PCQR	9322PCQM	9322DCQR	5962-01-007-4544	5962-01-090-8845	5962-01-141-4884	5962-00-162-7368
Description	Multiplexer, 4-Func, 2 Line Input, TTL, CDIP16,	Multiplexer, 4-Func, 2 Line Input, TTL, PDIP16,	Multiplexer, 4-Func, 2 Line Input, TTL, CDIP16,	Multiplexer, 4-Func, 2 Line Input, TTL, PDIP16,	Multiplexer, 4-Func, 2 Line Input, TTL, PDIP16,	Multiplexer, 4-Func, 2 Line Input, TTL, CDIP16,	Multiplexer, 4-Func, 2 Line Input, TTL, CDFP16,	Multiplexer, 4-Func, 2 Line Input, TTL, CDIP16,	Multiplexer, 4-Func, 2 Line Input, TTL, CDIP16,	Multiplexer, 4-Func, 2 Line Input, TTL, CDIP16,
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	compli	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compli
Maker	Fairchild	-	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	-	-	DIP, DIP16,.3	DFP, FL16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3
JESD-30 code	-	R-PDIP-T16	R-XDIP-T16	R-PDIP-T16	R-PDIP-T16	R-XDIP-T16	R-XDFP-F16	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16
Logic integrated circuit type	-	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
Humidity sensitivity level	-	2A	2A	2A	2A	2A	2A	2A	2A	2A
Number of functions	-	4	4	4	4	4	4	4	4	4
Number of entries	-	2	2	2	2	2	2	2	2	2
Number of terminals	-	16	16	16	16	16	16	16	16	16
Maximum operating temperature	-	70 °C	70 °C	70 °C	70 °C	70 °C	125 °C	125 °C	125 °C	125 °C
Package body material	-	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	-	DIP	DIP	DIP	DIP	DIP	DFP	DIP	DIP	DIP
Encapsulate equivalent code	-	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	FL16,.3	DIP16,.3	DIP16,.3	DIP16,.3
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	FLATPACK	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	-	250	250	250	250	250	250	250	250	250
power supply	-	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	-	Not Qualified	Not Qualified	-	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	-	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	-	NO	NO	NO	NO	NO	YES	NO	NO	NO
technology	-	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	-	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	-	30	30	30	30	30	30	30	30	30
