2087-6001-00: Description10MHz - 18000MHz RF/MICROWAVE LINEAR DETECTOR, 20dBm INPUT POWER-MAX; CategoryWireless rf/communication Radio frequency and microwave; File Size160KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

2087-6001-00 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2087-6001-00	-	-	View	Buy Now

2087-6001-00 Overview

10MHz - 18000MHz RF/MICROWAVE LINEAR DETECTOR, 20dBm INPUT POWER-MAX

2087-6001-00 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1439760484
Reach Compliance Code	unknown
Other features	SMA
structure	COAXIAL
Maximum input power (CW)	20 dBm
Maximum operating frequency	18000 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-65 °C
Output polarity	NEGATIVE
Minimum output voltage sensitivity	400 mV/mW
RF/Microwave Device Types	LINEAR DETECTOR
Maximum voltage standing wave ratio	3.5

Preview

Download Datasheet

View All

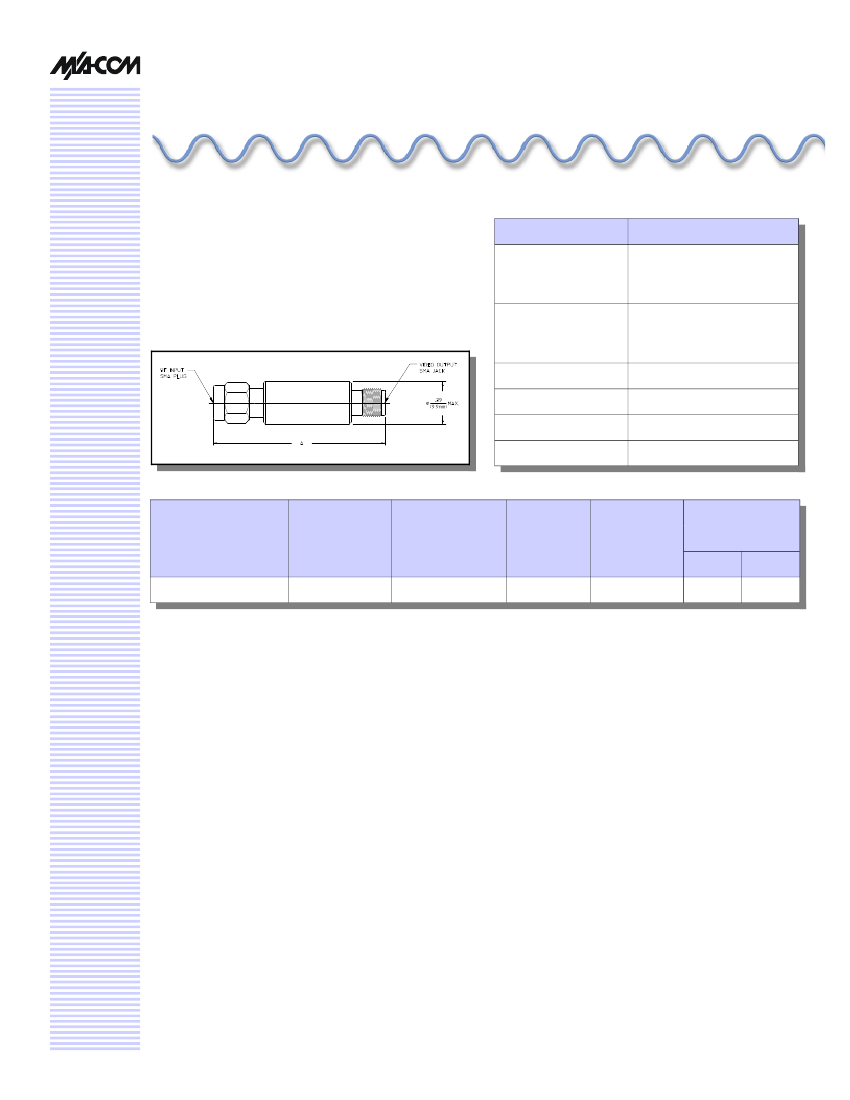

Point Contact Detectors

V 3.00

2087-6001-00

Features

n

Specifications

Parameter

Flatness (Maximum)

Specification

± 0.5 dB, 10 MHz to 4 GHz

± 1.0 dB, 10 MHz to 8 GHz

± 1.5 dB, 10 MHz to 12 GHz

± 2.5 dB, 10 MHz to 18 GHz

1.5:1, 10 MHz to 4 GHz

2.0:1, 10 MHz to 8 GHz

3.0:1, 10 MHz to 12 GHz

3.5:1, 10 MHz to 18 GHz

100 mW

Negative

4

6K Ohms Typical

2

-65°C to +100°C

Broadband Frequency Ranges

No Bias Required

Flat Frequency Response

Passivated Stainless Steel Finish

Mechanical Outline Drawing

VSWR (Maximum)

Maximum Power

Output Polarity

Video Resistance

Temperature Range

Detector

Part Number

Frequency

Range

1

(GHz)

Open Circuit

Voltage

Sensitivity

2

(mV/mW) Min.

Tangential

Sensitivity

3

(-dBm) Min.

Output

Capacitance

(pF) Typical

Dimension A

Inches

2087-6001-00

1.

2.

3.

4.

0.01 - 18.0

400

45

12

1.55

mm

39.4

Usable to 20 GHz

For RF power levels below –20 dBm, and with an open circuit load.

With video amplifier of 1 MHz bandwidth and 2 dB noise figure.

For Positive Output change suffix to -13.
