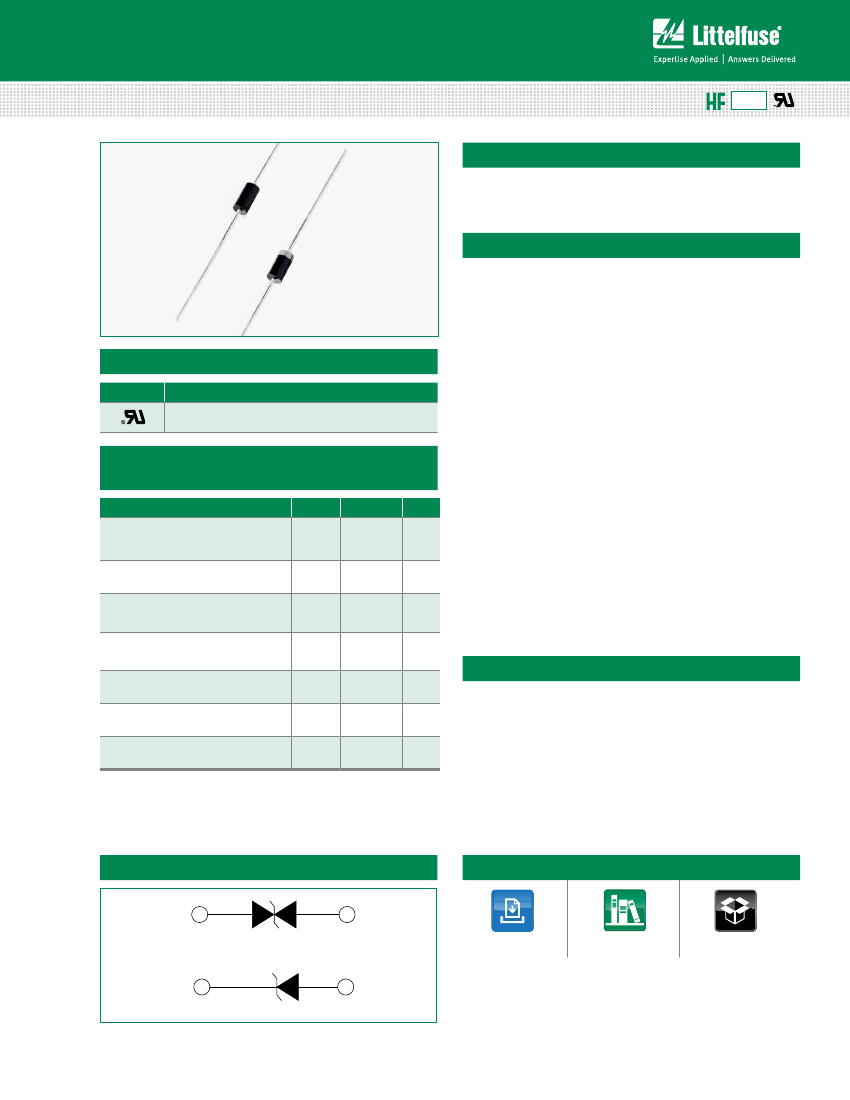

Transient Voltage Suppression Diodes
Axial Leaded – 600W > P6KE series
P6KE Series
Description
Bi-directional
RoHS
The P6KE Series is designed specifically to protect
sensitive electronic equipment from voltage transients
induced by lightning and other transient voltage events.
Features
Uni-directional
•
V
BR
@T
J
= V
BR
@25°C × (1+
α
T
• ESD protection of data
lines in accordance with
x (T
J
- 25))
IEC 61000-4-2 (IEC801-2)
(αT: Temperature Coefficient)
• EFT protection of data
• Glass passivated chip
lines in accordance with
junction in DO-15 Package
IEC 61000-4-4 (IEC801-4)
• 600W peak pulse
• Low incremental surge
capability at 10/1000μs
resistance
waveform, repetition rate
• Typical I
R
less than 1μA
(duty cycles):0.01%
above 13V
• Fast response time:
• High temperature
typically less than 1.0ps
soldering guaranteed:
from 0 Volts to BV min
260°C/40 seconds /
• Excellent clamping
0.375”
,(9.5mm) lead
capability
length, 5 lbs., (2.3kg)
• Typical failure mode is
tension
short from over-specified
• Plastic package has
voltage or current
underwriters laboratory
• Whisker test is conducted
flammability classification
based on JEDEC
94V-O
JESD201A per its table 4a
• Matte tin lead–free plated
and 4c
• Halogen free and RoHS
• IEC-61000-4-2 ESD
compliant
15kV(Air), 8kV (Contact)
Applications
T
J
, T
STG
R
uJL
R
uJA
-55 to 150
20
75
°C
°C/W
°C/W
Agency Approvals
AGENCY
AGENCY FILE NUMBER
E128662/E230531
Maximum Ratings and Thermal Characteristics
(T
A
=25°C unless otherwise noted)
Parameter
Peak Pulse Power Dissipation by
10/1000μs Test Waveform (Fig.2)
(Note 1)
Steady State Power Dissipation on
Inifinite Heat Sink at T
L
=75ºC (Fig. 6)
Peak Forward Surge Current, 8.3ms
Single Half Sine Wave Unidirectional
Only (Note 2)
Maximum Instantaneous Forward
Voltage at 50A for Unidirectional
Only (Note 3)
Operating Junction and Storage
Temperature Range
Typical Thermal Resistance Junction
to Lead
Typical Thermal Resistance Junction
to Ambient
Symbol
P
PPM
P
D
I
FSM
V
F
Value
600
5.0
100
3.5/5.0
Unit
W
W
A
V
TVS devices are ideal for the protection of I/O interfaces,
V
CC
bus and other vulnerable circuits used in telecom,
computer, industrial and consumer electronic applications.
Notes:
1. Non-repetitive current pulse , per Fig. 3 and derated above T
A
= 25°C per Fig. 2.
2. Measured on 8.3ms single half sine wave or equivalent square wave, duty cycle=4 per
minute maximum.
_
_
3. V
F
<3.5V for devices of V
BR
<
200V and V
F
< 5.0V for devices of V
BR
>
201V.
Functional Diagram
Additional Information
Bi-directional
Datasheet
Resources
Samples
Cathode
Uni-directional
Anode
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 04/10/14
Axial Leaded – 600W > P6KE series
Transient Voltage Suppression Diodes
Electrical Characteristics
(T
A
=25°C unless otherwise noted)
Part
Number
(Uni)
P6KE6.8A
P6KE7
.5A
P6KE8.2A
P6KE9.1A
P6KE10A
P6KE11A
P6KE12A
P6KE13A
P6KE15A
P6KE16A
P6KE18A
P6KE20A
P6KE22A
P6KE24A
P6KE27A
P6KE30A
P6KE33A
P6KE36A
P6KE39A
P6KE43A
P6KE47A
P6KE51A
P6KE56A
P6KE62A
P6KE68A
P6KE75A
P6KE82A
P6KE91A
P6KE100A
P6KE110A
P6KE120A
P6KE130A
P6KE150A
P6KE160A
P6KE170A
P6KE180A
P6KE200A
P6KE220A
P6KE250A
P6KE300A
P6KE350A
P6KE400A
P6KE440A
P6KE480A
P6KE510A
P6KE530A
P6KE540A
P6KE550A
P6KE600A
Part
Number
(Bi)
P6KE6.8CA
P6KE7
.5CA
P6KE8.2CA
P6KE9.1CA
P6KE10CA
P6KE11CA
P6KE12CA
P6KE13CA
P6KE15CA
P6KE16CA
P6KE18CA
P6KE20CA
P6KE22CA
P6KE24CA
P6KE27CA
P6KE30CA
P6KE33CA
P6KE36CA
P6KE39CA
P6KE43CA
P6KE47CA
P6KE51CA
P6KE56CA
P6KE62CA
P6KE68CA
P6KE75CA
P6KE82CA
P6KE91CA
P6KE100CA
P6KE110CA
P6KE120CA
P6KE130CA
P6KE150CA
P6KE160CA
P6KE170CA
P6KE180CA
P6KE200CA
P6KE220CA
P6KE250CA
P6KE300CA
P6KE350CA
P6KE400CA
P6KE440CA
P6KE480CA
P6KE510CA
P6KE530CA
P6KE540CA
P6KE550CA
P6KE600CA
Reverse
Stand off
Voltage V
R
(Volts)
5.80
6.40
7
.02
7
.78
8.55
9.40
10.20
11.10
12.80
13.60
15.30
17
.10
18.80
20.50
23.10
25.60
28.20
30.80
33.30
36.80
40.20
43.60
47
.80
53.00
58.10
64.10
70.10
77
.80
85.50
94.00
102.00
111.00
128.00
136.00
145.00
154.00
171.00
185.00
214.00
256.00
300.00
342.00
376.00
408.00
434.00
477
.00
486.00
495.00
512.00
Breakdown
Voltage V
BR
(Volts) @ I
T
MIN
6.45
7
.13
7
.79
8.65
9.50
10.50
11.40
12.40
14.30
15.20
17
.10
19.00
20.90
22.80
25.70
28.50
31.40
34.20
37
.10
40.90
44.70
48.50
53.20
58.90
64.60
71.30
77
.90
86.50
95.00
105.00
114.00
124.00
143.00
152.00
162.00
171.00
190.00
209.00
237
.00
285.00
332.00
380.00
418.00
456.00
485.00
503.50
513.00
522.50
570.00
MAX
7
.14
7
.88
8.61
9.55
10.50
11.60
12.60
13.70
15.80
16.80
18.90
21.00
23.10
25.20
28.40
31.50
34.70
37
.80
41.00
45.20
49.40
53.60
58.80
65.10
71.40
78.80
86.10
95.50
105.00
116.00
126.00
137
.00
158.00
168.00
179.00
189.00
210.00
231.00
263.00
315.00
368.00
420.00
462.00
504.00
535.00
556.50
567
.00
577
.50
630.00
Test
Current
I
T
(mA)
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Maximum
Clamping
Voltage
V
C
@ I
pp
(V)
10.5
11.3
12.1
13.4
14.5
15.6
16.7
18.2
21.2
22.5
25.2
27
.7
30.6
33.2
37
.5
41.4
45.7
49.9
53.9
59.3
64.8
70.1
77
.0
85.0
92.0
103.0
113.0
125.0
137
.0
152.0
165.0
179.0
207
.0
219.0
234.0
246.0
274.0
328.0
344.0
414.0
482.0
548.0
602.0
658.0
698.0
725.0
740.0
760.0
828.0
Maximum
Peak
Pulse
Current I
pp
(A)
58.1
54.0
50.4
45.5
42.1
39.1
36.5
33.5
28.8
27
.1
24.2
22.0
19.9
18.4
16.3
14.7
13.3
12.2
11.3
10.3
9.4
8.7
7
.9
7
.2
6.6
5.9
5.4
4.9
4.5
4.0
3.7
3.4
2.9
2.8
2.6
2.5
2.2
1.9
1.8
1.5
1.3
1.1
1.0
0.9
0.9
0.8
0.8
0.8
0.75
Maximum
Reverse
Leakage
I
R
@ V
R
(µA)
1000
500
200
50
10
5
5
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Agency
Approval
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
For bidirectional type having V
R
of 10 volts and less, the I
R
limit is double.
For parts without A , the V
BR
is ± 10% and V
C
is 5% higher than with A parts
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 04/10/14
Transient Voltage Suppression Diodes
Axial Leaded – 600W > P6KE series

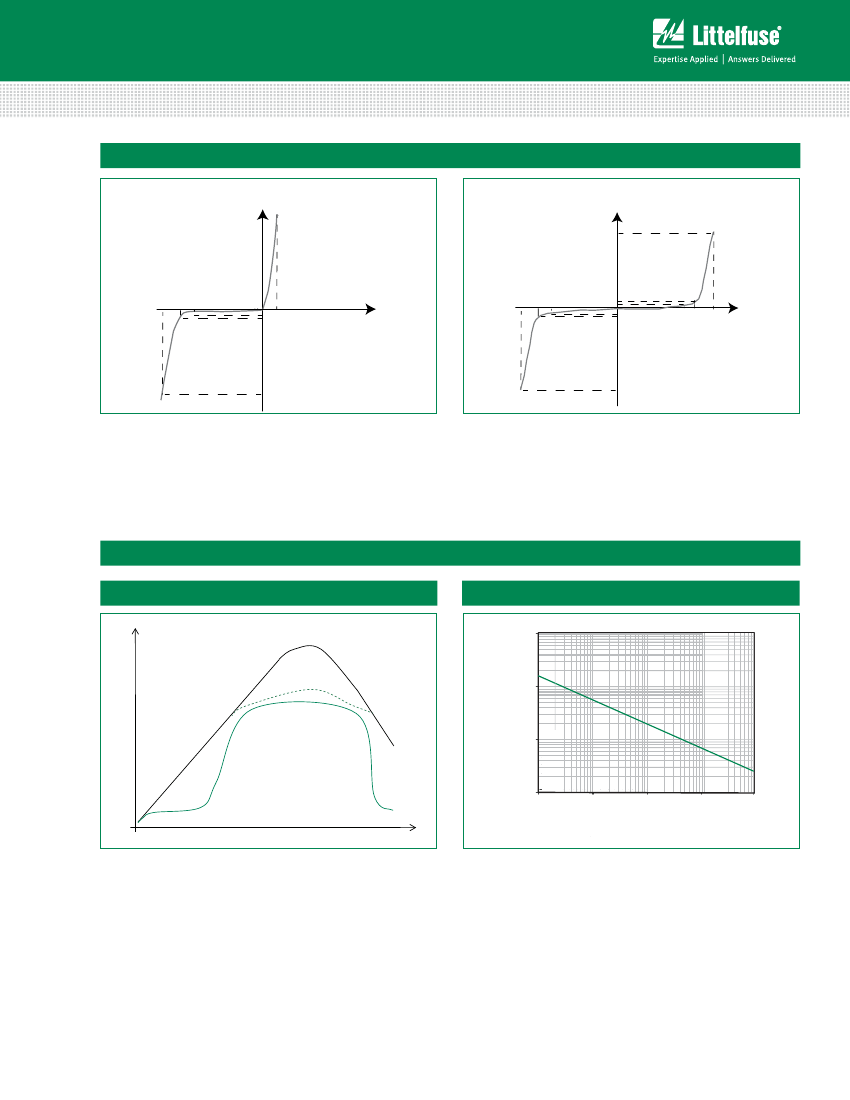

I-V Curve Characteristics
Uni-directional
Bi-directional
I
pp
Vc V
BR
V
R
I
R
V
F
I
T
V
Vc V
BR
V
R
I
T
I
R
I
R
I
T
V
R
V
BR
Vc
V
I
pp
I
pp
P
PPM
V
R
V
BR
V
C
I
R
V
F
Peak Pulse Power Dissipation
-- Max power dissipation
Stand-off Voltage
-- Maximum voltage that can be applied to the TVS without operation
Breakdown Voltage
-- Maximum voltage that flows though the TVS at a specified test current (I
T
)
Clamping Voltage
-- Peak voltage measured across the suppressor at a specified Ippm (peak impulse current)
Reverse Leakage Current
-- Current measured at V
R
Forward Voltage Drop for Uni-directional

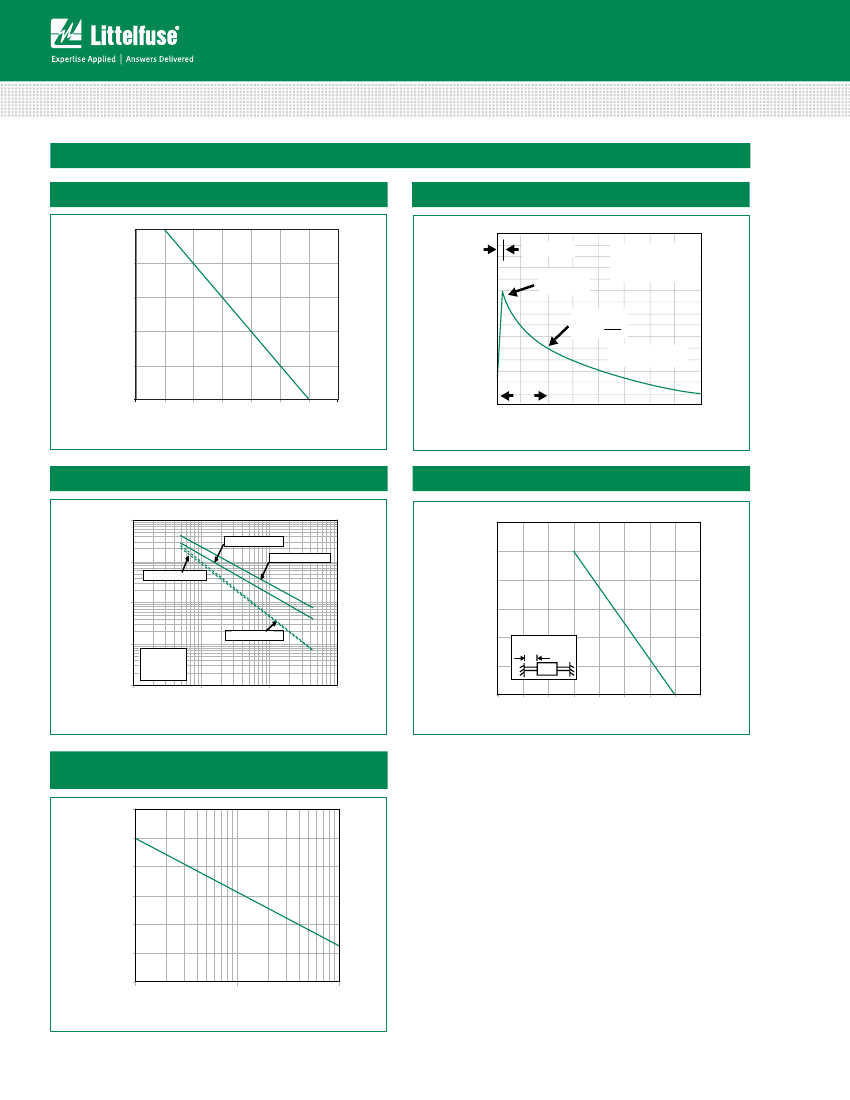

Ratings and Characteristic Curves
(T
A
=25°C unless otherwise noted)
Figure 1 - TVS Transients Clamping Waveform
Voltage Transients
Figure 2 - Peak Pulse Power Rating
100
Voltage Across TVS
Voltage or Current
P
PPM
-Peak Pulse Power (KW)
10
Current Through TVS
1
0.1
0.001
0.01
0.1
1
t
d
-Pulse Width (ms)
10
Time
continues on next page.
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 04/10/14
P6KE Series
P6KE Series
Axial Leaded – 600W > P6KE series
Transient Voltage Suppression Diodes
Ratings and Characteristic Curves
(T
A
=25°C unless otherwise noted)
(Continued)
Figure 3 - Pulse Derating Curve
100
Peak Pulse Power (P
PP
) or Current (I
PP
)
Derating in Percentage %
80
60
40
20
0
I
PPM
- Peak Pulse Current, % I
RSM
Figure 4 - Pulse Waveform
150
tr=10µsec
Peak Value
IPPM
TJ=25°C
Pulse Width(td) is defined
as the point where the peak
current decays to 50% of IPPM
100
Half Value
IPPM
IPPM
2
( )
10/1000µsec. Waveform
as defined by R.E.A
50
0
25
50
75
100
125
150
175
0
td
T
A
-Ambient temperature (ºC)
0
1.0
2.0
t-Time (ms)
3.0
4.0
Figure 5 - Typical Junction Capacitance Uni-Directional
10000
Figure 6 - Steady State Power Derating Curve
6
Steady State Power Dissipation (W)
Bi-directional V=0V
1000
Uni-directional @VR
Uni-directional V=0V
5
4
3
2
1
0
L = 0.375” (9.5mm)
Lead Lengths
Cj (pF)
100
10
Bi-directional @VR
Tj=25C
f=1.0MHz
Vsig=50mVp-p
1
1.0
10.0
100.0
1000.0
V
BR
- Reverse Breakdown Voltage (V)
0
25
50
75
100
125
150
175
200
T
L
-Lead Temperature(ºC)
Figure 7 - Maximum Non-Repetitive Forward Surge
Current
120
I
FSM
- Peak Forward Surge Current
(A)
100
80
60
40
20
0
1
10
Number of Cycles at 60 Hz
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 04/10/14
100
Transient Voltage Suppression Diodes
Axial Leaded – 600W > P6KE series
Soldering Parameters
Reflow Condition
- Temperature Min (T
s(min)
)
Pre Heat
- Temperature Max (T
s(max)
)
- Time (min to max) (t
s
)
Average ramp up rate (Liquidus Temp
(T
L
) to peak
T
S(max)
to T
L
- Ramp-up Rate
Reflow
- Temperature (T
L
) (Liquidus)
- Time (min to max) (t
s
)
Lead–free assembly
150°C
Temperature (T)
t
p
Ramp-up
Critical Zone
T
L
to T
P
T
P
200°C
60 – 180 secs
3°C/second max
3°C/second max
217°C
60 – 150 seconds
260
+0/-5
°C
20 – 40 seconds
6°C/second max
8 minutes Max.
280°C
T
L
T
s(max)
t
L
T
s(min)
Ramp-down
Preheat
t
s
25˚C
t 25˚C to Peak
Time (t)
Peak Temperature (T
P
)
Time within 5°C of actual peak
Temperature (t
p
)
Ramp-down Rate
Time 25°C to peak Temperature (T
P
)
Do not exceed
Flow/Wave Soldering (Solder Dipping)
Peak Temperature :
Dipping Time :
Soldering :
265
O
C
10 seconds
1 time
Physical Specifications
Weight
Case
Polarity
Terminal
0.015oz., 0.4g
JEDEC DO-204AC (DO-15) molded
plastic body over passivated junction.
Color band denotes the cathode except
Bipolar.
Matte Tin axial leads, solderable per
JESD22-B102.
Environmental Specifications
High Temp. Storage
HTRB
Temperature Cycling
H3TRB
RSH
JESD22-A103
JESD22-A108
JESD22-A104
JESD22-A101
JESD22-B106
Dimensions
D
A
(for uni-directional products only)
Cathode Band
Dimensions
Inches
Min
1.000
0.230
0.028
0.104
Max
-
0.300
0.034
0.140
Millimeters
Min
25.40
5.80
0.71
2.60
Max
-
7
.60
0.86
3.60
C
B
A
A
B
C
D
DO-204AC (DO-15)
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 04/10/14
京公网安备 11010802033920号
EEWORLD
