SMBJP6KE15A-TP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SMBJP6KE15A-TP

SMBJP6KE15A-TP: DescriptionTrans Voltage Suppressor Diode, 600W, 12.8V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, SMBJ, 2 PIN; CategoryDiscrete semiconductor diode; File Size405KB，5 Pages; ManufacturerMicro Commercial Components (MCC); Environmental Compliance

Download Datasheet Parametric Compare View All

SMBJP6KE15A-TP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SMBJP6KE15A-TP	-	-	View	Buy Now

SMBJP6KE15A-TP Overview

Trans Voltage Suppressor Diode, 600W, 12.8V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, SMBJ, 2 PIN

SMBJP6KE15A-TP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Micro Commercial Components (MCC)
Parts packaging code	DO-214AA
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	EXCELLENT CLAMPING CAPABILITY, UL RECOGNIZED
Maximum breakdown voltage	15.8 V
Minimum breakdown voltage	14.3 V
Breakdown voltage nominal value	15 V
Maximum clamping voltage	21.2 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-214AA
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak reverse power dissipation	600 W
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
polarity	UNIDIRECTIONAL
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	12.8 V
surface mount	YES
technology	AVALANCHE
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	10

Preview

Download Datasheet

View All

MCC

Micro Commercial Components

omponents

20736 Marilla Street Chatsworth

!"#

$ % !"#

SMBJP6KE6.8(C)A

THRU

SMBJP6KE550(C)A

Transient

Voltage Suppressor

6.8 to 550 Volts

600 Watt

DO-214AA

(SMBJ) (LEAD FRAME)

Features

•

Halogen

free available upon request by adding suffix "-HF"

For surface mount applicationsin in or der to optimize board space

Available in both unidirectional and bidirectional construction

and suffix"C" designates bidirectional type

Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates

Compliant. See ordering information)

Fast response time: typical less than 1.0ps from 0 volts to

minimum

Low inductance

Excellent clamping capability

UL Recognized File # E331408

Mechanical Data

•

Epoxy meets UL 94 V-0 flammability rating

Moisture Sensitivity Level 1

Terminals: solderable per MIL-STD-750, Method 2026

Polarity: Color band denotes posit ive end (cathode)

except Bidirectional

Maximum soldering temperature: 260 C for 10 seconds

Maximum Ratings @ 25

C Unless Otherwise Specified

Peak Pulse Current on

See Table 1 Note:

10/1000us waveform

Peak Pulse Power

600W

Note:

Dissipation

Operation And Storage T

, T

STG

-55

C to

Temperature Range

+175

Thermal Resistance

thJC

C/W

thJL

C/W

DIMENSIONS

INCHES

MIN

.160

.130

.006

.030

.200

.079

.075

.002

MIN

4.06

3.30

0.15

0.76

5.08

2.00

1.91

0.05

NOTES:

High Temperature Solder Exemptions Applied, see EU Directive Annex 7.

DIM

MAX

.185

.155

.012

.060

.220

.096

.087

.008

MAX

4.70

3.94

0.31

..52

5.59

2.44

2.21

0.203

NOTE

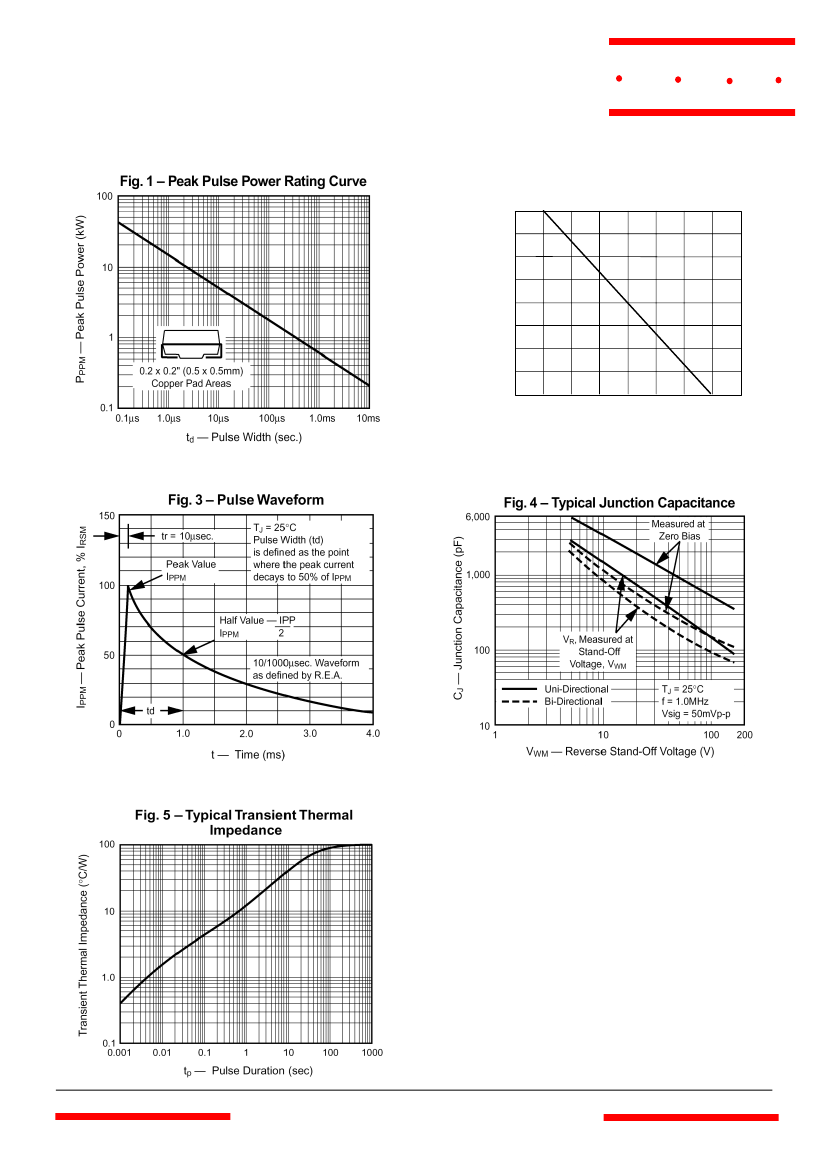

Non-repetitive current pulse, per Fig.3 and derated above

=25 C per Fig.2.

SUGGESTED SOLDER

PAD LAYOUT

0.106"

0.082”

0.050”

Revision:

www.mccsemi.com

1 of 5

2013/07/18
