PB0167: DescriptionData Line Filter, 2 Function(s), 8.3A; CategoryAnalog mixed-signal IC filter; File Size154KB，2 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric Compare View All

PB0167 Overview

Data Line Filter, 2 Function(s), 8.3A

PB0167 Parametric

Parameter Name	Attribute value
Maker	Pulse Electronics
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum DC resistance	0.013 Ω
filter type	DATA LINE FILTER
high	38.83 mm
inductance	115 µH
length	35.56 mm
Manufacturer's serial number	PB0167
Installation type	THROUGH HOLE MOUNT
Number of functions	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Output impedance	115 OHM Ω
method of packing	TRAY
physical size	L35.56XB15.62XH38.83 (mm)/L1.4XB0.615XH1.45 (inch)
Rated current	8.3 A

Preview

Download Datasheet

View All

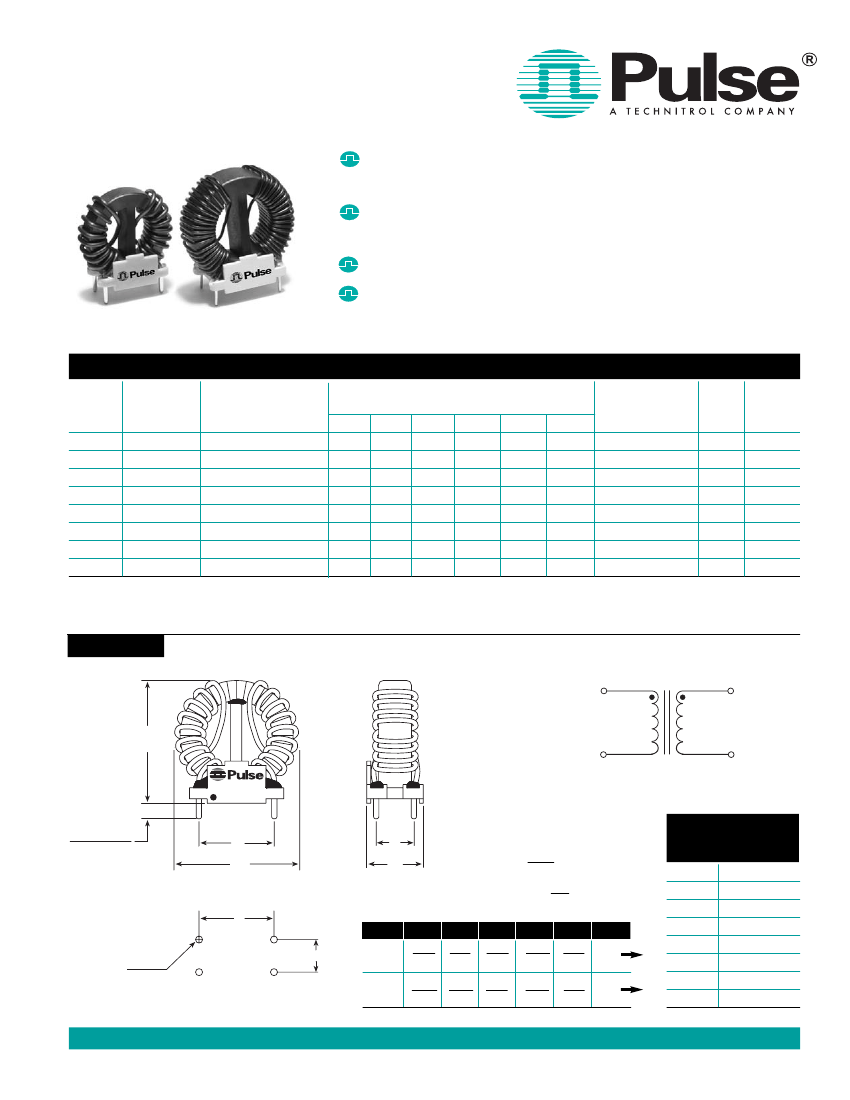

THT COMMON MODE

CHOKES - TWO PHASE

3000Vrms Isolation - PB01XX Series

Height:

38.8mm (Package 1)

43.2mm (Package 2)

Footprint:

35.6 x 15.6mm (Package 1)

45.7 x 21.6mm (Package 2)

Current Range:

up to 23.4Adc

Dielectric strength:

3000Vrms (with 3.0mm

creepage)

Electrical Specifications @ 25°C — Operating Temperature -40°C to +125°C

Part

Number

PB0168

PB0172

PB0167

PB0166

PB0171

PB0165

PB0170

PB0169

Rated*

RMS Current

(Amps)

5.5

8.1

8.3

12.2

17.2

23.4

Nominal Inductance

(Reference Only)

(20kHz, 0.02V)

(µH)

144.5

240

115

46

150

32.4

95

57.1

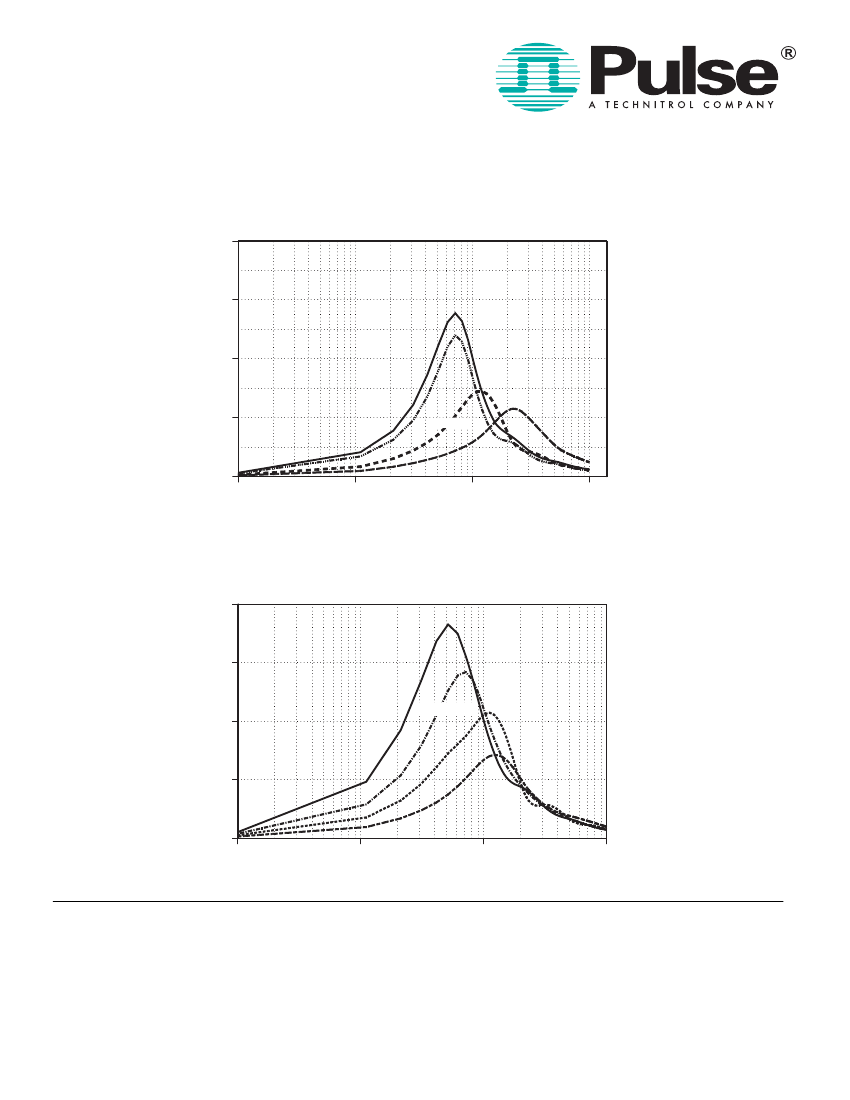

Impedance

(Ω MIN Spec)

1MHz 5MHz 10MHz

470

950

370

200

700

100

380

200

3100

3150

1100

950

2800

500

2300

1200

1750

1250

410

750

1350

690

1300

1800

30MHz 50MHz 100MHz

475

380

265

340

400

350

360

420

275

220

210

220

230

200

235

100

90

115

95

80

90

85

100

DCR

MAX (each wdg.)

(mΩ)

30

25

13

6.0

11

3.0

5.5

3.0

SRF

MIN

(MHz)

4.15

2.75

3.00

4.80

3.80

7.80

4.60

6.00

Package

Number

1

2

1

2

1

2

*Rated RMS current for 40°C temperature rise.

Mechanical

PB01XX

Schematic

1

A

MAX

PB01XX

2

3

4

Date Code

Country of Origin

.175 ± .025

4,45 ± 0,64

D

B

MAX

D

E

C

MAX

PKG1

PKG2

Weight

.......27.5 grams ......54.5 grams

Tray..................30/tray

............20/tray

Dimensions:

Inches

mm

Unless otherwise specified,

all tolerances are ± .010

0,25

Recommended Hole

Diameter F

(inches/mm)

PB0165

PB0166

PB0167

PB0168

PB0169

PB0170

PB0171

PB0172

.085 / 2.16

.070 / 1.78

.060 / 1.52

.105 / 2.67

.085 / 2.16

.070 / 1.78

.060 / 1.52

4

4 X ØF

3

E

PKG #

1

2

A

B

C

1.450 1.400 .615

38,83 35,56 15,62

1.700 1.800 .850

43,18 45,72 21,59

D

E

F

.800 .400 (See

20,32 10,16 Chart)

.900 .600 (See

22,86 15,24 Chart)

1

2

RECOMMENDED PCB LAYOUT

USA 858 674 8100

•

UK 44 1483 401 700

•

France 33 3 84 35 04 04

•

Singapore 65 6287 8998

•

Shanghai

86 21 32181071

•

China 86 769 5538070

•

Taiwan 886 2 26980228

www.pulseeng.com

P560.C (11/05)

PB0167 Related Products

	PB0167	PB0166	PB0170	PB0165	PB0169	PB0172
Description	Data Line Filter, 2 Function(s), 8.3A	Data Line Filter, 2 Function(s), 12.2A	Data Line Filter, 2 Function(s), 17.2A	Data Line Filter, 2 Function(s), 17.2A	Data Line Filter, 2 Function(s), 23.4A	Data Line Filter, 2 Function(s), 8.1A
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum DC resistance	0.013 Ω	0.006 Ω	0.0055 Ω	0.003 Ω	0.003 Ω	0.025 Ω
filter type	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER
high	38.83 mm	38.83 mm	43.18 mm	38.83 mm	43.18 mm	43.18 mm
inductance	115 µH	46 µH	95 µH	32.4 µH	57.1 µH	240 µH
length	35.56 mm	35.56 mm	45.72 mm	35.56 mm	45.72 mm	45.72 mm
Manufacturer's serial number	PB0167	PB0166	PB0170	PB0165	PB0169	PB0172
Installation type	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of functions	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output impedance	115 OHM Ω	95 OHM Ω	85 OHM Ω	90 OHM Ω	100 OHM Ω	90 OHM Ω
method of packing	TRAY	TRAY	TRAY	TRAY	TRAY	TRAY
physical size	L35.56XB15.62XH38.83 (mm)/L1.4XB0.615XH1.45 (inch)	L35.56XB15.62XH38.83 (mm)/L1.4XB0.615XH1.45 (inch)	L45.72XB21.59XH43.18 (mm)/L1.8XB0.85XH1.7 (inch)	L35.56XB15.62XH38.83 (mm)/L1.4XB0.615XH1.45 (inch)	L45.72XB21.59XH43.18 (mm)/L1.8XB0.85XH1.7 (inch)	L45.72XB21.59XH43.18 (mm)/L1.8XB0.85XH1.7 (inch)
Rated current	8.3 A	12.2 A	17.2 A	17.2 A	23.4 A	8.1 A
Maker	Pulse Electronics	-	-	Pulse Electronics	Pulse Electronics	Pulse Electronics
