SAB8051A-P-T40/85 datasheet, PDF

SAB8051A-P-T40/85: DescriptionMicrocontroller, 8-Bit, MROM, 12MHz, NMOS, PDIP40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size413KB，20 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric View All

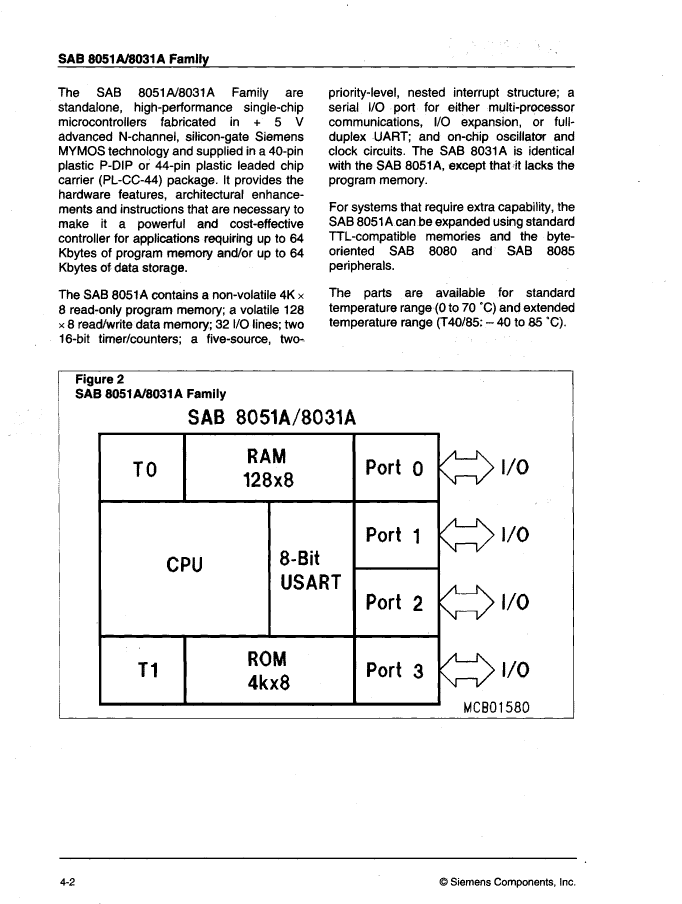

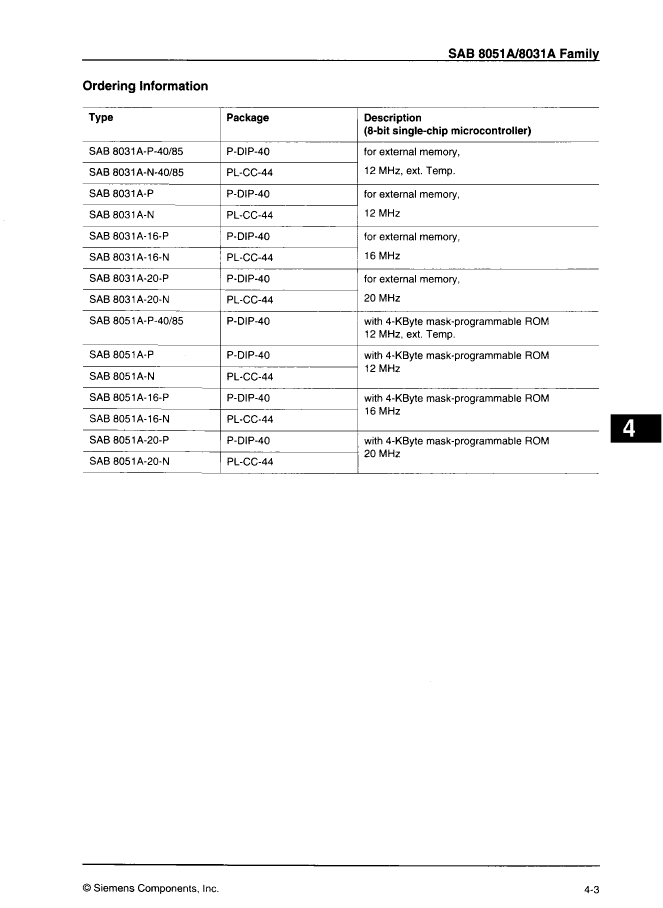

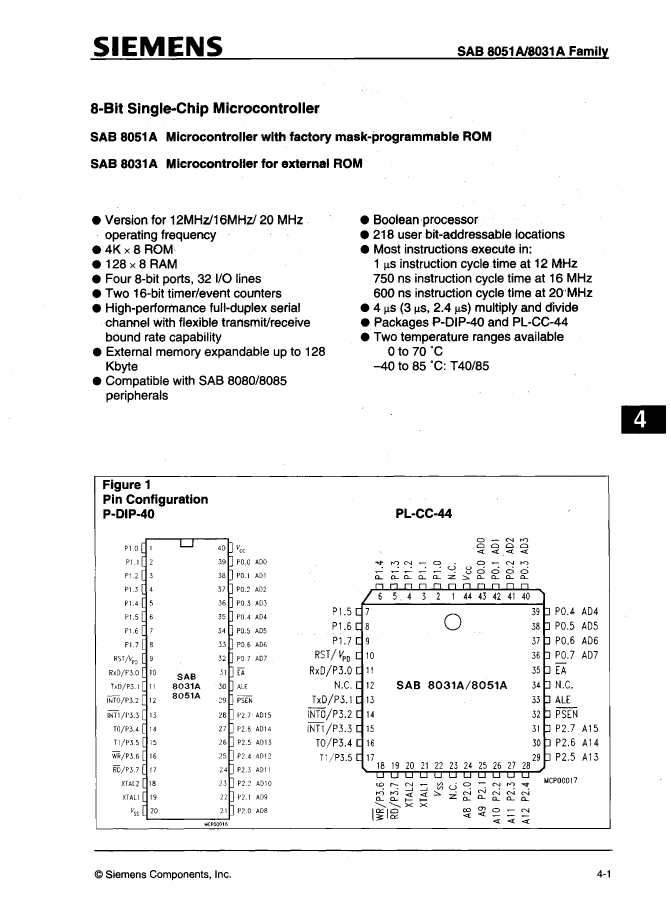

SAB8051A-P-T40/85 Overview

Microcontroller, 8-Bit, MROM, 12MHz, NMOS, PDIP40

Parameter Name	Attribute value
Maker	SIEMENS
package instruction	,
Reach Compliance Code	unknown
Has ADC	NO
Other features	POWER-DOWN PIN VPD 4.5 - 5.5V; BOOLEAN PROCESSOR
Address bus width	16
bit size	8
boundary scan	NO
maximum clock frequency	12 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PDIP-T40
low power mode	YES
Number of DMA channels

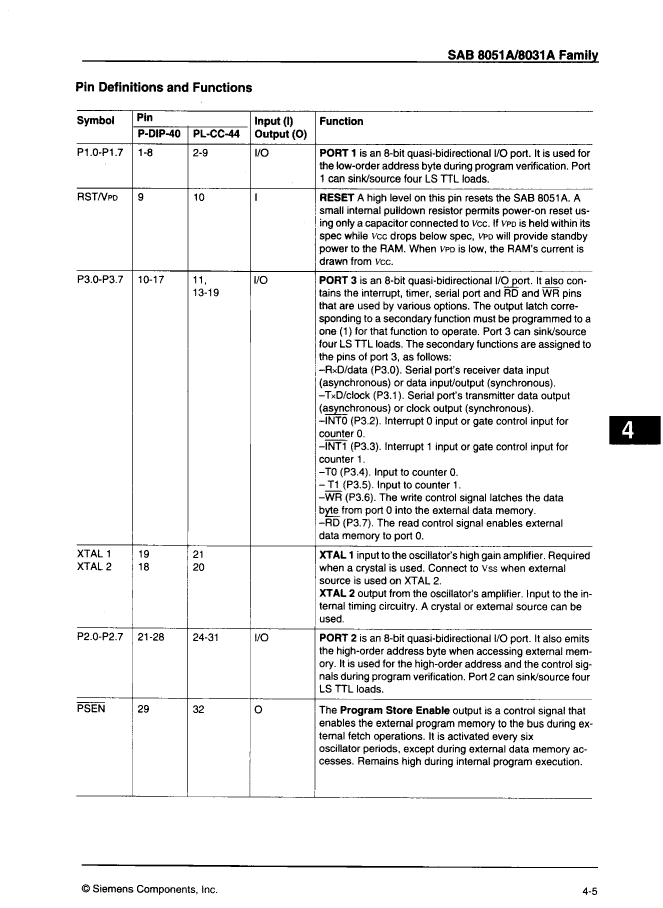

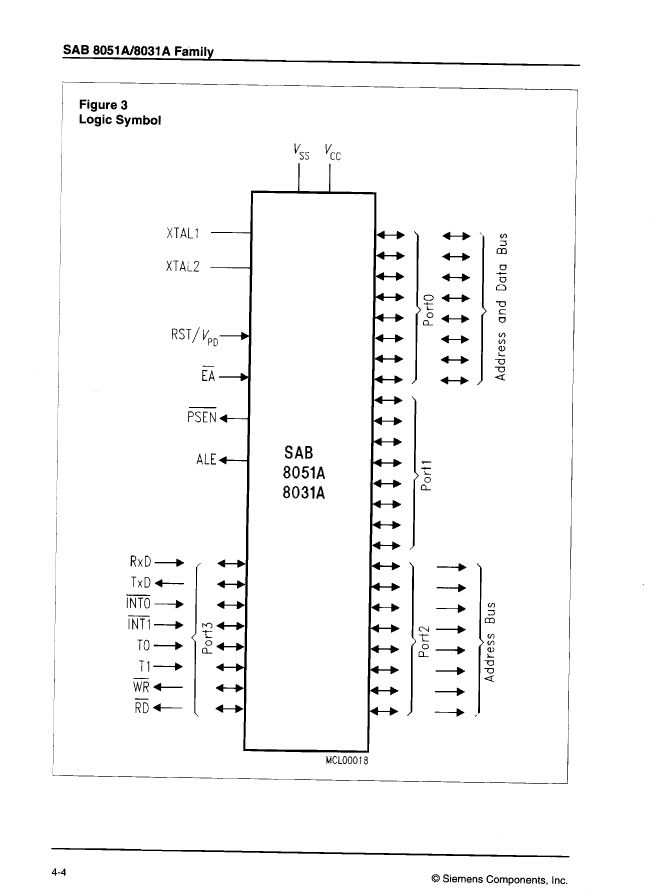

Number of external interrupt devices	2
Number of I/O lines	32
Number of serial I/Os	1
Number of terminals	40
Number of timers	2
On-chip data RAM width	8
On-chip program ROM width	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
RAM (number of words)	128
rom(word)	4096
ROM programmability	MROM
speed	12 MHz
Maximum slew rate	125 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	NMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
