Noise Suppression Products/EMI Suppression Filters > AC Line Filters > Hybrid Choke Coils
Data Sheet
1
AC Line Filters

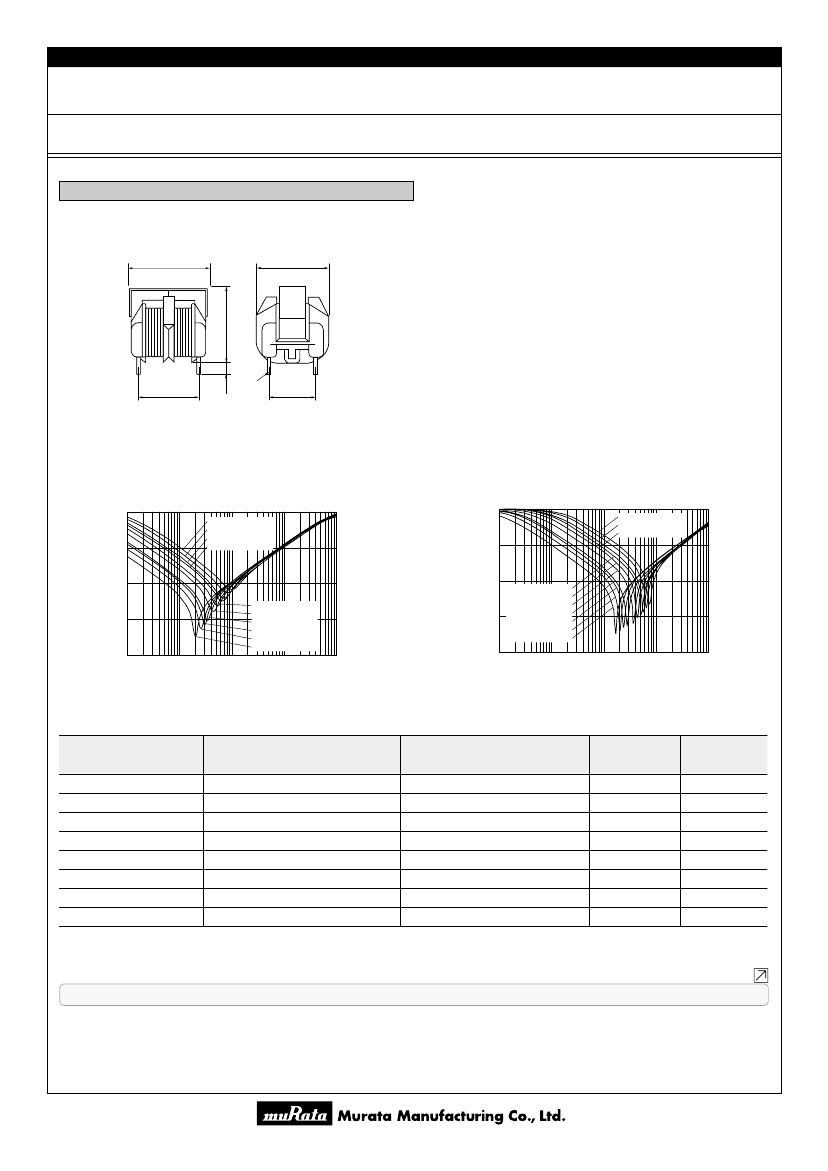

PLY10 Series (Safety Standard Recognized) Standard Winding Type
I
Dimension
18 max.
16 max.
Hybrid Choke Coils
PLY10 Series (Safety Standard Recognized)
3.5±1
17.5 max.
ø0.9 max.
10±0.5
(4)
[(1)]
(3)
[(2)]
(in mm)
13±0.5
(1)
[(2)]
(4)
[(3)]
I
Common Mode Insertion Loss-Frequency Characteristics
0
PLY10AS9012R0R2
PLY10AS1121R8R2
PLY10AS1521R6R2
PLY10AS2121R4R2
I
Differential Mode Insertion Loss-Frequency Characteristics
0
PLY10AS9012R0R2
PLY10AS1121R8R2
PLY10AS1521R6R2
20
Insertion Loss (dB)
20
Insertion Loss (dB)
40
PLY10AS2821R2R2
PLY10AS4321R0R2
PLY10AS6220R8R2
PLY10AS8720R7R2
PLY10AS9920R6R2
PLY10AS1430R5R2
0.1
1
Frequency (MHz)
10
100
40
PLY10AS2121R4R2
PLY10AS2821R2R2
PLY10AS4321R0R2
PLY10AS6220R8R2
PLY10AS8720R7R2
PLY10AS9920R6R2
PLY10AS1430R5R2
0.1
1
Frequency (MHz)
10
100
60
60
80
0.01
80
0.01
I
Rated Value (p: packaging code)
Part Number
PLY10AS9012R0R2p
PLY10AS1121R8R2p
PLY10AS1521R6R2p
PLY10AS2121R4R2p
PLY10AS2821R2R2p
PLY10AS4321R0R2p
PLY10AS6220R8R2p
PLY10AS8720R7R2p
Common Mode Inductance (min.)
0.9mH
1.1mH
1.5mH
2.1mH
2.8mH
4.3mH
6.2mH
8.7mH
Normal Mode Inductance (min.)
65µH
90µH
110µH
150µH
190µH
300µH
400µH
530µH
Rated Current
2.0A
1.8A
1.6A
1.4A
1.2A
1.0A
0.8A
0.7A
Rated Voltage
300Vac
300Vac
300Vac
300Vac
300Vac
300Vac
300Vac
300Vac
Operating Temperature Range (Ambient Temperature Range + Winding Temperature Rise): -25°C to 120°C
Winding Temperature Rise (at Rated Current) (max.): 60K
Continued on the following page.
o
This data sheet is applied for AC Line Filters Hybrid Choke Coils used for General Electronics equipment for your design.
!
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2006.1.13
http://www.murata.com/
Noise Suppression Products/EMI Suppression Filters > AC Line Filters > Hybrid Choke Coils
Data Sheet
Continued from the preceding page.
2
Part Number
PLY10AS9920R6R2p
PLY10AS1430R5R2p
Common Mode Inductance (min.)
9.9mH
14.0mH
Normal Mode Inductance (min.)
690µH
1000µH
Rated Current
0.6A
0.5A
Rated Voltage
300Vac
300Vac
Operating Temperature Range (Ambient Temperature Range + Winding Temperature Rise): -25°C to 120°C
Winding Temperature Rise (at Rated Current) (max.): 60K

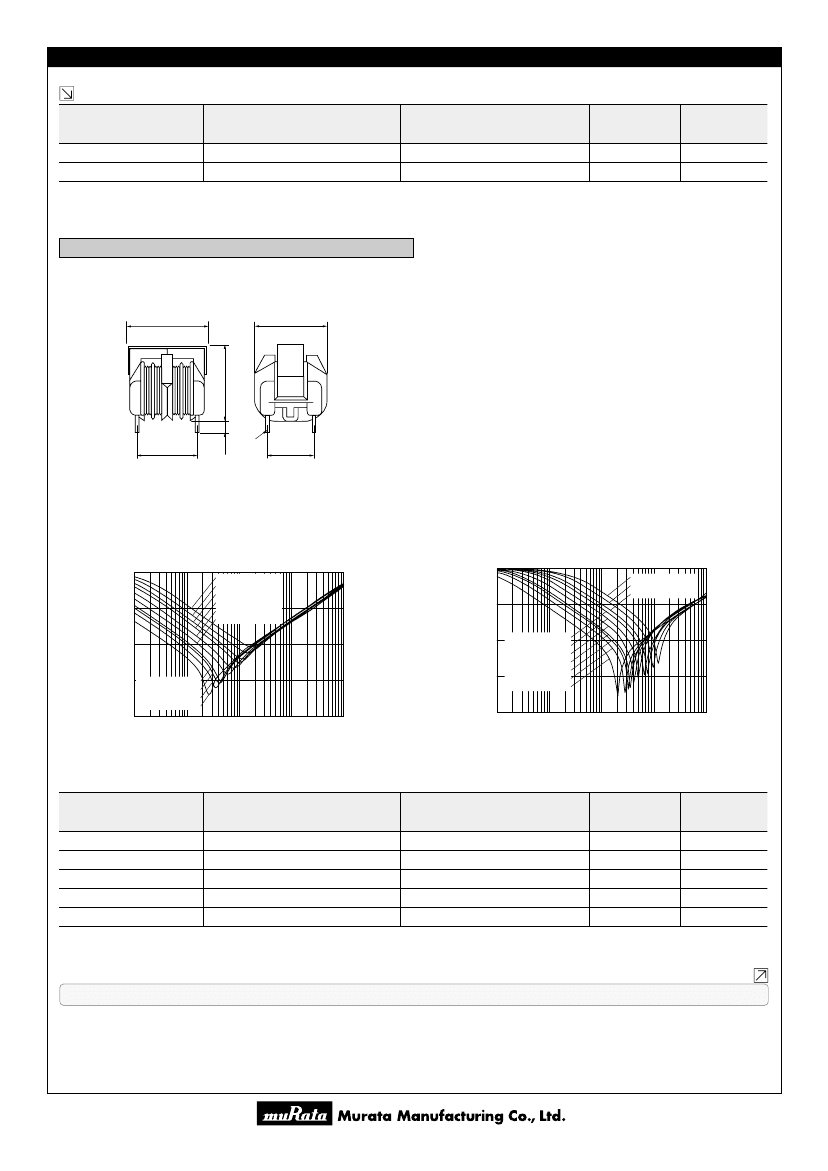

PLY10 Series (Safety Standard Recognized) Sectional Winding Type
I
Dimension
18 max.
16 max.
3.5±1
17.5 max.
ø0.9 max.
10±0.5
(4)
[(1)]
(3)
[(2)]
(in mm)
13±0.5
(1)
[(2)]
(4)
[(3)]
I
Common Mode Insertion Loss-Frequency Characteristics
0
PLY10AS7012R0D2
PLY10AS1121R7D2
PLY10AS1421R4D2
PLY10AS2321R2D2
PLY10AS3521R0D2
PLY10AS4420R8D2
I
Differential Mode Insertion Loss-Frequency Characteristics
0
PLY10AS7012R0D2
PLY10AS1121R7D2
PLY10AS1421R4D2
20
Insertion Loss (dB)
20
Insertion Loss (dB)
40
40
60 PLY10AS8720R7D2
PLY10AS9720R6D2
PLY10AS1130R5D2
PLY10AS2430R4D2
80
0.01
0.1
60
PLY10AS2321R2D2
PLY10AS3521R0D2
PLY10AS4420R8D2
PLY10AS8720R7D2
PLY10AS9720R6D2
PLY10AS1130R5D2
PLY10AS2430R4D2
1
Frequency (MHz)
10
100
80
0.01
0.1
1
Frequency (MHz)
10
100
I
Rated Value (p: packaging code)
Part Number
PLY10AS7012R0D2p
PLY10AS1121R7D2p
PLY10AS1421R4D2p
PLY10AS2321R2D2p
PLY10AS3521R0D2p
Common Mode Inductance (min.)
0.7mH
1.1mH
1.4mH
2.3mH
3.5mH
Normal Mode Inductance (min.)
50µH
65µH
110µH
160µH
240µH
Rated Current
2.0A
1.7A
1.4A
1.2A
1.0A
Rated Voltage
300Vac
300Vac
300Vac
300Vac
300Vac
Operating Temperature Range (Ambient Temperature Range + Winding Temperature Rise): -25°C to 120°C
Winding Temperature Rise (at Rated Current) (max.): 60K
Continued on the following page.
o
This data sheet is applied for AC Line Filters Hybrid Choke Coils used for General Electronics equipment for your design.
!
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2006.1.13
http://www.murata.com/
Noise Suppression Products/EMI Suppression Filters > AC Line Filters > Hybrid Choke Coils
Data Sheet
Continued from the preceding page.
3
Part Number
PLY10AS4420R8D2p
PLY10AS8720R7D2p
PLY10AS9720R6D2p
PLY10AS1130R5D2p
PLY10AS2430R4D2p
Common Mode Inductance (min.)
4.4mH
8.7mH
9.7mH
11.0mH
24.0mH
Normal Mode Inductance (min.)
320µH
500µH
670µH
840µH
1800µH
Rated Current
0.8A
0.7A
0.6A
0.5A
0.4A
Rated Voltage
300Vac
300Vac
300Vac
300Vac
300Vac
Operating Temperature Range (Ambient Temperature Range + Winding Temperature Rise): -25°C to 120°C
Winding Temperature Rise (at Rated Current) (max.): 60K
I
Equivalent Circuit
I
Packaging
Code
M
Differential Mode Inductor
Packaging
Magazine
Box
Minimum Quantity
1800
1200
B
(1)
(2)
(4)
Common Mode Inductor
(3)
I
!Caution
(Rating)
1. Rated Current
Operating current should not exceed the rated
value. Even if operating current is under the
rated value, adequate ventilation is required to
avoid excessive heat generated within the product
(choke coil) and from surrounding heat sources.
If exceeding these conditions, excessive heat may
cause fumes or permanent damage to the product.
Please ensure that product (choke coil) is
evaluated and confirmed against the specification
when it is mounted in your final assembled product.
-> Winding temperature should be less than
120 degree C.
*As for FKOB series winding temperature should be
less than 95 degree C.
Maximum allowable temperature at the surface of
coil (ambient temperature + winding temperature
rise) is in accordance with each safety standard
applicable to final assembled product.
When the temperature at winding exceeds maximum
allowable temperature of safety standard, the
rated current should be derated.
2. Inrush Current
Inrush current should not exceed 10 times rated
current within 1/4 cycle of 50/60Hz commercial
power line. Inrush current should be limited to a
minimum of 10 seconds after last inrush.
If these conditions are exceeded, excessive heat may
cause fumes or permanent damage to the component,
or at worst cause ignition.
I
Notice (soldering and mounting)
Magnetic Flux Leakage
Choke coils generate small amounts of magnetic flux
leakage that may adversely affect equipment operation
according to component arrangement.
Testing should be completed on final assembly to
ensure equipment performance is not affected.
I
Notice (other)
Coil Humming Noise
Magnetic flux generated between coil and core or
between the choke coil windings creates repulsive
power between the coil windings. This repulsive
power causes the coil winding to vibrate and create
a humming noise. The amount of hum produced by the
coil is proportionate to the amount of harmonic
distortion generated by the operating current. This
does not influence the electrical performance of
the coils, but it should be considered and tested
in actual circuit application.
o
This data sheet is applied for AC Line Filters Hybrid Choke Coils used for General Electronics equipment for your design.
!
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
2006.1.13
http://www.murata.com/
