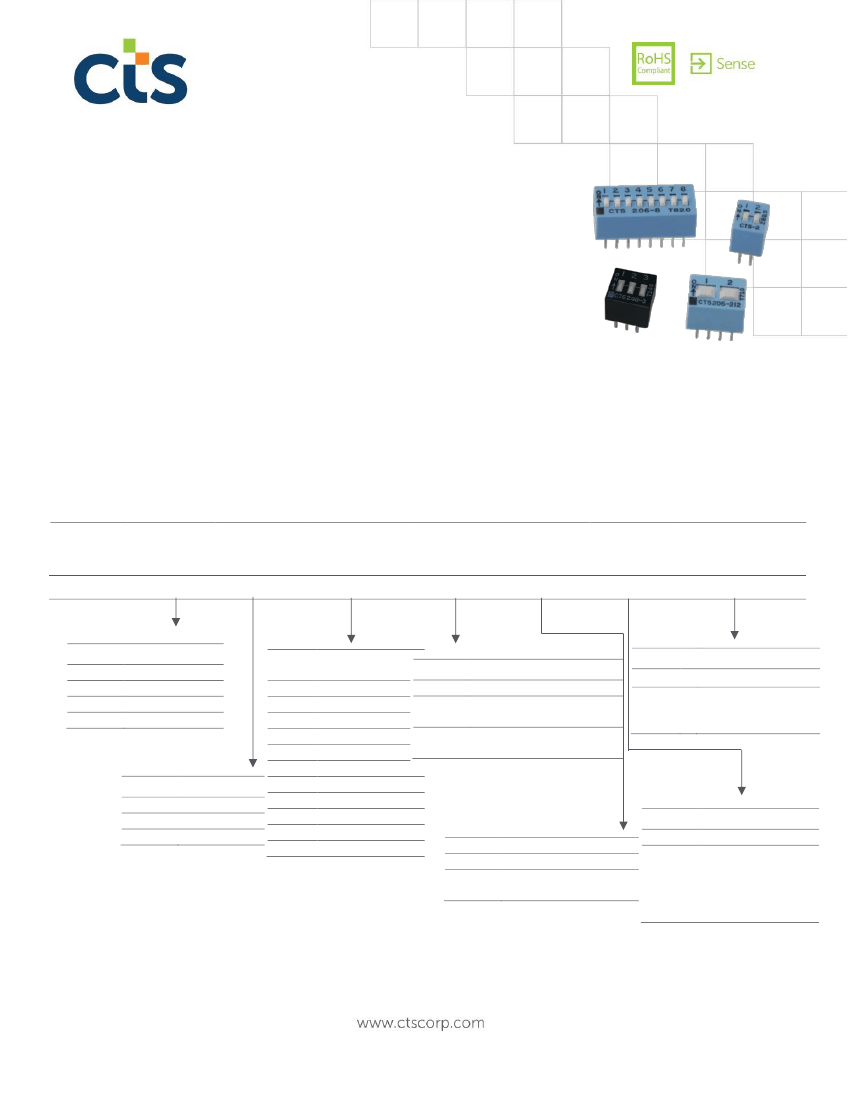

Series 206/208
Through-Hole DIP Switch
Available with SPST, SPDT, DPST, 3PST circuitry choices
Available with low profile, standard, or extended actuator heights.
Consult the ordering information for options.
RoHS compliant
Optional top tape seal for board spray washing
Description
The terminals are molded into the thermoset base and provide an electrostatic discharge shield rating to 22KV
when the OFF side terminals are connected to ground. The optimized contact design incorporating a dimple-to-
flat surface wiping interface provides long-term contact corrosion resistance making this the ideal choice for any
HVAC, server, or security system.
Ordering Information
Series
206-/208 -
20212124
1
Number of
Poles
1
Number of B Number of
Throws S Switch Positions
2
2
1
Actuator
Height
E
E
Bottom
Epoxy Seal
S
Top Tape
Seal
T
Actuation
Preset
N
1
Code
Blank
1
2
3
No. of poles
For SPST
Single pole
Double pole
3 poles
Code No. of switch
positions
1
2
3
4
5
6
7
8
9
10
12
1 position
2 positions
3 positions
4 positions
5 positions
6 positions
7 positions
8 positions
9 positions
10 positions
12 positions
Code
Blank
E
LP
Spec.
Standard (0.89mm/.035”)
Extended (3.43mm/.135”)
(SPST only)
Low profile (Flush)
(SPST & SPDT only)
Code
BLANK
N
Spec.
Ship at OFF position
Ship at ON position
(SPST, DPST & 3PST
only)
Code
Blank
1
2
Spec.
For SPST
Single throw
Double throw
Code
Code
Blank
S
Top tape seal
No top tape seal
Top tape seal
(Not available for
extended actuator
or 1-position SPST
DIP switch)
Bottom epoxy seal
No epoxy seal
Epoxy seal
(Required for 206-1S)
Blank
T
Notes: 1.Contact CTS for other common features not listed.
2. Alternate numbering format 20600/20800… instead of 206-/208-
Example: 206008ST
2017-08-17 Rev. C
Page 1 of 5
© 2017 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test
equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.
Series 206/208
Through-Hole DIP Switch
Electrical Specifications
Parameter
Contact Resistance (206)
Contact Resistance (208)
Insulation Resistance
Dielectric Strength
Switch Capacitance
Nonswitching Rating
SPST
SPDT
DPST
3PST
1
1
1
1
Conditions & Remarks
Initial
At end of life
Initial
At end of life
Between insulated terminals
500 VAC between
adjacent switches
Between adjacent
closed switches
Min
Max
50
100
100
500
1
5.0
100
or
50
12
6
6
4
Unit
milliohms
milliohms
Megohms
minute
pF
mA
or
VDC
Position
Position
Position
Position
1000
Circuit
Mechanical and Environmental
Actuation Life (206)
Actuation Life (208)
Soldering
Shock
Vibration
Seal
Marking
Packaging:
Operating Temperature
Range
Storage Temperature
Range
10,000 cycles switching 50mA @ 24VDC
2,000 cycles switching 50mA @ 24VDC
Maximum wave temperature, 260°C for 5 seconds
Per MIL-STD-202F, method 213B, condition A(50G’s)
with no contact inconsistencies greater than 1 microsecond
Per MIL-STD-202F, method 204D, condition B (.06” or 15G’s between 10 HZ to 2K HZ) with
no contact inconsistencies greater than 1 microsecond
Bottom epoxy seal optional
Optional top tape seal for board spray washing
Special side or top marking available-consult CTS
Standard anti-static tube packaging
-55°C to +85°C
-55°C to +85°C
2017-08-17 Rev. C
Page 2 of 5
© 2017 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test
equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.
Series 206/208
Through-Hole DIP Switch
Mechanical Specifications

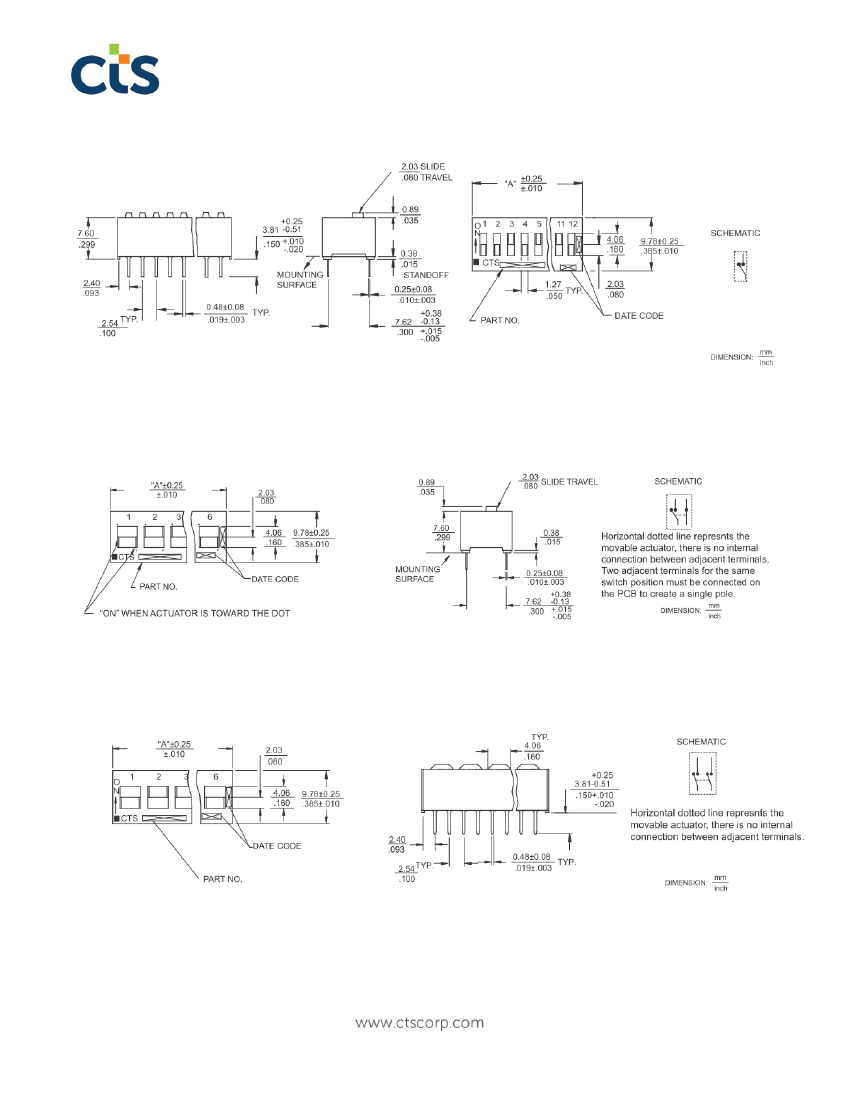

Figure 1 - SPST
Figure 2 – SPDT
Figure 3 – DPST
2017-08-17 Rev. C
Page 3 of 5
© 2017 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test
equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.
Series 206/208
Through-Hole DIP Switch

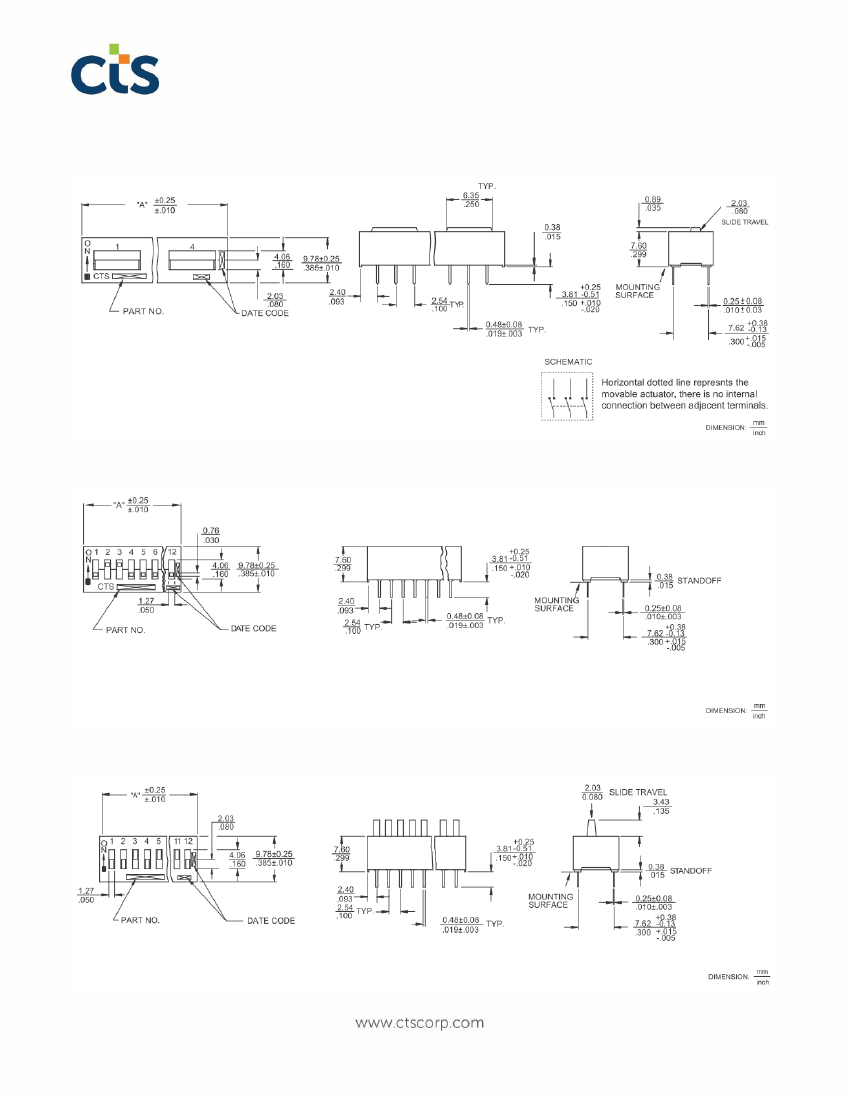

Figure 4 - 3PST
Figure 5 – Low Profile Actuators (SPST & SPDT only)
Figure 6 – Extended Actuators (SPST only)
2017-08-17 Rev. C
Page 4 of 5
© 2017 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test
equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.
Series 206/208
Through-Hole DIP Switch

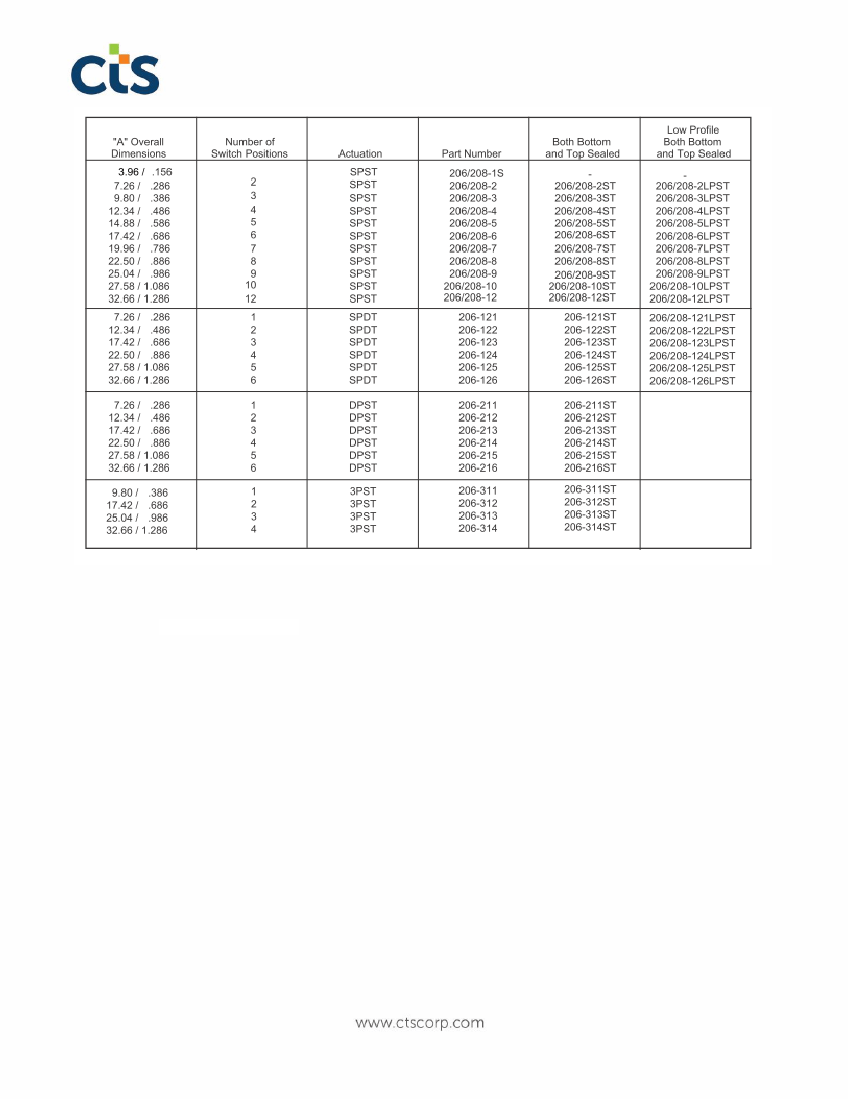

2017-08-17 Rev. C
Page 5 of 5
© 2017 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test
equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.
