4.5x2mm SMD CHIP LED LAMP
KPD-2520SURCK-03
HYPER RED
Features
4.5x2mm SMT LED,0.5mm THICKNESS
LOW POWER CONSUMPTION.
IDEAL FOR BACKLIGHT AND INDICATOR.
VARIOUS COLORS AND LENS TYPES AVAILABLE.
PACKAGE : 1000PCS/REEL.
RoHS COMPLIANT.
Description
The Hyper Red source color devices are made
with DH InGaAlP on GaAs substrate Light Emitting Diode.
Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.2(0.008")
unless otherwise noted.
3.Specifications are subject to change without notice.
SPEC NO: DSAA6575
APPROVED: J. Lu
REV NO: V.5
CHECKED: Allen Liu
DATE: MAR/21/2005
DRAWN: J.F.WANG
PAGE: 1 OF 4
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd)
@ 20mA
Min.
KPD-2520SURCK-03
HYPER RED (InGaAlP)
WATER CLEAR
180
Typ.
650
Viewing
Angle
2θ1/2
θ
20
°
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
A
=25°C
Symbol
λpeak
λD
∆λ1/2
C
V
F
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Hyper Red
Hyper Red
Hyper Red
Hyper Red
Hyper Red
Hyper Red
Typ.
650
635
28
35
1.95
2.5
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating / Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Hyper Red
170
30
185
5
-40°C To +85°C
Units
mW
mA
mA
V
SPEC NO: DSAA6575
APPROVED: J. Lu
REV NO: V.5
CHECKED: Allen Liu
DATE: MAR/21/2005
DRAWN: J.F.WANG
PAGE: 2 OF 4

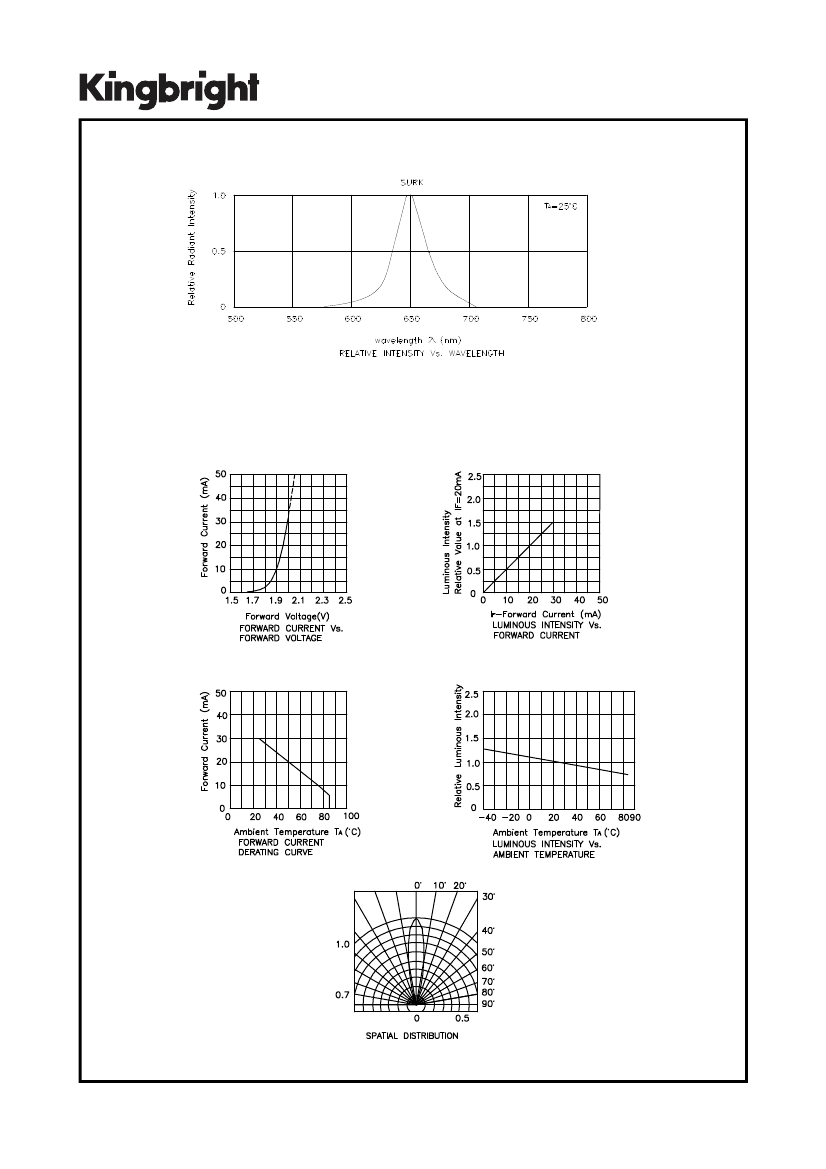

Hyper Red
KPD-2520SURCK-03
SPEC NO: DSAA6575
APPROVED: J. Lu
REV NO: V.5
CHECKED: Allen Liu
DATE: MAR/21/2005
DRAWN: J.F.WANG
PAGE: 3 OF 4
KPD-2520SURCK-03

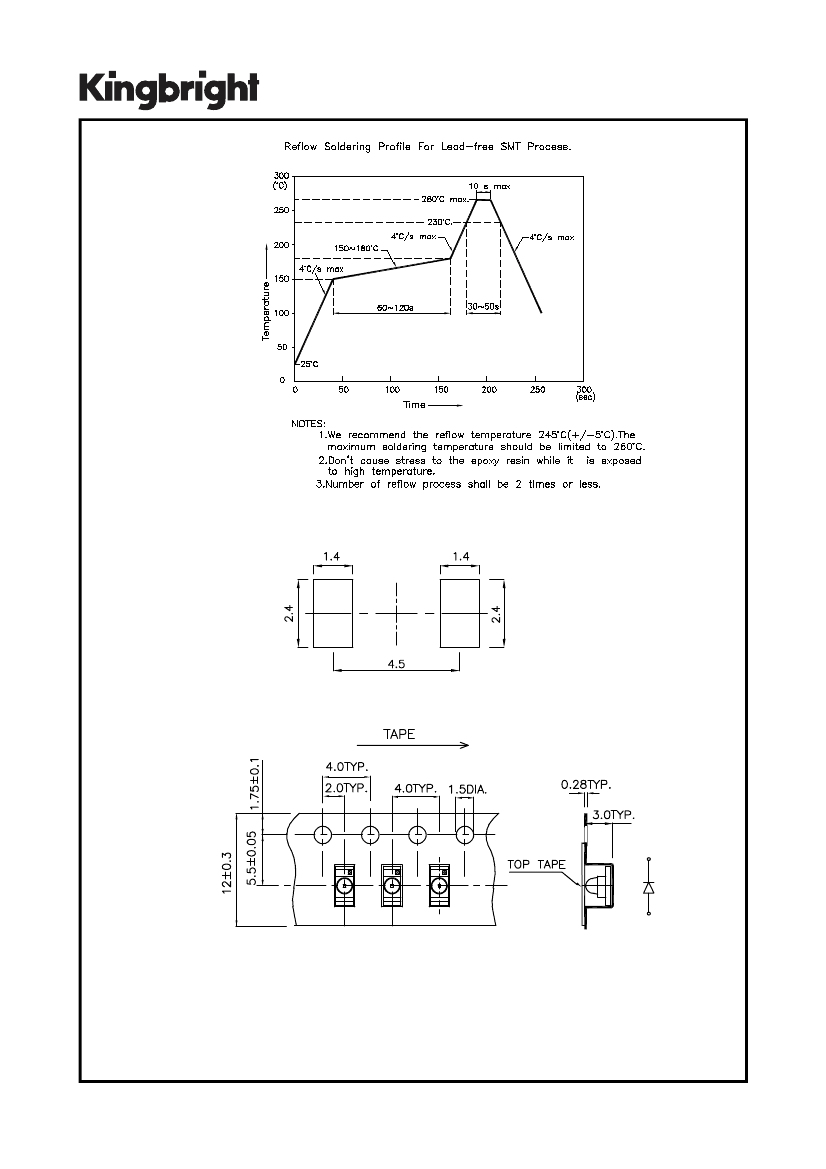

Recommended Soldering Pattern
(Units : mm)
Tape Specifications
(Units : mm)
Remarks:
If special sorting is required (e.g. binning based on forward voltage,luminous intensity, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous Intensity: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
SPEC NO: DSAA6575
APPROVED: J. Lu
REV NO: V.5
CHECKED: Allen Liu
DATE: MAR/21/2005
DRAWN: J.F.WANG
PAGE: 4 OF 4
