SURFACE MOUNT DISPLAY
P/N: KPDA04-106
SUPER BRIGHT ORANGE
Features
0.4INCH DIGIT HEIGHT.
LOW CURRENT OPERATION.
EXCELLENT CHARACTER APPEARANCE.
I.C. COMPATIBLE.
MECHANICALLY RUGGED.
GRAY FACE,WHITE SEGMENT.
PACKAGE: 250PCS/ REEL.
RoHS COMPLIANT.
Description
The Super Bright Orange source color devices are made
with DH InGaAlP on GaAs substrate Light Emitting Diode.

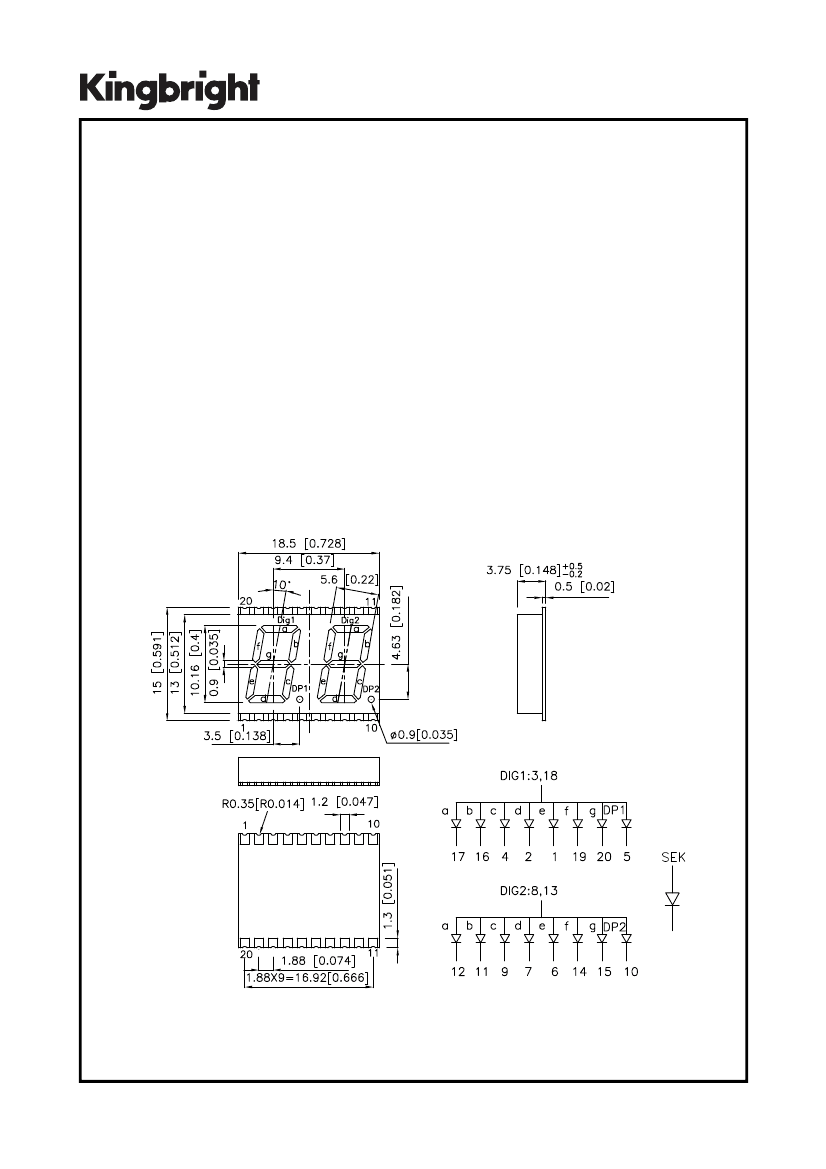

Package Dimensions & Internal Circuit Diagram
Notes:
1. All dimensions are in millimeters (inches), Tolerance is
±0.25(0.01")unless
otherwise noted.
2. Specifications are subject to change without notice.
SPEC NO: DSAB0183
APPROVED: J. Lu
REV NO: V.5
CHECKED: Joe Lee
DATE: NOV/21/2005
DRAWN: W.J.ZHU
PAGE: 1 OF 4
Selection Guide
Iv (ucd)
@ 10mA
Min.
KPDA04-106
SUPER BRIGHT ORANGE (InGaAlP)
WHITE DIFFUSED
12000
Typ.
41200
Common Anode, Rt.
Hand Decimal.
Part No.
Dice
Lens Type
Description
Electrical / Optical Characteristics at T
A
=25°C
Symbol
λpeak
λD
∆λ1/2
C
V
F
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Super Bright Orange
Super Bright Orange
Super Bright Orange
Super Bright Orange
Super Bright Orange
Super Bright Orange
Typ.
610
601
29
15
2.1
2.5
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Super Bright Orange
75
30
195
5
-40°C To +85°C
Units
mW
mA
mA
V
SPEC NO: DSAB0183
APPROVED: J. Lu
REV NO: V.5
CHECKED: Joe Lee
DATE: NOV/21/2005
DRAWN: W.J.ZHU
PAGE: 2 OF 4

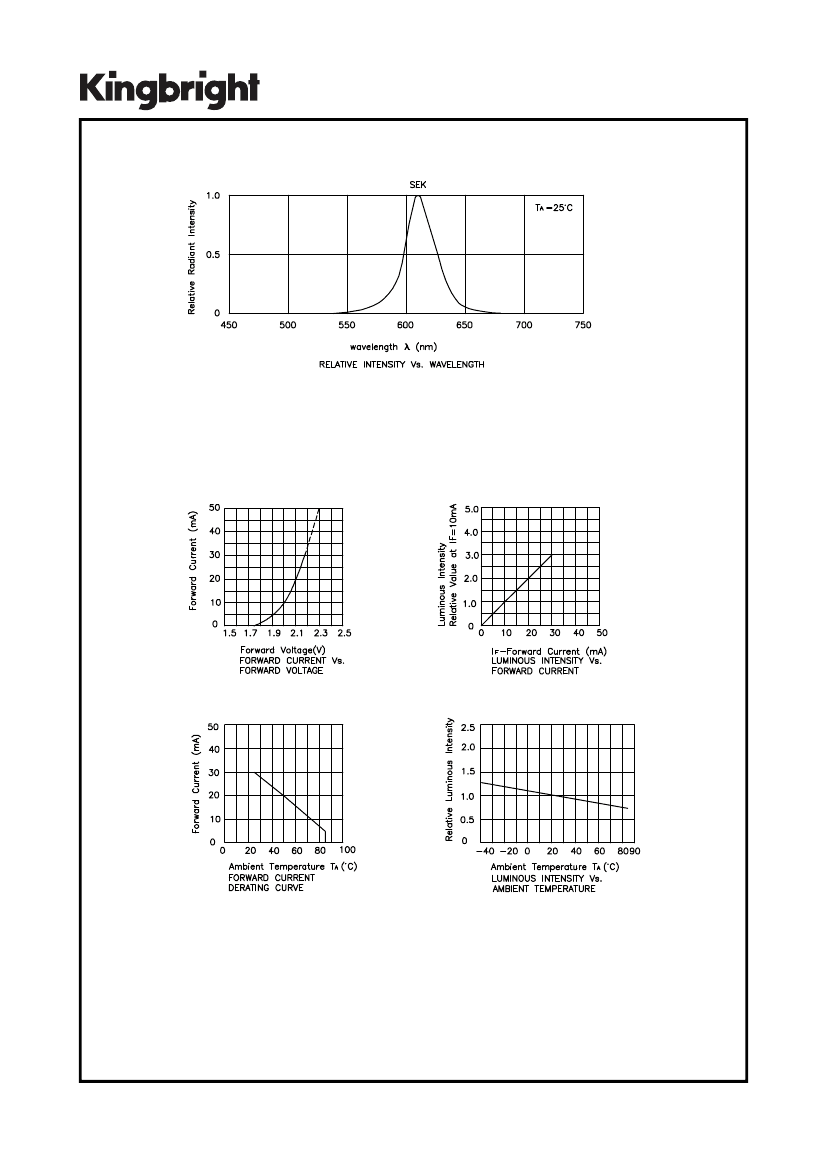

Super Bright Orange
KPDA04-106
Remarks:
If special sorting is required (e.g. binning based on forward voltage, luminous intensity/ luminous flux, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous Intensity/ Luminous Flux: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
SPEC NO: DSAB0183
APPROVED: J. Lu
REV NO: V.5
CHECKED: Joe Lee
DATE: NOV/21/2005
DRAWN: W.J.ZHU
PAGE: 3 OF 4
KPDA04-106

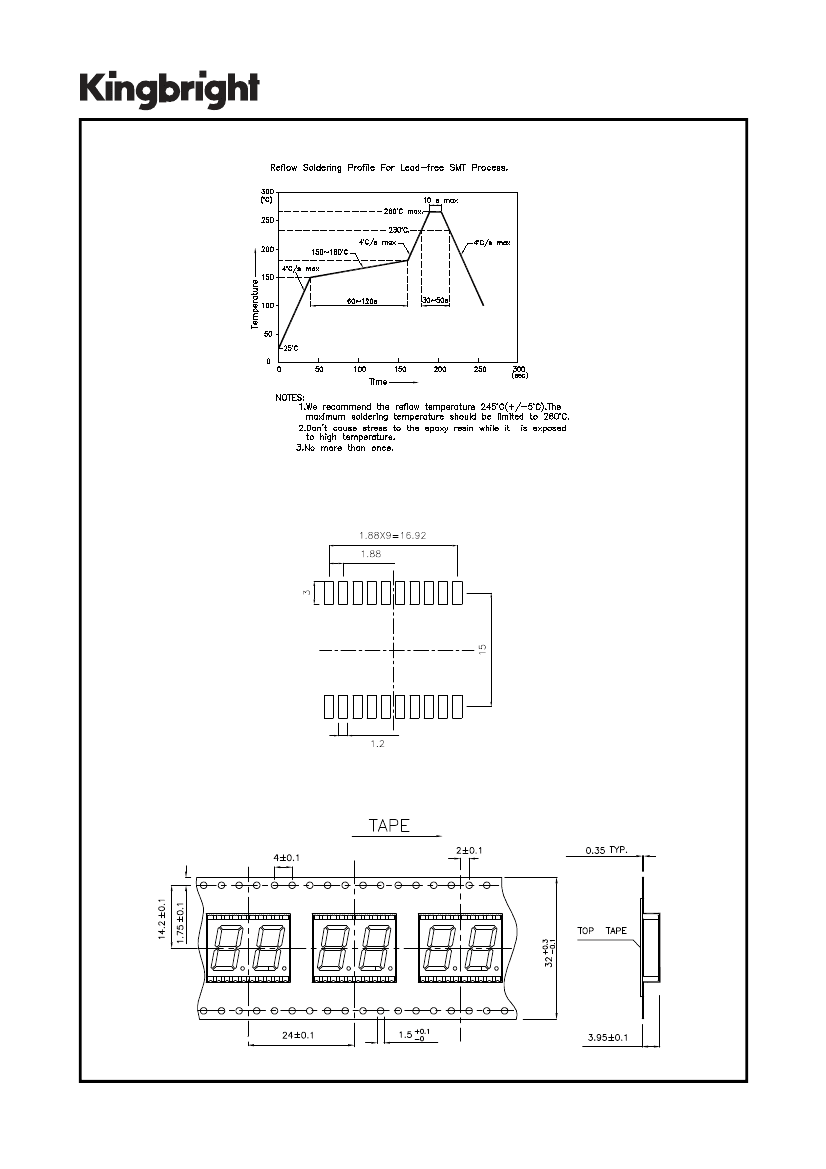

Recommended Soldering Pattern
(Units : mm)
Tape Specifications
(Units : mm)
SPEC NO: DSAB0183
APPROVED: J. Lu
REV NO: V.5
CHECKED: Joe Lee
DATE: NOV/21/2005
DRAWN: W.J.ZHU
PAGE: 4 OF 4
