CP42DM-10.000MHZ-R datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> CP42DM-10.000MHZ-R

CP42DM-10.000MHZ-R: DescriptionHCMOS/TTL Output Clock Oscillator, 10MHz Nom, ROHS COMPLIANT, HERMETIC SEALED, J-LEADED, SMD, 4 PIN; CategoryPassive components oscillator; File Size162KB，1 Pages; ManufacturerCal Crystal Lab Inc / Comclok Inc; Websitehttps://www.transko.com; Environmental Compliance

Download Datasheet Parametric View All

CP42DM-10.000MHZ-R Overview

HCMOS/TTL Output Clock Oscillator, 10MHz Nom, ROHS COMPLIANT, HERMETIC SEALED, J-LEADED, SMD, 4 PIN

CP42DM-10.000MHZ-R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Cal Crystal Lab Inc / Comclok Inc
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	6 ns
Frequency Adjustment - Mechanical	NO
frequency stability	20%
Installation features	SURFACE MOUNT
Nominal operating frequency	10 MHz
Maximum operating temperature	50 °C
Minimum operating temperature	-10 °C
Oscillator type	HCMOS/TTL
Output load	10 TTL, 15 pF
physical size	14.0mm x 8.65mm x 4.7mm
longest rise time	6 ns
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	45/55 %

Preview

Download Datasheet

View All

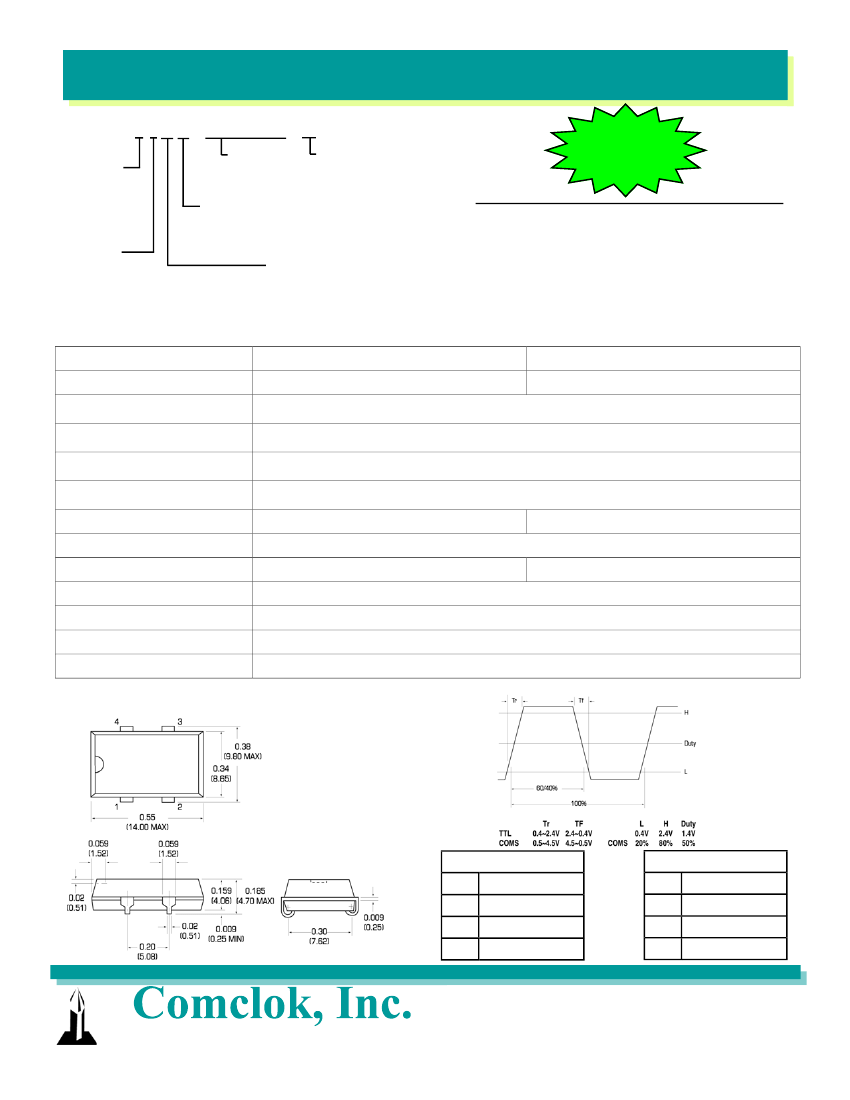

Dual HCMOS / TTL

“J’ Leaded SMD

CN or CP 1 1 A M - 10.000MHz - R

Frequency

Tolerance

1 .... 100ppm

2 .... 50ppm

3 .... 25ppm

4 .... 20ppm

CN / CP Series

Frequency

RoHS Option

* Blank No Option

R ... RoHS Compliant

RoHs

Compliant

Size / Option

L .... SMD Tape / Reel (Dual Comp)

M ... SMD Tri-State Tape / Reel

Symmetry

1 .... 60/40

2 .... 45/55

Electrical Specifications

MODEL

FREQUENCY RANGE

FREQUENCY STABILITY

OPERATING TEMP. RANGE

STORAGE TEMPERATURE

CURRENT CONSUMPTION

SUPPLY VOLTAGE

SYMMETRY

RISE/FALL TIME (T

)

LOGIC “1” & “0”

OUTPUT LOAD

Aging

Enable Input (optional)

A ....0

C to +70

B ....-20

C to +70

C ....-40

C to +85

D ....-10

C to +50

E ....-20

C to +60

Operating Temperature

Features of the CN / CP series clock oscillator:

•

CN = 3.3Vdc

•

CP = 5.0Vdc

•

Industry standard (14 & 8 pin dip compatible)

•

Fast rise and fall times

•

Tight stability available

•

Hermetically sealed / Injection Molded

•

Wide frequency range

•

Drives Either HCMOS or TTL Loads

1.0 MHz ~ 70.00 MHz

±100ppm Standard, Optional Tolerances Available

0ºC ~ 70ºC Standard, Extended Tolerances Available

-55

C ~ +125

1.0 MHz ~ 20.0 MHz

5mA ~ 15mA, 20.0 MHz ~ 70.0 MHz 15mA ~ 40mA

+5.0 VDC ±10%

6 nS max

10 TTL Max. / 15pF

< 5ppm per year

Enable - Logic “1” = 2.0 vdc Min. / Disable - Logic “0” = 0.5 vdc Max

+3.3 VDC ±10%

5 nS max

40/60% @ 50% Vcc Standard, Optional Tolerances Available

Logic “1” = 4.5VDC Min. / Logic “0” = 0.5VDC Max.

Mechanical Specifications

CN “J” Lead SMD

N.C. or Tri-State

GND

OUTPUT

+3.3 VDC ±10%

CP “J” Lead SMD

N.C. or Tri-State

GND

OUTPUT

+5.0 VDC ±10%

15302 Bolsa Chica Street, Huntington Beach, CA 92649

Ph: 714-991-1580 / 800-333-9825 Fax: 714-491-9825

www.calcrystal.com

e-mail: sales@calcrystal.com

Ver. 2.2 0806
