TX13/7.1/4.8-3D3 datasheet, PDF

Datasheet> All Categories > TX13/7.1/4.8-3D3

Preview

TX13/7.1/4.8-3D3: DescriptionFerrite toroids; File Size55KB，1 Pages; ManufacturerFerroxcube; Websitehttp://www.ferroxcube.com/

Download Datasheet View All

TX13/7.1/4.8-3D3 Overview

Ferrite toroids

Preview

Download Datasheet

View All

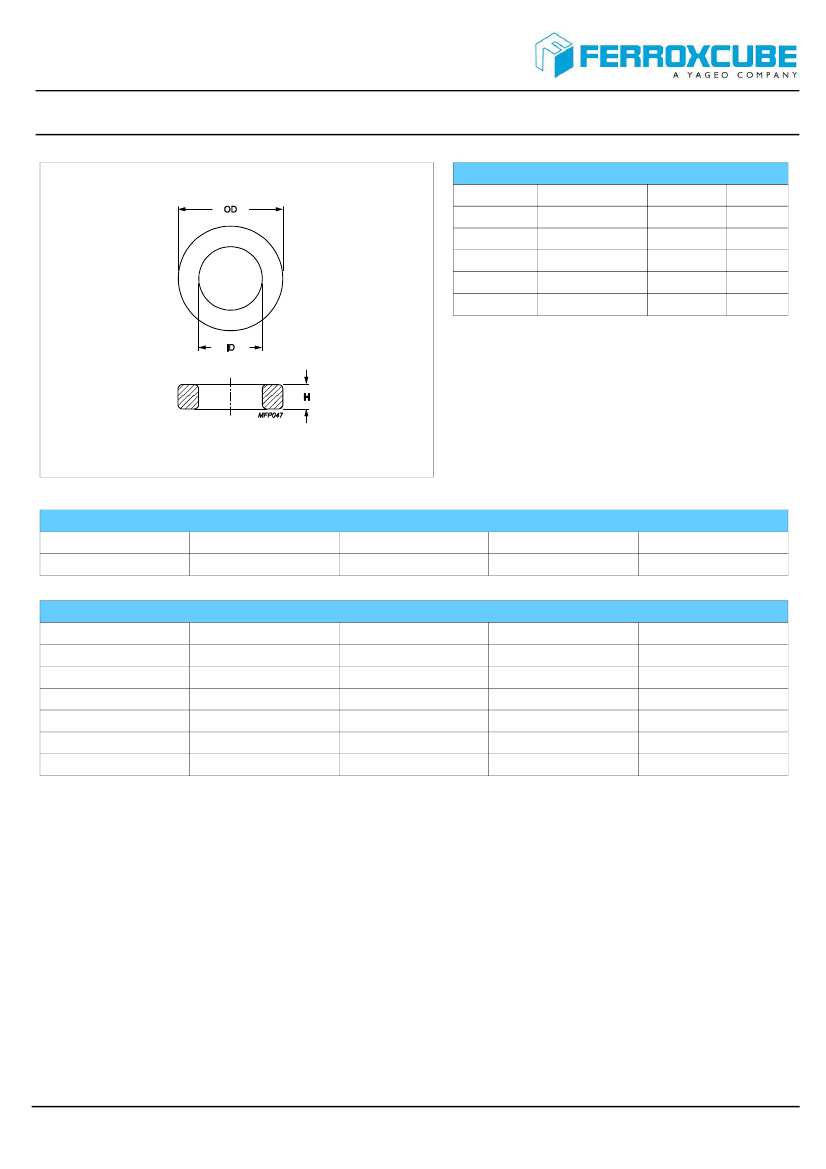

Product specifications

Core

Toroid 13/7.1/4.8

Effective parameters

Symbol

∑(I/A)

Parameter

core factor (C1)

effective volume

effective length

effective area

mass of core

Value

2.4

361

29.5

12.3

≈ 1.8

Unit

mm⁻¹

mm³

mm²

g/pcs

Epoxy coating DC isolation voltage 1500.

Maximum operating temperature of the coating is 200ºC.

Dimensions (mm)

Cores

TX13/7.1/4.8

13.35 max

6.55 min

5.33 max

Epoxy Coated

Core data

Cores

TX13/7.1/4.8

Material

3C94

3E10

3E12

3E27

3E6 (3E10-M)

3E65

Al (nH/turns²)

1280

5560

6670

3060

5560

2890

Al tolerance

± 25%

± 20%

± 30%

± 25%

± 30%

± 25%

µe

≈ 2300

≈ 10000

≈ 12000

≈ 5500

≈ 10000

≈ 5200

2016
