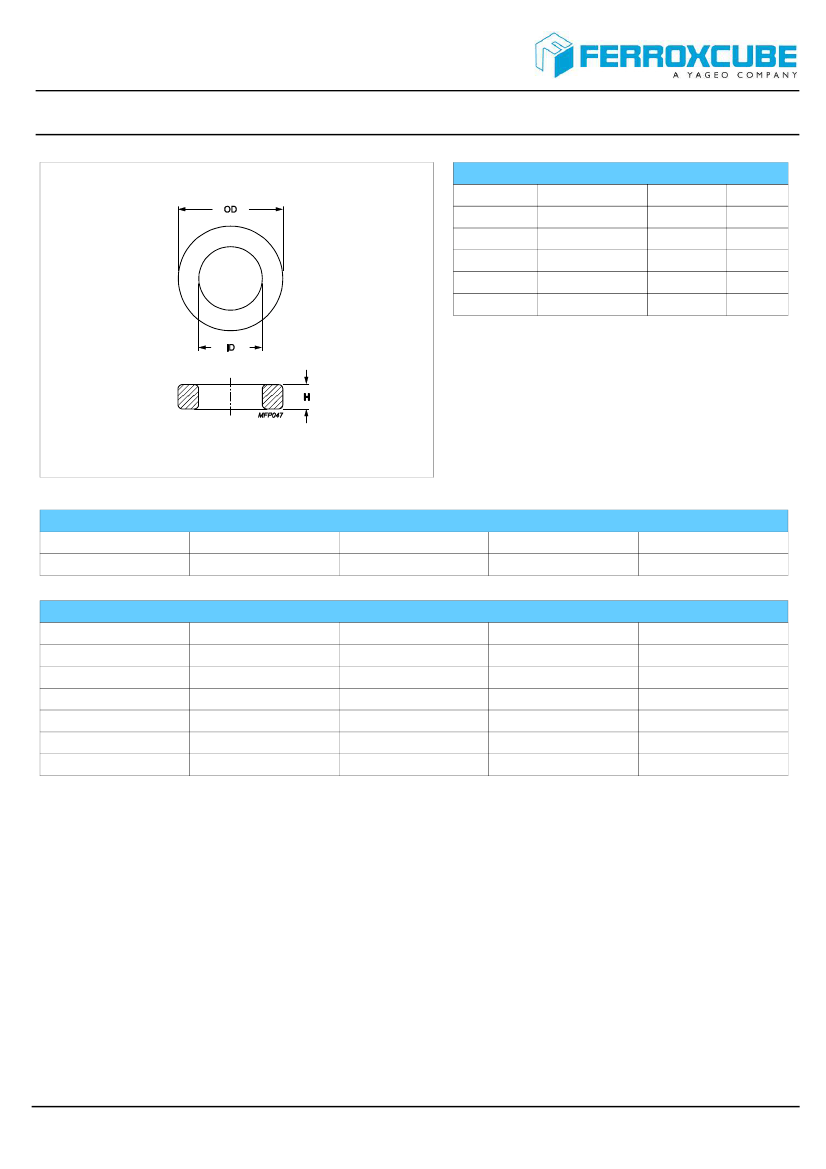

FERROXCUBE - TX25/15/10-3E5 -

Preview

Download Datasheet

View All

Product specifications

Core

Toroid 25/15/10

Effective parameters

Symbol

∑(I/A)

Ve

Le

Ae

m

Parameter

core factor (C1)

effective volume

effective length

effective area

mass of core

Value

1.23

2944

60.2

48.9

≈ 15

Unit

mm⁻¹

mm³

mm

mm²

g/pcs

Epoxy coating DC isolation voltage 2000.

Maximum operating temperature of the coating is 200ºC.

Dimensions (mm)

Cores

TX25/15/10

OD

25.95 max

ID

14.15 min

H

10.9 max

Epoxy Coated

Core data

Cores

TX25/15/10

Material

3C94

3E10

3E12

3E27

3E6 (3E10-M)

3E65

Al (nH/turns²)

2350

10200

12300

5620

10200

5310

Al tolerance

± 25%

± 20%

± 30%

± 25%

± 30%

± 25%

µe

≈ 2300

≈ 10000

≈ 12000

≈ 5500

≈ 10000

≈ 5200

2016

TX25-15-10 Related Products

	TX25-15-10	TX25/15/10	TX25/15/10-3E6	TX25/15/10-3E5	TX25/15/10-3C94	TX25/15/10-3E27	TX25/15/10-3E10-M	TX25/15/10-3E65	TX25/15/10-3E12
Description	FERROXCUBE - TX25/15/10-3E5 -	FERROXCUBE - TX25/15/10-3E5 -	FERROXCUBE - TX25/15/10-3E5 -	FERROXCUBE - TX25/15/10-3E5 -	FERRITE CORES ROUND	FERRITE CORES ROUND	FERRITE CORES ROUND	FERRITE CORES ROUND	FERRITE CORES ROUND
Kernel type	-	-	-	-	Magnetic ring	Magnetic ring	Magnetic ring	Magnetic ring	Magnetic ring
surface	-	-	-	-	Epoxy	Epoxy	Epoxy	Epoxy	Epoxy
Supplier device packaging	-	-	-	-	TX 25 x 15 x 10	TX 25 x 15 x 10	TX 25 x 15 x 10	TX 25 x 15 x 10	TX 25 x 15 x 10
high	-	-	-	-	10.90mm	10.90mm	10.90mm	10.90mm	10.90mm
diameter	-	-	-	-	25.95mm	25.95mm	25.95mm	25.95mm	25.95mm
