TX42/26/13-3E27 datasheet, PDF

Datasheet> All Categories > TX42/26/13-3E27

Preview

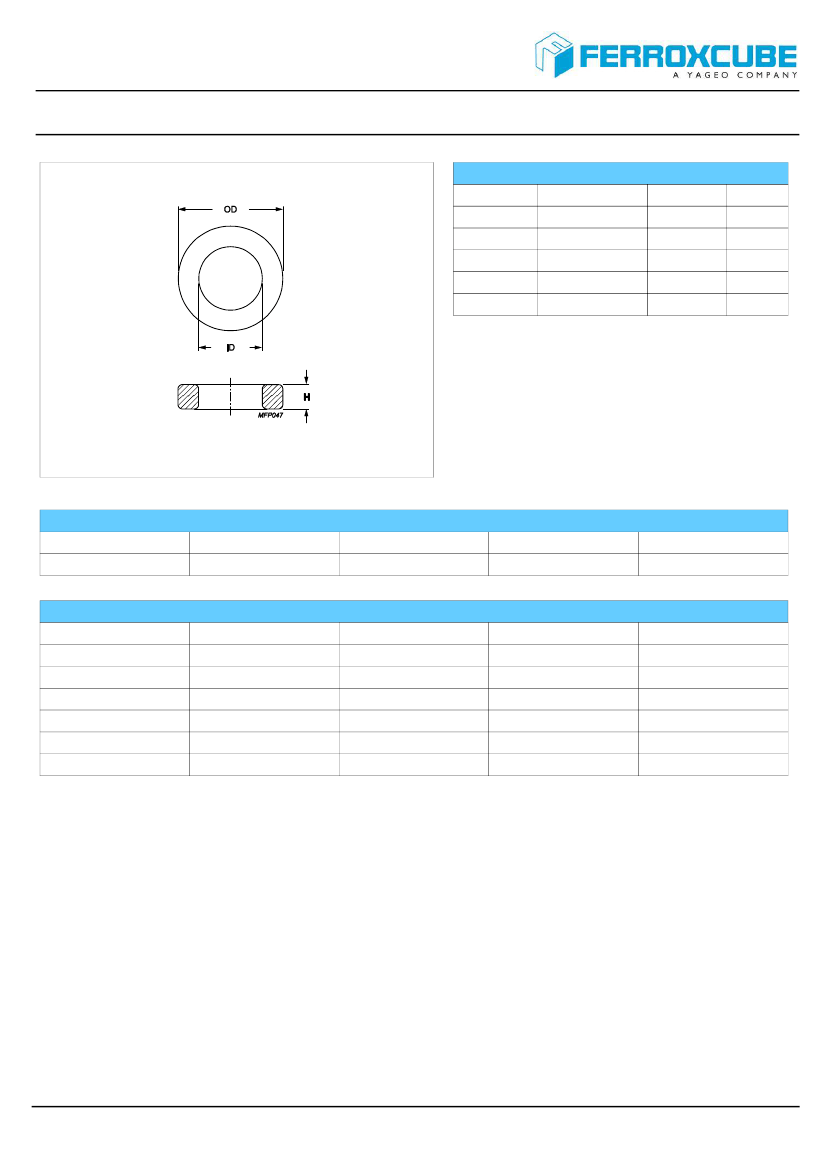

TX42/26/13-3E27: DescriptionFerrite toroids; File Size55KB，1 Pages; ManufacturerFerroxcube; Websitehttp://www.ferroxcube.com/

Download Datasheet View All

TX42/26/13-3E27 Overview

Ferrite toroids

Preview

Download Datasheet

View All

Product specifications

Core

Toroid 42/26/13

Effective parameters

Symbol

∑(I/A)

Parameter

core factor (C1)

effective volume

effective length

effective area

mass of core

Value

1.076

9860

103

95.8

≈ 53

Unit

mm⁻¹

mm³

mm²

g/pcs

Epoxy coating DC isolation voltage 2000.

Maximum operating temperature of the coating is 200ºC.

Dimensions (mm)

Cores

TX42/26/13

43.15 max

25.15 min

13.5 max

Epoxy Coated

Core data

Cores

TX42/26/13

Material

3C94

3E10

3E12

3E27

3E6 (3E10-M)

3E65

Al (nH/turns²)

2800

12200

14600

6710

12200

6340

Al tolerance

± 25%

± 20%

± 30%

± 25%

± 30%

± 25%

µe

≈ 2300

≈ 10000

≈ 12000

≈ 5500

≈ 10000

≈ 5200

2016
