• High temperature insulator compatible with IR and
wave soldering
• Guide posts for easy mating/unmating
• Retention clips stabilize connector to the board
during wave soldering
• RoHS Compliant. See the Regulatory Information
Appendix (RIA) in the "RoHS Compliance" section
of www.3Mconnector.com for compliance
information (RIA E1 and C1 apply)
Date Modified: February 18, 2010
TS-2054-B
Sheet 1 of 3
Physical
Insulator:
Material: Glass Filled PPS
Flammability: UL 94V-0
Color: Brown
Alignment Plate: Glass Filled Nylon (Brown)
Contact Material: Phosphor Bronze
Plating:
Underplating: Nickel
Wiping Area: Gold Flash
Solder Tails: Gold Flash
Retaining Clips: Tin-Copper
Mating Compatibility: TS-1145, TS-1161, TS-2053
Electrical
Current Rating:
0.5 A
Insulation Resistance:
> 1 × 10
9
Ω
at 500 V
DC
Withstanding Voltage:
650 V
AC
for 1 minute
Environmental
Temperature Rating:
-55ºC to +85ºC
Process Rating:
260ºC MSL1 (per J-STD-020C)
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pak 50 Low Profile Socket
.050" Vertical Stacking with and without Flanges

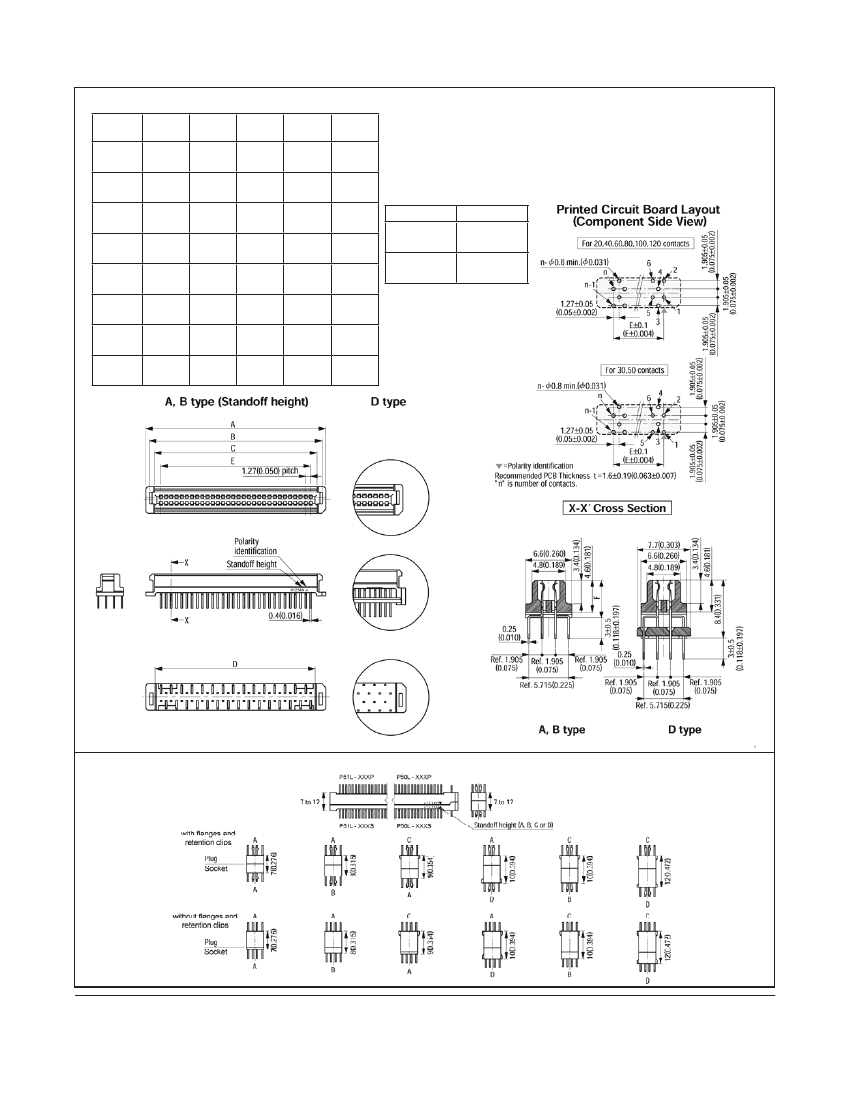

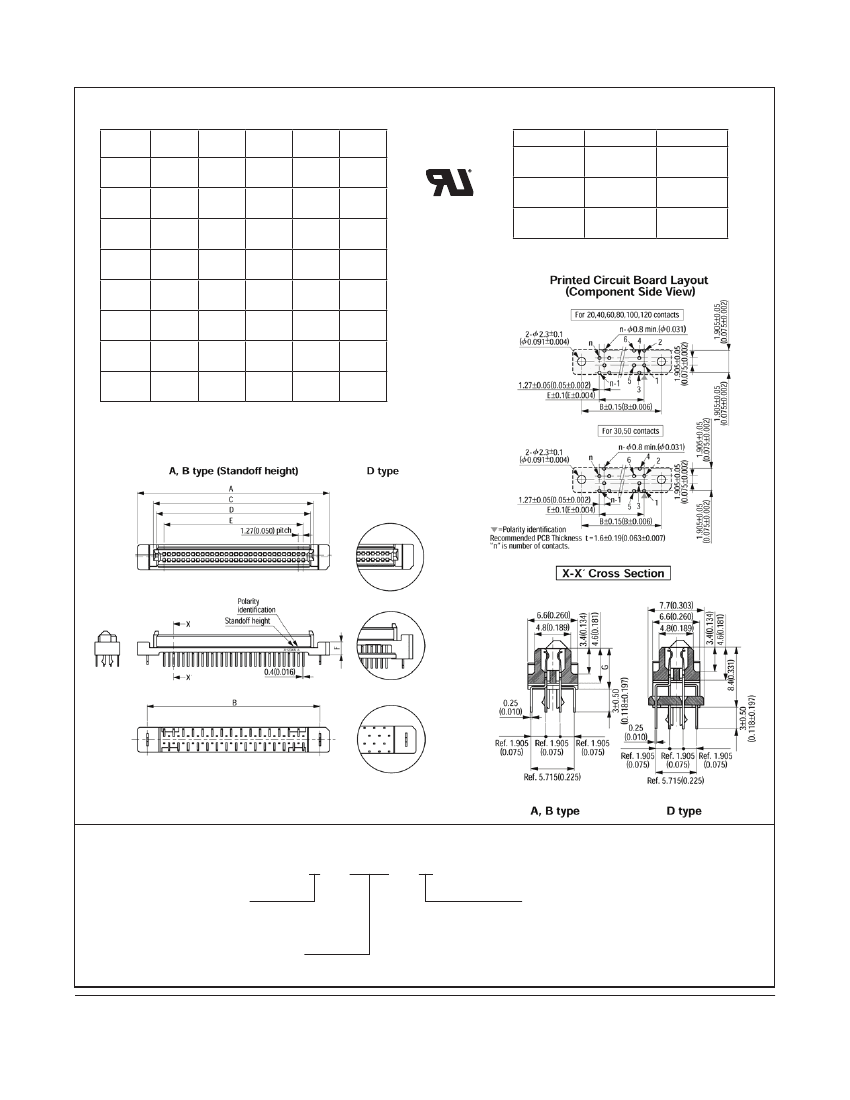

Product Table / Dimensions
Contact
Quantity
20
30
40
50
60
80
100
100
A
25.43
[1.001]
31.78
[1.251]
38.13
[1.501]
44.48
[1.751]
50.83
[2.001]
63.53
[2.501]
76.23
[3.001]
88.93
[3.501]
B
20.32
[0.800]
26.67
[1.050]
33.02
[1.300]
39.37
[1.550]
45.72
[1.800]
58.42
[2.300]
71.12
[2.800]
83.82
[3.300]
C
17.03
[0.670]
23.38
[0.920]
29.73
[1.170]
36.08
[1.420]
42.43
[1.670]
55.13
[2.170]
67.83
[2.670]
80.53
[3.170]
P50L Series
Socket with Flanges and Retention Clips
D
15.43
[0.607]
21.78
[0.857]
28.13
[1.107]
34.48
[1.357]
40.83
[1.607]
53.53
[2.107]
66.23
[2.607]
78.93
[3.107]
E
11.43
[0.450]
17.78
[0.700]
24.13
[0.950]
30.48
[1.200]
36.83
[1.450]
49.53
[1.950]
62.23
[2.450]
74.93
[2.950]
Type
A
B
D
F
3.50
[0.138]
4.50
[0.177]
6.50
[0.256]
G
5.40
[0.213]
6.40
[0.252]
NA
NA
Note:
Plugs/Sockets with flanges and retention clips are not interchangeable
with plugs/sockets without flanges and retention clips
Ordering Information
P5XL - XXXS - X - DA
(RIA E1 and C1 apply)
0 = With Flanges and Retention Clips
1 = Without Flanges and Retention Clips
A = Type A
B = Type B
D = Type D
Contact Quantity
See Table
TS-2054-B
Sheet 2 of 3
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pak 50 Low Profile Socket
.050" Vertical Stacking with and without Flanges
Product Table / Dimensions
Contact
Quantity
20
30
40
50
60
80
100
100
A
18.83
[0.741]
25.18
[0.991]
31.53
[1.241]
37.88
[1.491]
44.23
[1.741]
56.93
[2.241]
69.63
[2.741]
82.33
[3.241]
B
17.03
[0.670]
23.38
[0.920]
29.73
[1.170]
36.08
[1.420]
42.43
[1.670]
55.13
[2.170]
67.83
[2.670]
80.53
[3.170]
C
14.53
[0.572]
20.88
[0.822]
27.23
[1.072]
33.58
[1.322]
39.93
[1.572]
52.63
[2.072]
65.33
[2.572]
78.03
[3.072]
P50L Series
Socket without Flanges and Retention Clips
D
13.43
[0.529]
19.78
[0.779]
26.13
[1.029]
32.48
[1.279]
38.83
[1.529]
51.53
[2.029]
64.23
[2.529]
76.93
[3.029]
E
11.43
[0.450]
17.78
[0.700]
24.13
[0.950]
30.48
[1.200]
36.83
[1.450]
49.53
[1.950]
62.23
[2.450]
74.93
[2.950]
Type
A
B
F
5.40
[0.213]
6.40
[0.252]
TS-2054-B
Sheet 3 of 3
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order
shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase.
3M MAKES NO OTHER WARRANTIES
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the
warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except
where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of
