Series 209/210
Data Sheet
Electrocomponents
®
Through Hole DIP Switch
AUTO-DIP
®
Switch
Automatically
Insertable, Wave
Solderable, Board
Washable DIP Switch
Features
Optimized Mechanical Features
• Fully sealed to withstand insertion shock,
wave solder temperatures, and board washing
• Positive detent separated from contactor
• Compatible with Amistar, DynaPert,
Universal, NETCO assembly and other machines
Optimized Contact System
• Redundant, wiping contact
• Contactor does not deflect during actuation
• Available low profile, medium and extended height
actuator
Materials
• Series 209 - gold plated beryllium copper contacts
• Series 210 - gold flash plated beryllium copper contacts
• High temperature materials (UL94V-0)
• RoHS compliant
Series 209 – Premium AUTO-DIP Switches
Series 210 – Economical AUTO-DIP Switches
Switch Function
SPST- 2 through 10 and 12 positions
Switch Contact Resistance
Switch Series
209
210
Initial, max.
25 milliohms
100 milliohms
Electrical and Mechanical Specifications
Allowable Solder Time
Up to 5 seconds at 260°C
Vibration
Per MIL-STD-202F, method 204D, condition B
(.06" or 15 G’s between 10 HZ to 2K HZ) with no
contact inconsistencies greater than 1 microsecond.
Shock
Per MIL-STD-202F, method 213B, condition A
(50 G’s) with no contact inconsistencies greater
than 1 microsecond.
Sealing
Standard bottom seal
Optional top tape seal
Operating Temperature
–40°C to +85°C
Packaging
Standard : Anti-Static tube packaging
End of life, max.
50 millohms
500 millohms
Insulation Resistance
1,000 megohms minimum between
insulated terminals
Dielectric Strength
500 VDC for 1 minute between adjacent
switches
Nonswitching Rating
100 mA or 50 VDC maximum
Switch Capacitance
5 pF maximum between adjacent closed switches
Actuation Life
Series 209: 2,000 cycles switching @ 100 mA,
20 VDC or @ .1 mA, 5 VDC (dry circuit)
Series 210: 1,000 cycles switching @ 100 mA,
20 VDC or @ .1 mA, 5 VDC (dry circuit)
1-2
CTS Electrocomponents
© 2008 CTS Corporation. All rights reserved. Information subject to change.
12/30/08
www.ctscorp.com
CTS AUTO-DIP
®

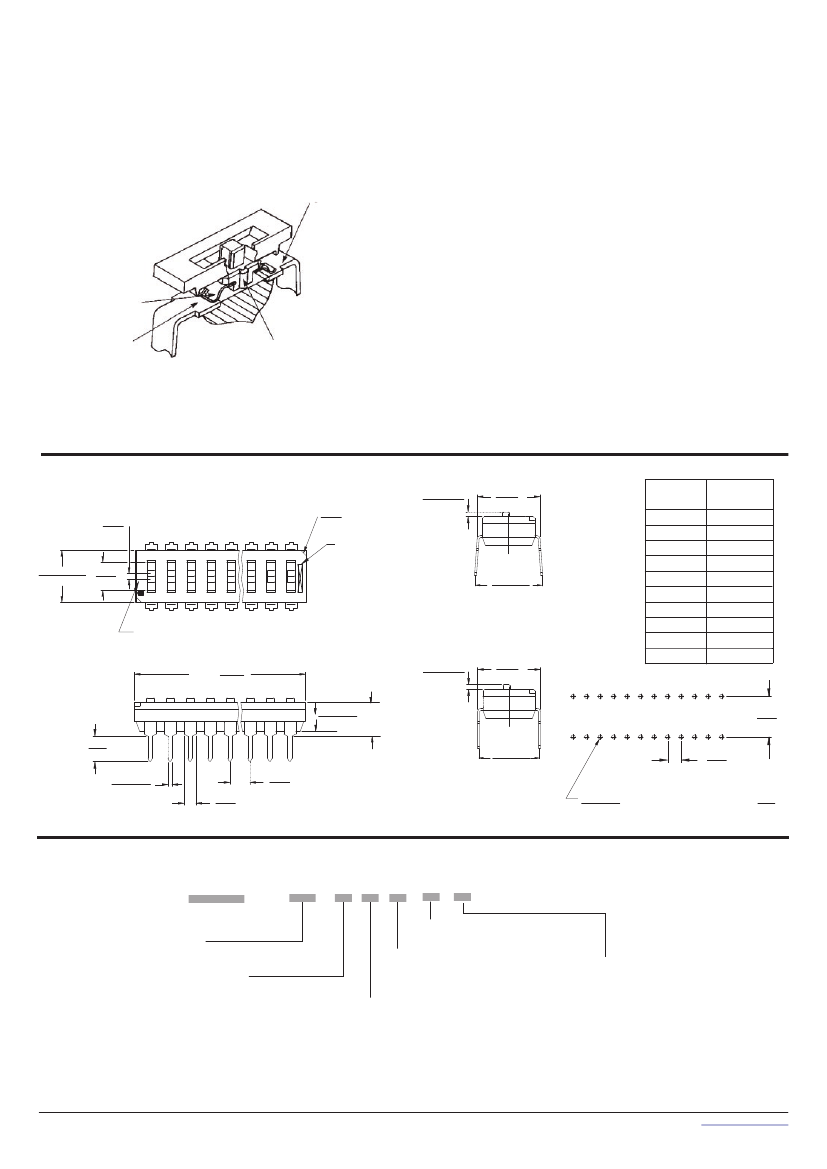

SERIES CONTACT FEATURES
1. Value of Redundant (Bifurcated)
Contacts:
Redundancy
dramatically reduces the probability of
contact failure, IMPROVING
RELIABILITY.
2. Value of Wiping Contact Action:
Clean
contact area, IMPROVING RELIABILITY.
1. Redundant
(bifurcated)
cross radial
contactor
3. Contactor does not
deflect during actuation
4. Detent separate
from contactor
2. Wiping contact action
3. Value of Contactor Not Deflecting
During Actuation :
Constant contact
pressure eliminates overstressing
contacts, IMPROVING RELIABILITY.
4. Value of Detent Separate from
Contactor:
Separate detent allows
optimization of nondeflecting contactor
and detent designs, IMPROVING
RELIABILITY.
TRAVEL
0.70
.028
ON
CTS
1.0
.039
0.25
.010
X45° CHAMFER (2)
DATE CODE
+0.15
-0.00
+.005
-.000
8.00
.315
"A"
OVERALL
DIMENSION
6.55/.258
9.09/.358
11.63/.458
14.17/.558
NO. OF
SWITCH
POSITIONS
2
3
4
5
6
7
8
9
10
12
6.70±0.25
.264±.010
3.62
.143
209
1
2
3
4
5
10
11
12
+0.64
8.25
-0.38
.325
+.025
-.015
16.71/.658
19.25/.758
21.79/.858
24.33/.958
26.87/1.058
AUTO INSERTABLE TERMINAL
SERIES DESIGNATION(209, 210)
"A"
±0.30
±.012
+0.05
0.25
.010
+0.15
-0.00
+.005
-.000
8.00
.315
31.95/1.258
3.80
-0.10
.150
+.002
-.004
3.2
.126
0.55±0.08
.022±.003
2.54
.100
TYP.
4.58 max
7.62
.300
TYP.
7.62
-0.38
.300
+.025
-.015
STRAIGHT TERMINAL
Ø 0.8 TYP.
+0.64
2.54
.100
TYP.
mm
inch
TYP.
1.50
.059
TYP.
DIMENSION:
Ordering Information
209/210
XX:
NO. OF POSITION
E:
EXTENDED HEIGHT ACTUATOR(0.6mm/.024”)
M:
MEDIUM ACTUATOR(0.25mm/.010”)
LP:
LOW PROFILE (Flush)
–
12
M S
T
F
D
BLANK :
SHIP AT ON POSITION
F :
SHIP AT OFF POSITION
BLANK :
NO TOP TAPE SEAL
*
T:
TOP TAPE SEAL
*
Not available on Extended
actuator
S:
BOTTOM SEAL
BLANK :
AUTO-INSERTABLE TERMINAL
D :
STRAIGHT TERMINAL
2-2
CTS Electronic Components
© 2008 CTS Corporation. All rights reserved. Information subject to change.
www.ctscorp.com
12/30/08
