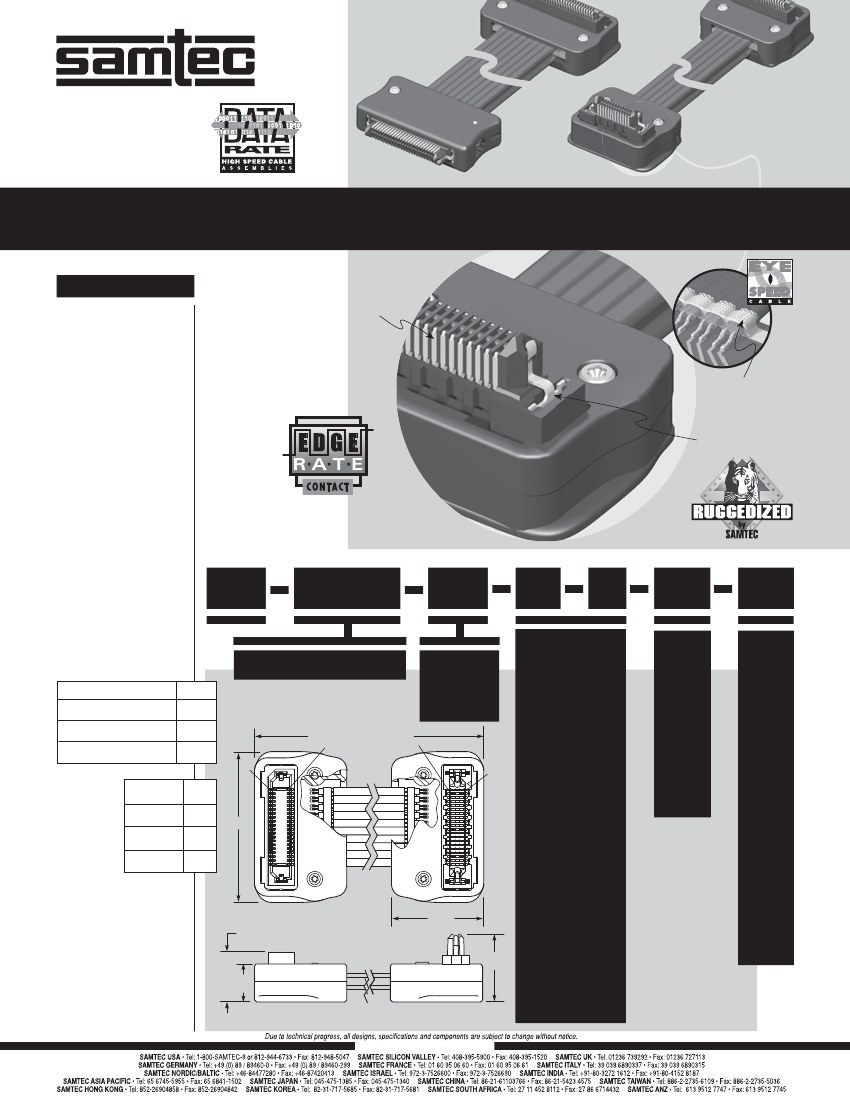

F-209 SUPPLEMENT
ERDP–025–06.00–TEU–TTR–1–L
ERDP–015–06.00–TTR–STR–2–L
0,80
mm
EDGE RATE ASSEMBLY
SPECIFICATIONS
i
For complete specifications and
recommended PCB layouts see
www.samtec.com?ERDP
Cable:
30 AWG Eye Speed™ MS
twinax ribbon cable
Signal Routing:
100Ω Single-Ended
Plating:
Au over 50µ" (1,27µm) Ni
Operating Temp Range:
-55°C to +125°C
RoHS Compliant:
Yes
ERDP
SERIES
™
Mates with:
ERF8, ERM8
Broadside wiping
contacts reduce
unwanted
crosstalk
30 AWG
Eye Speed™ MS
twinax ribbon cable
Optional rugged
metal latching
system
(0,80mm)
.0315" pitch
ERDP
NO. POSITIONS
PER ROW
WIRE
LENGTH
END
NO. 1
END
NO. 2
WIRING
OPTION
LATCH
OPTION
–TTR
–013, –025, –049
END TO END
DV to DV
DV to Edge Mount (-TXX)
Edge Mount (-TXX)
B
(23,47)
.924
(26,69)
1.051
(29,92)
1.178
01
–“XX.XX”
= Wire Length
in Inches
(95,3mm) 03.75"
minimum
= Terminal, Top Right
–1
= Pin 1 to
Pin 1
Leave
blank for
no Latch
–TTL
= Terminal, Top Left
–2
= Pin 1 to
Pin 2
–L
= End
No. 1
Latch
option
–TBR
= Terminal, Bottom
Right
OAL = Wire Length +
B
02
02
–3
= Pin 1 to
Pin N-1
–TBL
01
–R
= End
No. 2
Latch
option
= Terminal, Bottom Left
POSITIONS
PER ROW
–013
–025
–049
Note:
Cable lengths longer than
40.00" (1 meter) are not
supported with S.I. test data.
Note:
Verify part number and correct
wiring scheme with Samtec’s
Interactive Cable Builder at
www.samtec.com/cable_
builder/pitch.asp
Note:
Some lengths, styles and
options are non-standard,
non-returnable.
–4
= Pin 1 to
Pin N
A
(25,86)
1.018
(34,67)
1.365
(53,85)
2.120
–STR
= Socket, Top Right
A
–STL
= Socket, Top Left
–D
= Both
Ends
Latch
option
–SBR
= Socket, Bottom Right
(18.75)
.738
(10,19)
.401
(13,76)
.542
(7,72)
.304
–SBL
= Socket, Bottom Left
–N
= No Caps
(Both ends
have
Latch
option)
–TEU
= Terminal,
Edge Mount Up
–TED
END NO.1
(–STL SHOWN)
END NO.2
(–TTR SHOWN)
= Terminal,
Edge Mount Down
