BD2220G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> BD2220G

BD2220G: DescriptionUSB High side switch IC; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size152KB，5 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

BD2220G Overview

USB High side switch IC

BD2220G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SSOP
package instruction	LSSOP,
Contacts	5
Reach Compliance Code	compli
ECCN code	EAR99
Built-in protection	OVER CURRENT; THERMAL; UNDER VOLTAGE
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PDSO-G5
JESD-609 code	e2
length	2.9 mm
Number of functions	1
Number of terminals	5
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output current flow direction	SINK
Nominal output peak current	0.35 A
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.25 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	2.7 V
Nominal supply voltage	5 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal surface	Tin/Copper (Sn/Cu)
Terminal form	GULL WING
Terminal pitch	0.95 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Disconnect time	40 µs
connection time	10000 µs
width	1.6 mm

Preview

Download Datasheet

View All

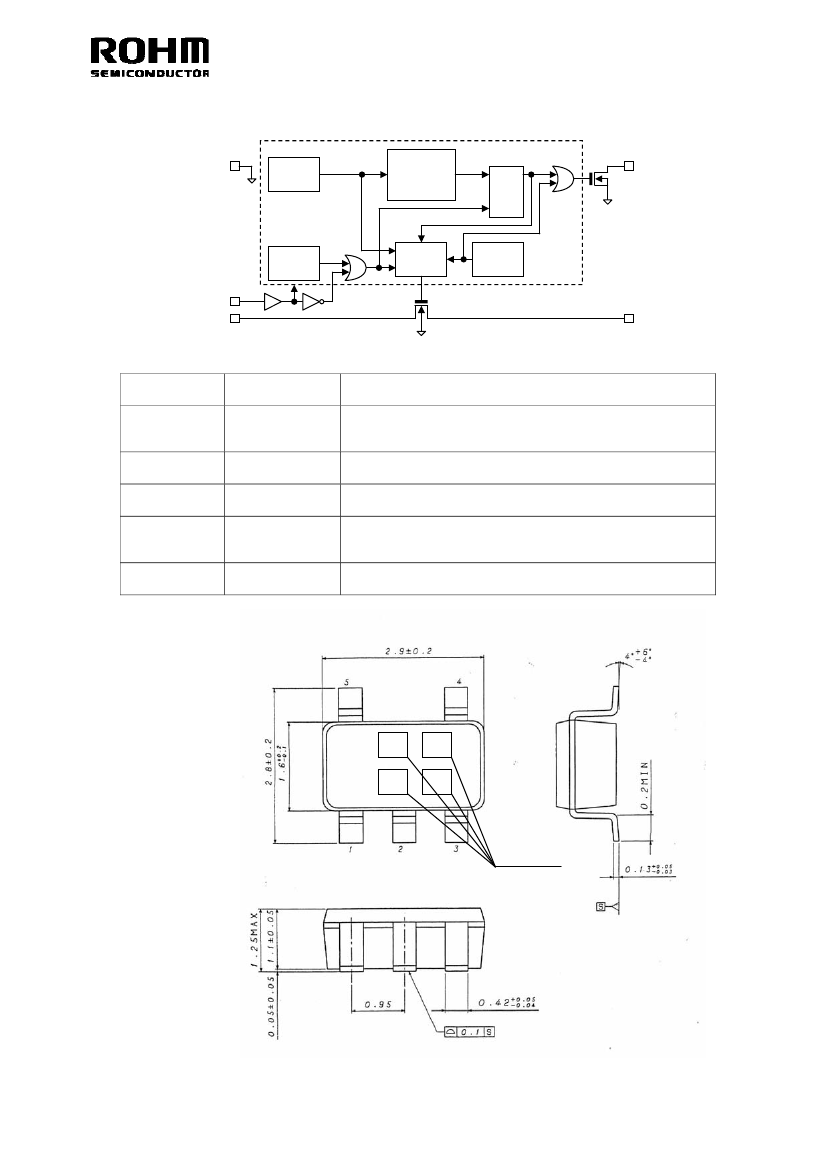

1/4

Structure

Products

Type

Features

Silicon Monolithic

USB High side switch IC

BD2220G

Single channel of low ON resistance (Typ = 160mΩ) Nch power MOSFET built in

500mA Continuous current load

Over current detection

（Output

off-latch operation）

Under voltage lockout (UVLO)

Thermal shutdown (TSD)

Soft start function

Open drain error flag output

Active “High” control logic

Reverse-current protection when power switch off

SSOP5 Package

◇Absolute

maximum ratings (Ta=25°C)

Parameter

Supply voltage

Enable voltage

/OC voltage

/OC current

OUT voltage

Storage temperature

Power dissipation

Symbol

/OC

OUT

STG

Rating

-0.3 ~ 6.0

-55 ~ 150

675

Unit

°C

*1 Mounted on 70mm * 70mm * 1.6mm grass-epoxy PCB. Derating : 5.4mW / °C for operating above Ta=25°C.

* This product is not designed for protection against radioactive rays.

◇Operating

conditions

Parameter

Operating voltage

Operating temperature

Continuous output current

Symbol

OPR

OUT

MIN

2.7

-40

TYP

5.0

MAX

5.5

500

Unit

°C

REV. A

4/4

●Cautions

on use

(1) Absolute Maximum Ratings

An excess in the absolute maximum ratings, such as supply voltage, temperature range of operating conditions, etc.,

can break down devices, thus making impossible to identify breaking mode such as a short circuit or an open circuit. If

any special mode exceeding the absolute maximum ratings is assumed, consideration should be given to take physical

safety measures including the use of fuses, etc.

(2) Power supply and GND line

Design PCB pattern to provide low impedance for the wiring between the power supply and the GND lines. Pay

attention to the interference by common impedance of layout pattern when there are plural power supplies and

GND lines. Especially, when there are GND pattern for small signal and GND pattern for large current included the

external circuits, separate each GND pattern. Furthermore, for all power supply terminals to ICs, mount a capacitor

between the power supply and the GND terminal. At the same time, in order to use a capacitor, thoroughly check to be

sure the characteristics of the capacitor to be used present no problem including the occurrence of capacity dropout at a

low temperature, thus determining the constant.

(3) GND voltage

Make setting of the potential of the GND terminal so that it will be maintained at the minimum in any operating state.

Furthermore, check to be sure no terminals are at a potential lower than the GND voltage including an actual

electric transient.

(4) Short circuit between terminals and erroneous mounting

In order to mount ICs on a set PCB, pay thorough attention to the direction and offset of the ICs. Erroneous

mounting can break down the ICs. Furthermore, if a short circuit occurs due to foreign matters entering between

terminals or between the terminal and the power supply or the GND terminal, the ICs can break down.

(5) Operation in strong electromagnetic field

Be noted that using ICs in the strong electromagnetic field can malfunction them.

(6) Input terminals

In terms of the construction of IC, parasitic elements are inevitably formed in relation to potential. The operation of

the parasitic element can cause interference with circuit operation, thus resulting in a malfunction and then

breakdown of the input terminal. Therefore, pay thorough attention not to handle the input terminals, such as to

apply to the input terminals a voltage lower than the GND respectively, so that any parasitic element will operate.

Furthermore, do not apply a voltage to the input terminals when no power supply voltage is applied to the IC. In

addition, even if the power supply voltage is applied, apply to the input terminals a voltage lower than the power

supply voltage or within the guaranteed value of electrical characteristics.

(7) External capacitor

In order to use a ceramic capacitor as the external capacitor, determine the constant with consideration given to a

degradation in the nominal capacitance due to DC bias and changes in the capacitance due to temperature, etc.

(8) Thermal shutdown circuit (TSD)

When junction temperatures become 170°C (typ) or higher, the thermal shutdown circuit operates and turns a

switch OFF. The thermal shutdown circuit, which is aimed at isolating the LSI from thermal runaway as much as

possible, is not aimed at the protection or guarantee of the LSI. Therefore, do not continuously use the LSI with this

circuit operating or use the LSI assuming its operation.

(9) Thermal design

Perform thermal design in which there are adequate margins by taking into account the power dissipation (Pd) in

actual states of use.

REV. A

Notice

Notes

No copying or reproduction of this document, in part or in whole, is permitted without the

consent of ROHM Co.,Ltd.

The content specified herein is subject to change for improvement without notice.

The content specified herein is for the purpose of introducing ROHM's products (hereinafter

"Products"). If you wish to use any such Product, please be sure to refer to the specifications,

which can be obtained from ROHM upon request.

Examples of application circuits, circuit constants and any other information contained herein

illustrate the standard usage and operations of the Products. The peripheral conditions must

be taken into account when designing circuits for mass production.

Great care was taken in ensuring the accuracy of the information specified in this document.

However, should you incur any damage arising from any inaccuracy or misprint of such

information, ROHM shall bear no responsibility for such damage.

The technical information specified herein is intended only to show the typical functions of and

examples of application circuits for the Products. ROHM does not grant you, explicitly or

implicitly, any license to use or exercise intellectual property or other rights held by ROHM and

other parties. ROHM shall bear no responsibility whatsoever for any dispute arising from the

use of such technical information.

The Products specified in this document are intended to be used with general-use electronic

equipment or devices (such as audio visual equipment, office-automation equipment, commu-

nication devices, electronic appliances and amusement devices).

The Products specified in this document are not designed to be radiation tolerant.

While ROHM always makes efforts to enhance the quality and reliability of its Products, a

Product may fail or malfunction for a variety of reasons.

Please be sure to implement in your equipment using the Products safety measures to guard

against the possibility of physical injury, fire or any other damage caused in the event of the

failure of any Product, such as derating, redundancy, fire control and fail-safe designs. ROHM

shall bear no responsibility whatsoever for your use of any Product outside of the prescribed

scope or not in accordance with the instruction manual.

The Products are not designed or manufactured to be used with any equipment, device or

system which requires an extremely high level of reliability the failure or malfunction of which

may result in a direct threat to human life or create a risk of human injury (such as a medical

instrument, transportation equipment, aerospace machinery, nuclear-reactor controller,

fuel-controller or other safety device). ROHM shall bear no responsibility in any way for use of

any of the Products for the above special purposes. If a Product is intended to be used for any

such special purpose, please contact a ROHM sales representative before purchasing.

If you intend to export or ship overseas any Product or technology specified herein that may

be controlled under the Foreign Exchange and the Foreign Trade Law, you will be required to

obtain a license or permit under the Law.

Thank you for your accessing to ROHM product informations.

More detail product informations and catalogs are available, please contact us.

ROHM Customer Support System

http://www.rohm.com/contact/

www.rohm.com

R0039A
