BYV26AAMP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BYV26AAMP

BYV26AAMP: DescriptionRectifier Diode, Avalanche, 1 Element, 1A, 200V V(RRM), Silicon, DO-204AL, DO-41, 2 PIN; CategoryDiscrete semiconductor diode; File Size85KB，2 Pages; ManufacturerFagor Electrónica

Download Datasheet Parametric Compare View All

BYV26AAMP Overview

Rectifier Diode, Avalanche, 1 Element, 1A, 200V V(RRM), Silicon, DO-204AL, DO-41, 2 PIN

BYV26AAMP Parametric

Parameter Name	Attribute value
Maker	Fagor Electrónica
package instruction	O-PALF-W2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	FREE WHEELING DIODE, LOW POWER LOSS
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-204AL
JESD-30 code	O-PALF-W2
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Guideline	AEC-Q101
Maximum repetitive peak reverse voltage	200 V
Maximum reverse recovery time	0.03 µs
surface mount	NO
technology	AVALANCHE
Terminal form	WIRE
Terminal location	AXIAL

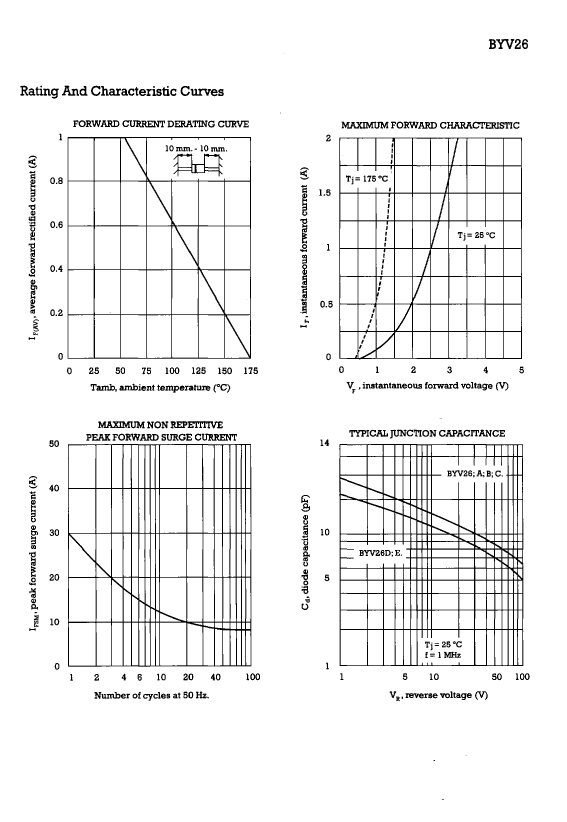

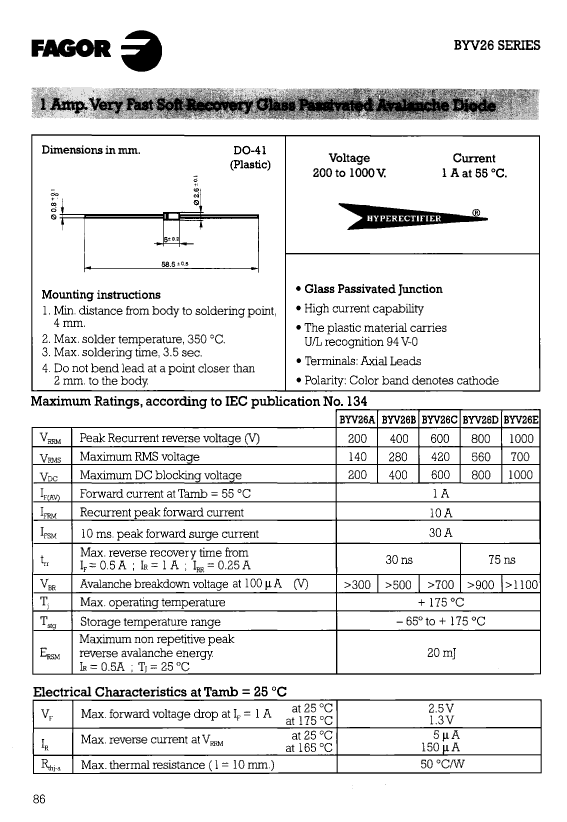

Preview

Download Datasheet

View All

BYV26AAMP Related Products

	BYV26AAMP	BYV26DTR	BYV26ETR	BYV26BTR	BYV26ATR	BYV26BAMP	BYV26CTR	BYV26DAMP	BYV26EAMP	BYV26CAMP
Description	Rectifier Diode, Avalanche, 1 Element, 1A, 200V V(RRM), Silicon, DO-204AL, DO-41, 2 PIN	Rectifier Diode, Avalanche, 1 Element, 1A, 800V V(RRM), Silicon, DO-204AL, DO-41, 2 PIN	Rectifier Diode, Avalanche, 1 Element, 1A, 1000V V(RRM), Silicon, PLASTIC PACKAGE-2	Rectifier Diode, Avalanche, 1 Element, 1A, 400V V(RRM), Silicon, DO-204AL, DO-41, 2 PIN	Rectifier Diode, Avalanche, 1 Element, 1A, 200V V(RRM), Silicon, DO-204AL, DO-41, 2 PIN	Rectifier Diode, Avalanche, 1 Element, 1A, 400V V(RRM), Silicon, DO-204AL, DO-41, 2 PIN	Rectifier Diode, Avalanche, 1 Element, 1A, 600V V(RRM), Silicon, DO-204AL, DO-41, 2 PIN	Rectifier Diode, Avalanche, 1 Element, 1A, 800V V(RRM), Silicon, DO-204AL, DO-41, 2 PIN	Rectifier Diode, Avalanche, 1 Element, 1A, 1000V V(RRM), Silicon, PLASTIC PACKAGE-2	Rectifier Diode, Avalanche, 1 Element, 1A, 600V V(RRM), Silicon, DO-204AL, DO-41, 2 PIN
Maker	Fagor Electrónica	Fagor Electrónica	Fagor Electrónica	Fagor Electrónica	Fagor Electrónica	Fagor Electrónica	Fagor Electrónica	Fagor Electrónica	Fagor Electrónica	Fagor Electrónica
package instruction	O-PALF-W2	DO-41, 2 PIN	PLASTIC PACKAGE-2	O-PALF-W2	DO-41, 2 PIN	DO-41, 2 PIN	O-PALF-W2	O-PALF-W2	PLASTIC PACKAGE-2	DO-41, 2 PIN
Contacts	2	2	2	2	2	2	2	2	2	2
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Number of components	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Maximum output current	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	200 V	800 V	1000 V	400 V	200 V	400 V	600 V	800 V	1000 V	600 V
Maximum reverse recovery time	0.03 µs	0.075 µs	0.075 µs	0.03 µs	0.03 µs	0.03 µs	0.03 µs	0.075 µs	0.075 µs	0.03 µs
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Other features	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS	-	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS	-	FREE WHEELING DIODE, LOW POWER LOSS
JEDEC-95 code	DO-204AL	DO-204AL	-	DO-204AL	DO-204AL	DO-204AL	DO-204AL	DO-204AL	-	DO-204AL
Minimum operating temperature	-65 °C	-65 °C	-	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-	-65 °C
Guideline	AEC-Q101	AEC-Q101	-	AEC-Q101	AEC-Q101	AEC-Q101	AEC-Q101	AEC-Q101	-	AEC-Q101
