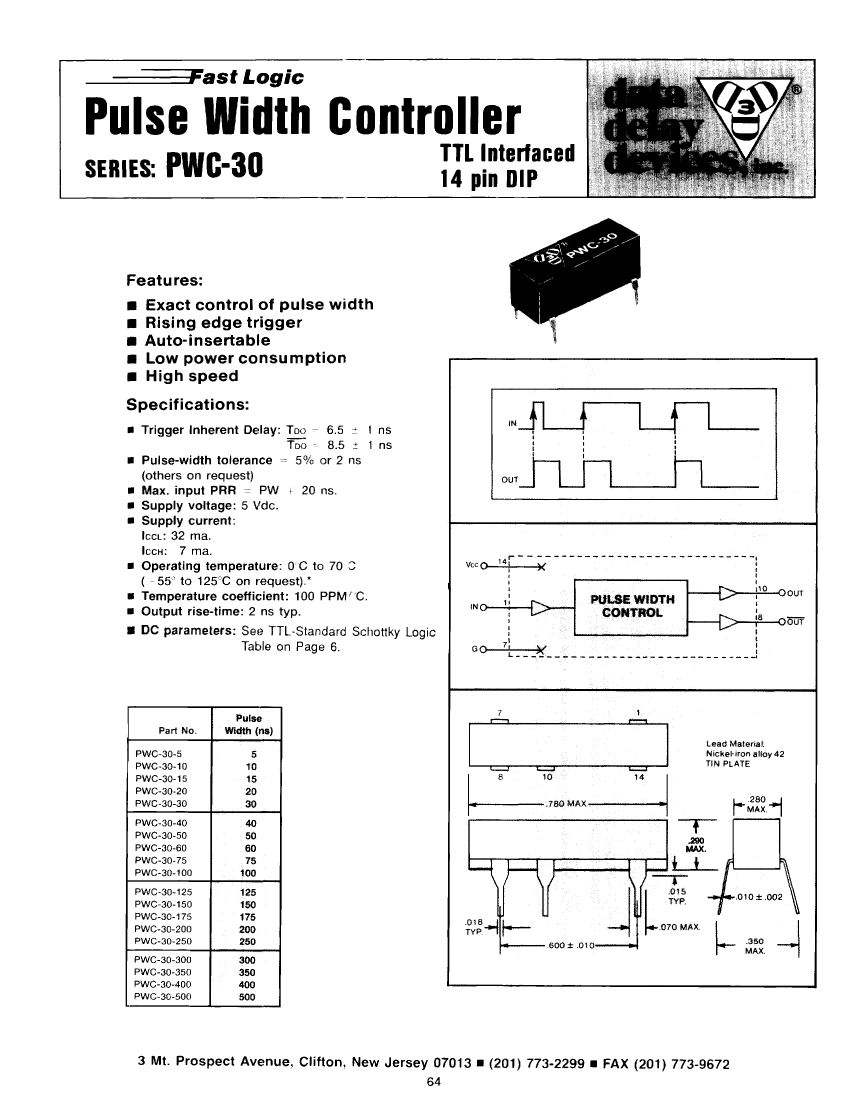

PWC-30-60ME5 datasheet, PDF - EEWORLD Datasheet

PWC-30-60ME5: DescriptionPulse Generator Delay Line, 1-Func, 1-Tap, Complementary Output, TTL, DIP-14; Categorylogic logic; File Size80KB，1 Pages; ManufacturerData Delay Devices; Environmental Compliance

Download Datasheet Parametric View All

PWC-30-60ME5 Overview

Pulse Generator Delay Line, 1-Func, 1-Tap, Complementary Output, TTL, DIP-14

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Data Delay Devices
Parts packaging code	DIP
package instruction	DIP-14
Contacts	14
Reach Compliance Code	compliant
Other features	TRIGGER INHERENT DELAY = 6.5+-1NS; OUTPUT PULSE WIDTH TOL. = 2NS OR 5%; MEETS MIL-D-23859
series	F
Input frequency maximum value (fmax)	12.5 MHz
JESD-30 code	R-XDIP-T14
JESD-609 code	e3
Logic integrated circuit type	PULSE GENERATOR DELAY LINE
Number of functions	1
Number of taps/steps	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	COMPLEMENTARY
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum supply current (ICC)	32 mA
programmable delay line	NO
Certification status	Not Qualified
Maximum seat height	8.255 mm
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	TIN
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
